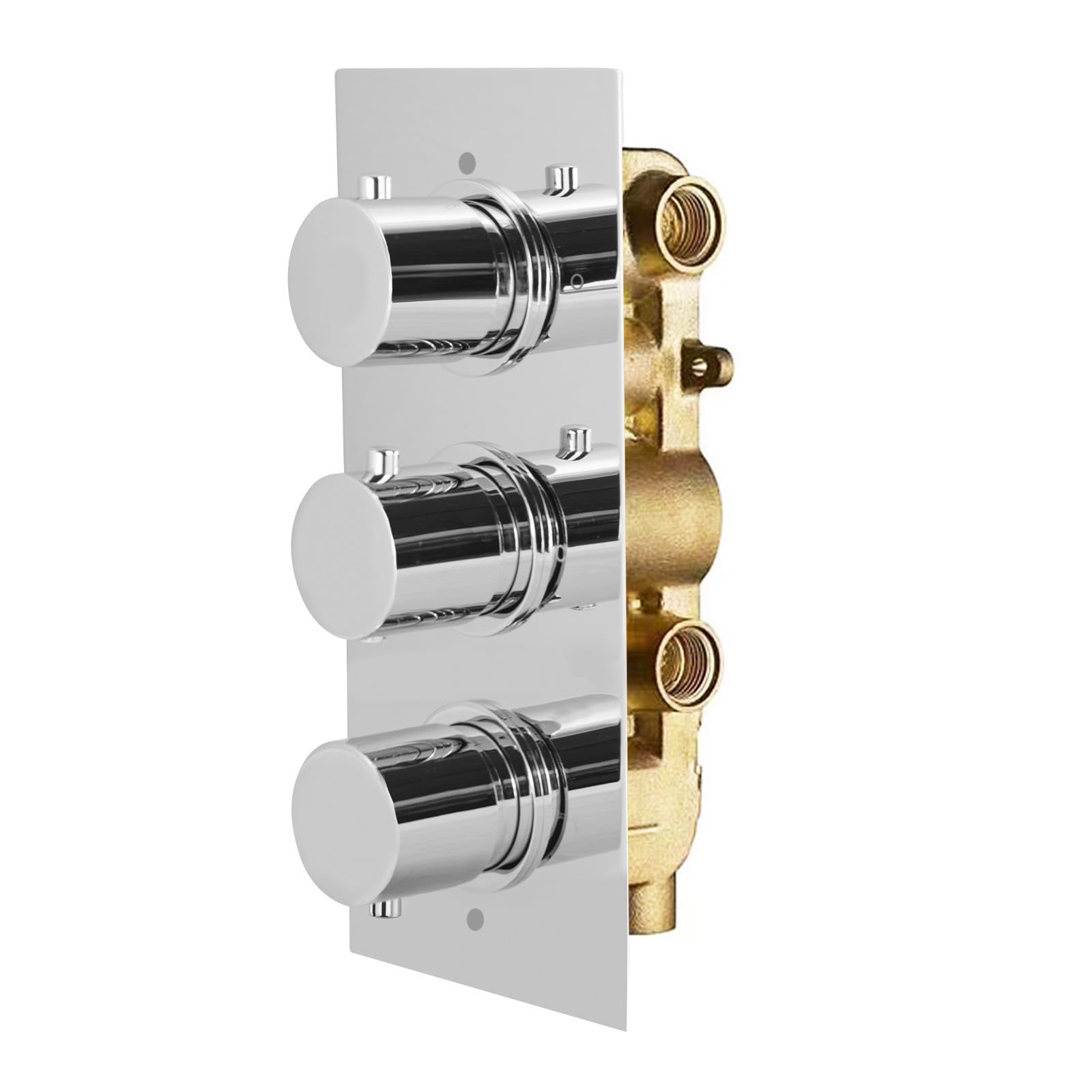

Wilden 3 Dial 3 Outlet Concealed Thermostatic Shower Round Valve

• Top Dial - Controls water to 1 outlet diverter, Middle Dial - Temperature Control, Bottom Dial - Controls water to 2 outlet diverters
• High Quality Design
• Chrome Finish
• Thermostatically controlled

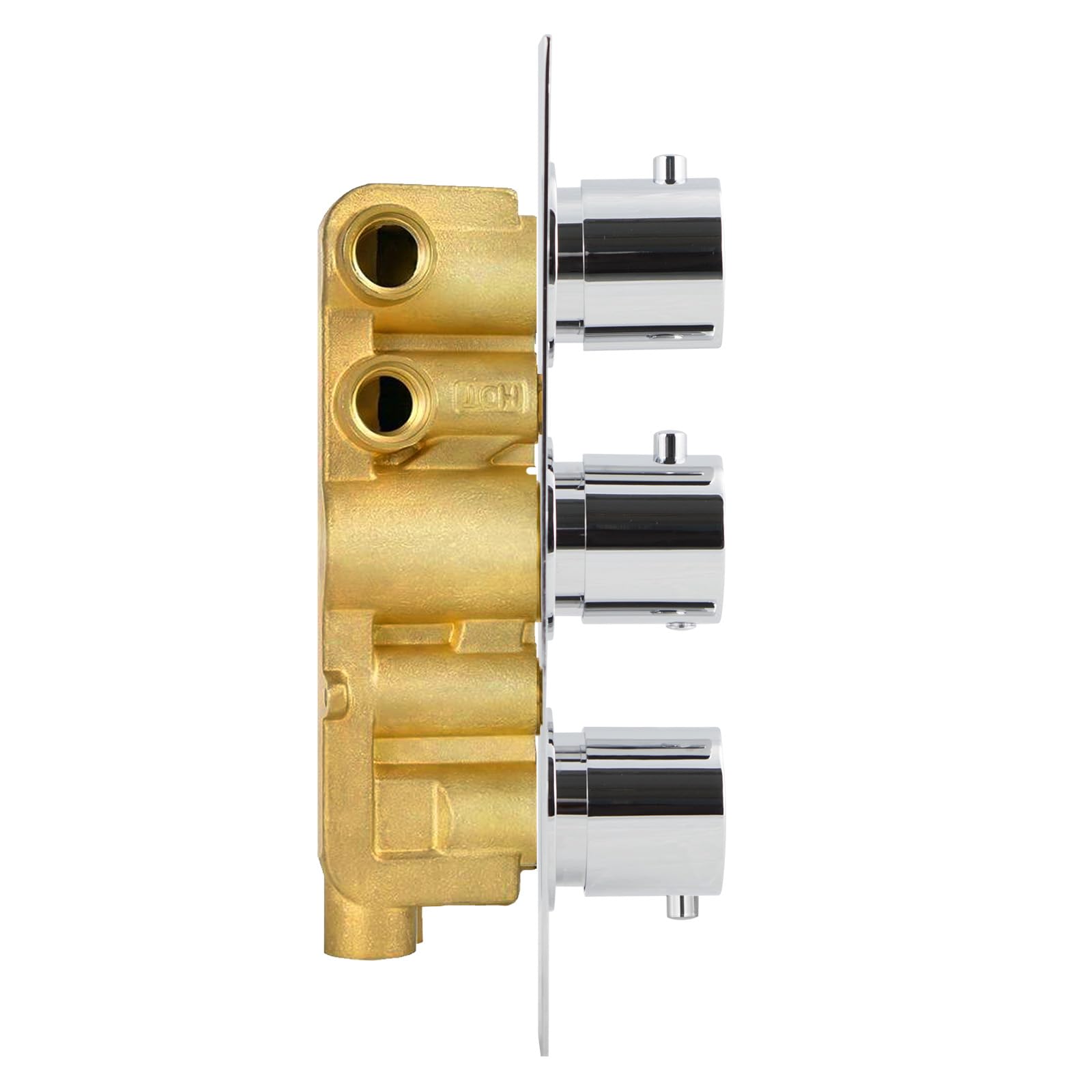

• Manufactured from highly durable brass

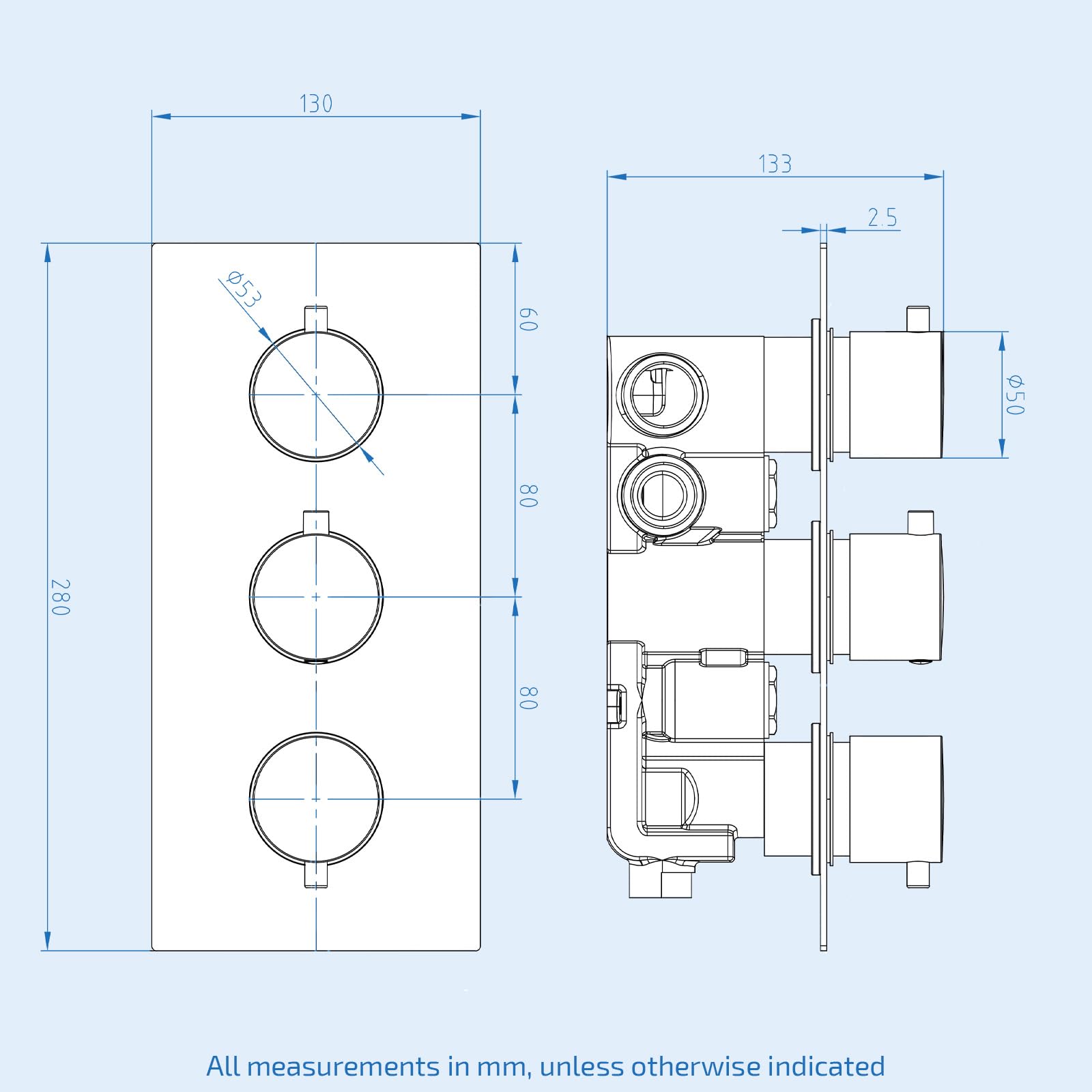

Specifications Material Brass Body Finish Chrome plated to BS EN 248 Fitting Inlet: 3/4" Outlet: One 1/2" and two 3/4" Water Pressure Min.0.5 bar, Max. 7.0 bar Cartridge Thermostatic Guarantee 10 years 3 Dial Concealed Thermostatic Valve Top Dial - Controls water to 1 outlet diverter Middle Dial - Temperature Control Bottom Dial - Controls water to 2 outlet diverters High Quality Design Chrome Finish Thermostatically controlled Manufactured from highly durable brass Operating range 20 - 50 deg C with 38 deg C safety button Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism Chosen temperature maintained to within +/-1�C Pre-set maximum temperature Automatic shut off in event of water cold supply failure UK standard size fitting Flow Rates (Litres per minute) 0.2 Bar - 7.5 0.5 Bar - 10.7 1.0 Bar - 15.0 1.5 Bar - 18.5 2.0 Bar - 21.5 3.0 Bar - 27.0 Suitable for the following water systems Combi-boilers Gravity Fed systems MegaFlow Systems Pumped systems Un-vented systems Pressurised cylinder systems Subject to a minimum pressure of 0.5bar to maximum 7.0bar Package Contents Thermostatic Valve Face Plate Dials x 3 Fittings Instructions
