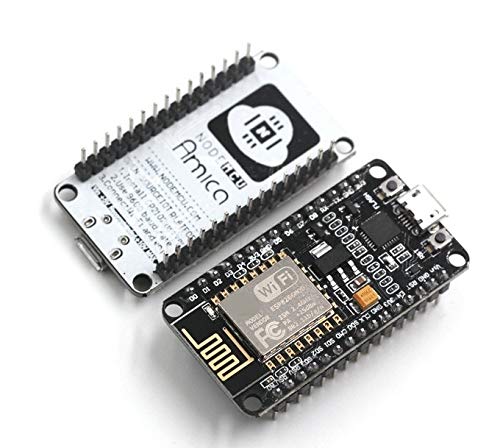

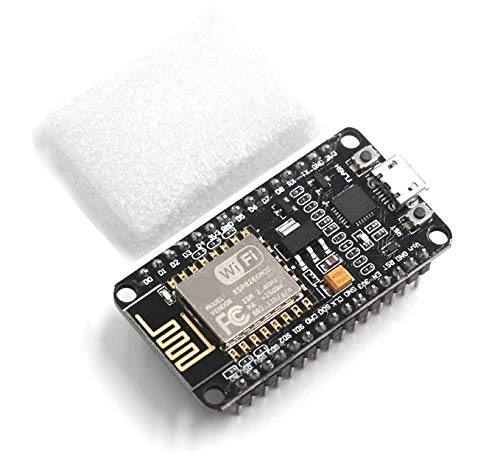

TECNOIOT WiFi Internet of Things development Board based ESP8266 CP2102

• 【NodeMcu with CP2012】 ESP8266 All IO conducts, direct downloads without repositioning, perfect development board for ESP8266. ESP8266 is a highly integrated chip designed for the needs of a new connected world.
• 【Design compact】 It offers a complete and autonomous Wi-Fi network solution, which allows it to host the application or to download all Wi-Fi network functions from another application processor.
• 【Easy operation】 ESP8266 has powerful on-board storage and processing capabilities that allow it to be integrated with application-specific sensors and devices through its GPIOs with minimum initial development and minimum load during run time.
• 【High performance】 Its high degree of chip integration Allows minimal external circuitry, and the entire solution, including the front-end module, is designed to occupy the minimum PCB area. Scope of supply: Board 1X Internet WIFI Development Based on ESP8266 ESP 12E CP2102
• 【High performance】 Its high degree of chip integration Allows minimal external circuitry, and the entire solution, including the front-end module, is designed to occupy the minimum PCB area. Scope of supply: Board 1X Internet WIFI Development Based on ESP8266 ESP 12E CP2102

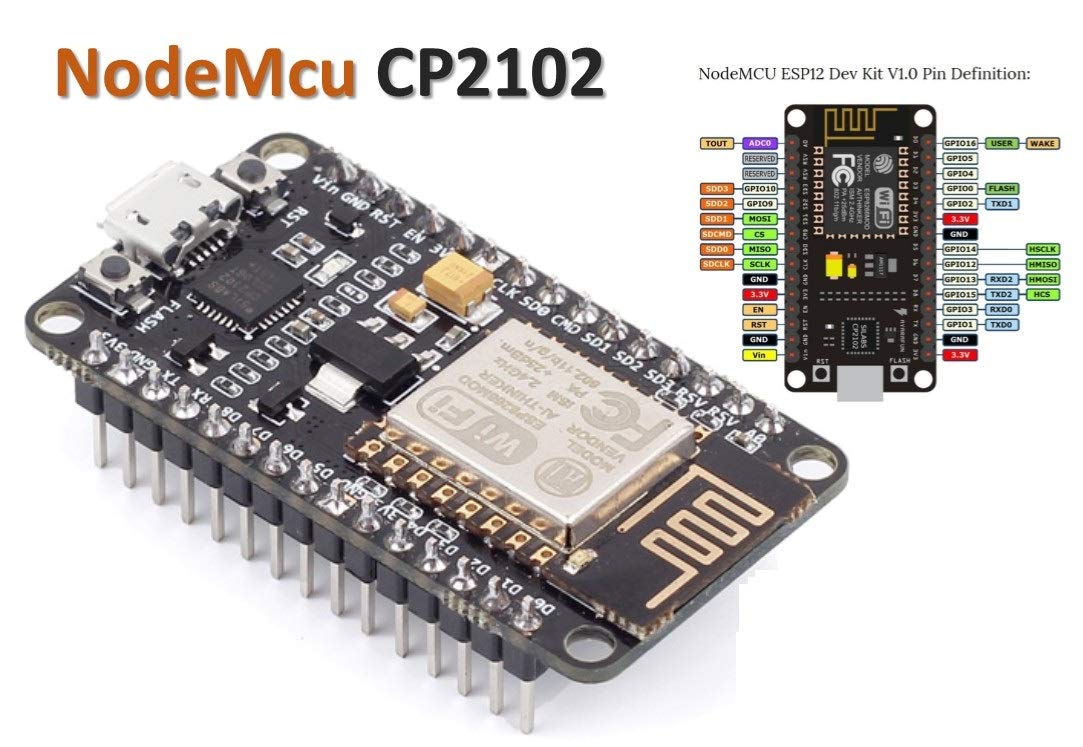

WiFi Internet of Things development Board based ESP8266 CP2102 with PCB Antenna and USB Port The NodeMcu Development Kit based on ESP8266, CP2102 integates GPIO, PWM, IIC, 1-Wire and ADC all in one board. Power your developement in the fastest way combinating with NodeMcu Firmware. Build on ESP8266 sdk Build on CP2102 USB to TTL Lua core based on eLua project cjson based on lua-cjson File system based on spiffs Easy to access wireless router Based on Lua 5.1.4 (without debug, os module.) Build-in json, file, timer, pwm, i2c, spi, 1-wire, net, mqtt, coap, gpio, wifi, adc, uart and system api. GPIO pin re-mapped, use the index to access gpio, i2c, pwm. Now supports the arduino IDE 1 with Arduino ESP8266 Uses WiFi Module – ESP-12E. USB – Power 5v and program via micro USB port CP2102 USB TTL Module Fits on a standard breadboard and gives access to a row of holes either side 10 GPIO, every GPIO can be PWM, I2C or 1-wire Headers – 2 x 2.54mm 15-pin header with access to GPIOs, SPI, UART, ADC, and power pins Misc – Reset and Flash buttons Dimensions – 49 x 24.5 x 13mm USB-TTL included, plug n play Useful Links: ESP8266 wiki: http://www.esp8266.com/wiki/doku.php Link to GitHub for the arduino IDE instructions and how to install https://github.com/esp8266/Arduino ESP8266 Community forum: http://www.esp8266.com/ ESP8266 LUA (Recomendado): http://www.esp8266.com/wiki/doku.php?id=nodemcu Software NodeMCU: https://github.com/nodemcu Driver USB: https://www.silabs.com/products/mcu/Pages/USBtoUARTBridgeVCPDrivers.aspx Instalation driver guid: https://www.youtube.com/watch?v=MT0K8dyhwq0 PACKAGE CONTAINS: WiFi Development Board Based ESP8266 CP2102
