Wiegand 26 Bit TCP/IP Network Access Controller Access Control Panel Board for 4 Door Use

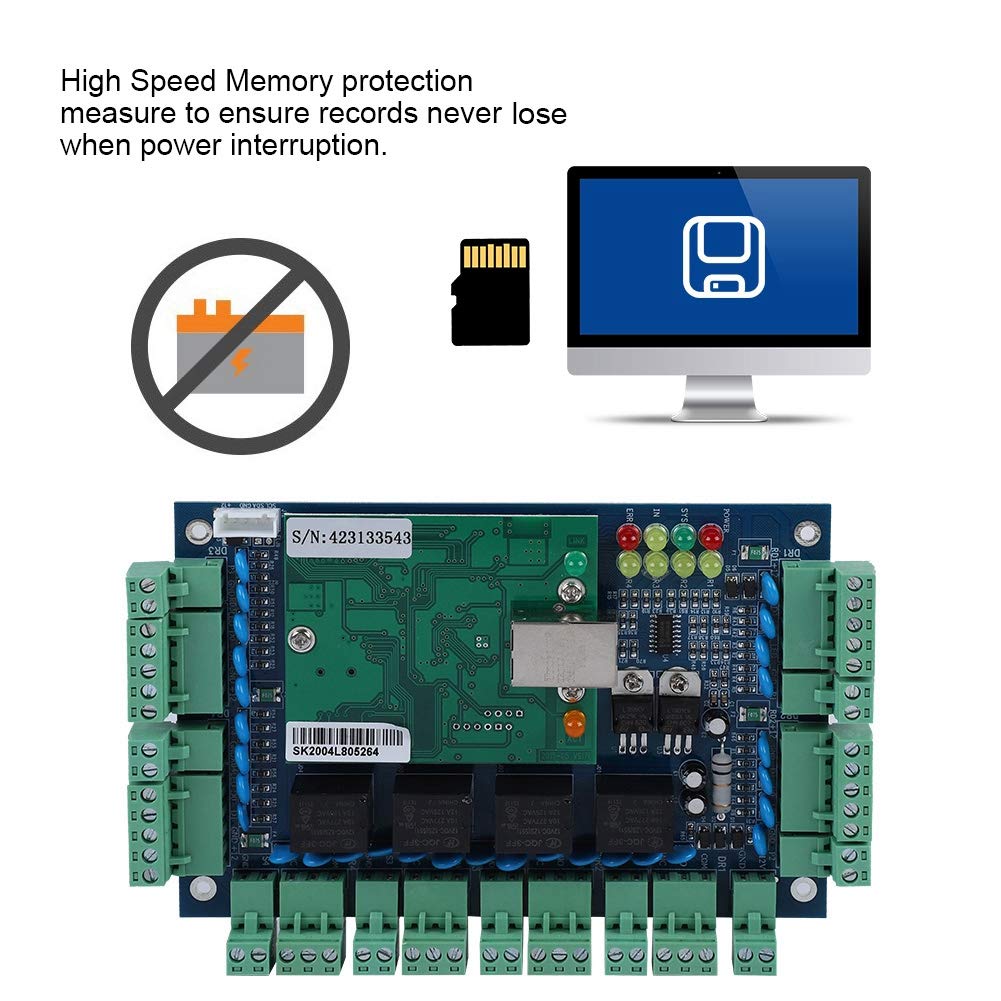

Specifications: -Communication: TCP/IP -Software Supportable Database: Access & SQL -Power Supply: Input: DC 12V, 4 ~ 7A -Power Consumption of Circuit Board: Less than 100mA -Input Format of Reader: Wiegand 26 bit (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc) -Quantity of Readers: 4 Units -Door Controlled: 4 -Door Opening Time Extending Setting: 1 ~ 600 seconds (adjustable) -Max Quantity of Controller: No Limit -Operating Temperature: -40°C ~ 70°C -Operating Humidity: 10% ~ 90% RH, No Condensation -Quantity of Users: 20,000 users -Quantity of Event Buffers (offline): 100,000 event buffers -Power Interruption Protection Measure: High speed memory, records never lose -Max Distance from Reader to Controller: 100m (suggestion distance 80m) -Max Distance between Controllers: Depends on Net Coverage Area -Complsive Open and Close Door at Long Time: Yes -Open Door in Remote Distance: Yes -Inter Block: Yes -Anti Passback and Tail: Yes -Multi-Card Open Door: Yes -Open Long Time at Specified Time: Yes -Electronic Map: Yes -Locking Urgently: Yes -First Card to Unlocking: Yes -Unlock Based on Internal and External Validation: Yes -Keypad (card + password, super password): Yes -Size: 18*11.5*2.5cm/7.0*4.5*1.0in -Package Weight: 319g/11.2oz Package List: -1 * Access Controller for Wiegand 4 Door Use -1 * Software CD -1 * User Manul
