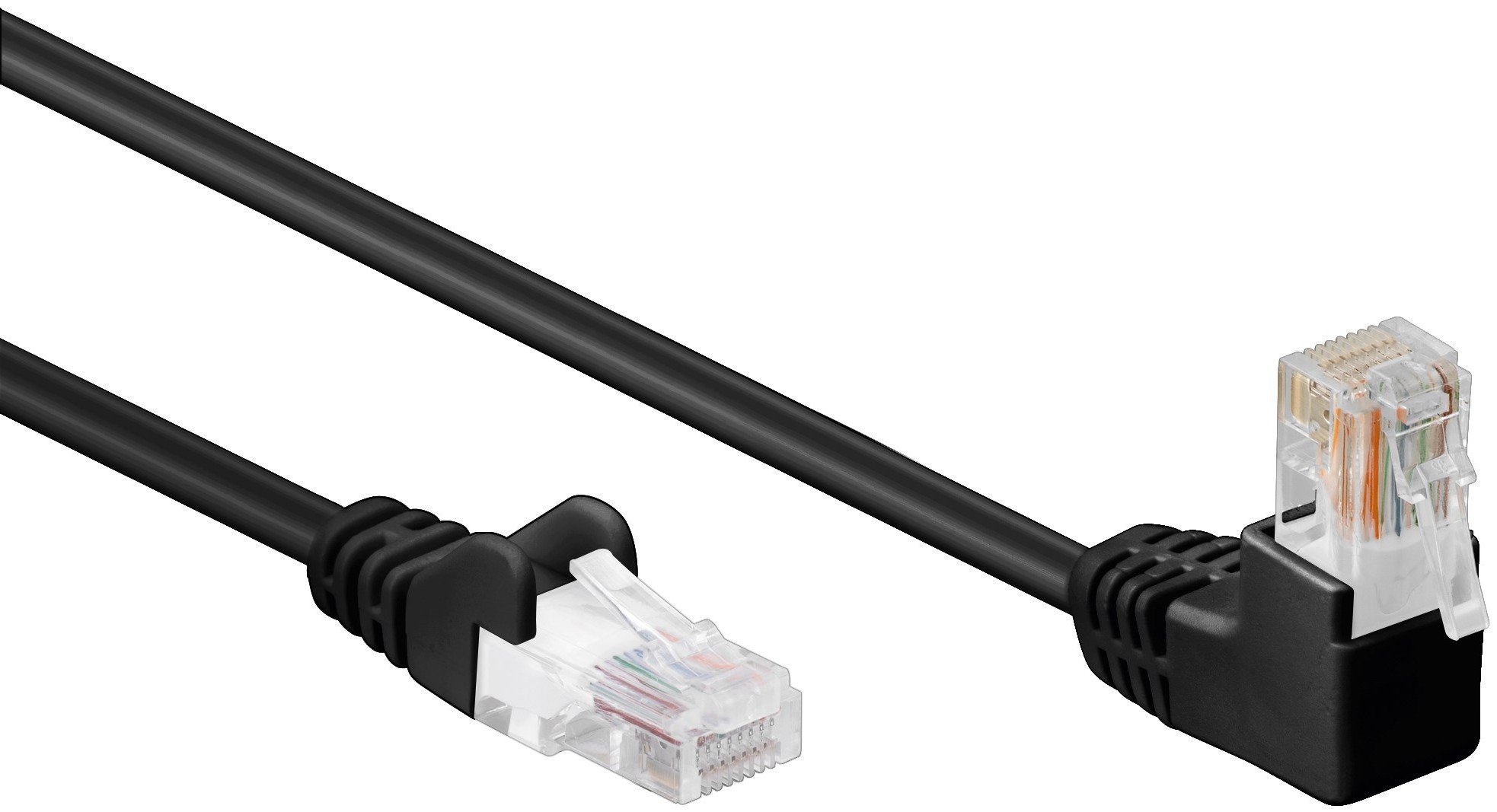

Wentronic 94175 Network Cable

• Unshielded network cable for connecting network components with 2 RJ45 connectors. This 90° LAN cable is the ideal solution for minimum space conditions.
• Gold-plated 3-pin connector for interference-free signal transmission. An additional kink protection protects the CAT 5e cable from external forces.
• The straight plug of the network cable includes a snap nose protection and a length indication. The pair sequence conforms to the EIA/TIA 568b standard.
• For 10 / 100 / 1000 Mbit gigabit networks. 250 MHz bandwidth, downward compatible up to 100 MHz.
• Connection 1 type: RJ45 90° connector (8P8C). Connection 2 type: RJ45 connector (8P8C). Connection shielding: no. AWG: 26/7 (strands). Cable diameter: 4.9 mm. Cable sheath: PVC.

CAT 5e network patch cable, 1 x 90° angled U/UTP, black, CCA. Unshielded network cable for connecting network components with 2 RJ45 connectors. Ideal solution for minimal space with gold-plated contact surfaces (pins). Pointed anti-bending nose. Latch protection and specific length on straight plug. Pair sequence according to EIA/TIA 568b. Suitable for gigabit network (10 / 100 / 1000 Mbit). Technical data: Connection 1, RJ45 (8P8C) 90° plug type; Connection 2, RJ45 (8P8C) plug type. Latch protection. Unilateral connection. Unshielded. Cable type: round cable CAT 5e. Shielding class U/UTP AWG26/7 (stranded). Cable sheath diameter: 4.9 mm. Internal conductor material: copper coated aluminium. Cable length: 10 m. PVC sheath material. Kink protection, both sides, max signal transmission. Bandwidth: 100 MHz. 1 cable in plastic bag.
