Wengart Heating System Actuator WG02, AC230V M30*1.5 Valve On and Off Status with 360 Degree LED Indication, Normaly Closed, for Underfloor Heating Thermostat, Blue

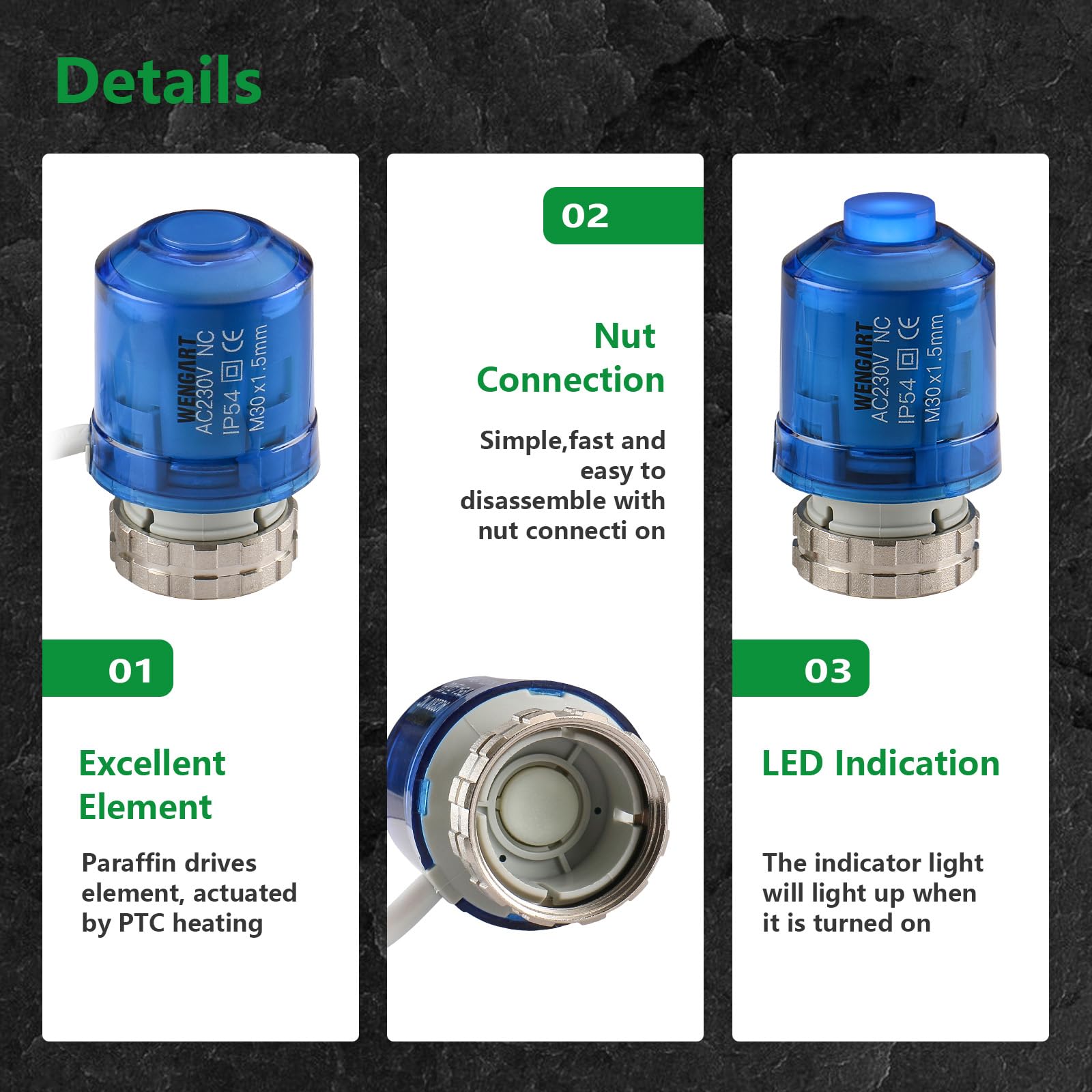

• This electric thermal actuator relies on thermal expansion and contraction, no mechanical transmission, no component wear, paraffin propulsion element, PTC heating drive, noiseless operation, maintenance-free, and long service life.
• This electrothermal actuator has a spring return function, and the valve closes after power failure. Low power consumption, suitable for almost all common heating circuit shunts

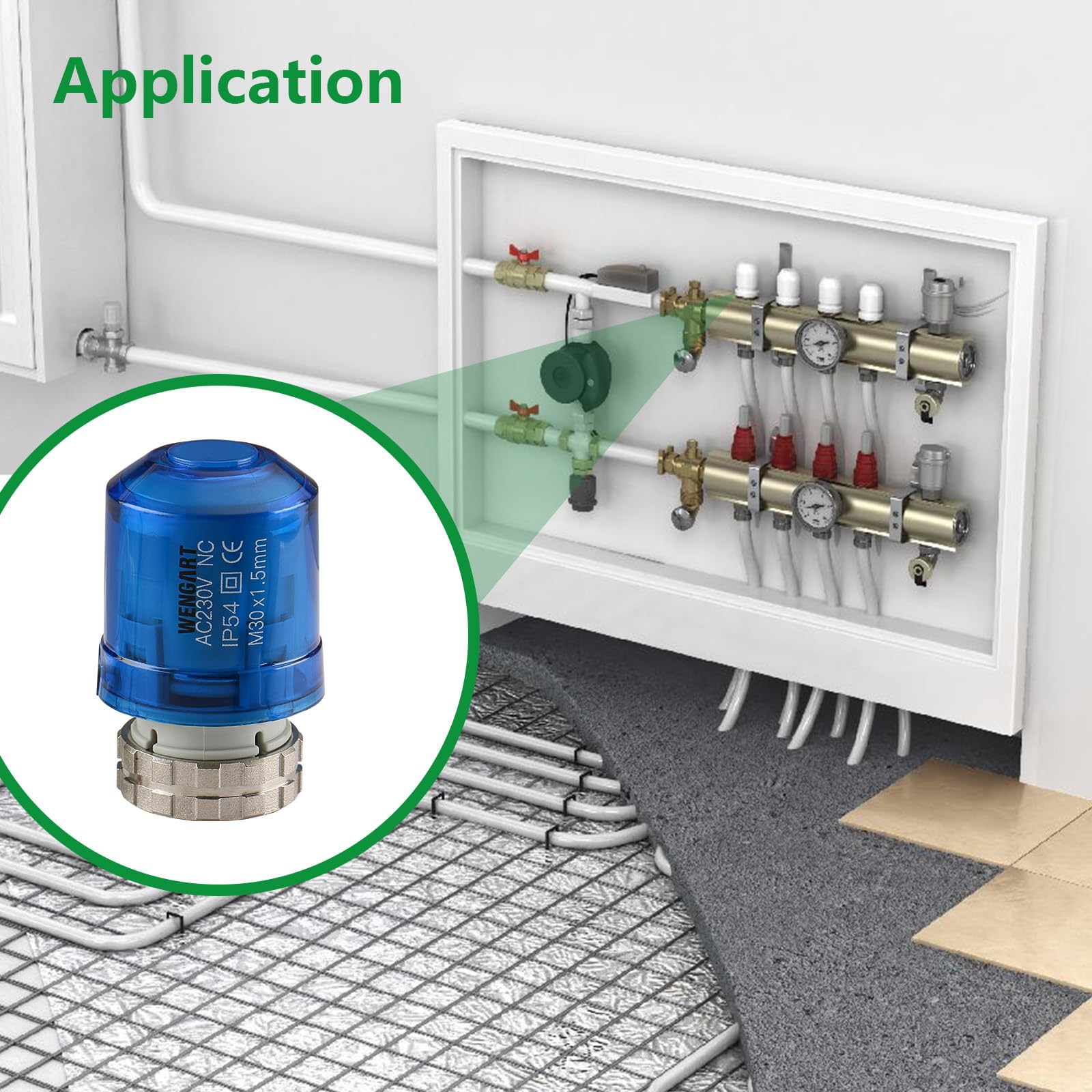

• This normally closed electric heating actuator is compact in size, synchronized with floor heating installation, and does not occupy room space

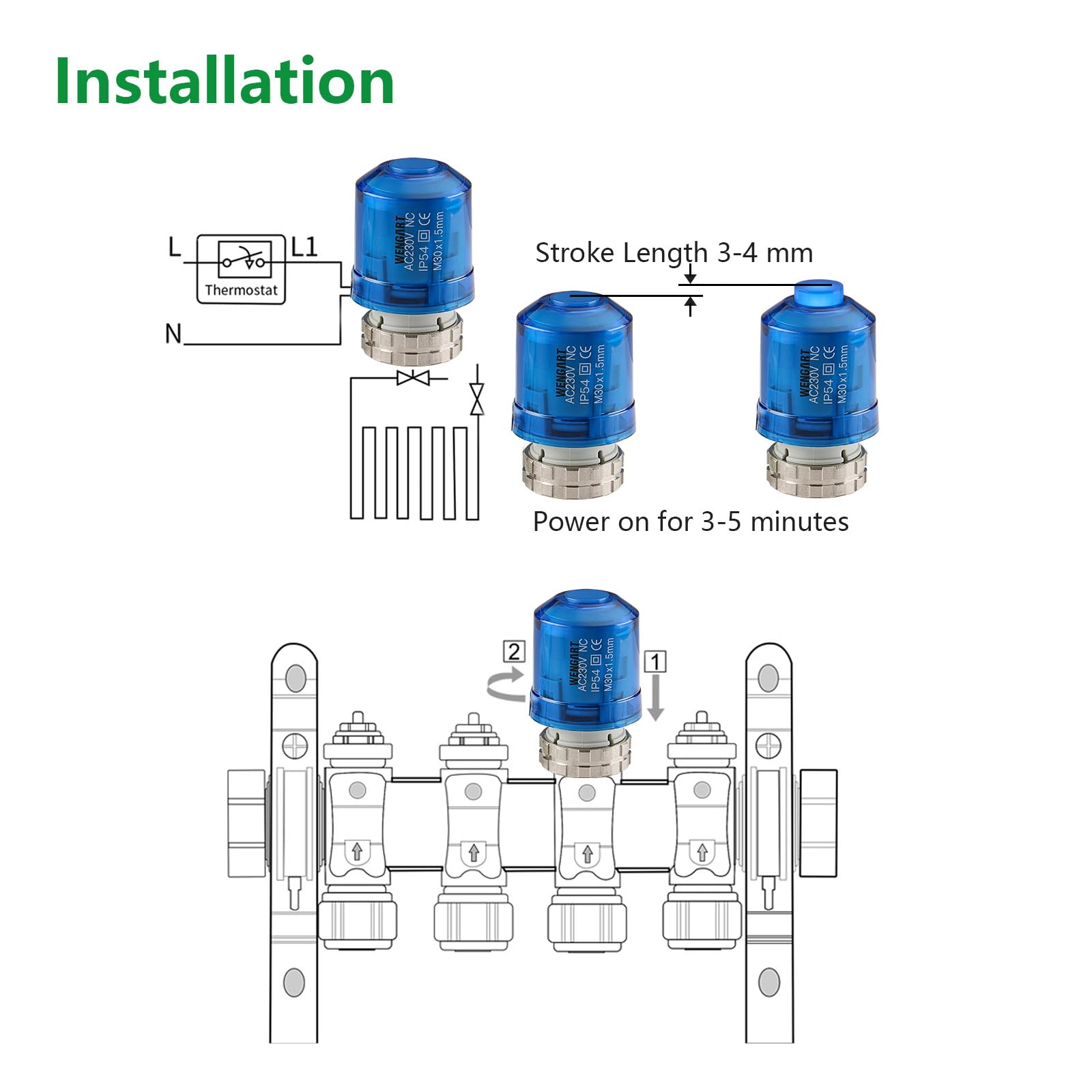

• This electric thermal actuator adopts nut connection installation method, which is easy to disassemble and install quickly and conveniently.

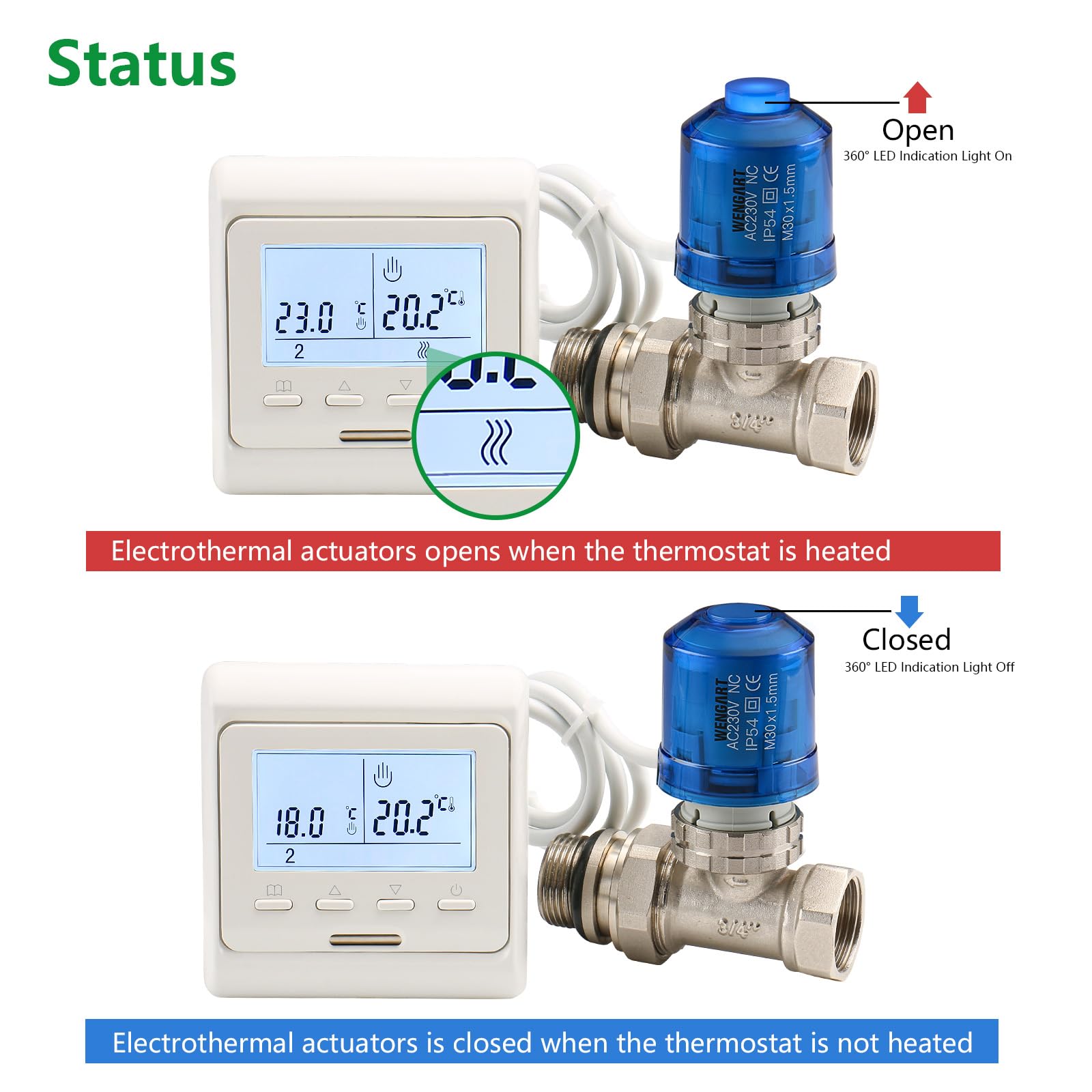

• Our electrothermal actuators can be used for independent room control to reduce energy consumption. When used in conjunction with a thermostat, the valve closes when the temperature reaches the set temperature.

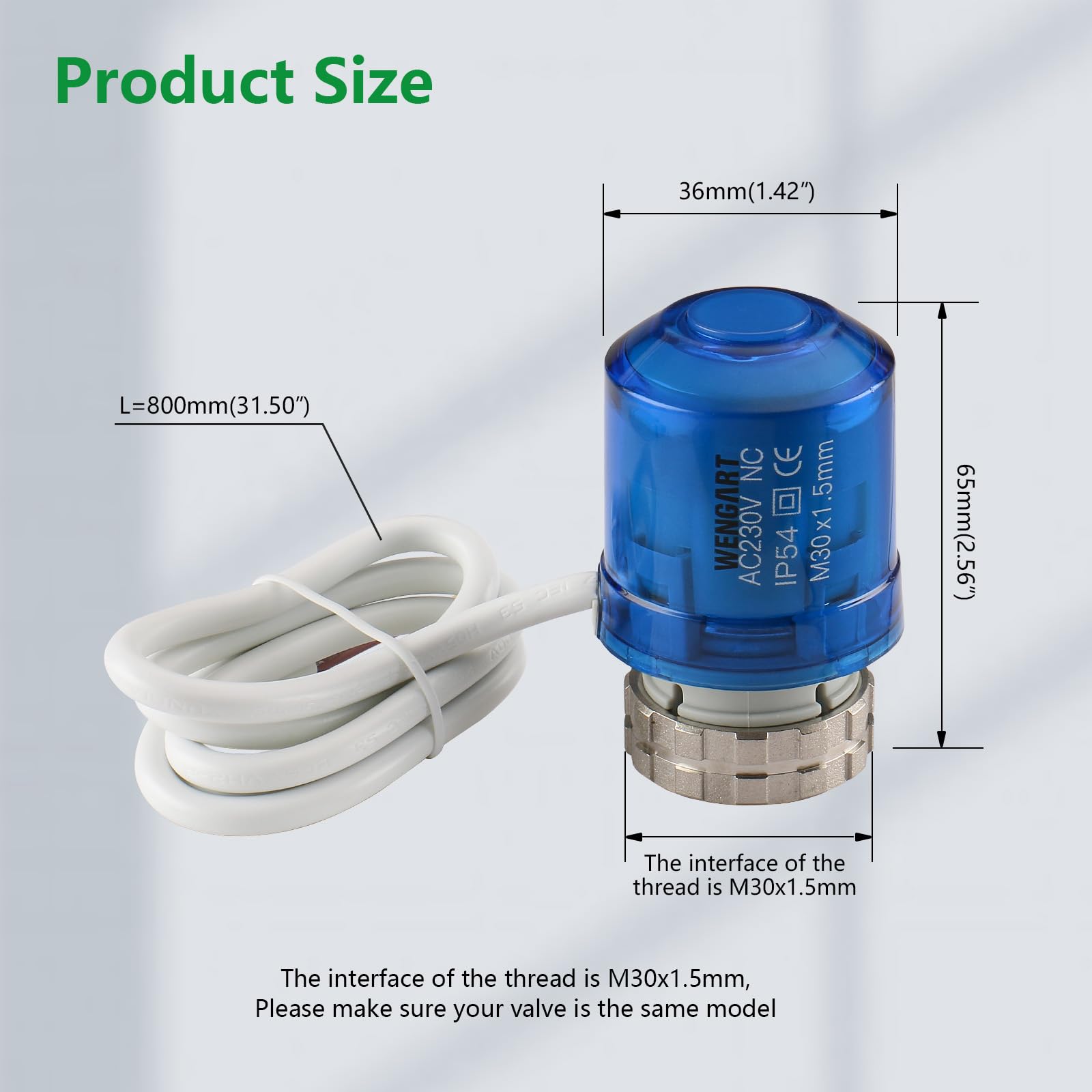

Wengart Thermoelectric Actuator is used for manifold branch valve, small valve，Dynamic balance valve. Control the electric drive part of the valve.The temperature adjustment function is realized by the principle of thermal expansion and contraction of the temperature sensing element,Convenience and energy saving.It has the characteristics of zero working noise, small size and low power consumption. Specification: Ambient temperature:-5-50℃ 2 x0.5 mm² Wire Normally Closed M30 Thread:M30x1.5mm Stroke Lenght:Min3mm Voltage: AC230V Stable Power Comsuption: 2W Full Time:180-300s Cable Length：800mm Protection Class:IP54
