WayinTop Recordable Sound Module Button Control 8MB MP3 WAV Music Voice Player Programmable Board USB Downloadable Rechargeable Audio with AA Battery Box and USB Cable for DIY Music Creative Gift

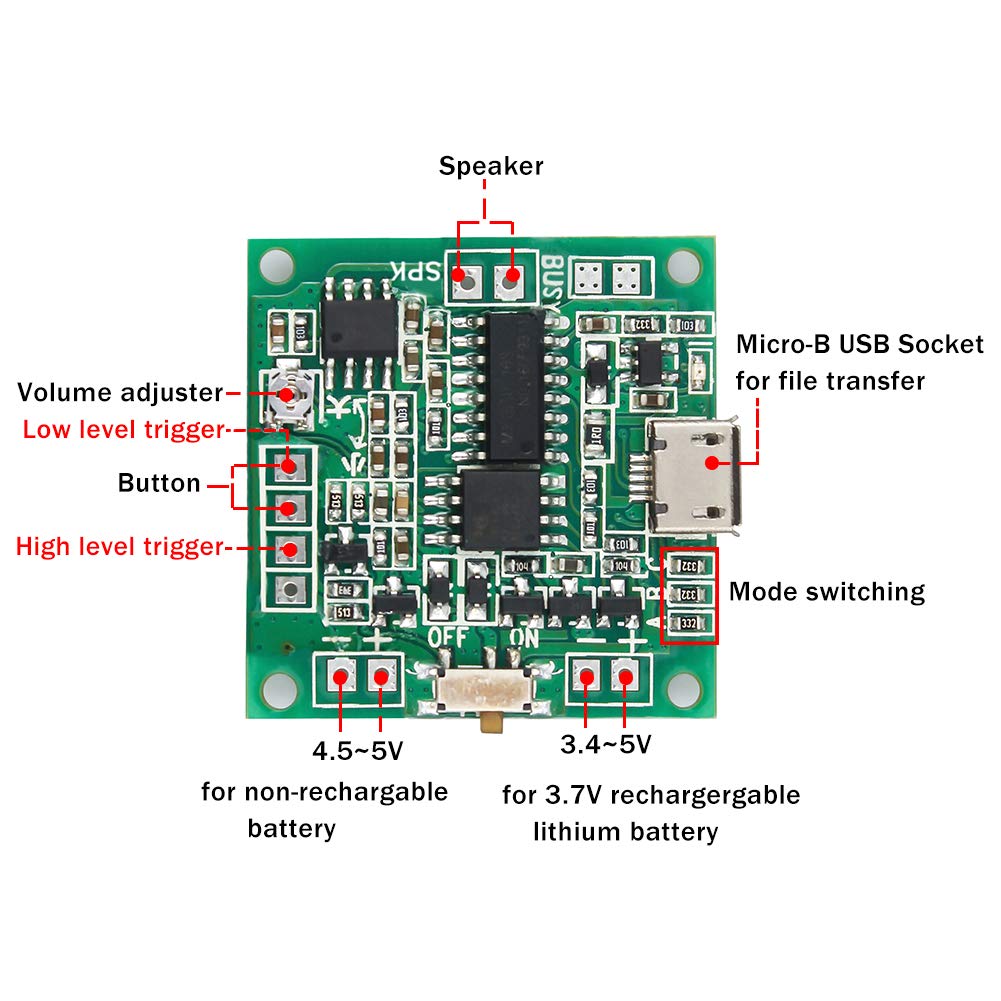

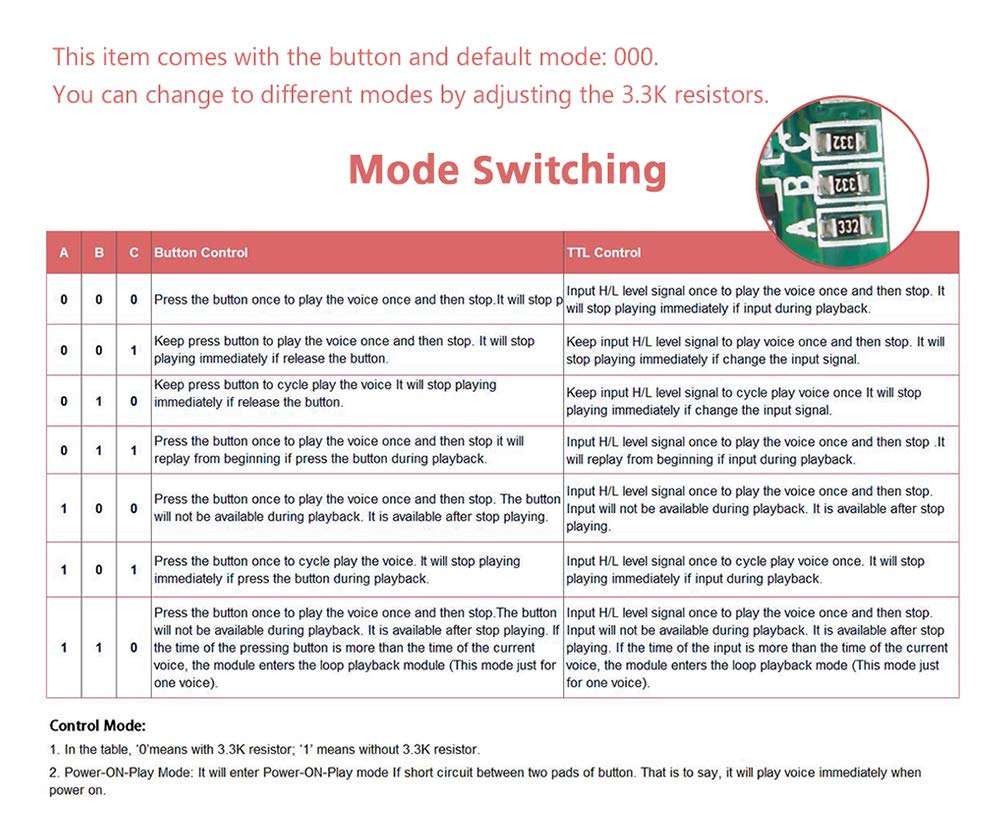

• 【Programmable Sound Module】Provide more possibilities to develop a module completely fit for your own project. You can select different trigger mode (button/TTL trigger) by connecting with different soldering pads.
• 【Button Control】 Install it in your project/gift, and then push the button. Your music which you put in it will be played once and automatically stop when the song finishes.

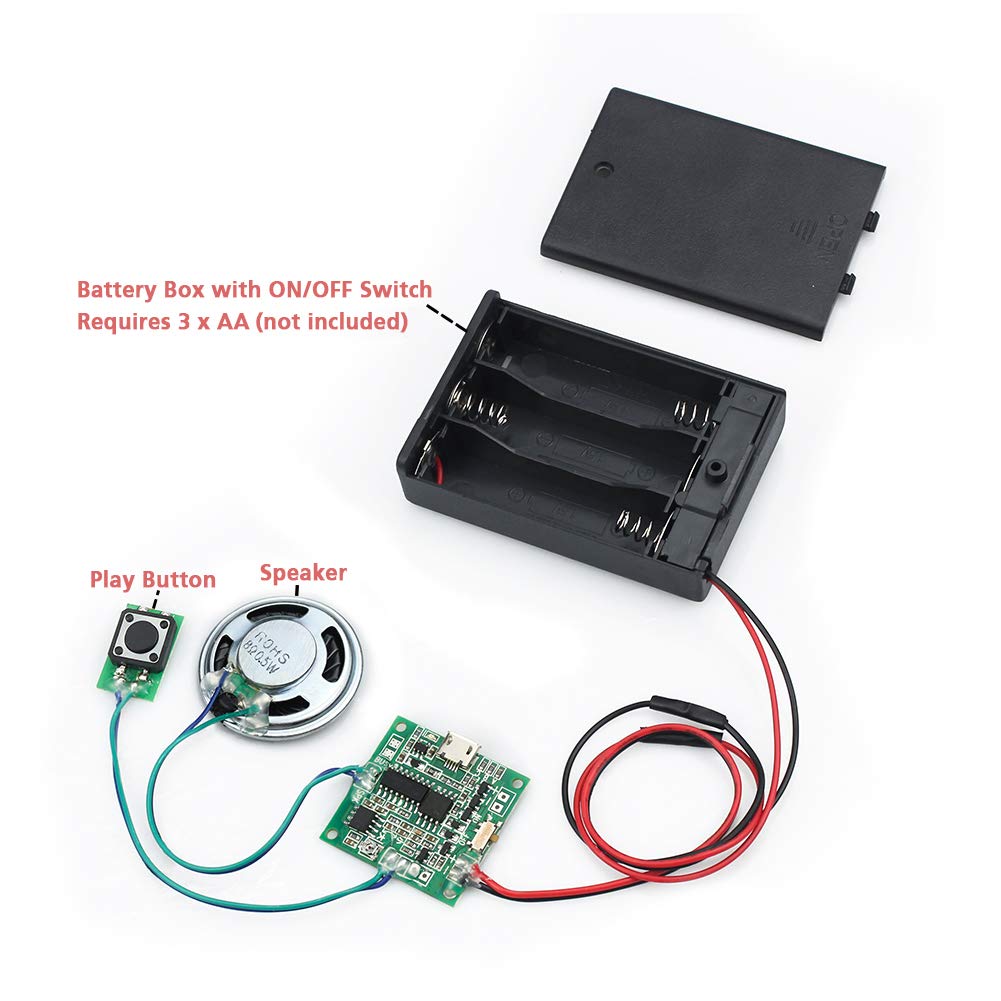

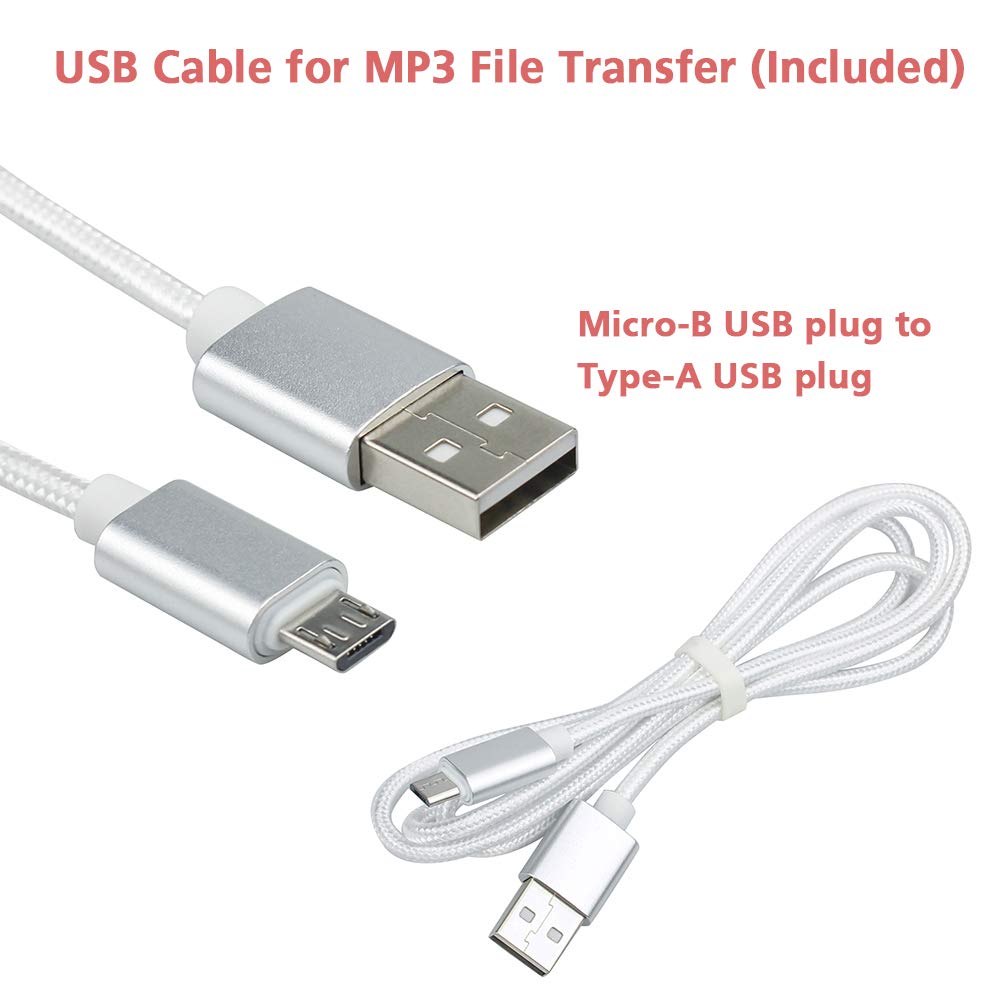

• 【With AA Battery Box and USB Cable】This Kit contains with a AA Battery Box and USB Cable, with which you can easier to supply 4.5-5V power and also used for different USB devices to download the MP3 audio file to the internal storage.
• 【8M Memory】Built-in 8M memory with micro USB port, you can update the music just by a smart phone USB cable. It is recognized by computer as a USB drive, just like a MP3 player, and you're free to add any MP3 audio file to the internal storage as long as it doesn't go over the 8MB limit.
• 【Perfect Creative Gift】It is ideal to make a DIY music box, musical greeting cards, photo frames, album, gift box and the other creative gifts for Mother’s Day, Valentine’s Day, Christmas.

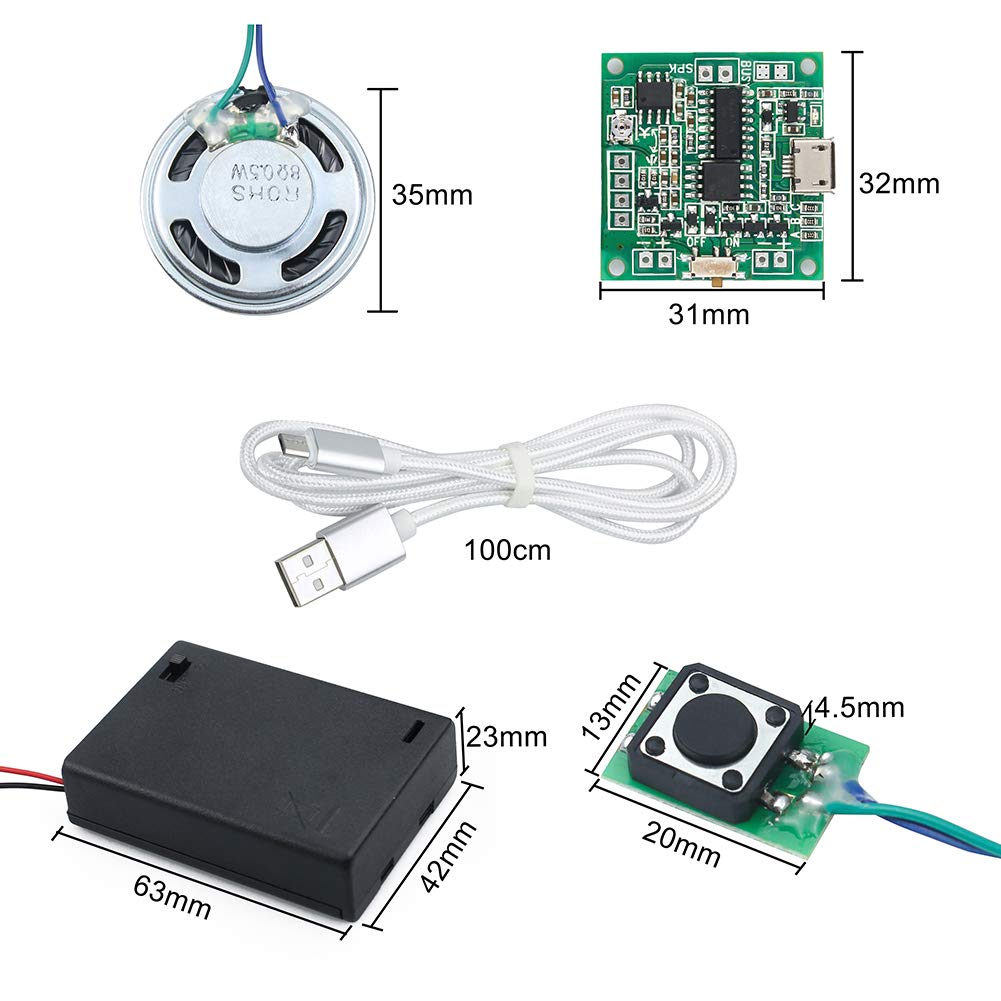

WayinTop: Your Top Way to Inspiration. Specifications: -Built-in Flash Memory: 8MB (8 Mega Bytes) -Speaker Output: 0.5-1W -Speaker Size: 36mm Diameter -Module Size: 30*30mm -USB socket type: Micro-B -Battery Power: 4.5-5V or 3.7V lithium battery -Based on using 3 x AA batteries that are 2500mAh rating -Recommended MP3 file format: 128kbps, 44.1kHz, 16 Bit, MONO -Battery life example: One single 10 second sound file will playback 14,400 times Using Instructions: (Note: Please read the operating instructions on the details page carefully and operate under the Professionals.) Step 1: Connect 4.5V~5V non-rechargeable battery power or 3.7V lithium battery. Step 2: Press the button, and you will hear a test music which is a Chinese song. Press the button during playback, then it will stop playing immediately. Step 3: Connect the module to computer by USB cable; SUPPORT WINDOWS ONLY Step 4: It is recognized by computer as a USB drive, just like a MP3 player, and you're free to add any MP3/WAV audio file to the internal storage as long as it doesn't go over the 8MB limit; Step 5: Do not forget to delete the default audio file; Step 6: Repeat Step 2 to see if the module work well. Adjust the volume to a suitable degree. Package Included: 1 x Recordable Sound Module Button Control 8MB 1 x AA Battery Box 1 x Micro USB Cable
