WayinTop 2Set Wireless Transceiver Receiver with Tutorial, NRF24L01+PA+LNA RF Module with SMA Antenna 2.4 GHz 1100m + NRF24L01 Regulator + Board Wireless Communication System

• 【Wireless Communication System】Th NRF24L01 wireless transceiver modules can be used to realize wireless communication between modules. You can contact us on Amazon to get the PDF or downloaded from this link: https://github.com/WayinTop/Wireless-Communication-System

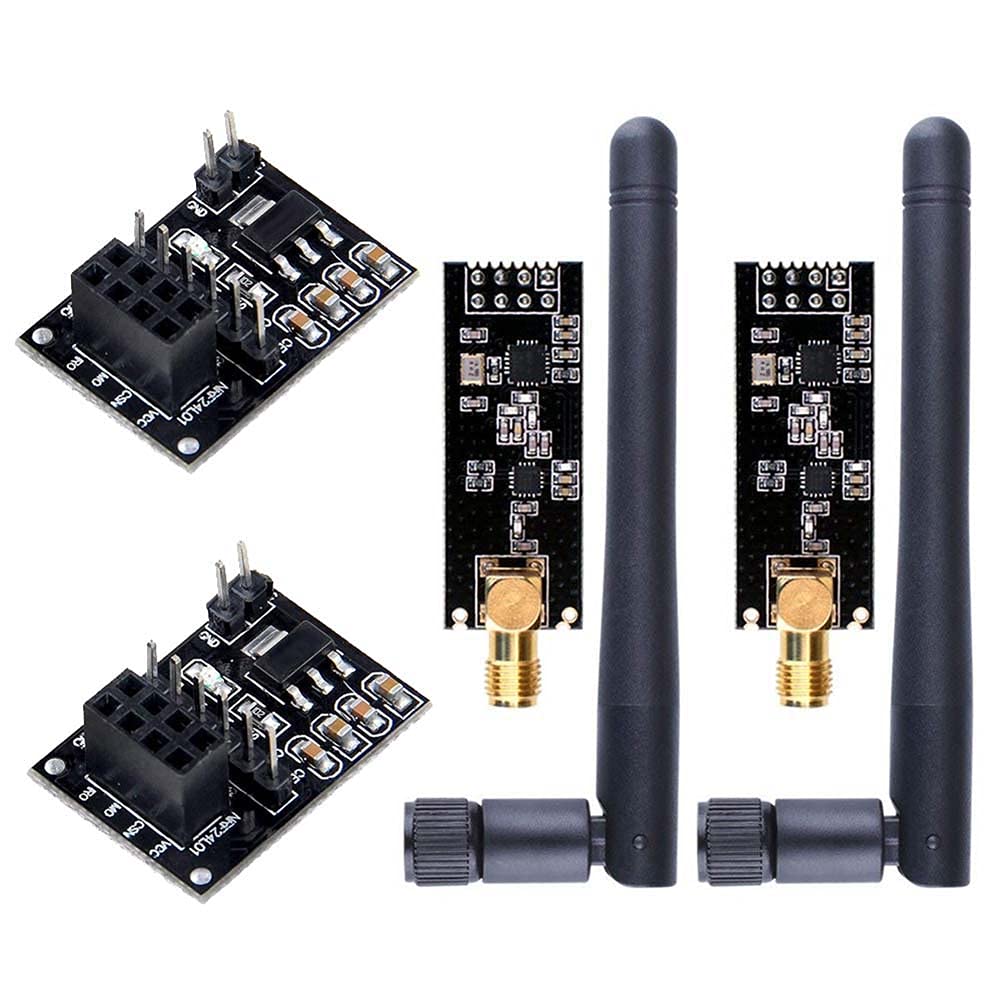

• 【NRF24L01+ Module】High-performance wireless data transmission chip NRF24L01 +, an increase of high-power PA and LNA chips, RF switches, band-pass filters and other professional full bidirectional RF, making the effective communication distance has been greatly expanded.

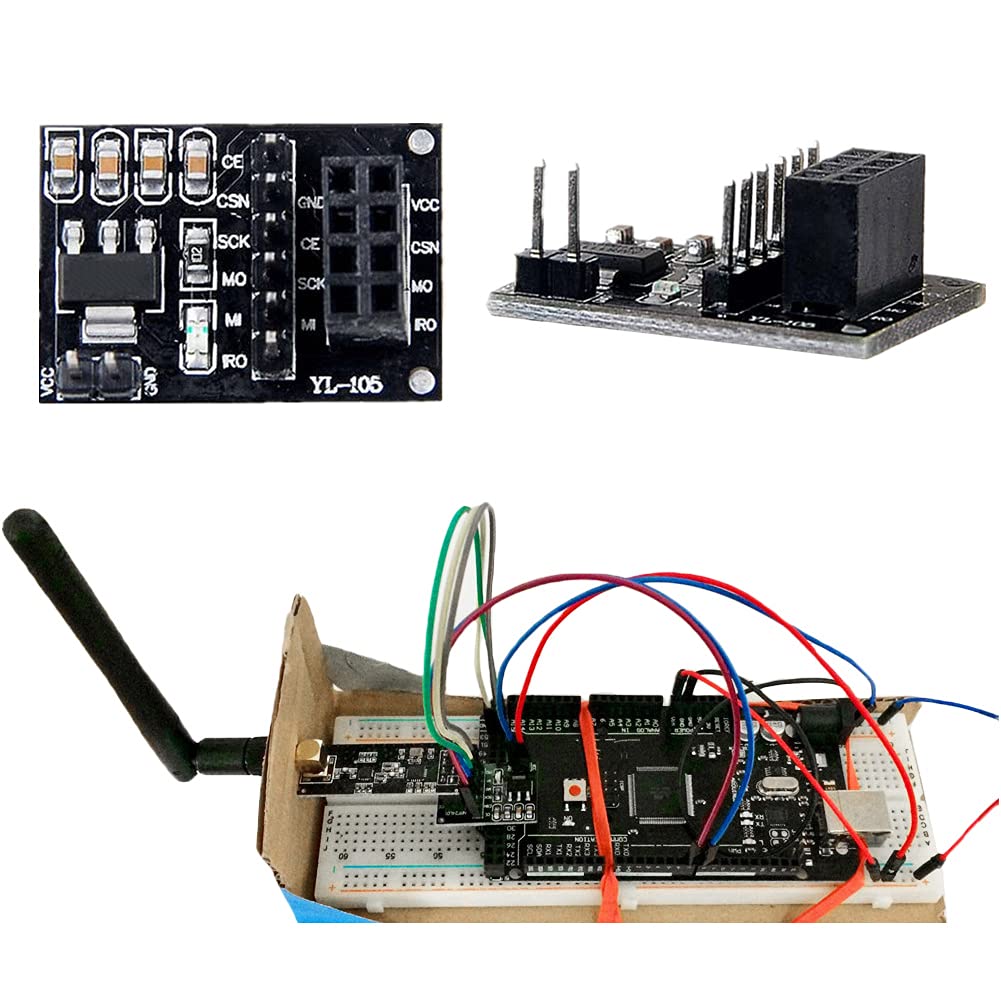

• 【"NRF24L01" Voltage Regulator】Small power on SMD LED indicator; On-board 3.3V voltage regulator accepts +5V supply and provides 3.3V for the attached "nRF24L01+" module.

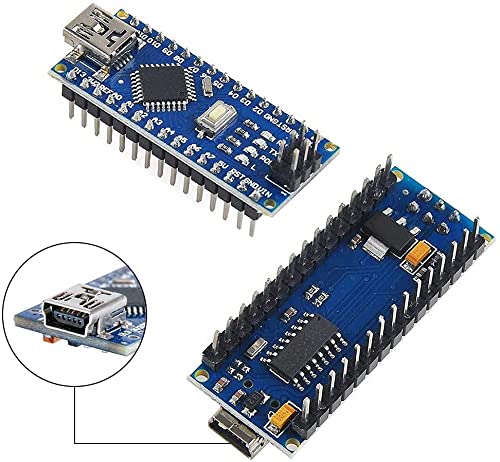

• 【Board】The main Microsoft Controller Board of this kit, it can be powered via USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27).
• 【Widly Applications】It can be wildly used to wireless communication between modules, such as wireless remote control, somatosensory devices, RFID, NFC, smart grid, smart home, wireless audio etc.

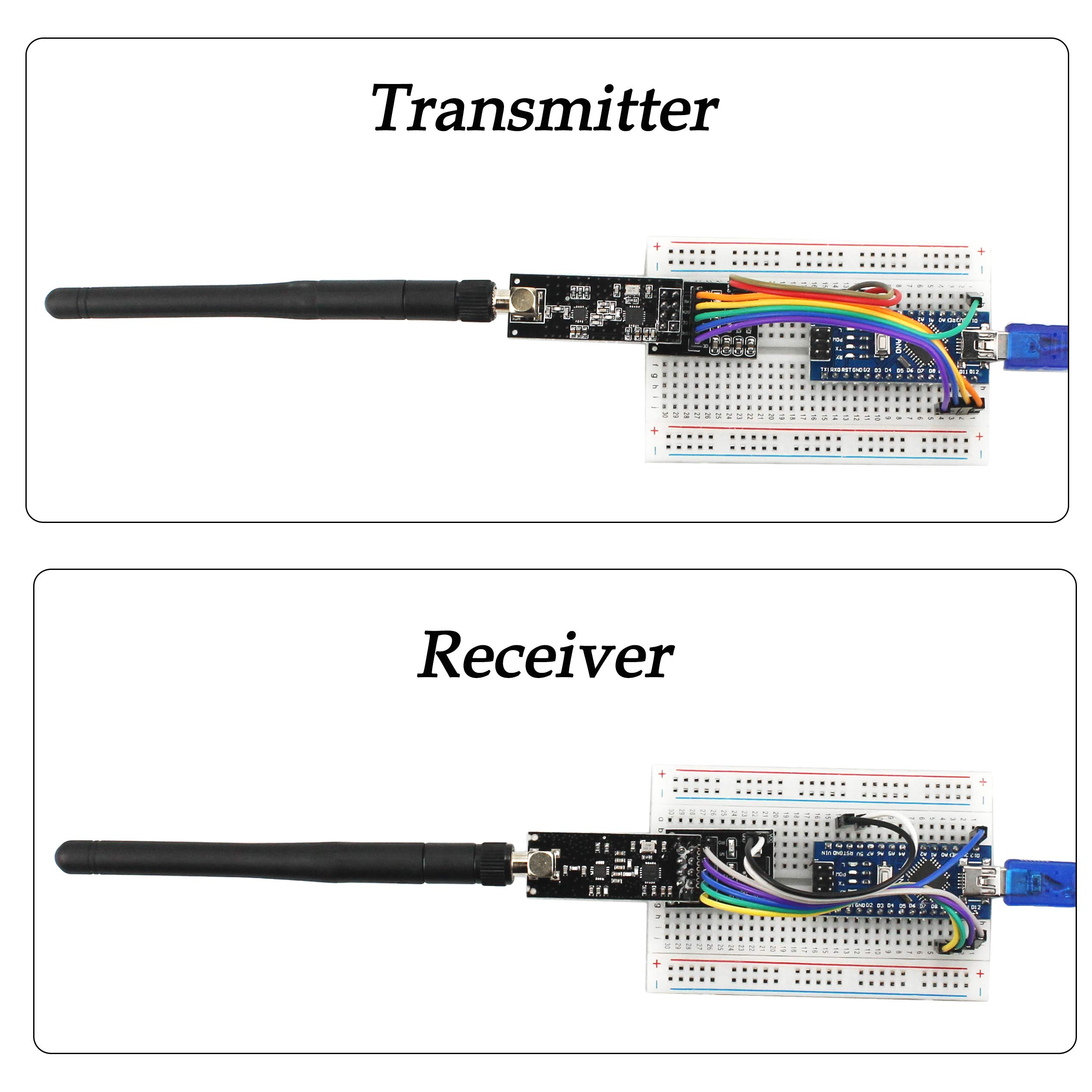

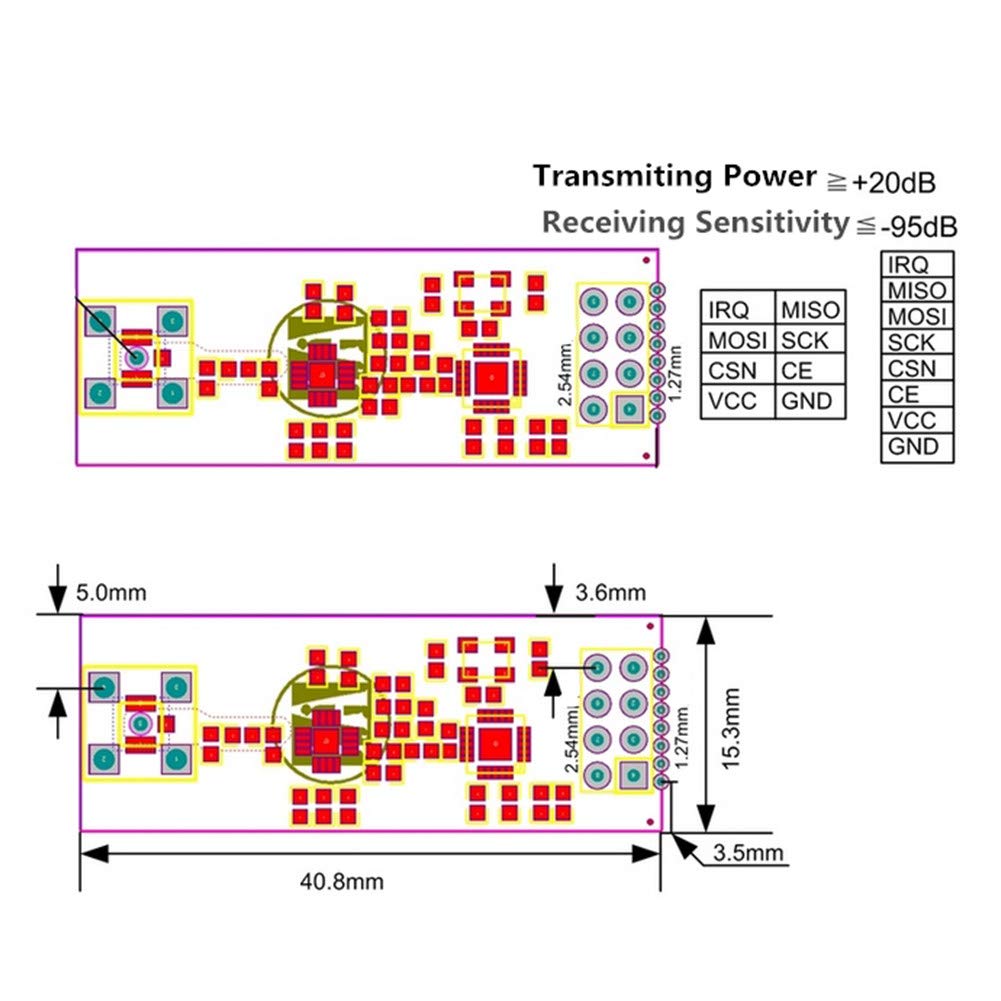

Wanna to set up your wireless communication system with the lowest cost? Just choose this set, the board and NRF24L01 wireless transceiver modules can be used to realize wireless communication between modules. Detailed tutorials of Wireless Communication System can be provided for FREE, please contact us via E-mail to get support. Specification: "NRF24L01+ " Module with SMA Antenna 2.4 GHz 1100m: PA Gain：20dB LNA Gain：10dB Frequence: 2.4GHz~2.5GHz Range: 800+ meters line of sight Multi-frequency: 125 frequency Transmit Operating Current（Max）：115mA Receiving Operating Current（Max）：45mA Operating Voltage: 3 ~ 3.6V （Recommended 3.3V） "NRF24L01+ " Voltage Regulator Module: Pin Quantity：8Pin On-board : 3.3 chip. Voltage Regulator Input Voltage: 4.8V ~ 12V Board:for - Architecture: AVR - Operating voltage: 5V - Input voltage: 7-12V - SRAM: 2 KB - Clock frequency: 16 MHz - Analog I / O pins: 8 - EEPROM: 1 KB - DC current per I / O pins: 40 mA (I / O pins) - Digital I / O pins: 22 - PWM output: 6 - Power consumption: 19 mA Package Included: 2 x NRF24L01+PA+LNA Wireless Transceiver Module 2 x SMA Antenna SMA Antenna 2.4G 1100m 2 x "NRF24L01+ " Voltage Regulator Module 2 x Board 2 x 30CM USB Cable
