WayinTop 2Set 8dBi 2.4GHz 5GHz Dual Band Wireless Network WiFi RP-SMA Male Antenna + 20cm U.FL/IPEX to RP-SMA Female Pigtail Cable for Mini PCIe Card Router Repeater Desktop PC FPV UAV Drone PS4

• 【Attention】This kit is not soldered and only can used for MINI PCI-E INTERFACE! Please kindly check your network cards interface before ordering.

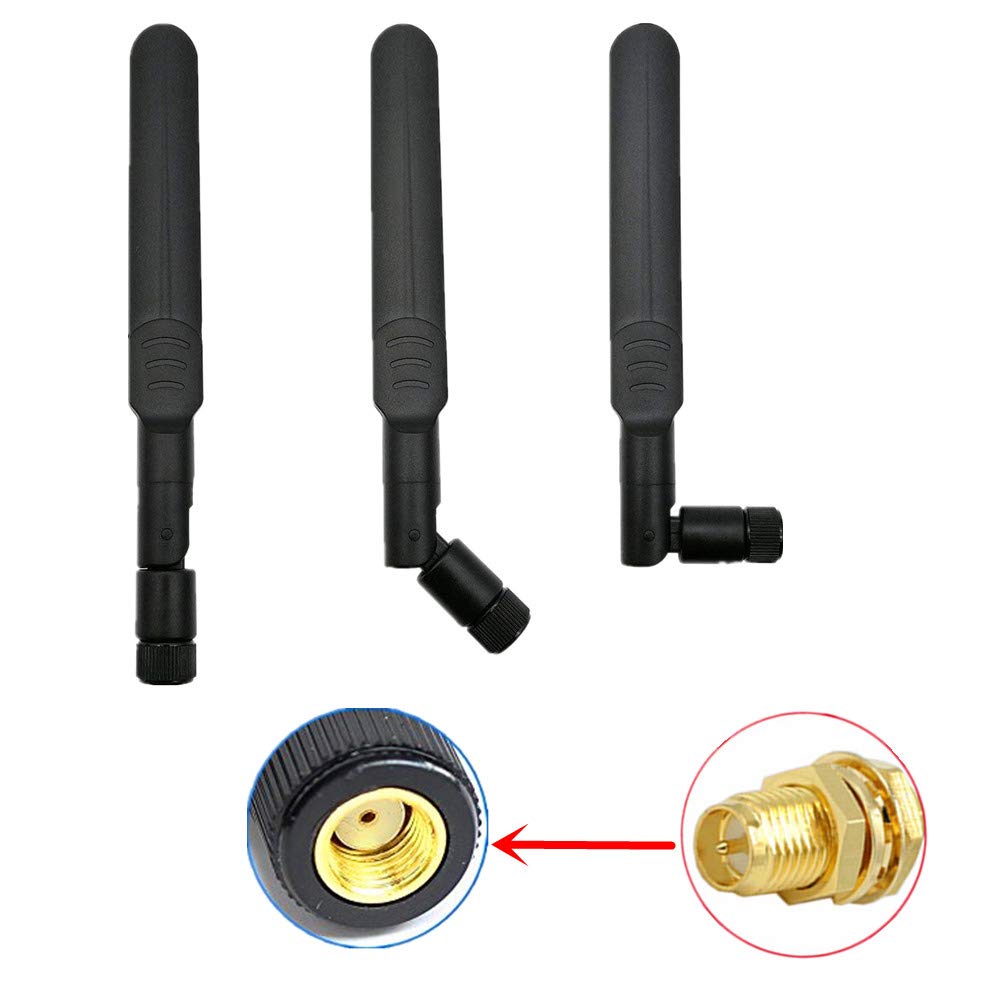

• 【Antenna】Gain: 8dBi; Dual Band: 2.4GHz / 5GHz / 5.8GHz; Connector Type: RP-SMA Male (Hole in center); Color: Black; Size: 160mm*25mm.

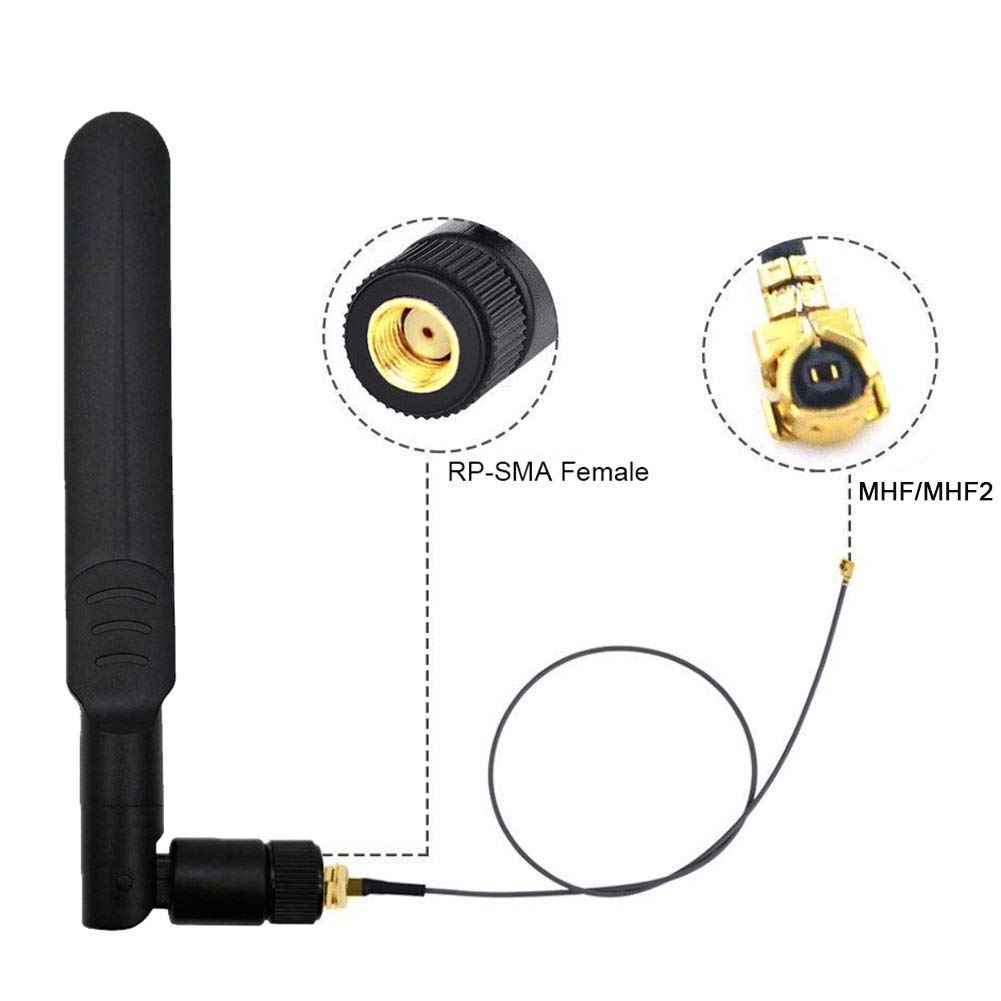

• 【IPEX to SMA Cable】Connector Type: U.FL/IPEX to RP-SMA Female (Pin in Center); Wire Diameter: 1.13mm; Length: 20cm.
• 【Competible with】Mini PCIe Wireless Card Routers / Repeater / Range Extender / Desktop PC / Mini ITX Build / PCI Card / FPV UAV Drone / PS4 Build, etc.
• 【Package Includes】2 x 8dBi Dual Band Antenna + 2 x 20cm IPEX to RP-SMA Pigtail Cable.

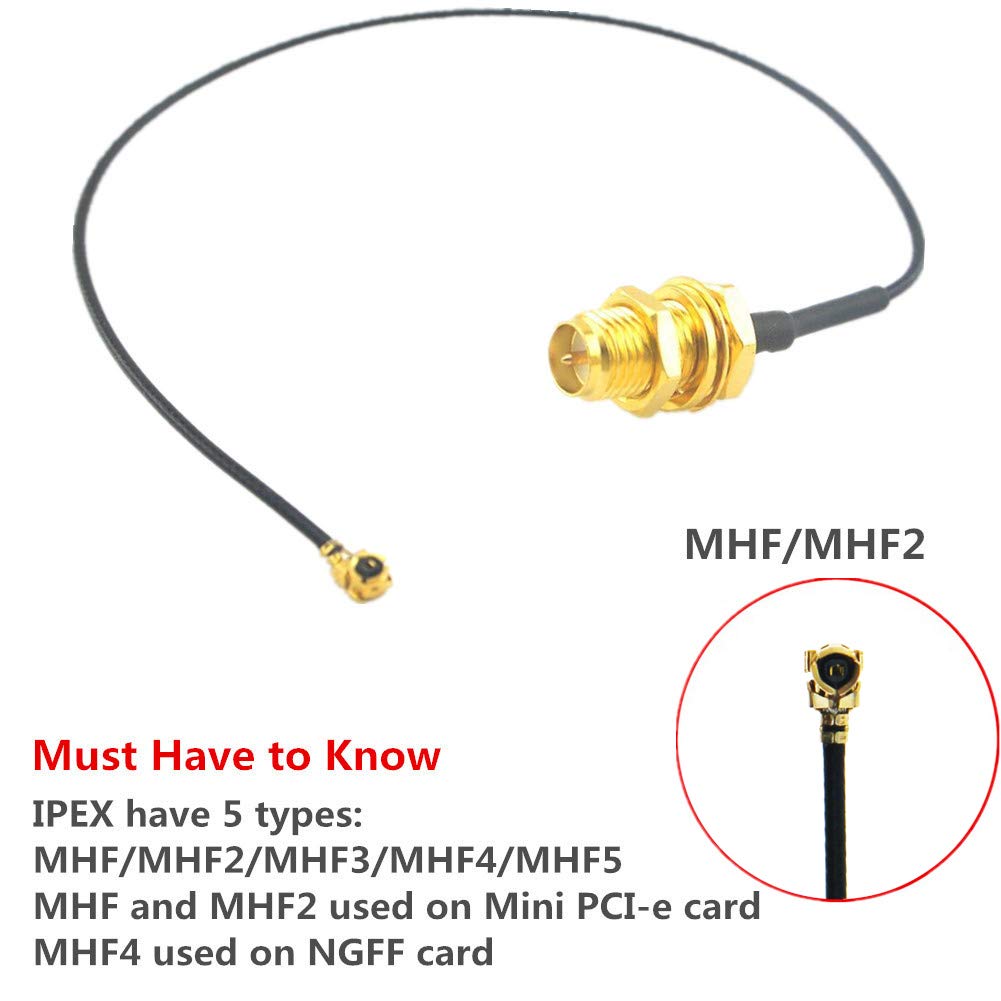

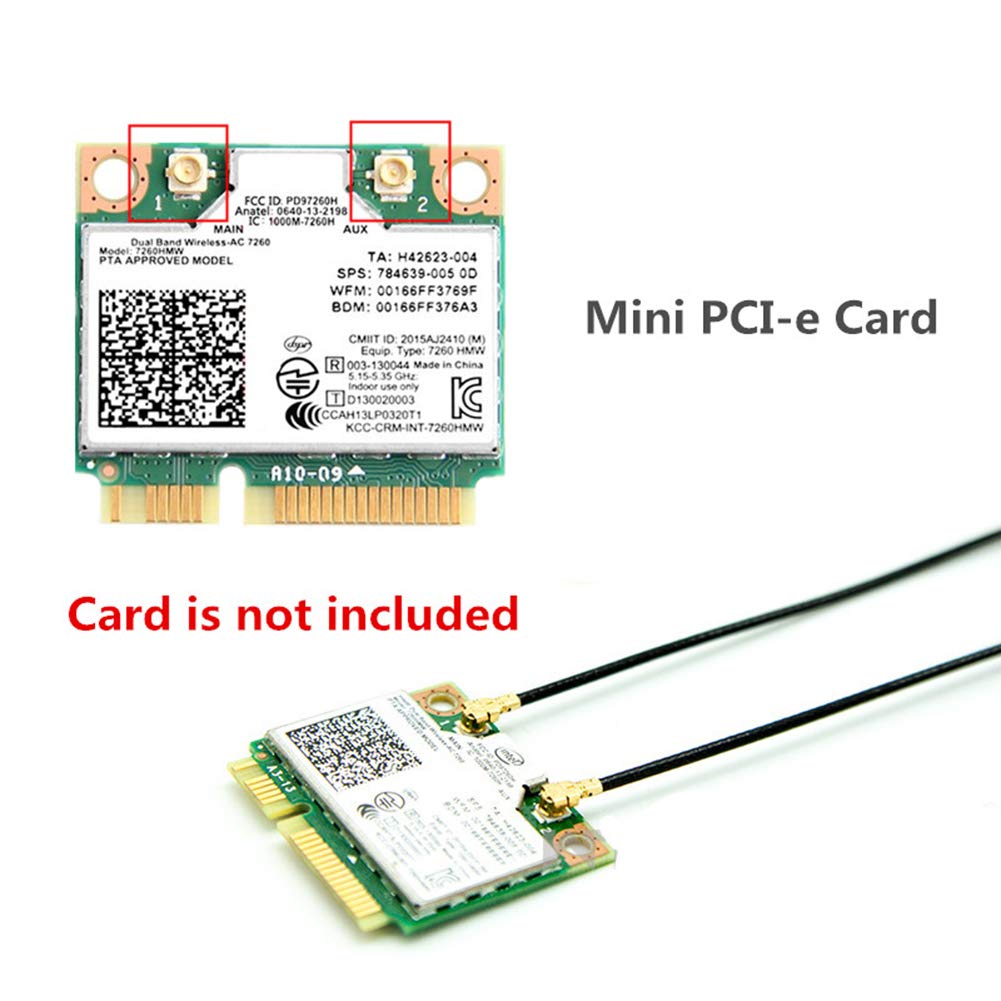

WayinTop : We want to make your work easier and more fun. Want to upgrade your router / repeater / range extender to get better signal and greater range? Want to upgrade your desktop computer / Mini ITX / PCI card to improve work performance? Want to improve the TX and RX range of a UAV FPV drone? Want to upgrade your PS4 Mod Build to improve downloading, controller connection, and online gaming performance? Don't hesitate to buy this kit! Attention: IPEX has 5 types: MHF / MHF2 / MHF3 / MHF4 / MHF5. This item is only compatible with Mini PCI card (not for M.2 NGFF). Specifications: 8dBi Dual Band Antenna: Gain: 8dBi V.S.W.R. : ≤ 1.5. Radiation: Omnidirectional Input Impedance (Ω): 50 Maximum input power (W): 50 Frequency range (MHz): 2400-2500 & 5150-5850 Connector Type: RP-SMA Male (Bore) Adjustable angle: 90° 135° 180° Dimensions: 160 mm x 25 mm (folded) / 135 mm (folded). IPEX WiFi to RP-SMA Pigtail Cable: Length: 20 cm. Impedance (Ω): 50 Connector Type: U.FL/IPEX (MHF) to RP-SMA Female (Pin) Compatible with 802.11a, 802.11b, 802.11g and 802.11n. It can be used in mobile phones, antennas, WLAN, mini PCI, Bluetooth, PDA, GPS, drone, transmitters and electronic measuring devices. Package includes: - 2 x 8dBi dual-band antennas. - 2 x 20cm IPEX to RP-SMA Pigtail WiFi Cable
