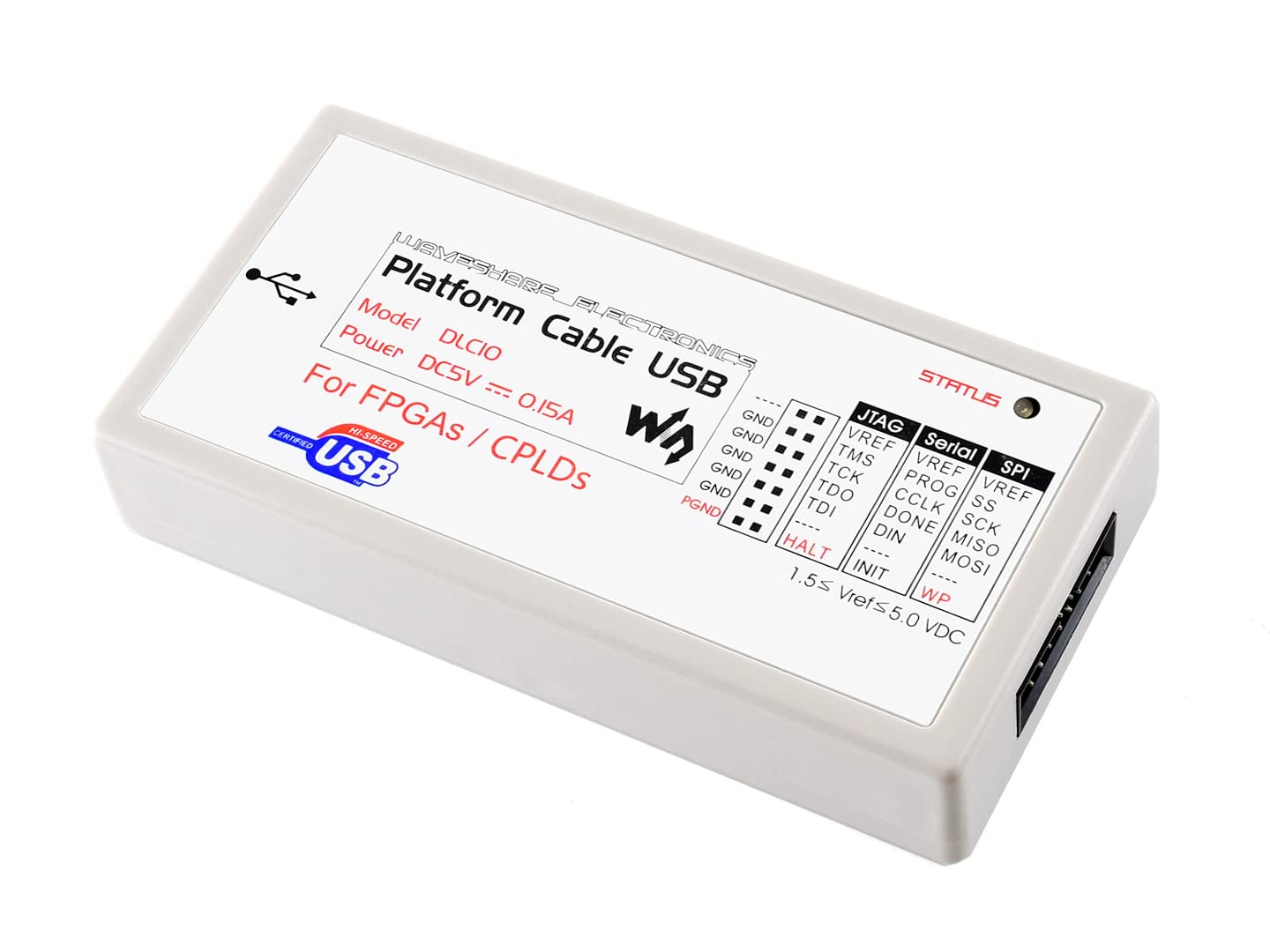

Waveshare USB Compatible Cable, for In-Circuit Configuration

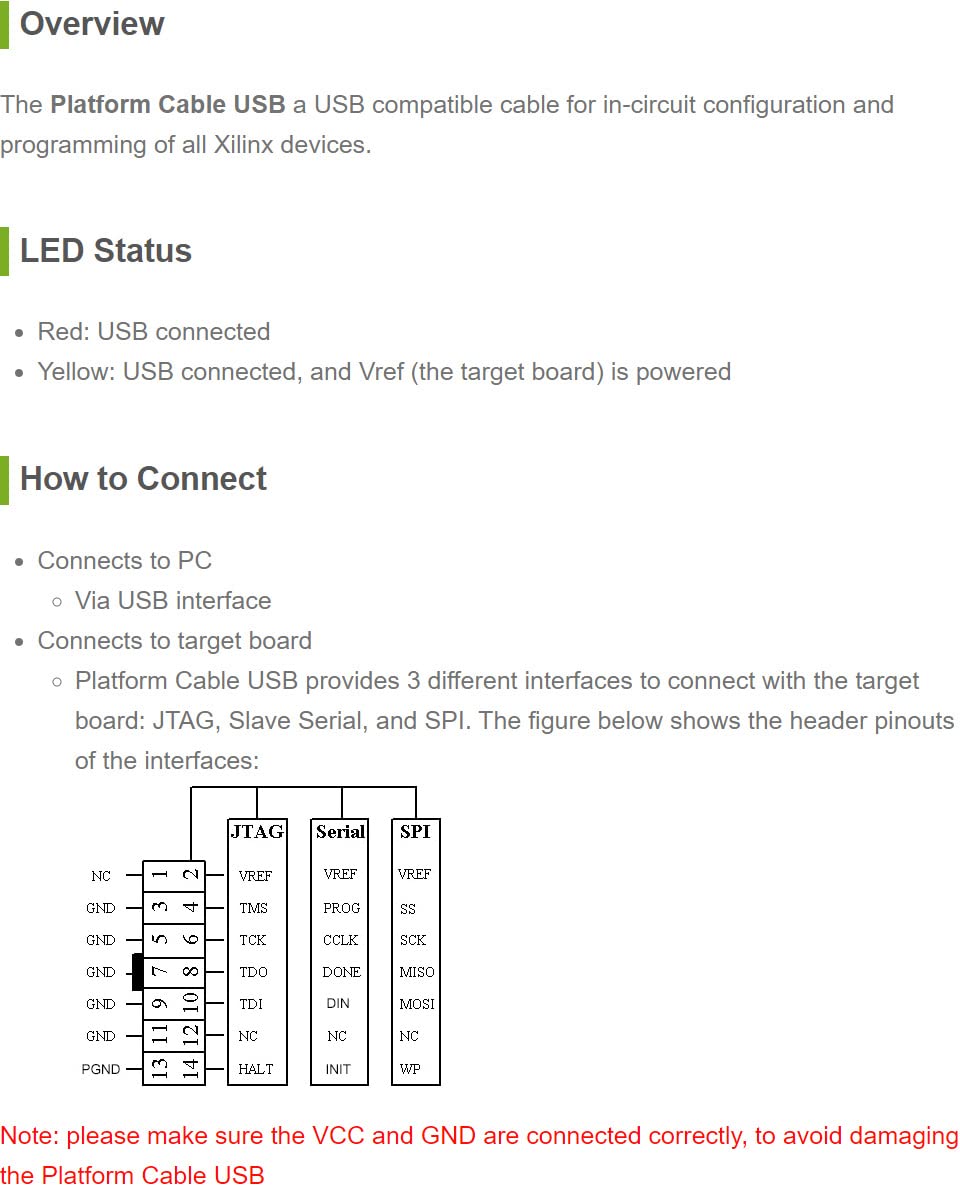

• The Platform Cable USB a USB compatible cable for in-circuit configuration and programming of all Xilinx devices.
• Utilizing CY7C68013A+FPGA new hardware solution, for the original XILINX Platform Cable USB and Platform Cable USB II
• Comes with adapter board and multi cables for easily connecting with official development board or other circuit boards
• Firmware auto upgrade, it's possible to support more new released software and devices
• Optional target clock frequency, supports XILINX software automatic frequency adjustment

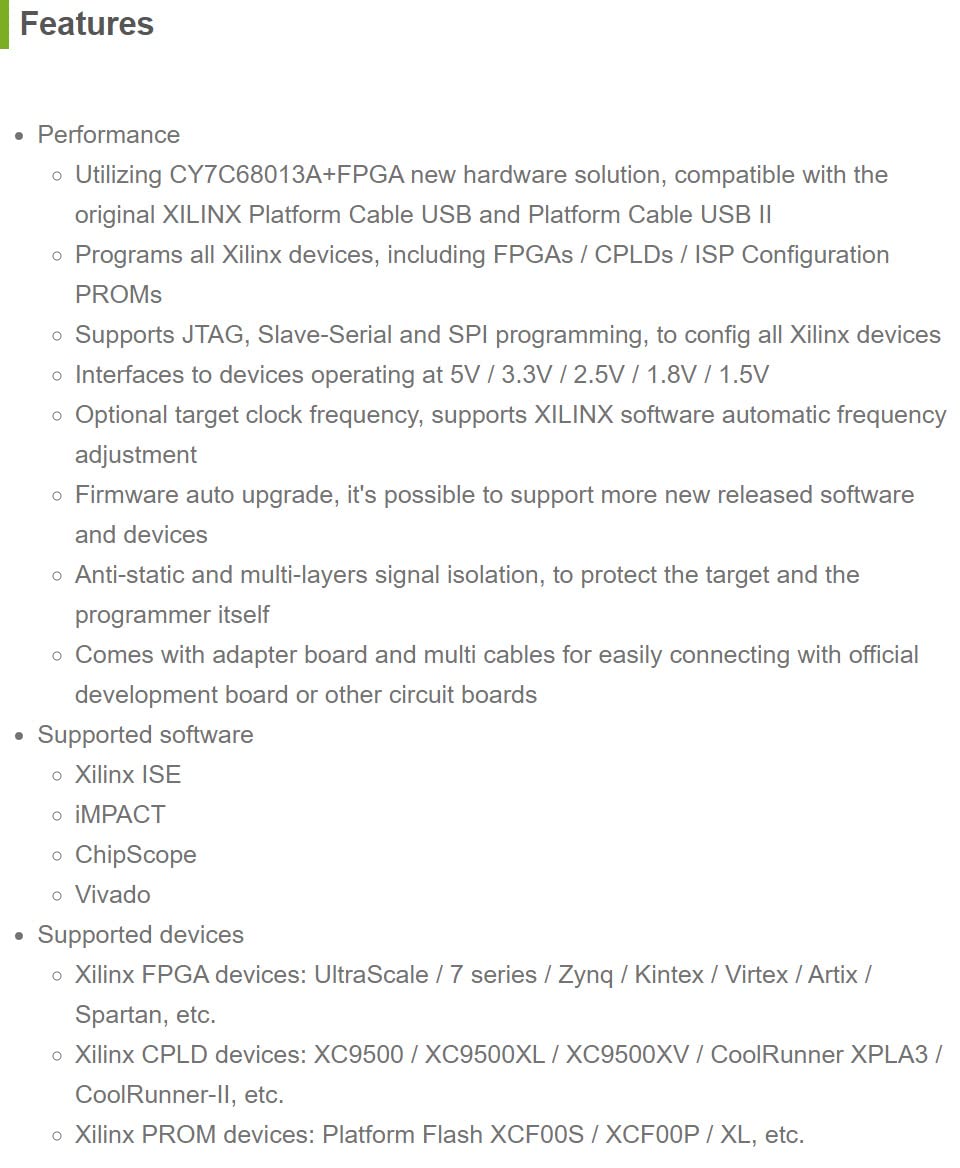

PACKAGE CONTENT Platform Cable USB main unit x1 JTAG adapter x1 USB cable x1 8-pin header to 7-pin separated cable x1 8-pin header to 6-pin header cable x1 14-pin (2.54mm pitch) JTAG cable x1 14-pin (2mm pitch) JTAG cable x1 10-pin (2.54mm pitch) JTAG cable x1 Features Performance Utilizing CY7C68013A+FPGA new hardware solution, for the original XILINX Platform Cable USB and Platform Cable USB II Programs all Xilinx devices, including FPGAs/CPLDs/ISP Configuration PROMs Supports JTAG, Slave-Serial and SPI programming, to config all Xilinx devices Interfaces to devices operating at 5V/3.3V/2.5V/1.8V/1.5V Optional target clock frequency, supports XILINX software automatic frequency adjustment Firmware auto upgrade, it's possible to support more new released software and devices Anti-static and multi-layers signal isolation, to protect the target and the programmer itself Comes with adapter board and multi cables for easily connecting with official development board or other circuit boards Supported software Xilinx ISE iMPACT ChipScope Vivado Supported devices Xilinx FPGA devices: UltraScale/7 series/Zynq/Kintex/Virtex/Artix/Spartan, etc. Xilinx CPLD devices: XC9500/XC9500XL/XC9500XV/CoolRunner XPLA3/CoolRunner-II, etc. Xilinx PROM devices: Platform Flash XCF00S/XCF00P/XL, etc.
