Waveshare USB AVRISP CH AVR ISP Programmer Compatible with at AVRISP from ATMEL Supports AVR Studio 4/5/6/7

• Using the same MCU and core circuit as AT AVRISP, easy to use, stable and reliable
• Based on ATMEL official STK500 firmware, identified as AVRISP/STK500 in AVRStudio, high speed programming
• CH340G USB to UART converter, supports most popular OS, including WIN10, more stable, faster programming
• Supports AVR Studio 4/5/6/7,Standard ISP_6PIN connector
• Supports 0~3.6864MHz frequency output (via the two through holes on the backside, round=GND, square=PCLK, frequency is configurable by software)

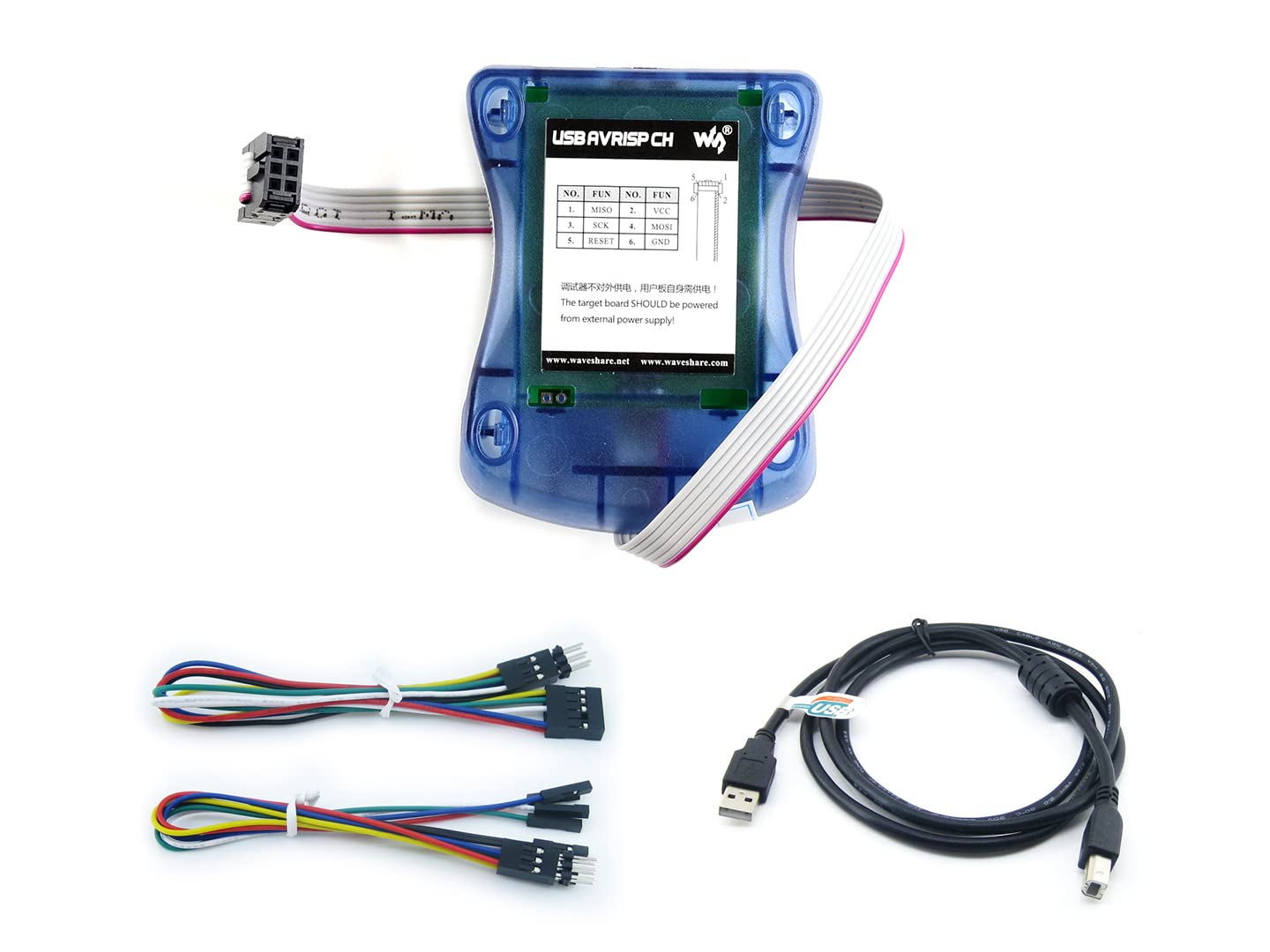

Features Resolution Using the same MCU and core circuit as AT AVRISP, easy to use, stable and reliable Based on ATMEL official STK500 firmware, identified as AVRISP/STK500 in AVRStudio, high speed programming Standard ISP_6PIN connector CH340G USB to UART converter, supports most popular OS, including WIN10, more stable, faster programming Supports AVR Studio 4/5/6/7 Supports 0~3.6864MHz frequency output (via the two through holes on the backside, round=GND, square=PCLK, frequency is configurable by software) Supported Software AVR Studio or WINAVR(GCC) is used as front-end software Supports files generated by IAR, ICCAVR, CVAVR, etc. Supported Devices Same as AT AVR ISP: Supports most AVR MCU with ISP programming option Supports AT86RF401/AT89S51/AT89S52 (when programming S51/S52, the MCU.RESET is recommended to be connected with the programmer, not the external reset circuit) PACKAGE CONTENT USB AVRISP CH x1 USB cable x1 6-pin to 10-pin ISP cable x1 6-wire multicolour separated cable x1 Development Resources Wiki : www.waveshare.com/wiki/USB_AVRISP_CH
