Waveshare ST25R3911B NFC Evaluation Kit with NFC Reader TF Card USB Cable for NFC-Related Learning Developing Ideal Choice for Refreshing Passive NFC-Powered E-Papers

• This is an NFC development kit based on ST25R3911B, with AT32F413RBT7 controller, OLED display, user buttons, and common used interfaces. Ideal choice for learning and developing NFC applications.
• Multiple NFC protocols are supported, with up to 1.4w output power, and low-power capacitive wakeup function. It suits applications which require high RF performance, flexibility, and low power consumption, such as access control, ticketing, industry, medical treatment, consumption product.
• Multi protocols support: ISO18092, ISO14443A, ISO14443B , ISO15693, FeliCa；AT32F413RBT7 controller, easy for learning, evaluating, or direct integration, needs no other external controller. 1.3" OLED display, allows visual operation.
• Embedded low-power capacitive sensor, allows sensing and capacitive wakeup, detecting the nearby card without enabling the magnetic field of the reader；Onboard SRAM, additional space to the inner RAM. Micro SD slot, supports external TF card for storing data to be transferred via NFC. 4x buttons, 2x user indicators, convenient for debugging.
• Onboard programming interface, UART debugging interface, breakout all the unused IO pins for connecting other user peripherals. Customized acrylic case, protective and dust-proof, better looking.

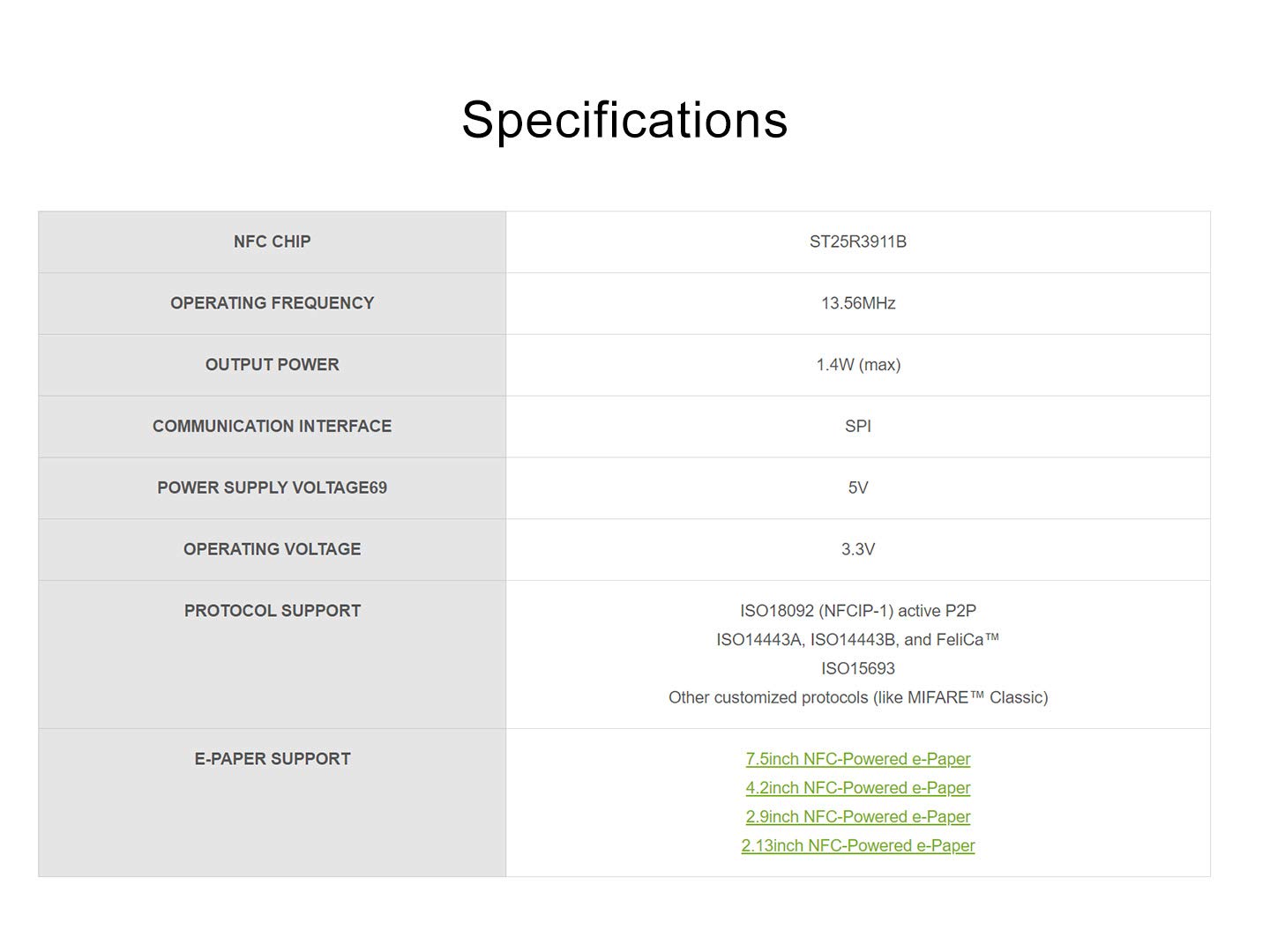

Features Multi protocols support: ISO18092, ISO14443A, ISO14443B , ISO15693, FeliCa Differential antenna design, output power up to 1.4W, longer sensing distance Embedded low-power capacitive sensor, allows sensing and capacitive wakeup, detecting the nearby card without enabling the magnetic field of the reader AT32F413RBT7 controller, easy for learning, evaluating, or direct integration, needs no other external controller 1.3"" OLED display, allows visual operation Onboard SRAM, additional space to the inner RAM Micro SD slot, supports external TF card for storing data to be transferred via NFC 4x buttons, 2x user indicators, convenient for debugging Onboard programming interface, UART debugging interface, breakout all the unused IO pins for connecting other user peripherals Customized acrylic case, protective and dust-proof, better looking Specifications NFC chip: ST25R3911B Operating frequency: 13.56MHz Output power: 1.4W (max) Communication interface: SPI Protocol support:ISO18092 (NFCIP-1) active P2P ISO14443A, ISO14443B, and FeliCa ISO15693 Other customized protocols (like MIFARE Classic) Power supply voltage: 5V Operating voltage: 3.3V PACKAGE CONTENT ST25R3911B NFC Board x1 Micro SD Card 16GB x1 Micro SD Card reader x1 USB-A to Micro-B cable x1 User Manual Wiki: www.waveshare.com/wiki/ST25R3911B_NFC_Board
