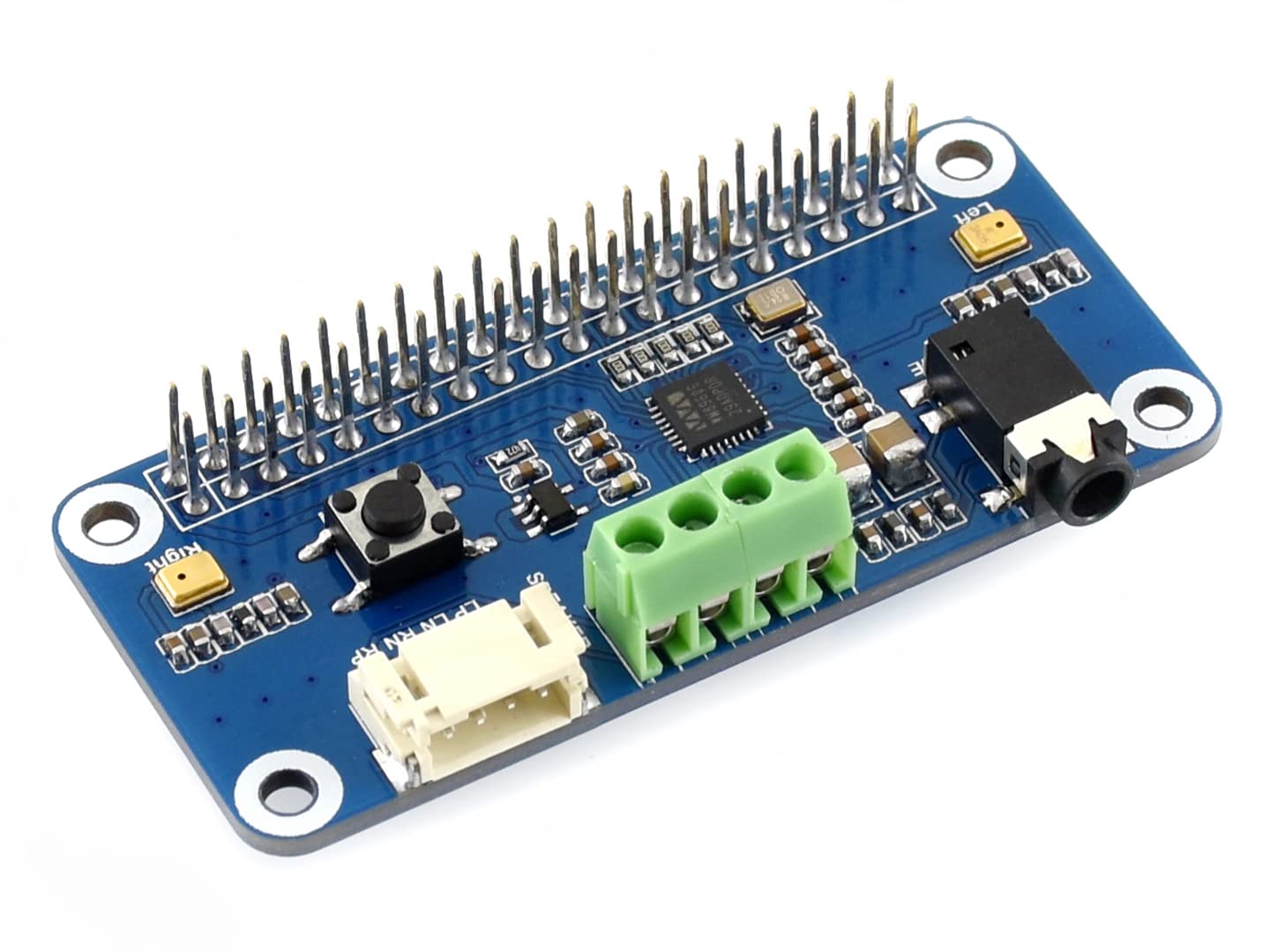

Waveshare Sound Card HAT, Integrates WM8960 Stereo CODEc, Compatible with Raspberry Pi

• This is sound card HAT is designed for Raspberry Pi, features Hi-Fi playing/recording, supports stereo encoding/decoding, and it can also directly drive speakers to play music
• Onboard Standard Pi 40PIN GPIO extension header, Integrates WM8960 low power stereo CODEC, communicates via I2S interface
• Integrates dual high-quality MEMS silicon Mic, supports left & right double channels recording, nice sound quality
• Onboard standard 3.5mm earphone jack, dual-channel speaker interface, Supports sound effects such as stereo, 3D surrounding, etc.
• Can be used for the latest bookworm 64 bit system (i.e. the latest driver requires a 64 bit system).

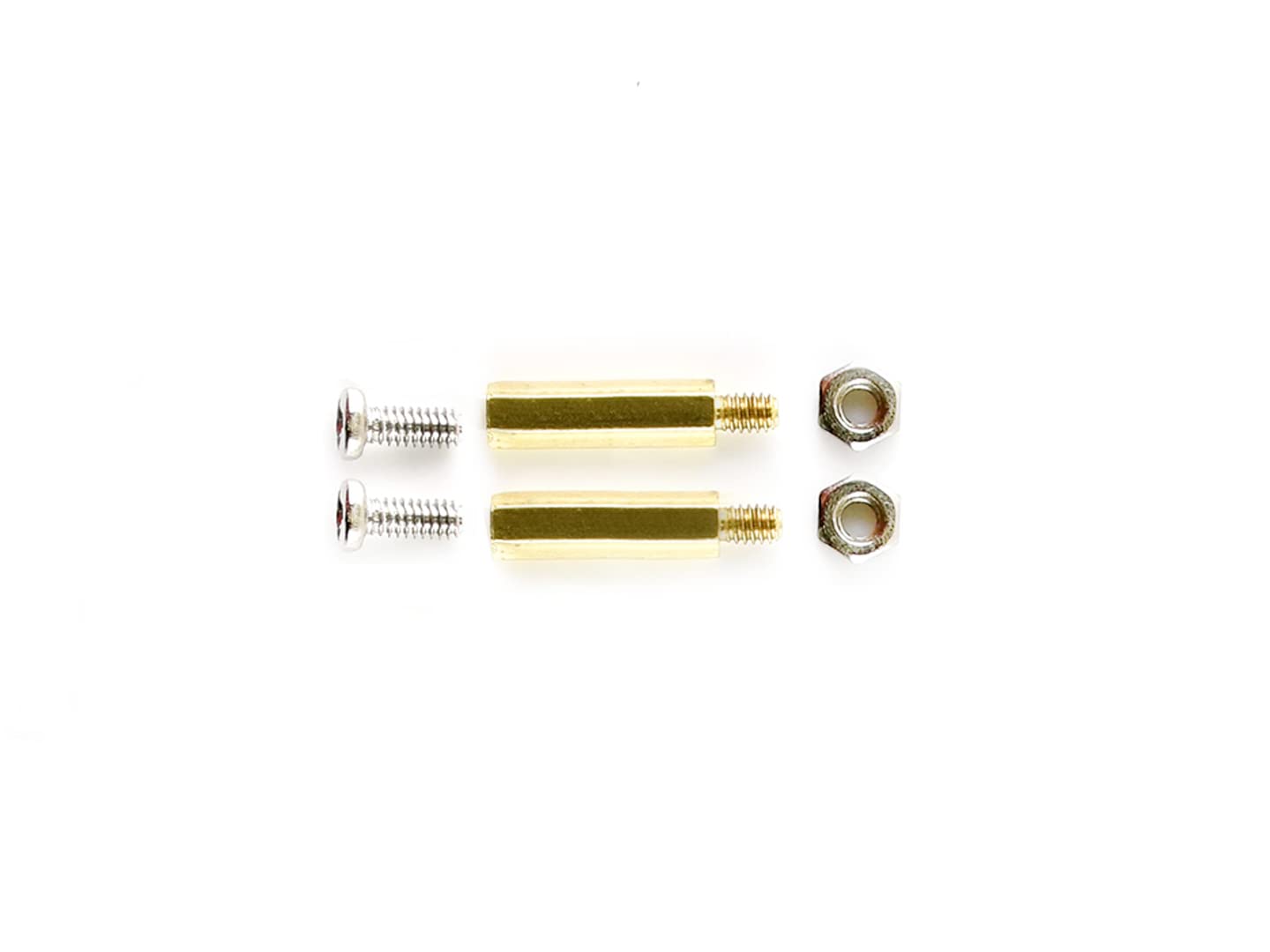

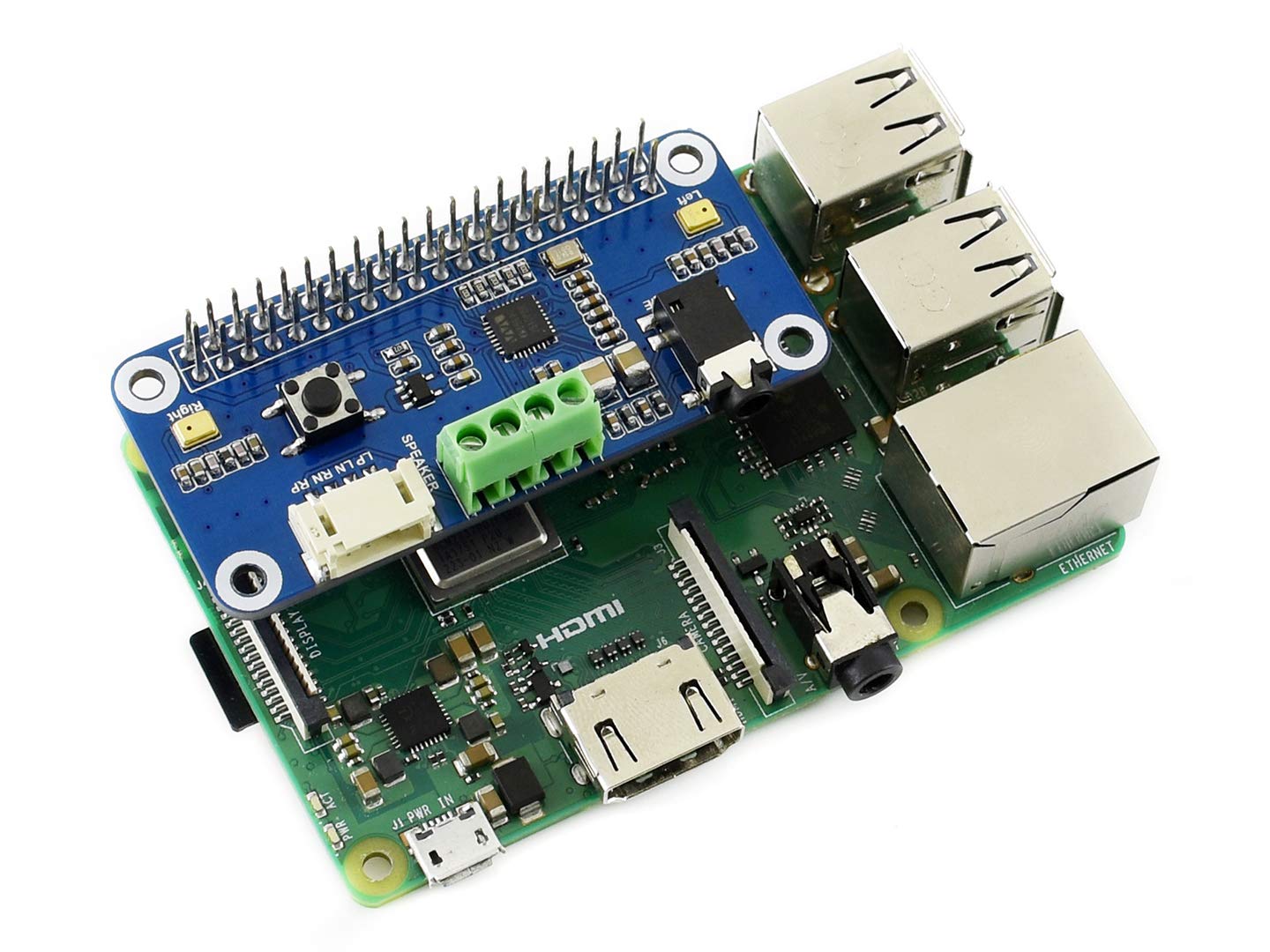

Overview This is a sound card HAT designed for Raspberry Pi, low power consumption, supports stereo encoding/decoding, features Hi-Fi playing/recording, what's more, it can directly drive speakers to play music. Features Standard Pi 40PIN GPIO extension header, supports Raspberry Pi series boards Integrates WM8960 low power stereo CODEC, communicates via I2S interface Integrates dual high-quality MEMS silicon Mic, supports left & right double channels recording, nice sound quality Onboard standard 3.5mm earphone jack, play music via external earphone Onboard dual-channel speaker interface, directly drives speakers Supports sound effects such as stereo, 3D surrounding, etc. with online development resources and manual (python demo code for playing/recording) Specifications CODEC: WM8960 Power supply: 5V Logic voltage: 3.3V Control interface: I2C Audio interface: I2S DAC signal-noise ratio: 98dB ADC signal-noise ratio: 94dB Earphone driver: 40mW (16Ω@3.3V) Speaker driver: 1W per channel (8Ω BTL) User Manual waveshare.com/wiki/WM8960_Audio_HAT?amazon PACKAGE CONTENT Note: Raspberry Pi in the photos is NOT included. 1. WM8960 Audio HAT x1 2. 8Ω 5W Speaker x1 3. Screws pack (2pcs) for RPi x1
