Waveshare RPi Relay Board, with 3-way Relay Control, with Pi 40PIN GPIO Extension Header, Compatible with Raspberry Pi Series Boards, Used for Pi to Control High Voltage/Current Devices

• Supports Raspberry Pi A+/B+/2B/3B/3B+ High quality relays, loads up to 5A 250V AC or 5A 30V DC
• High quality relays, loads up to 5A 250V AC or 5A 30V DC
• Photo coupling isolation, prevent interference from high voltage circuit
• Onboard LEDs for indicating relays status
• Relay control jumper, allows to control the relays by custom pins other than the default pins;Comes with development resources, including examples in wiringPi, WebioPi, shell, python, and bcm2835

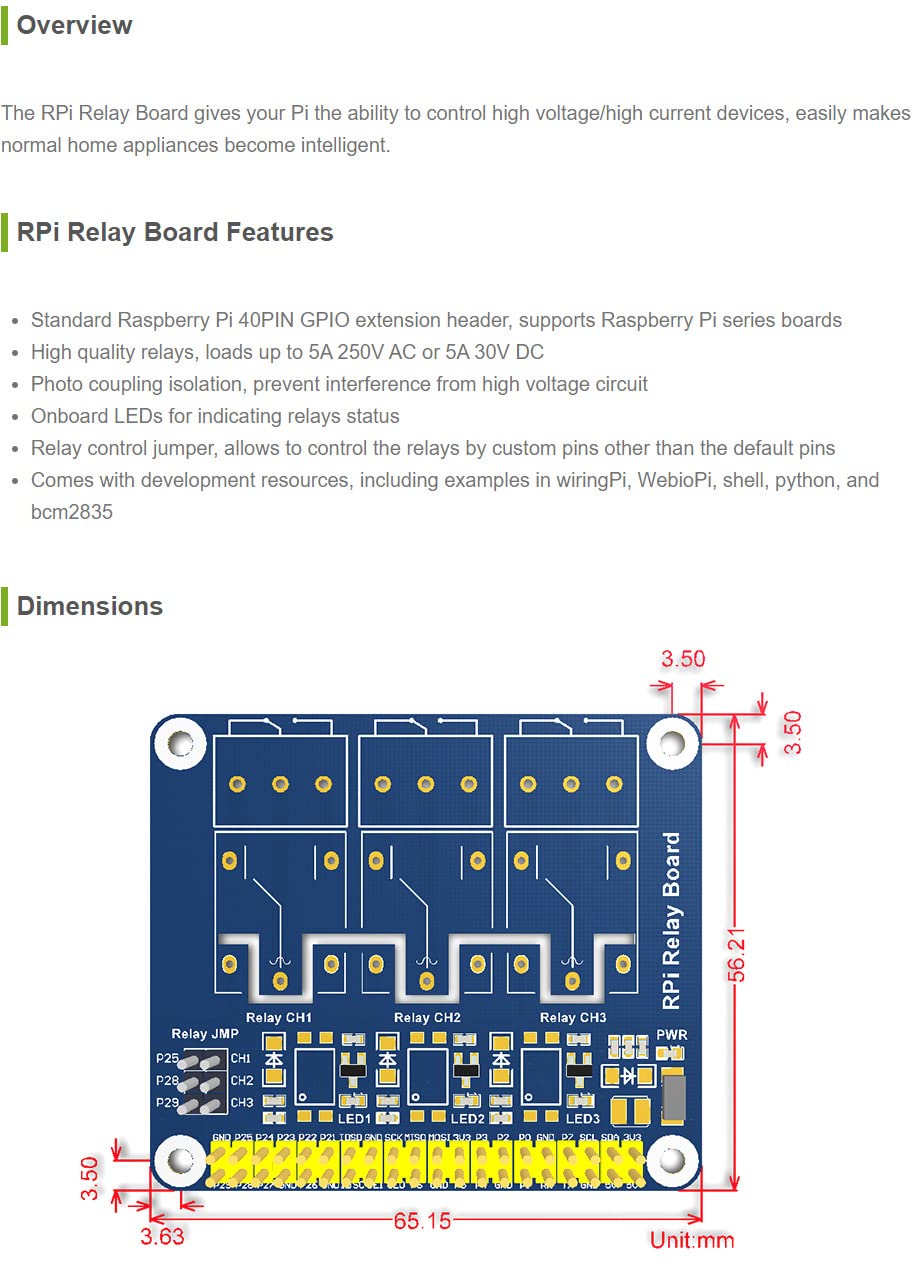

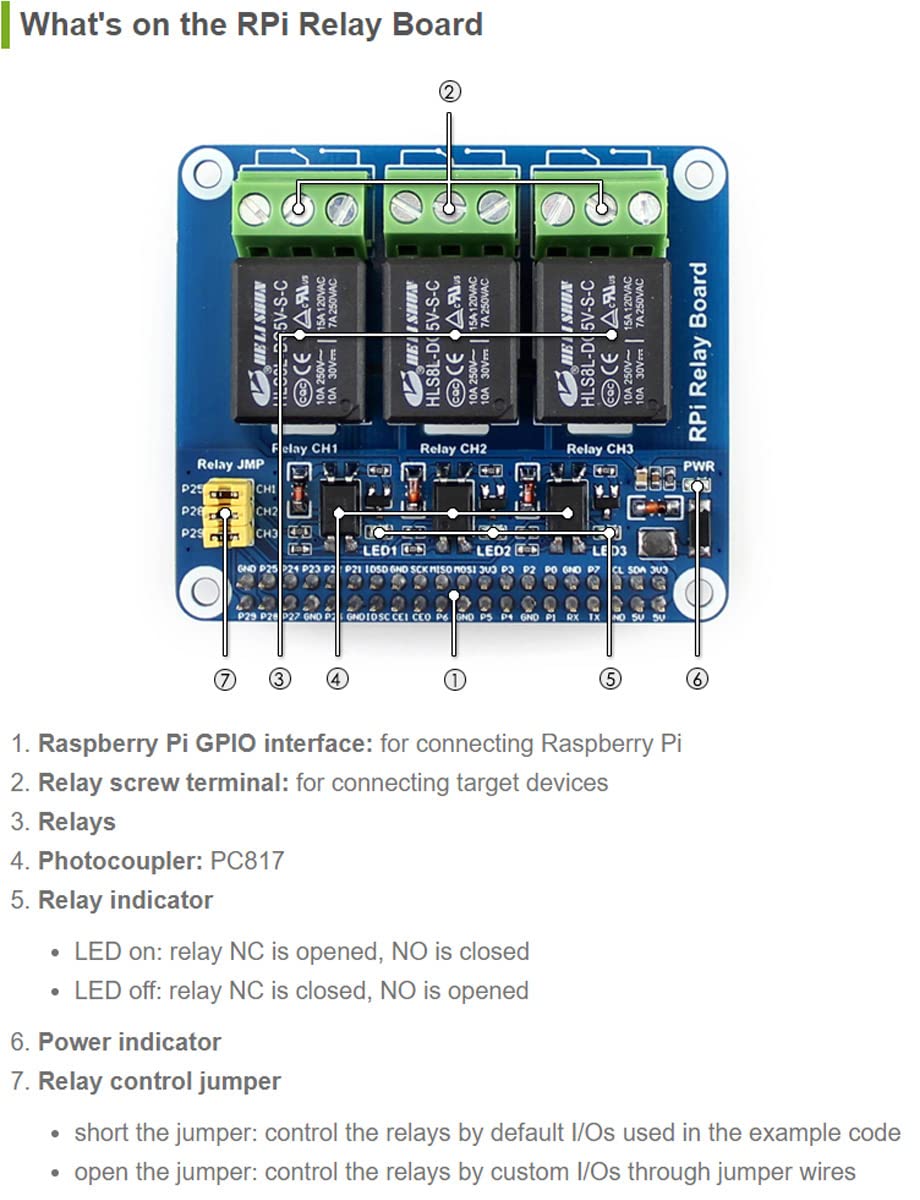

Raspberry Pi Expansion Board, Power Relay Overview The RPi Relay Board gives your Pi the ability to control high voltage/high current devices, easily makes normal home appliances become intelligent. RPi Relay Board Features Raspberry Pi A+/B+/2B/3B/3B+ Stands High quality relays, loads up to 5 A 250 V AC or 5 A 30 V DC. Photo coupling insulation, prevent interference from high voltage circuit. Onboard LEDs for indicating relays status Relay control jumper, allows to control the relays by custom pins other than the default pins. Comes with development resources, including examples in wiringPi, WebioPi, shell, python, and bcm2835. PACKAGE CONTENT RPi Relay Board x 1 RPi screws pack (2 pieces) x 1 Development Resources Wiki: www.waveshare.com/wiki/RPi_Relay_Board
