Relay Board for Raspberry Pi, 5V 1-Channel Relay Module, 40PIN GPIO Expansion, Photo-Coupled Isolation, 250V/5A Load Control, for Raspberry Pi Home Automation Projects

• 🔌 Relay Module for Raspberry Pi GPIO – Designed for Raspberry Pi, this expansion board connects via standard 40PIN GPIO header, enabling direct control of high-voltage devices like lights or fans.
• ⚡ High-Voltage & High-Current Control – Features a high-quality mechanical relay that supports up to 5A at 250V AC or 5A at 30V DC, suitable for smart home switching and industrial control.
• 🔒 Photo-Coupled Isolation Protection – Built-in optocoupler separates high-voltage circuit from the Pi’s logic, preventing signal interference and protecting your Raspberry Pi from electrical surges.

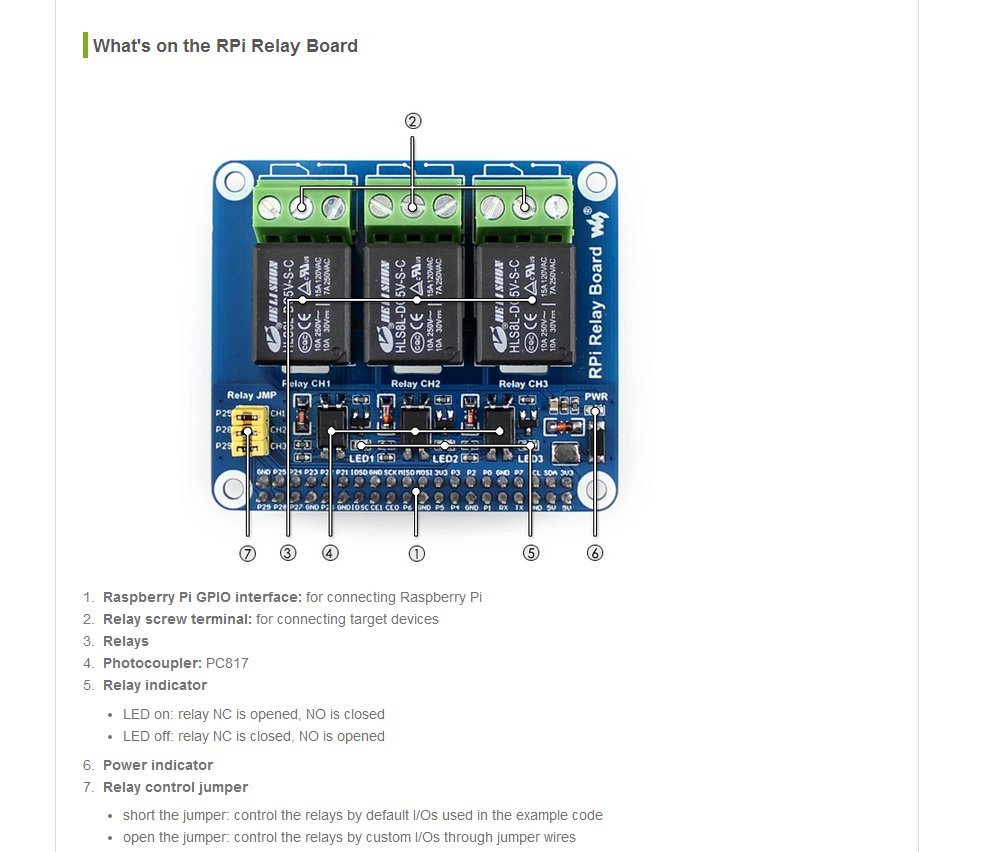

• 💡 Relay Status Indicators & Custom Pin Support – Onboard LEDs show real-time relay status; jumper selection allows you to redefine control pins beyond the default for advanced customization.
• 📚 Developer-Friendly with Sample Code – Includes Python, shell, wiringPi, WebioPi, and bcm2835 code examples to help you get started quickly with relay control projects on Raspberry Pi.

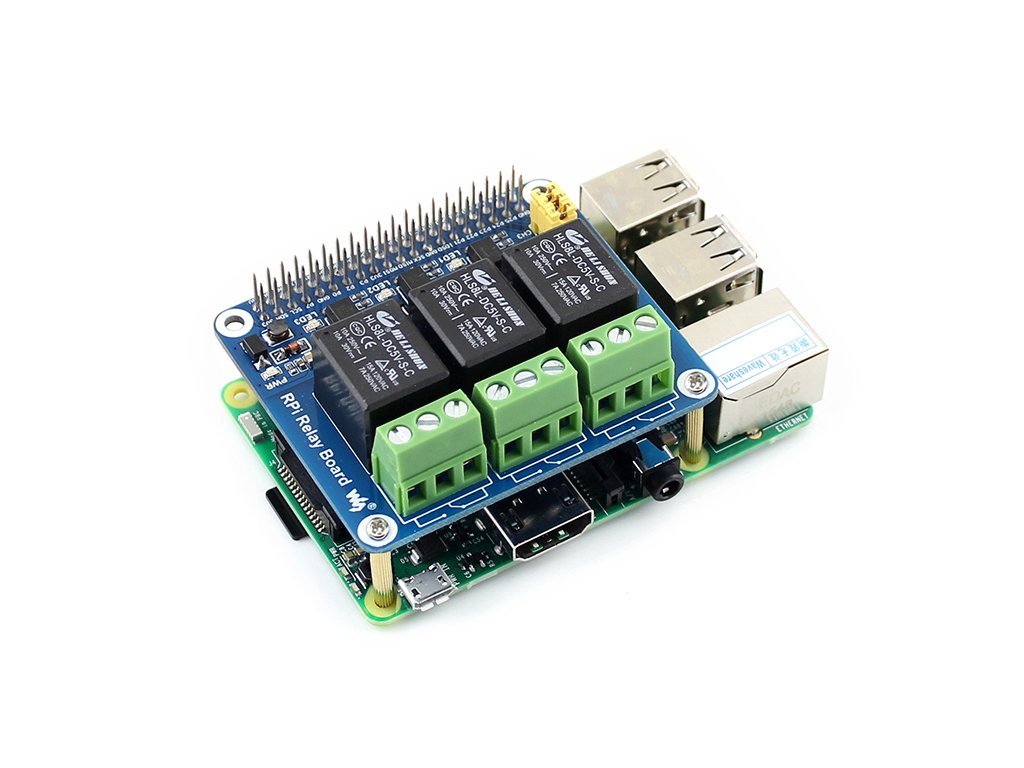

Overview The RPi Relay Board is a reliable relay expansion module for Raspberry Pi, designed to give your Pi the ability to control high-voltage or high-current electrical devices directly from its GPIO pins. Whether you're automating lights, controlling fans, or switching industrial equipment, this board makes it easy to integrate smart switching into your Rasp-berry Pi projects. This 5V relay module supports load switching of up to 5A at 250V AC or 5A at 30V DC, making it suitable for a wide range of home automation and industrial control applications. The module connects via a standard 40PIN GPIO header, making it compatible for Raspberry Pi 5/4B/3B+/3A+/2B/B+/Zero/Zero 2 W and more. To ensure safe operation, the board features photo-coupled isolation using an onboard optocoupler, effectively separating the Pi’s logic from the high-voltage switching side. This helps prevent signal interference and reduces the risk of damage to your development board due to power surges. Additional features include: ✅ Onboard LED indicators for relay switching status ✅ Jumper settings to redefine relay control pins ✅ Sturdy terminal block for easy connection of external loads ✅ Low-power 5V operation, directly powered by the Pi ✅ Open-source sample code in Python, shell, wiringPi, bcm2835, and WebioPi Whether you’re building a smart home system, a remote-controlled appliance, or a custom automation rig, the RPi Relay Board offers a simple and safe way to control AC or DC loads using your Rasp-berry Pi. Package include 1. RPi Relay Board x 1 2. RPi screws pack (2pcs) x 1
