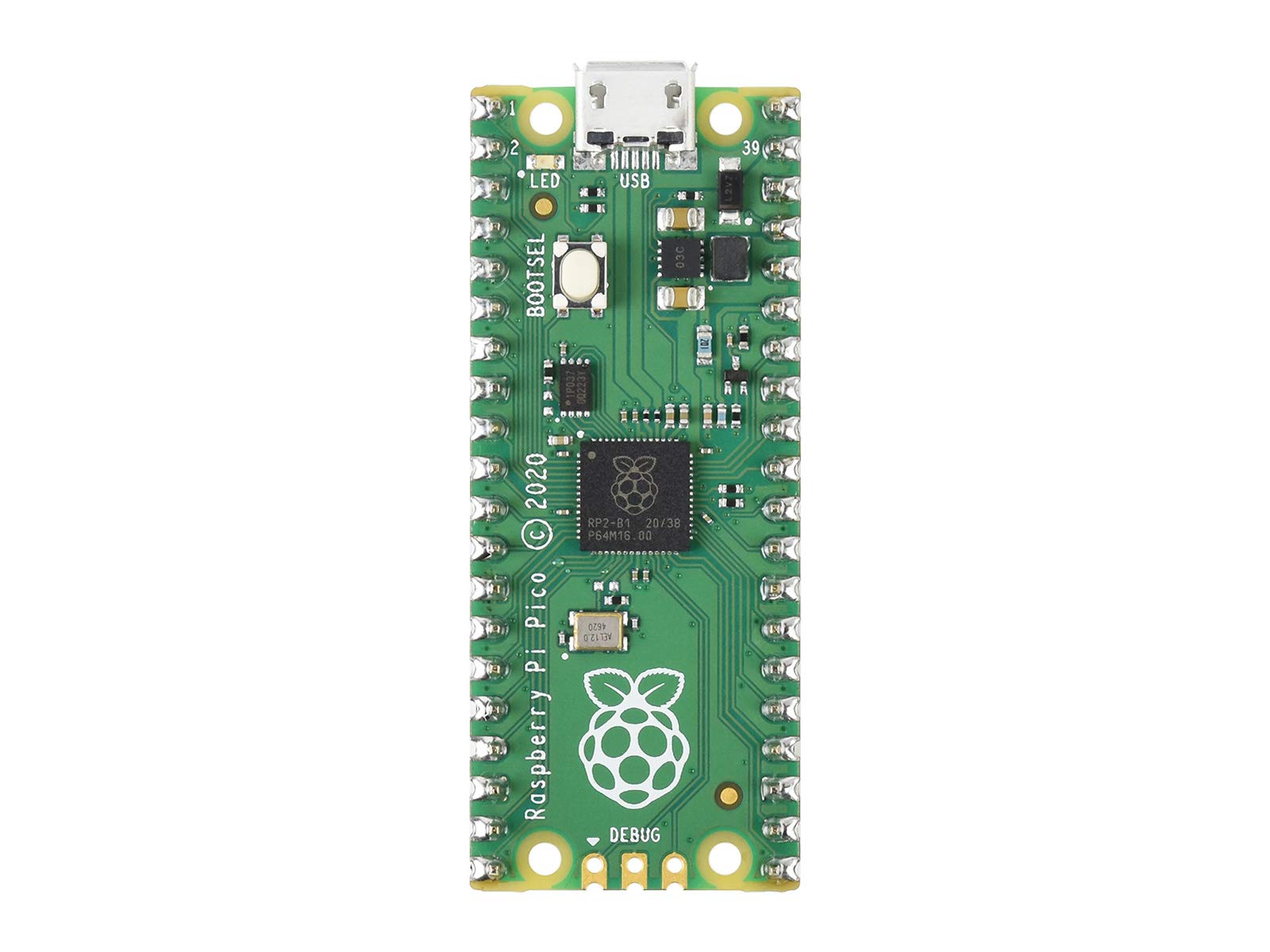

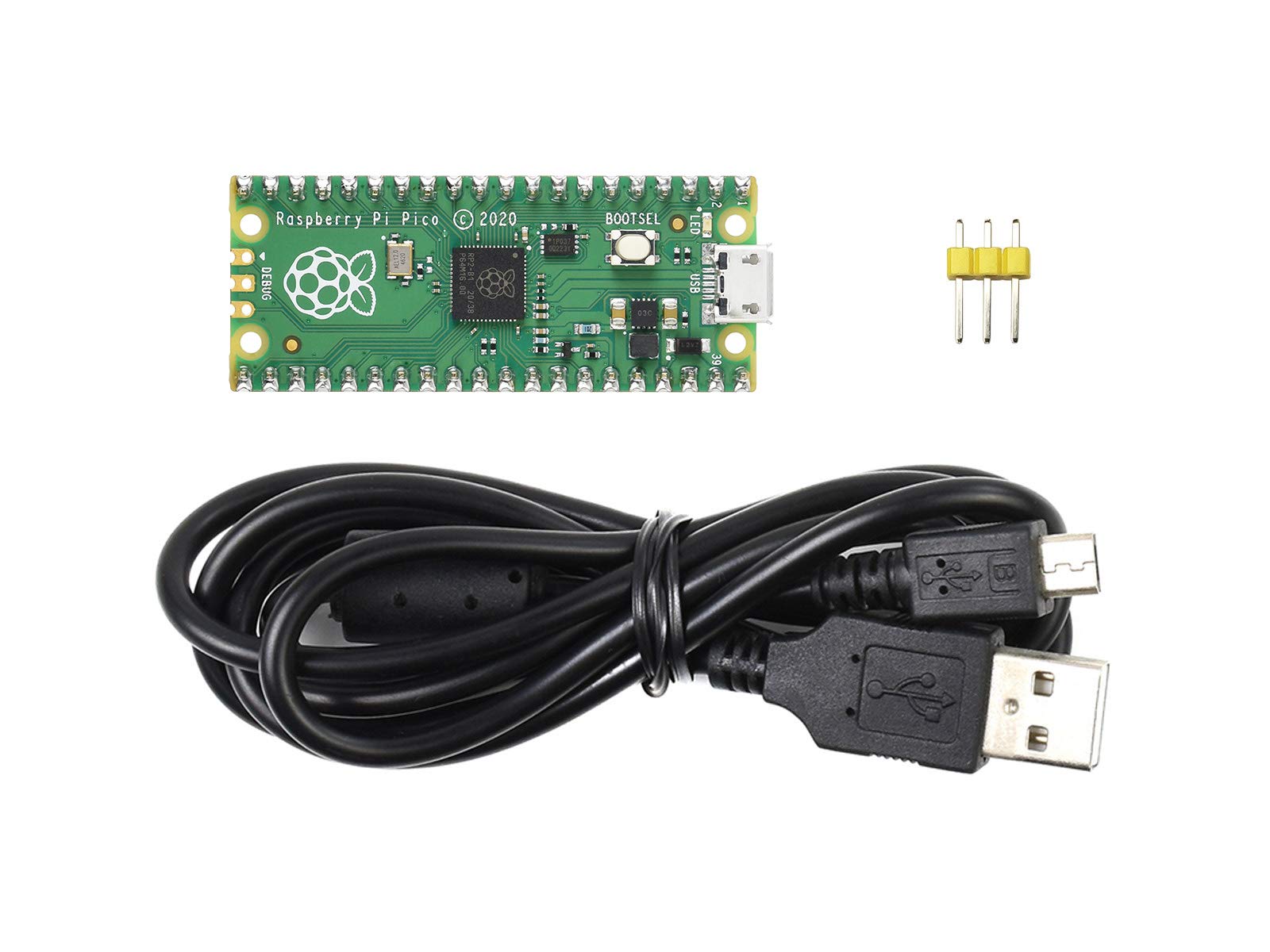

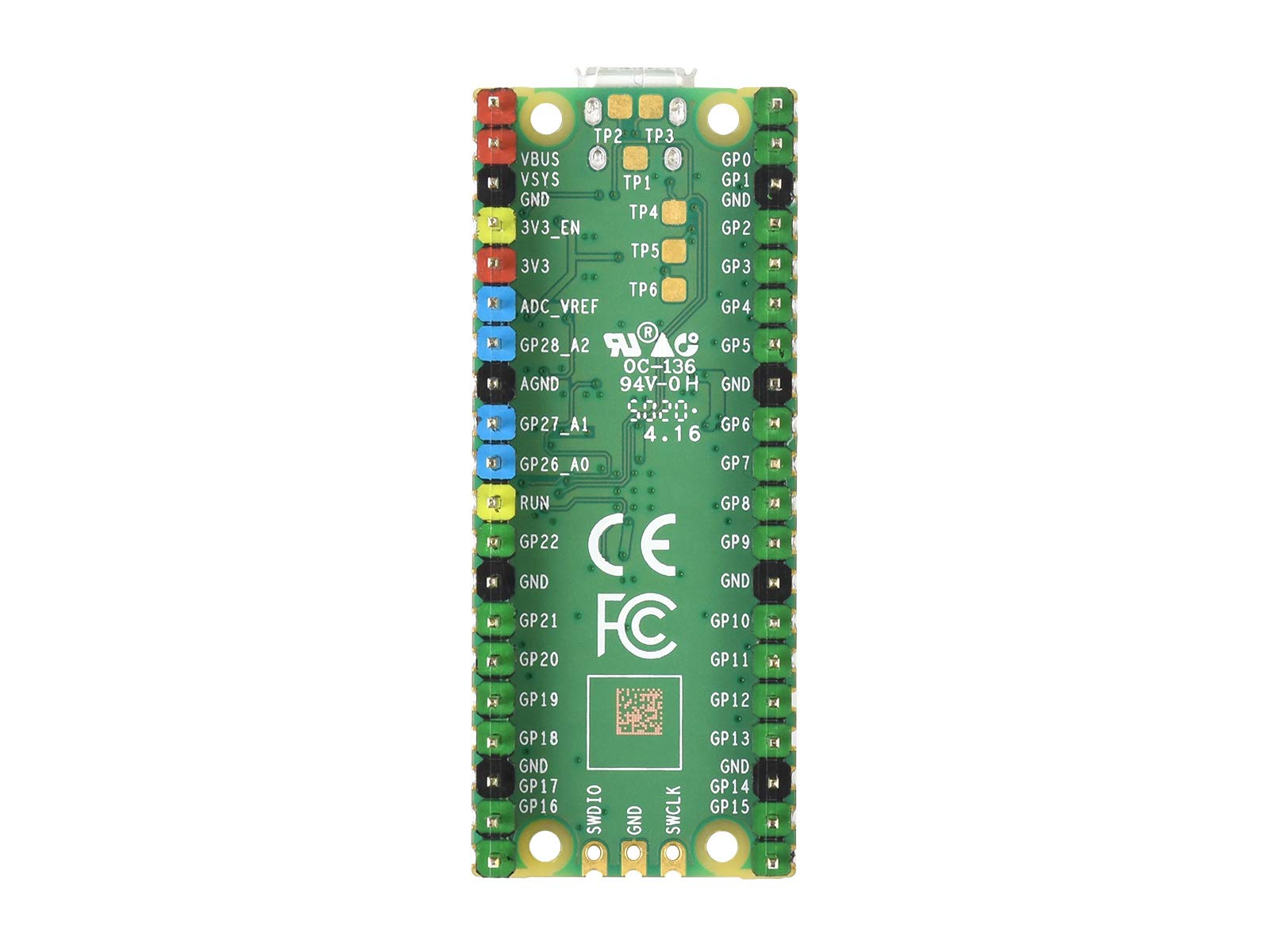

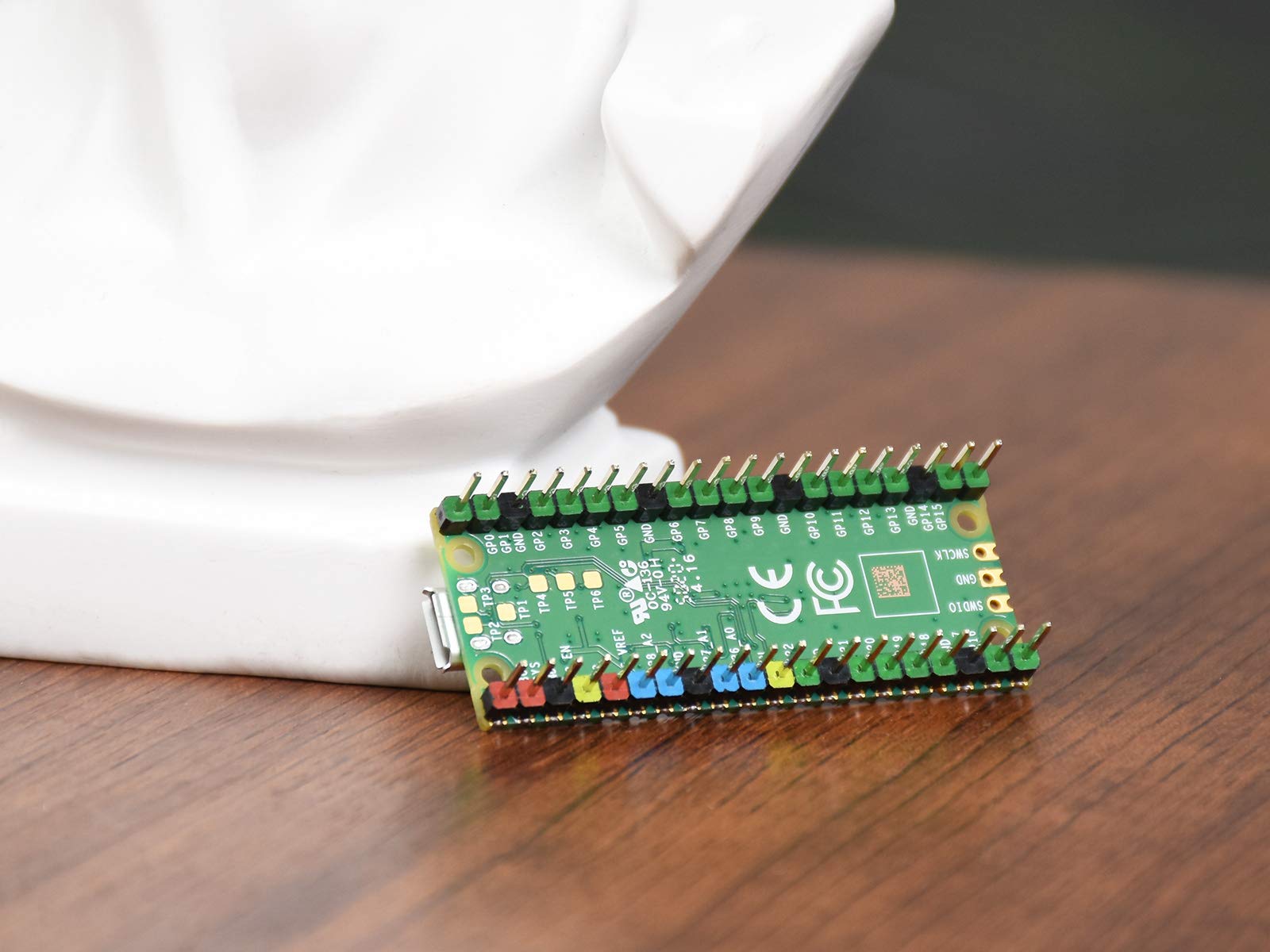

Waveshare Retrofited Raspberry Pi Pico with Pre-soldered black/color pinheader, a Low-Cost High-Performance Microcontroller Board with Flexible Digital Interfaces with Color Coded

• Built Using RP2040 Microcontroller Chip Designed By Raspberry Pi. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of S-RAM, and 2MB of on-board Flash memory. Castellated module allows soldering direct to carrier boards
• USB 1.1 with device and host support. Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB
• 26 × multi-function GPIO pins. 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels. Accurate clock and timer on-chip
• Temperature sensor. Accelerated floating-point libraries on-chip. 8 × Programmable I/O (PIO) state machines for custom peripheral support

Waveshare retrofitted Raspberry Pi Pico with pre-soldered black/color headers is a low-cost, high-performance microcontroller board with flexible digital interfaces. It incorporates Raspberry Pi's own RP2040 microcontroller chip, with dual-core Arm Cortex M0+ processor running up to 133 MHz, embedded 264KB of SRAM and 2MB of on-board Flash memory, as well as 26x multi-function GPIO pins. For software development, either Raspberry Pi's C/C++ SDK, or the MicroPython is available. There're also complete development resources and tutorials to help you get started easily, and integrate it into end products quickly. Key features include: RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz 264KB of SRAM, and 2MB of on-board Flash memory Castellated module allows soldering direct to carrier boards USB 1.1 with device and host support Low-power sleep and dormant modes Drag-and-drop programming using mass storage over USB 26 × multi-function GPIO pins 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels Accurate clock and timer on-chip Temperature sensor Accelerated floating-point libraries on-chip 8 × Programmable I/O (PIO) state machines for custom peripheral support
