Waveshare Pi GSM/GPRS/GNSS HAT Expansion Board with Low-Power Consumption Based on SIM868 Compatible with Raspberry Pi 2B 3B Zero Zero W

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano; Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT; Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
• Supports SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc.Support GPS, COMPASS, Glonass, LBS base station positioning, omni-positioning; Supports data transferring

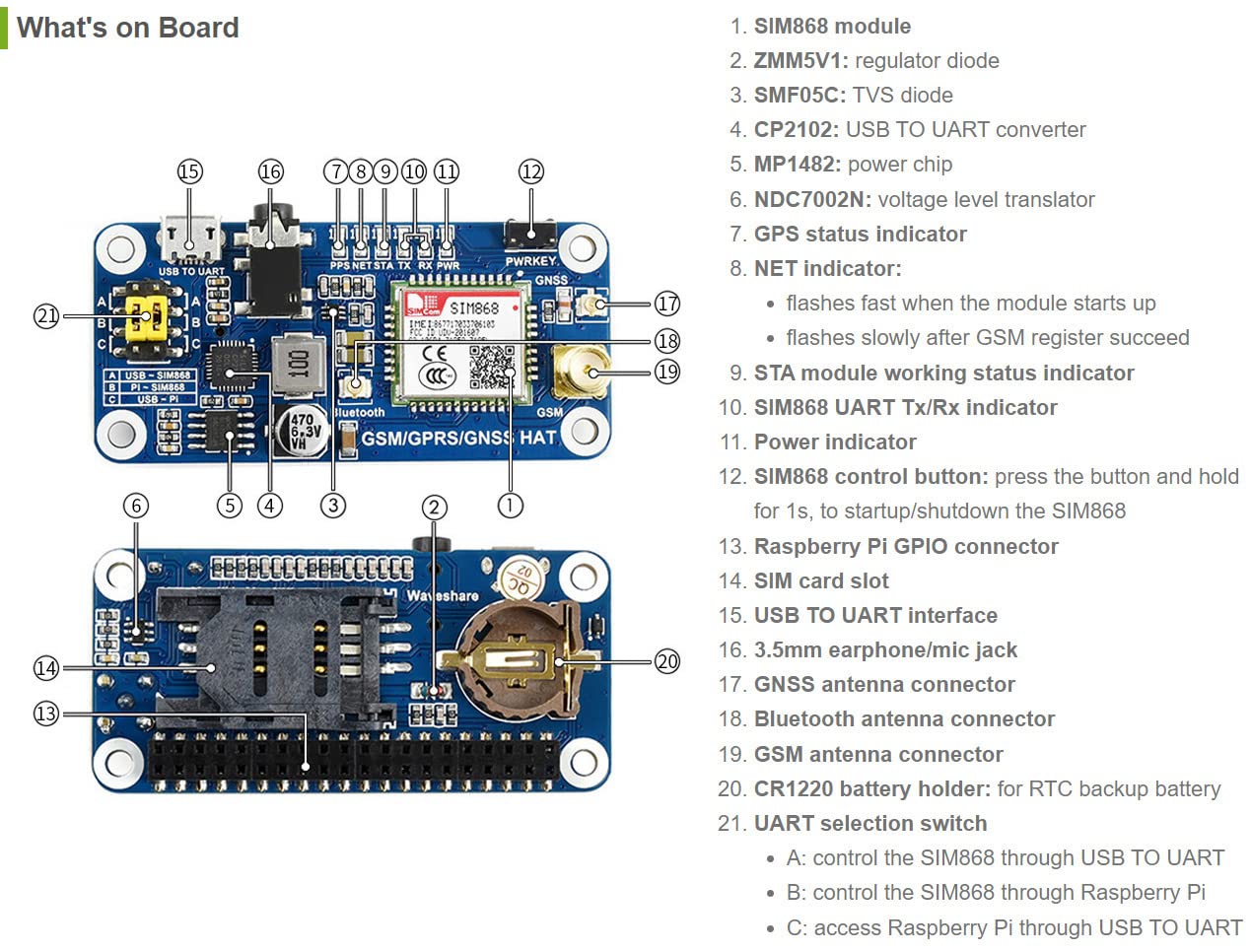

• Onboard USB TO UART converter CP2102 for UART debugging; 6x LEDs for indicating the module working status; SIM card slot for 1.8V/3V SIM card
• RTC with backup batt holder;Baudrate auto detection (1200bps ~115200bps); Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands);
• Supports SIM application toolkit: GSM 11.14 Release 99;

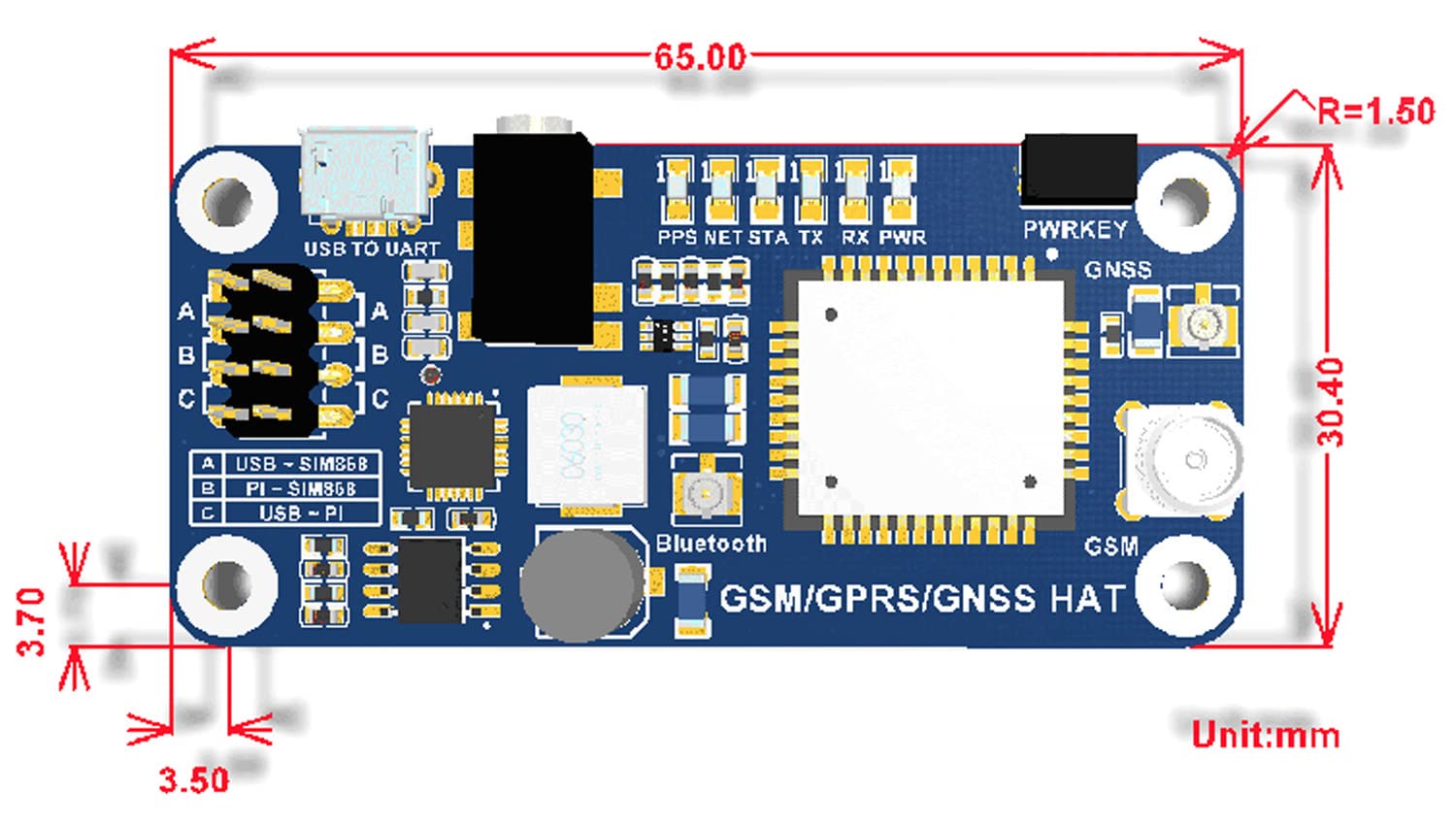

Overview This is a handy, low power Raspberry Pi HAT which features multi communication functionalities: GSM, GPRS, GNSS and Bluetooth. It allows your Pi to easily make a telephone call, send messages, connect to wireless Internet, global position, transfer data via Bluetooth, and so on. Features General Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano Supports SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc. Support GPS, COMPASS, Glonass, LBS base station positioning, omni-positioning Bluetooth 3.0, supports data transfer through Bluetooth. Onboard USB TO UART converter CP2102 for UART debugging 6 x LEDs for indicating the working status module. SIM card slot for 1.8V/3V SIM card. RTC with backup battery holder. Baudrate auto detection (1200bps ~115200bps). Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands) SIM support toolkit: GSM 11.14 Release 99. Comes with development resources and manual (examples for Raspberry Pi/Arduino/Jetson Nano/STM32). Operating voltage: 5 V. Operating temperature: -40°C ~ 85°C. Storage temperature: -45°C ~ 90°C. Dimensions: 30.2 mm x 65 mm. Wiki: www.waveshare.com/wiki/GSM/GPRS/GNSS_HAT? PACKAGE CONTENT GSM/GPRS/GNSS HAT x1 GSM Antenna x1 GPS External Antenna (B) x1 Bluetooth Antenna x1 USB type A plug to micro plug cable x1 RPi screws pack (2 pieces) x1
