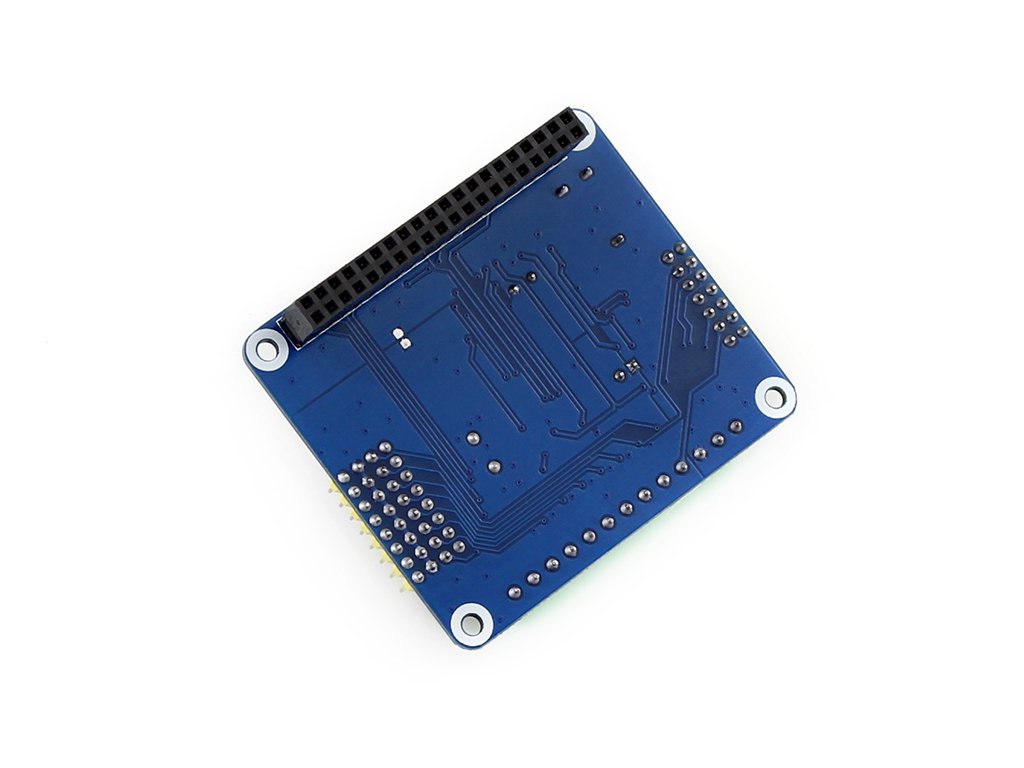

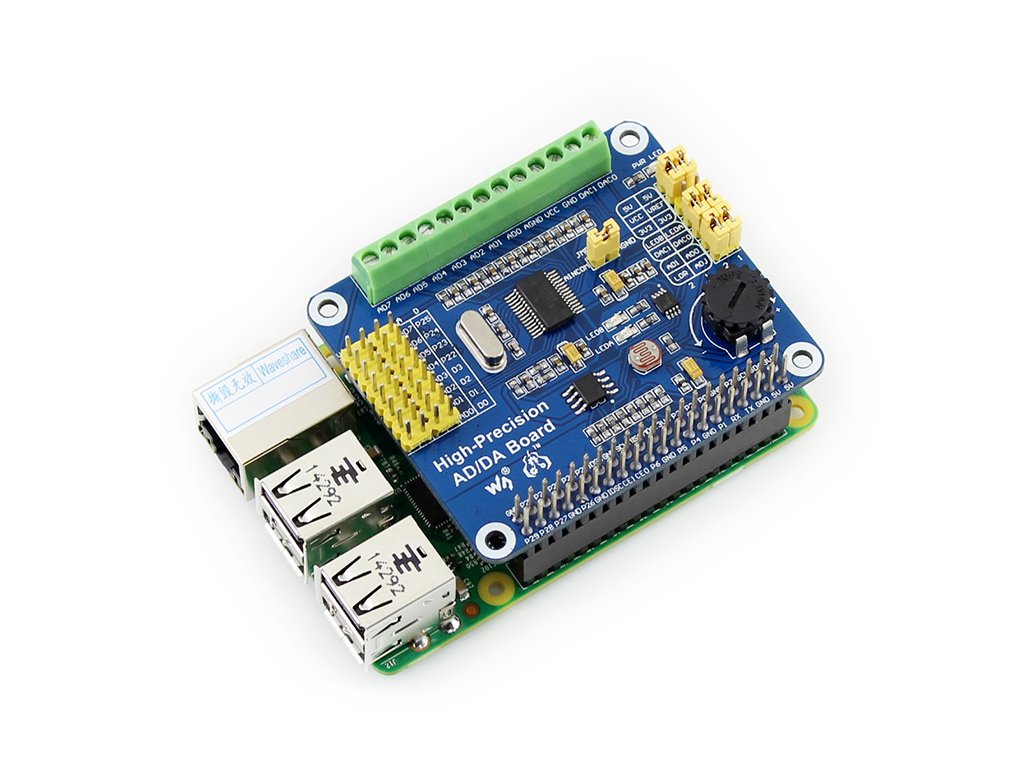

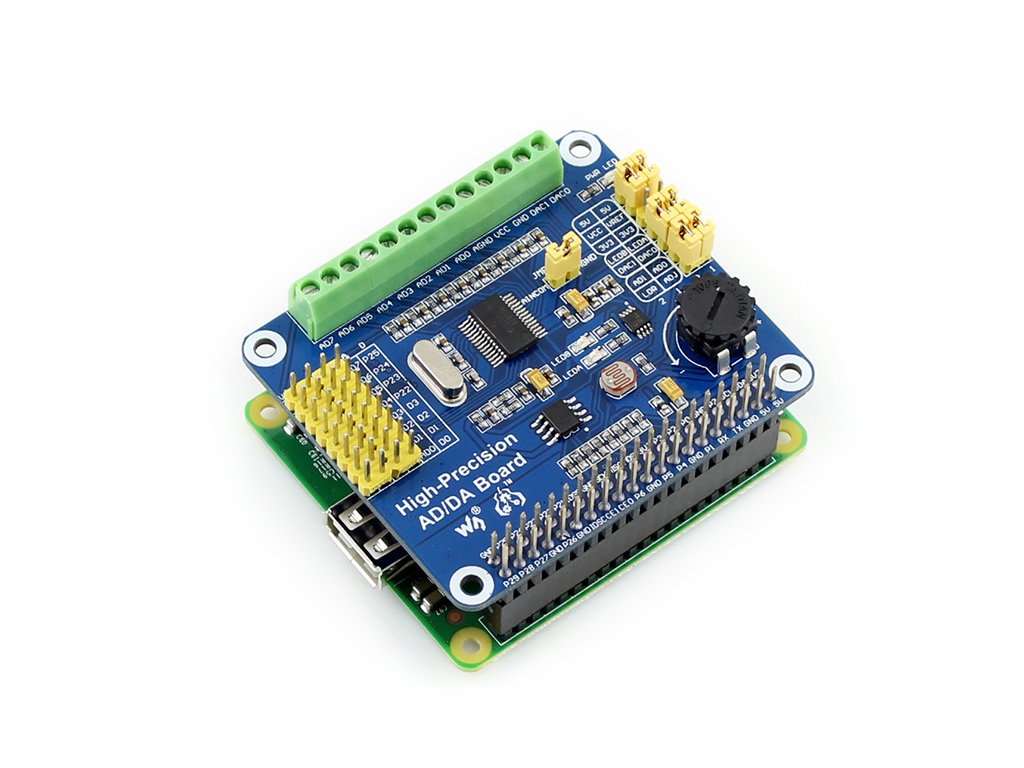

Raspberry Pi AD/DA Expansion Sheild Board for Adding High-Precision AD/DA Functions to Raspberry Pi Onboard ADS1256 DAC8552 Sensor Input/output Interface

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• Onboard ADS1256, 8ch 24bit high-precision ADC (4ch differential input), 30ksps sampling rate; Onboard DAC8532, 2ch 16bit high-precision DAC

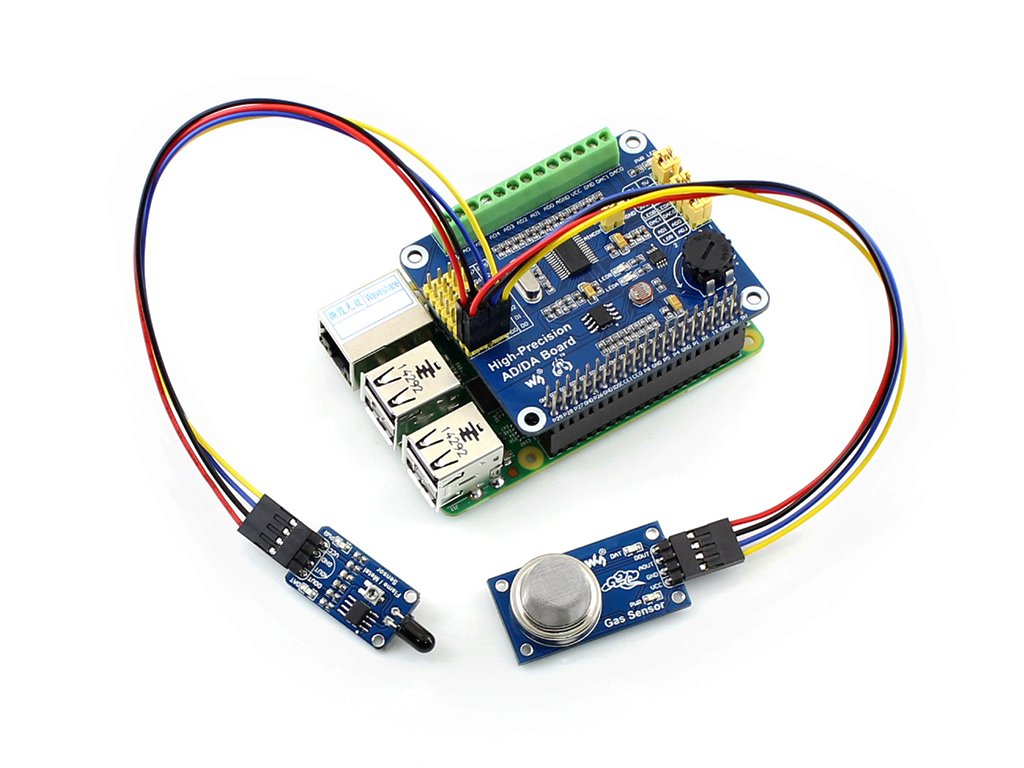

• Onboard input interface via pinheaders, for connecting analog signal: the pinout is compatible with Waveshare sensor interface standard, easy to connect various analog sensor modules
• Onboard input/output interface via screw terminals, for connecting analog/digital signal; Features AD/DA detect circuit, easy for signal demonstration
• Resources download link: www.waveshare.com/wiki/High-Precision_AD/DA_Board

Overview There's no AD/DA function on the Raspberry Pi GPIO interface, this may trouble you in the Pi development. However, it won't be a problem anymore. The High-Precision AD/DA Board allows you to add high-precision AD/DA functions to the Raspberry Pi. Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano Onboard ADS1256, 8ch 24bit high-precision ADC (4ch differential input), 30ksps sampling rate Onboard DAC8532, 2ch 16bit high-precision DAC Onboard input interface via pinheaders, for connecting analog signal --the pinout is compatible with Waveshare sensor interface standard, easy to connect various analog sensor modules Onboard input/output interface via screw terminals, for connecting analog/digital signal Features AD/DA detect circuit, easy for signal demonstration PACKAGE CONTENT 1. High-Precision AD/DA Board x 1 2. RPi screws pack (2pcs) x 1 Development Resources Wiki: www.waveshare.com/wiki/High-Precision_AD/DA_Board 100% original, support technical service, please contact us!
