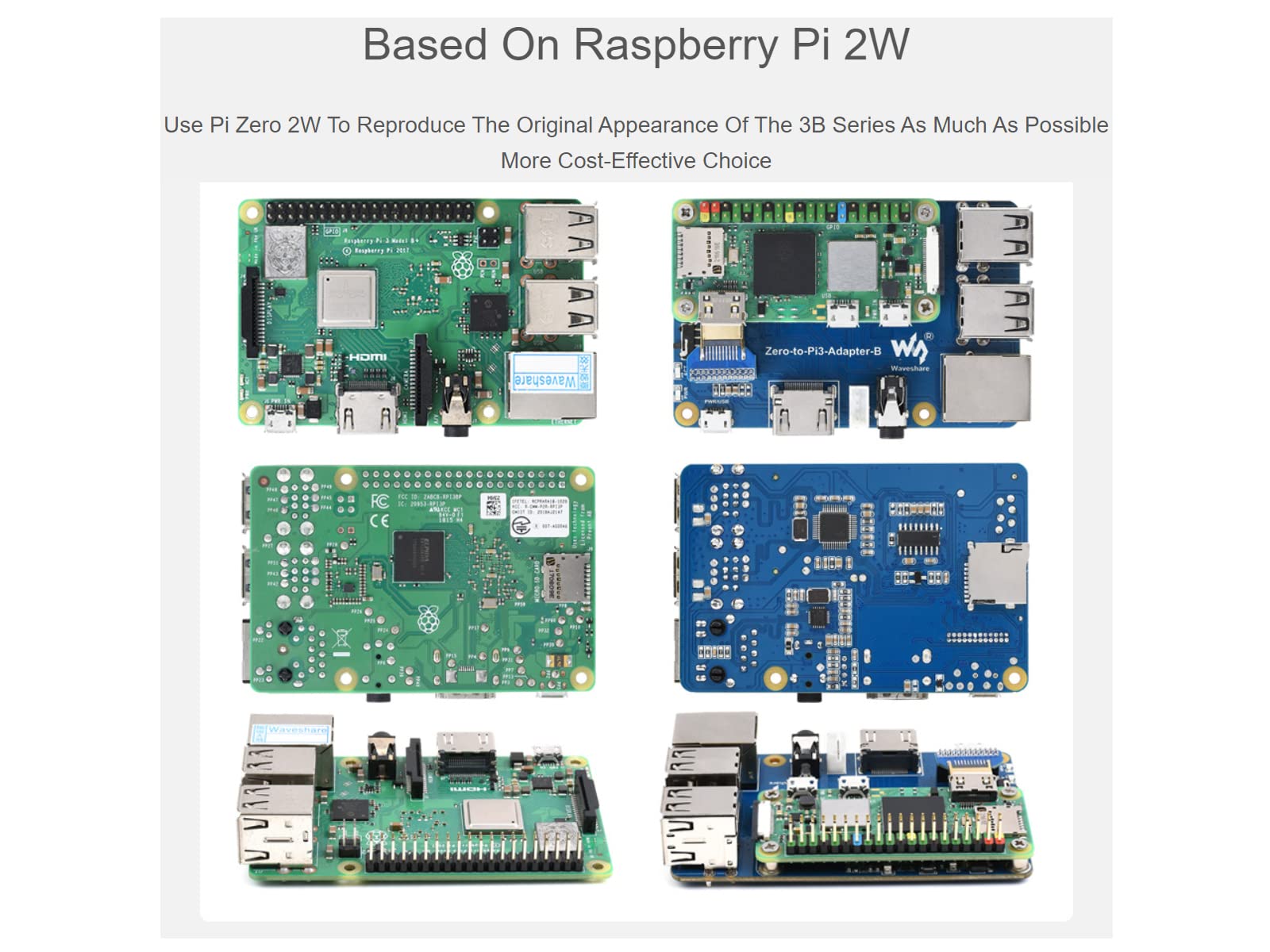

waveshare Pi Zero 2W to Raspberry Pi 3B+ B Board Adapter,Based on Raspberry Pi Zero 2W to Reproduce The Original Appearance of The 3B Series Board,Alternative Solution for Raspberry Pi 3 Model B+ B

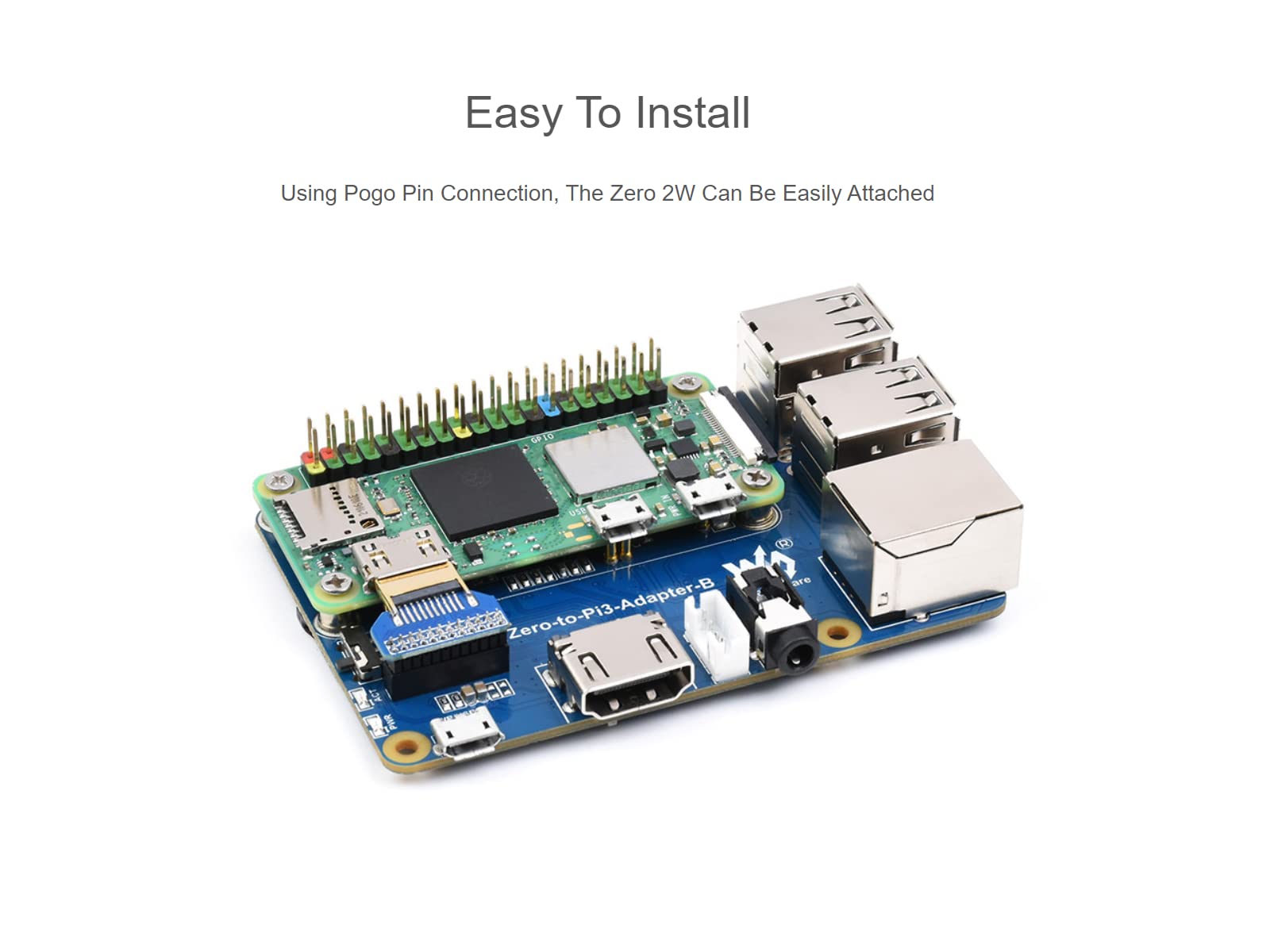

• Zero-to-Pi3-Adapter (B) Using pogo pin connection, the Zero 2W can be easily attached

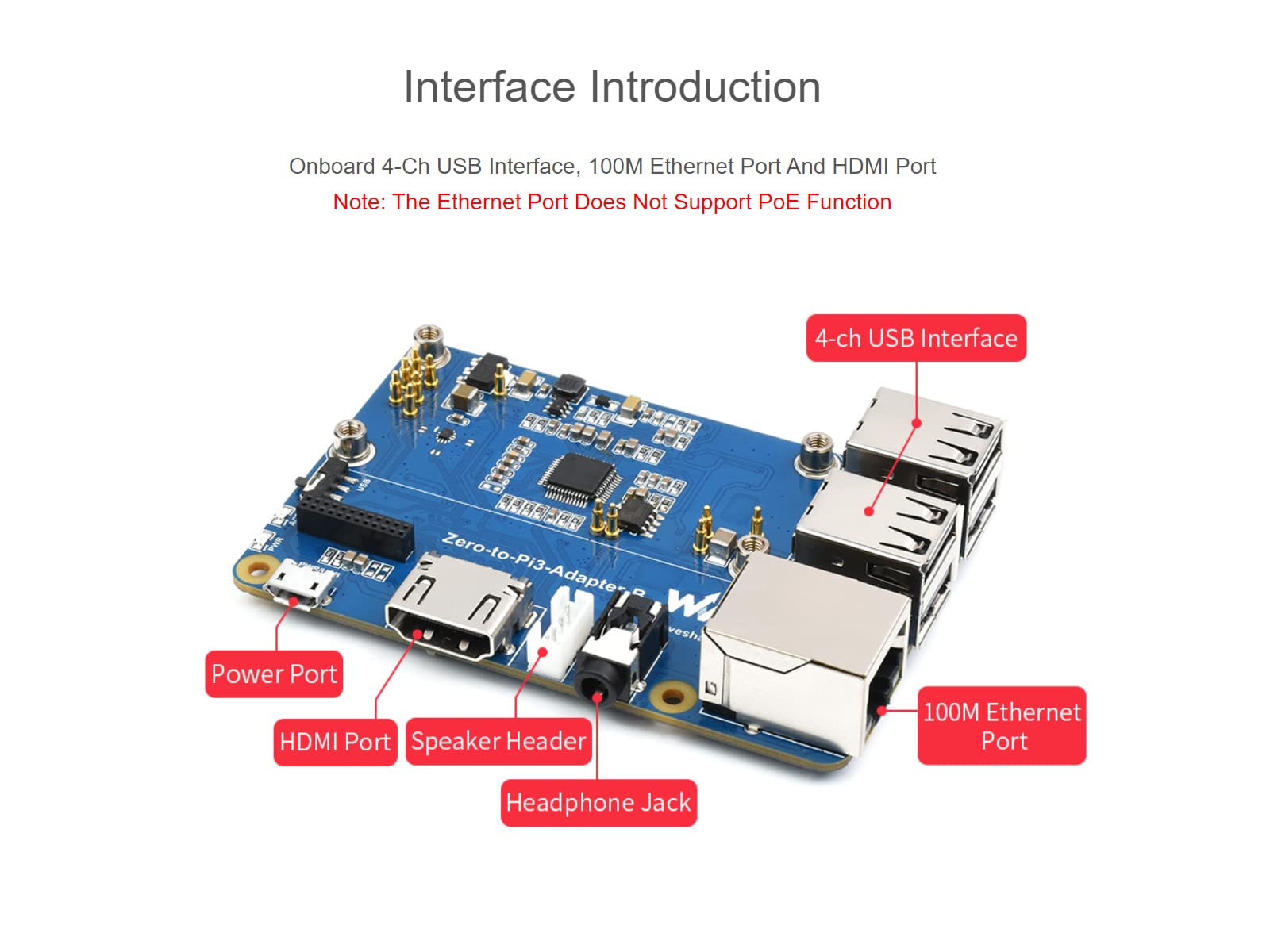

• Easily compatible with the interfaces of Raspberry Pi 3B / 3B+ boards
• Onboard 4-ch USB ports, compatible with USB 2.0 / 1.1 transmission

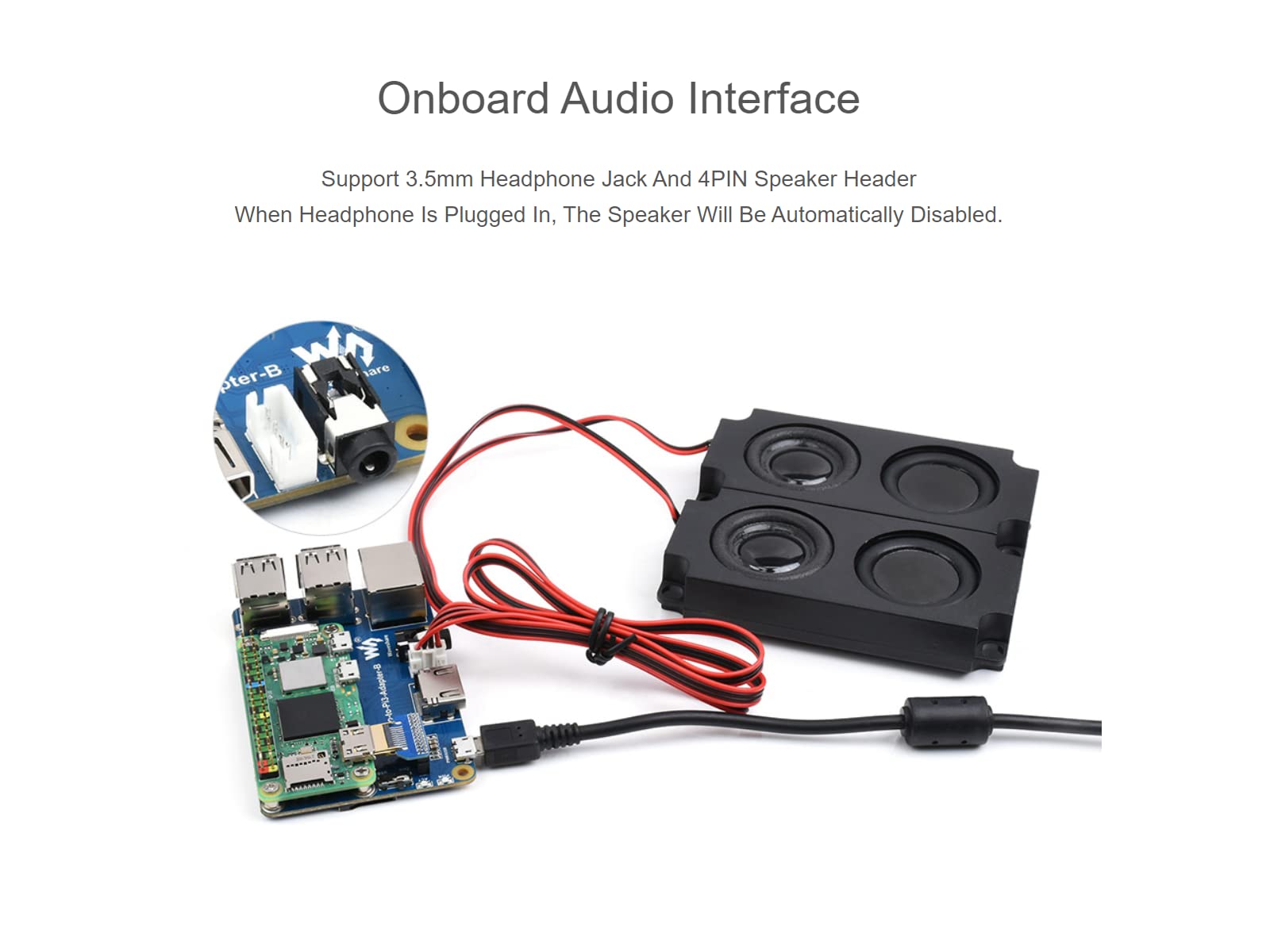

• Onboard headphone jack(extended from USB) and an additional speaker header
• Onboard RTL8152B Ethernet chip, support 1-ch RJ45 Ethernet port, 10 / 100 M adaptive.Not compatible with the first generation Zero

Raspberry Pi Zero 2W To 3B Adapter, Alternative Solution For Raspberry Pi 3 Model B/B+ Introduction Onboard 4-ch USB interface, Fast Ethernet port and HDMI port, Raspberry Pi Zero 2W To 3B Adapter is an alternative for Raspberry Pi 3 Model B/B+, supporting Zero 2W but not Zero. Features Zero 2 w: Broadcom BCM2710A1, Quad Core 64-bit SoC (Arm Cortex-A53 @ 1GHz). 512MB LPDDR2 SDRAM. IEEE 802.11b/g/n Wireless LAN, Bluetooth 4.2, BLE. Onboard 1 Mirco USB 2.0 port with OTG. Onboard Raspberry Pi 40 Pin GPIO interface pad, suitable for Raspberry Pi series expansion boards MicroSD card slot. Mini HDMI output interface Composite video interface pads, and reset interface pads. CSI-2 Camera Interface. H.264, MPEG-4 encoding (1080p30); H.264 decoding (1080p30). Support OpenGL ES 1.1, 2.0 graphics. Expansion board: Adopt the pogo pin into the Zero board, which can be inserted directly and conveniently. Its interfaces are easily compatible with the Raspberry Pi 3B series (3B / 3B+) board. The module has an onboard USB audio headphone port and an additional speaker port. Onboard 4-way USB expansion port, compatible with USB 2.0 / 1.1 transmission. Onboard RTL8152B Ethernet chip, support 1 RJ45 network port, 10/100M self-adaptive. Only supports Zero 2 w, not compatible with Zero generation. Package Content Zero-to-Pi3-Adapter (B) x1 HDMI Adapter x1 Note Technical Support is provided , Please feel free to contact us via Amazon message if you have any problem. Pi Zero is not included in the product package.
