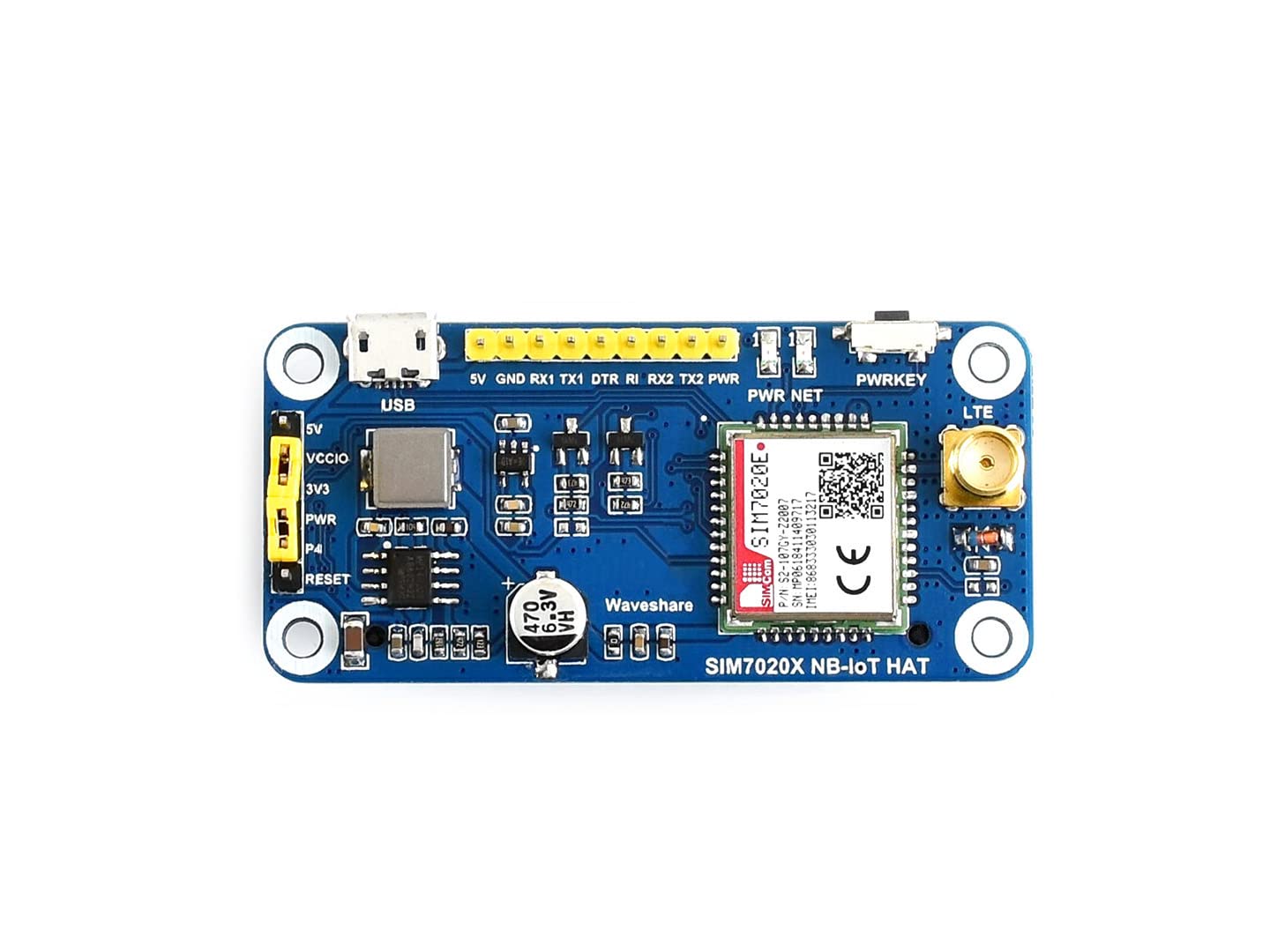

Waveshare NB-IoT HAT for Raspberry Pi and Jetson Nano Based on SIM7020E B1/B3/B5/B8/B20/B28 Bands for Europe Asia Africa Australia for Intelligent Instruments Asset Tracking Remote Monitoring…

• SIM7020E is mainly applicable in Europe, Asia, Africa, Australia.Onboard USB interface, for power supply OR debugging. Breakout UART control pins, to connect with host boards like Arduino/STM32 Please check the supported bands according to your local service provider when placing order.
• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32/Python) Supports communication protocols such as LWM2M/COAP/MQTT/TCP/UDP/HTTP/HTTPS, etc.
• Supports communication protocols such as LWM2M/COAP/MQTT/TCP/UDP/HTTP/HTTPS, etc.; Onboard USB interface, for power supply OR debugging Breakout UART control pins, to connect with host boards like Arduino/STM32

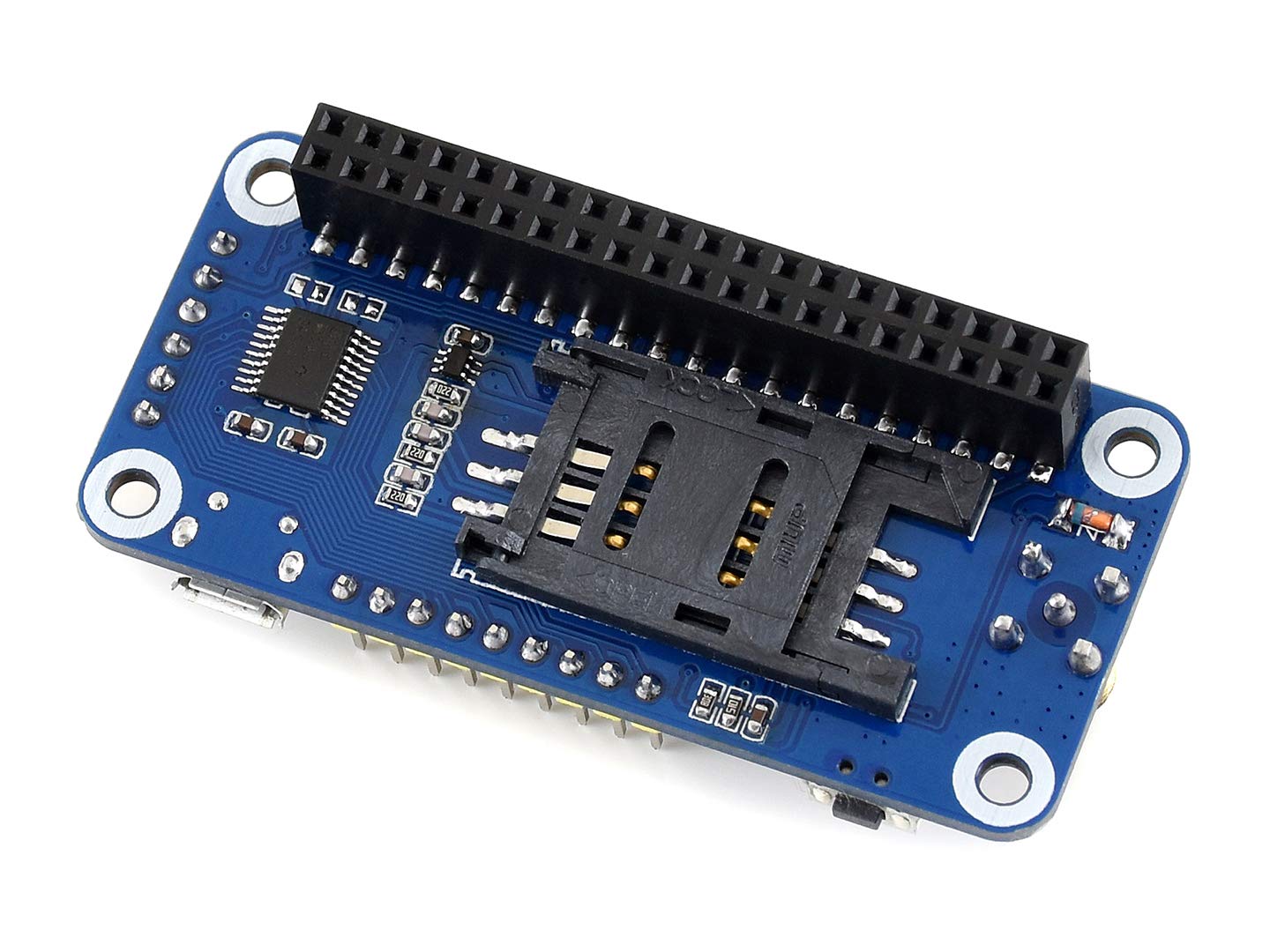

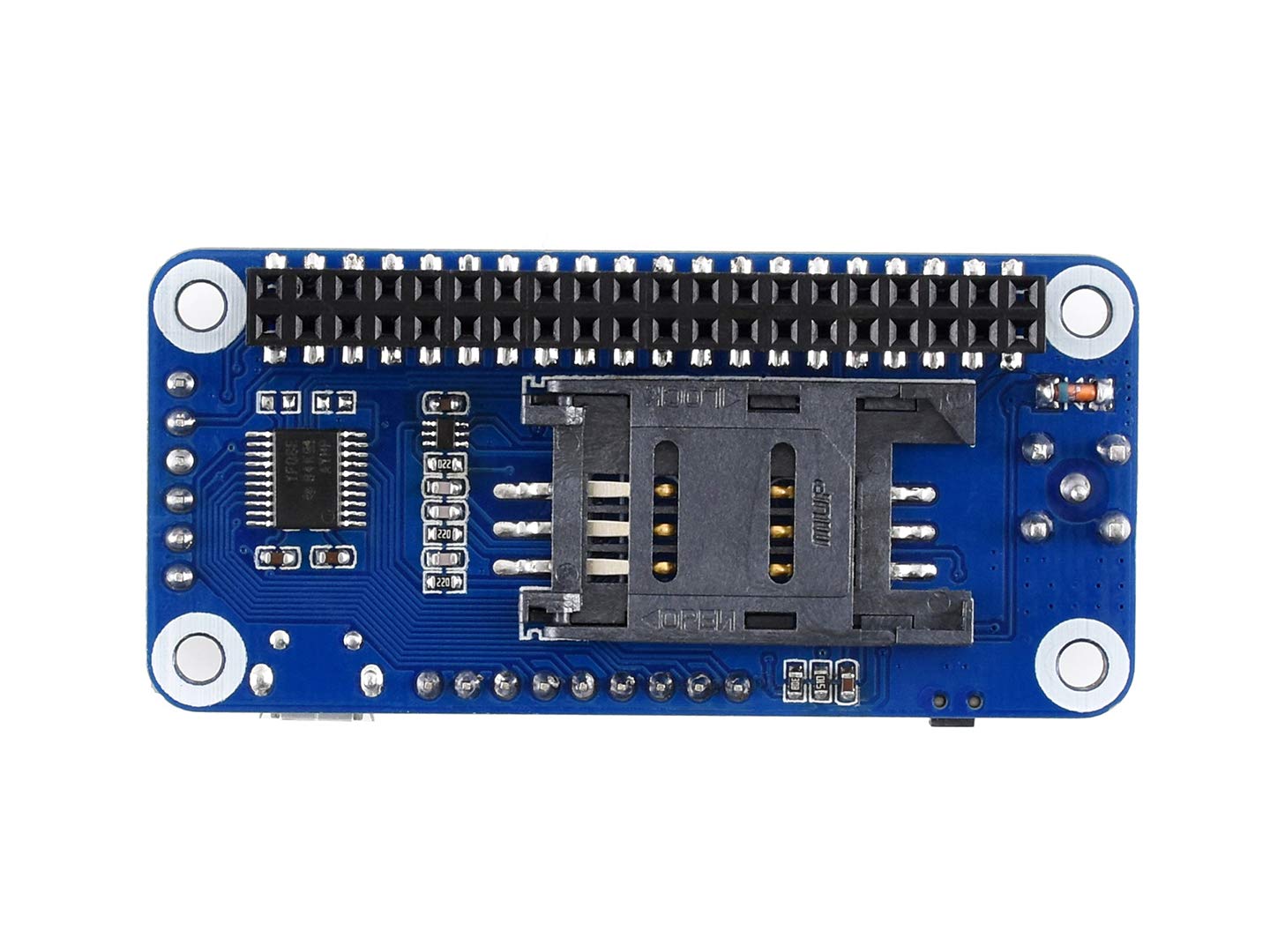

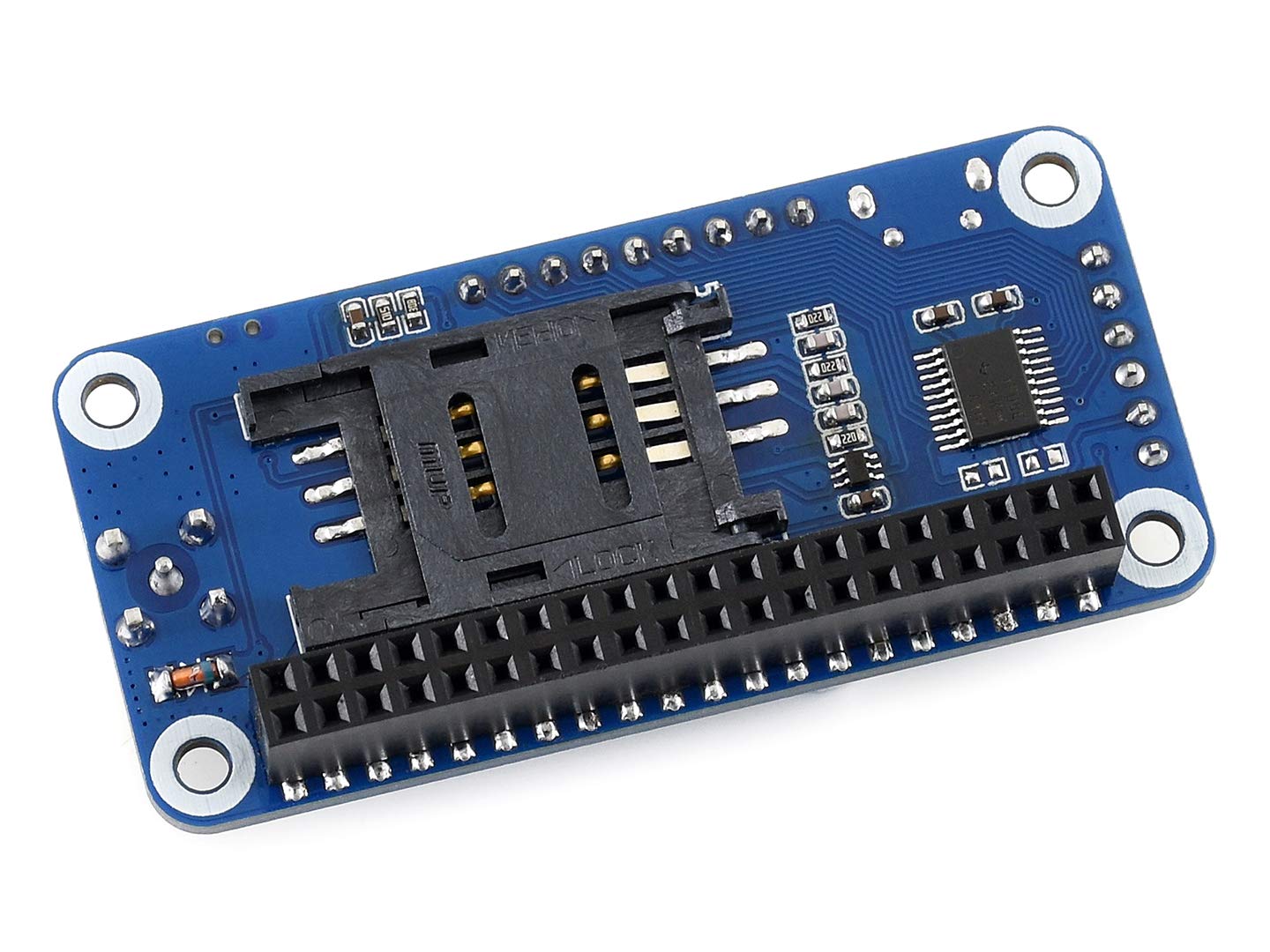

• Onboard voltage translator, 3.3V by default, allows to be switched to 5V via onboard jumper; SIM card slot, supports NB-IoT specific card SIM card slot, supports NB-IoT specific card
• 2x LED indicators, easy to monitor the working status. Baudrate: 300bps~921600bps (115200bps by default). Control via AT commands (V.25TER, 3GPP TS 27.007, and SIMCOM AT Commands) Baudrate: 300bps~921600bps (115200bps by default) Control via AT commands (V.25TER, 3GPP TS 27.007, and SIMCOM AT Commands)

Overview The SIM7600E-H 4G HAT is a 4G/3G/2G communication and GNSS positioning module, which supports LTE CAT4 up to 150Mbps for downlink data transfer. It is pretty low power consumption. You can connect this 4G module with computer to surf the Internet, or attach it onto Raspberry Pi to enable functions like 4G high speed connection, wireless communication, making telephone call, sending SMS, global positioning, etc. Note: this is a region-specific module, please check the supported bands before placing order. Features Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+. Supports dial-up, phone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, BeiDou, Glonass, LBS base station positioning Onboard USB interface, to test AT Commands, get GPS positioning data, and so on Onboard CP2102 USB to UART converter, for serial debugging Breakout UART control pins, to connect with host boards like Arduino/STM32. SIM card slot, supports 1.8V/3V SIM card. TF card slot for storing data like files, messages, etc. Onboard audio jack and audio decoder for making telephone call 2 x LED indicators, easy to monitor the working status. Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper Baudrate: 300bps ~ 4Mbps (default: 115200bps). Autobauding baudrate: 9600bps ~ 115200bps. Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set) Supports SIM toolkit: SAT Class 3, GSM 11.14 Release 99, USAT Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32). PACKAGE CONTENT SIM7600E-H 4G HAT x1 LTE Antenna x1 GPS External Antenna (B) x1 USB type A plug to micro plug cable x2. RPi screws pack (2 pieces) x1
