Waveshare NB-IoT/Cat-M(eMTC)/GNSS Telecommunication HAT for Raspberry Pi Based on SIM7080G Globally Applicable for Intelligent Instruments Asset Tracking Remote Monitoring E-health

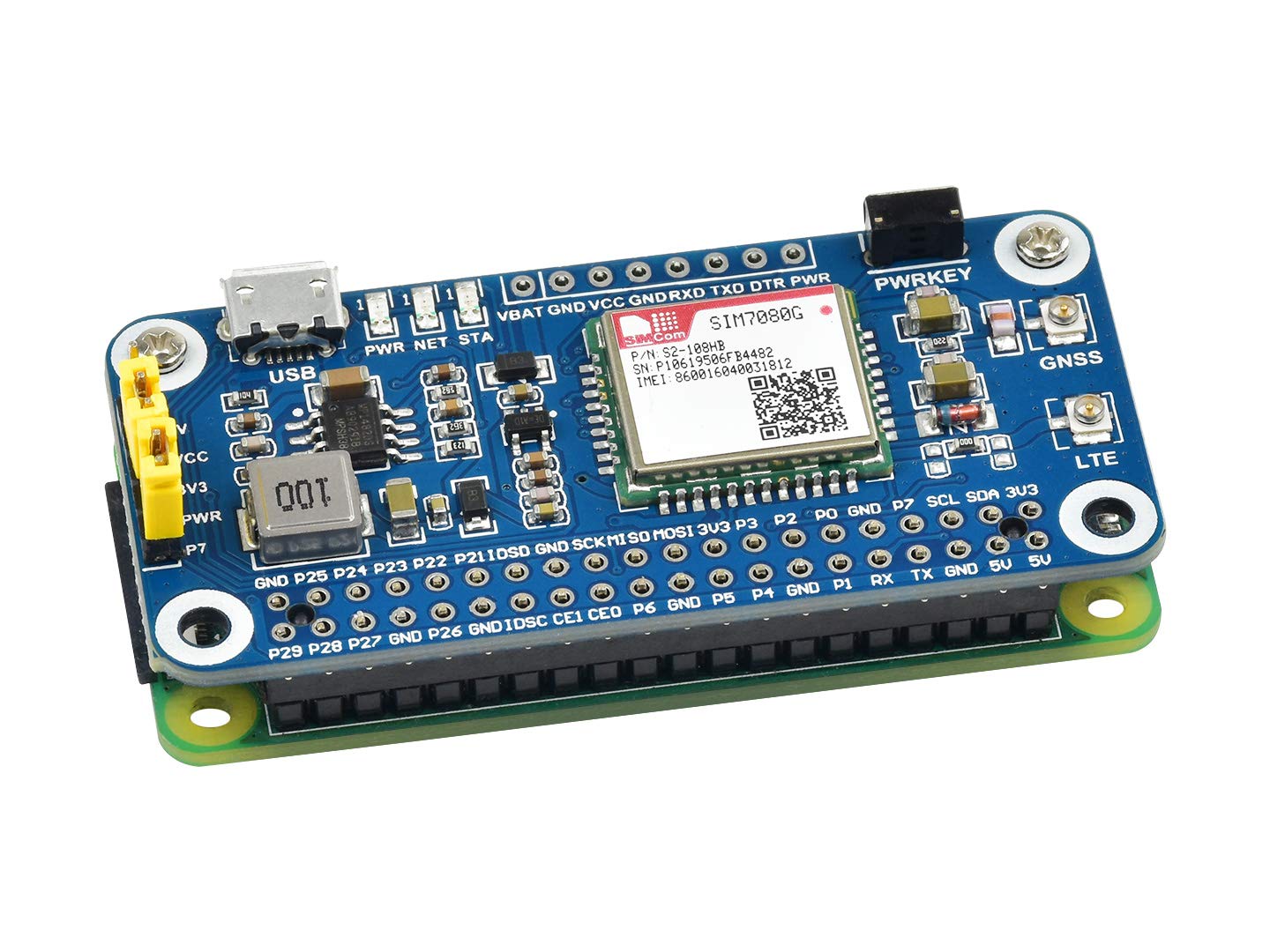

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards. Breakout UART control pins, to connect with host boards like Arduino/STM32.
• Supports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT. Supports GNSS positioning (GPS, GLONASS, BeiDou, and Galileo).
• Onboard USB interface, to test AT Commands, get GPS positioning data, and so on. Onboard voltage translator, 3.3V by default, allows to be switched to 5V via onboard jumper.
• SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available). 3x LED indicators, easy to monitor the working status. Baudrate: 300~3686400 bps.
• Common baudrate auto-negotiation: 9600/19200/38400/57600/115200 bps. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32).

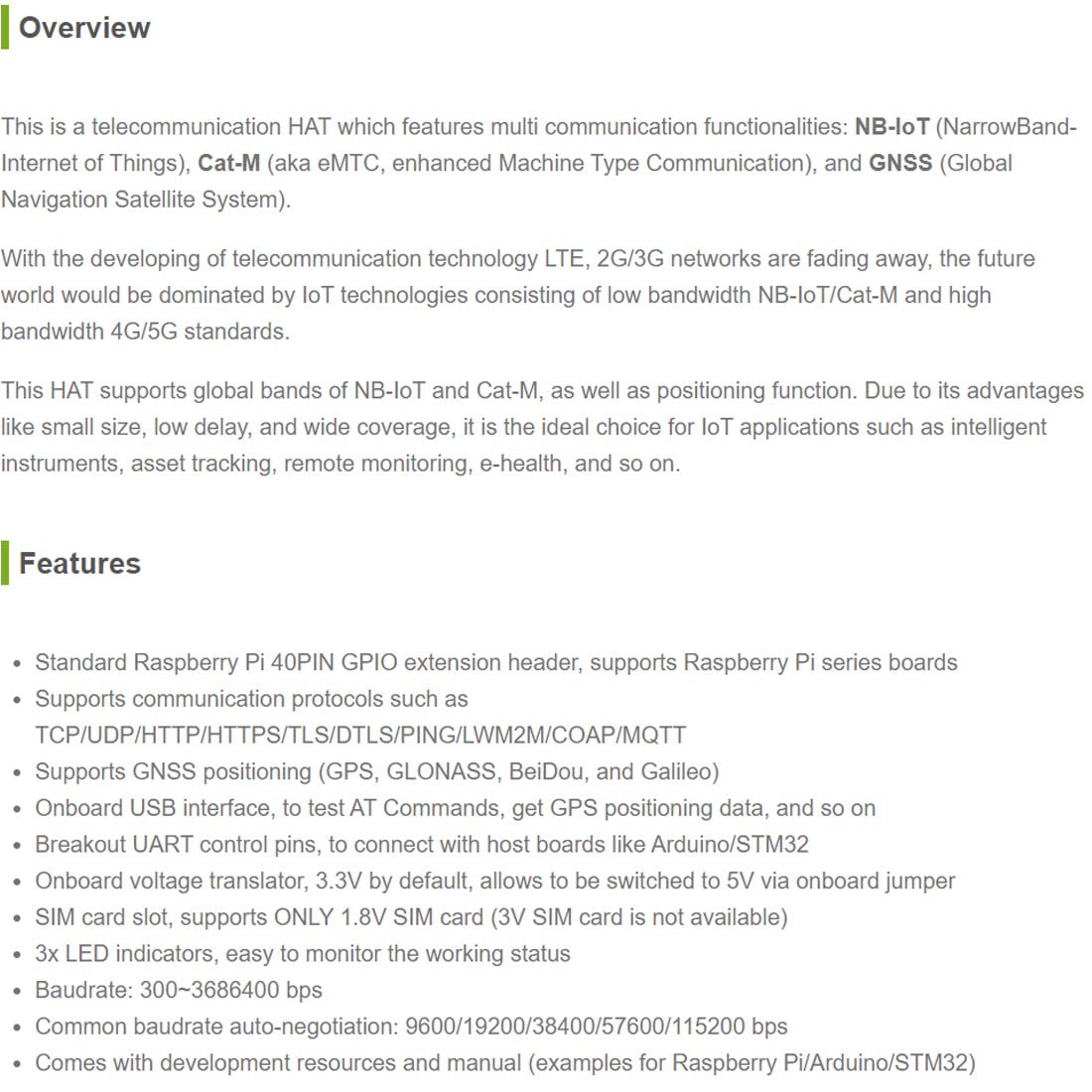

Overview This is a telecommunication HAT which features multi communication functionalities: NB-IoT (NarrowBand-Internet of Things), Cat-M (aka eMTC, enhanced Machine Type Communication), and GNSS (Global Navigation Satellite System). With the developing of telecommunication technology LTE, 2G/3G networks are fading away, the future world would be dominated by IoT technologies consisting of low bandwidth NB-IoT/Cat-M and high bandwidth 4G/5G standards. This HAT supports global bands of NB-IoT and Cat-M, as well as positioning function. Due to its advantages like small size, low delay, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, e-health, and so on. GNSS Specifications Receiver type:16-channel,C/A code Bands: GNSS L1: 1575.42±1.023MHz GLONASS: 1597.5~1605.8 MHz BeiDou: 1559.05~1563.14 MHz Galileo L1: 1575.42±1.023MHz Update frequency: 1 Hz (default) Data format: NMEA-0183 Antenna: active antenna Other Specifications Power supply voltage: 5V Logic level: 5V / 3.3V (configured via jumper) Overall current (idle mode): 39mA Module sole current (VBAT=3.8V): Idle mode: 10mA Sleep mode: 1.2mA PSM mode: 3.2uA eDRX mode: 0.59mA (eDRX=81.92s) Operating temperature: -40°C ~ 85°C Storage temperature: -45°C ~ 90°C Dimension: 30.2mm x 65mm User Manual Wiki : www.waveshare.com/wiki/SIM7080G_Cat-M/NB-IoT_HAT?Amazon
