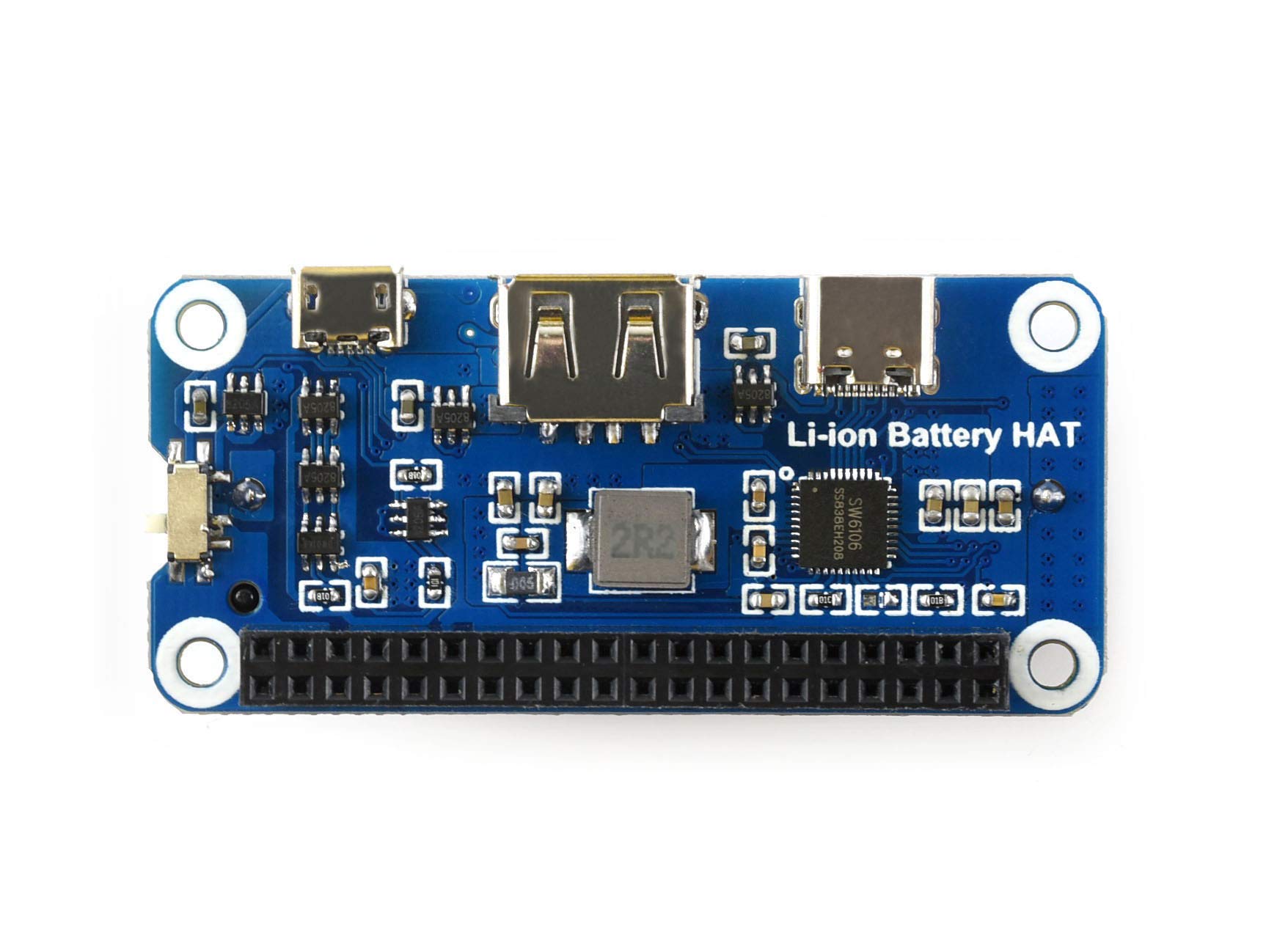

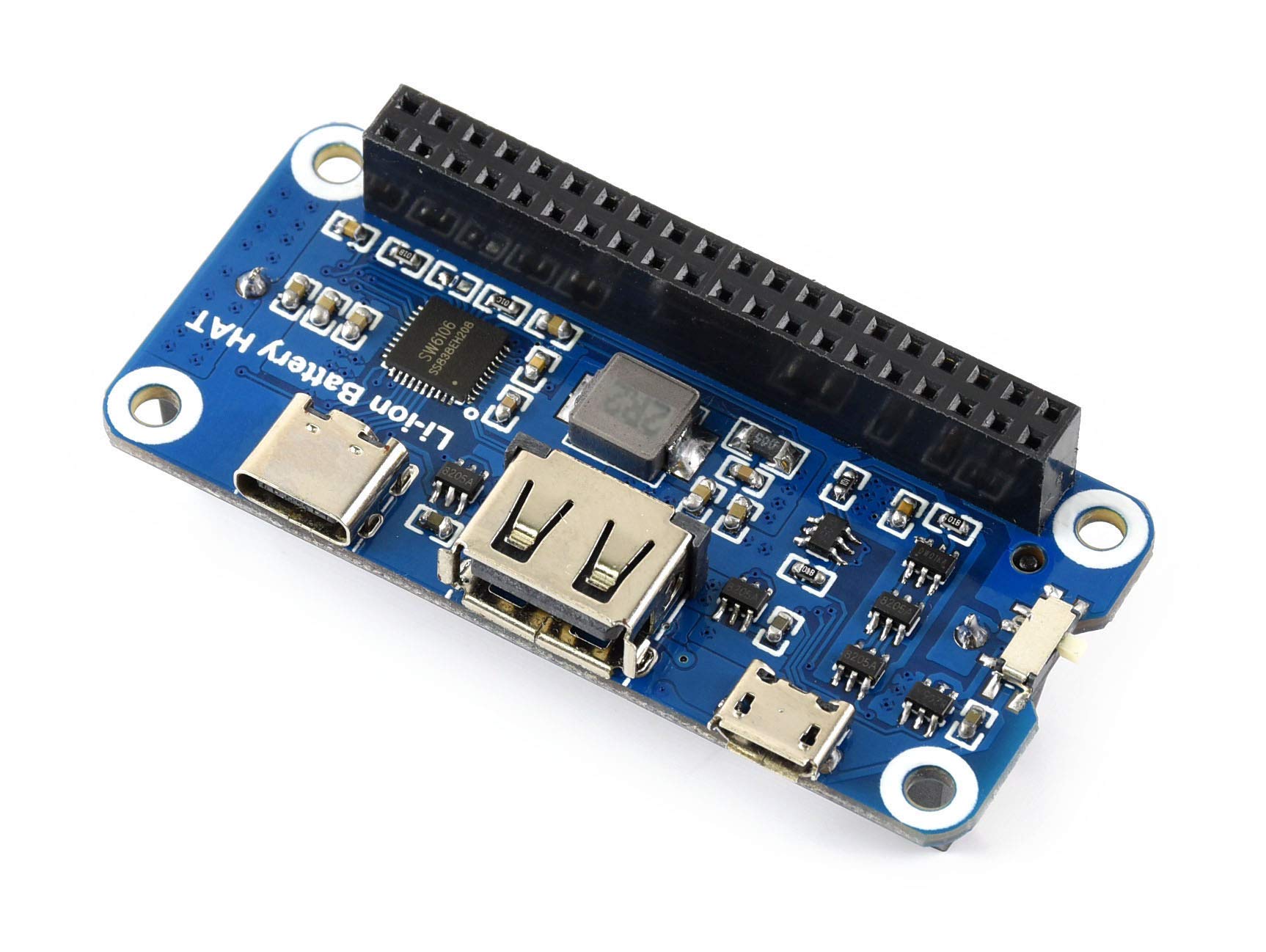

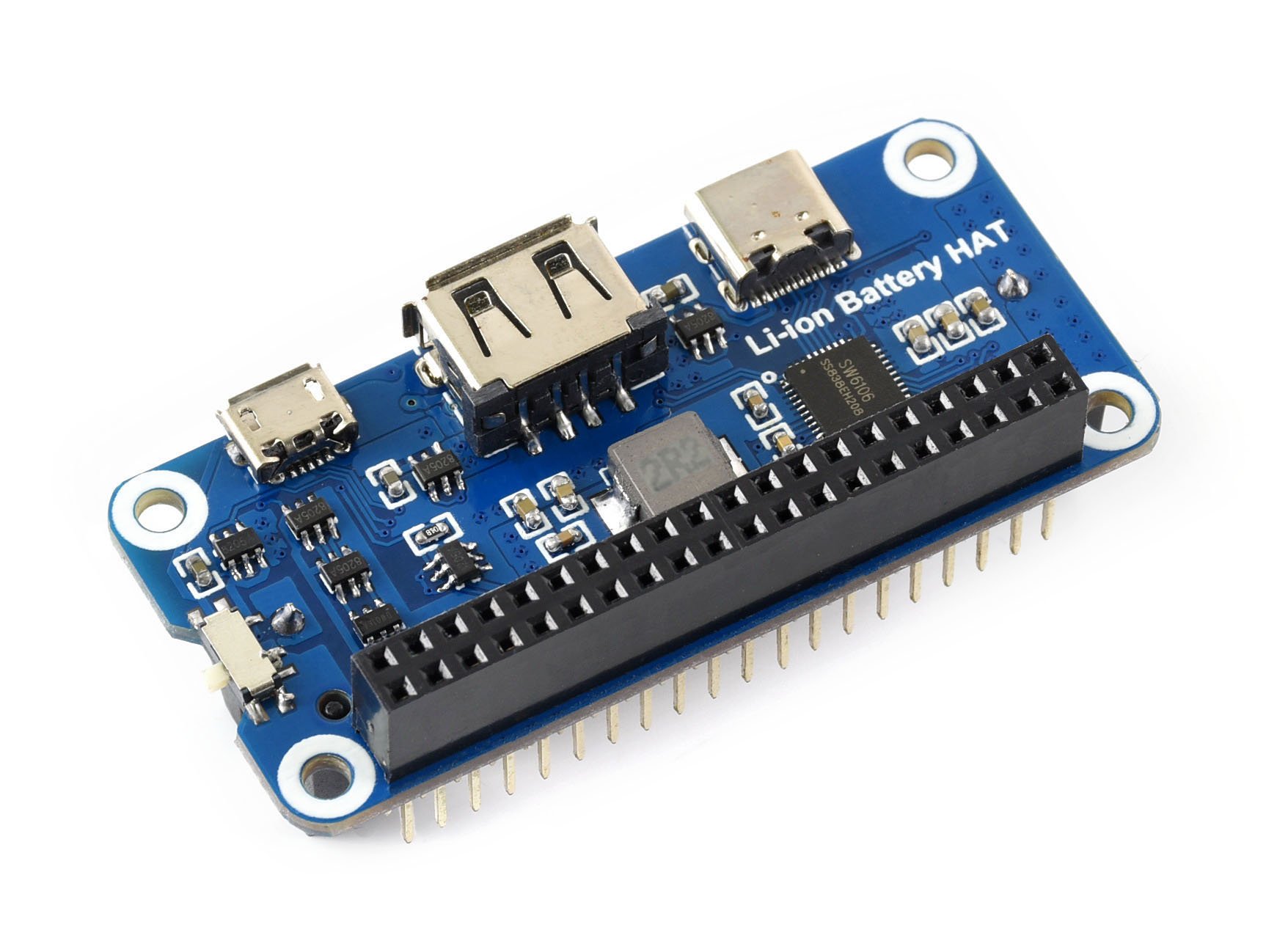

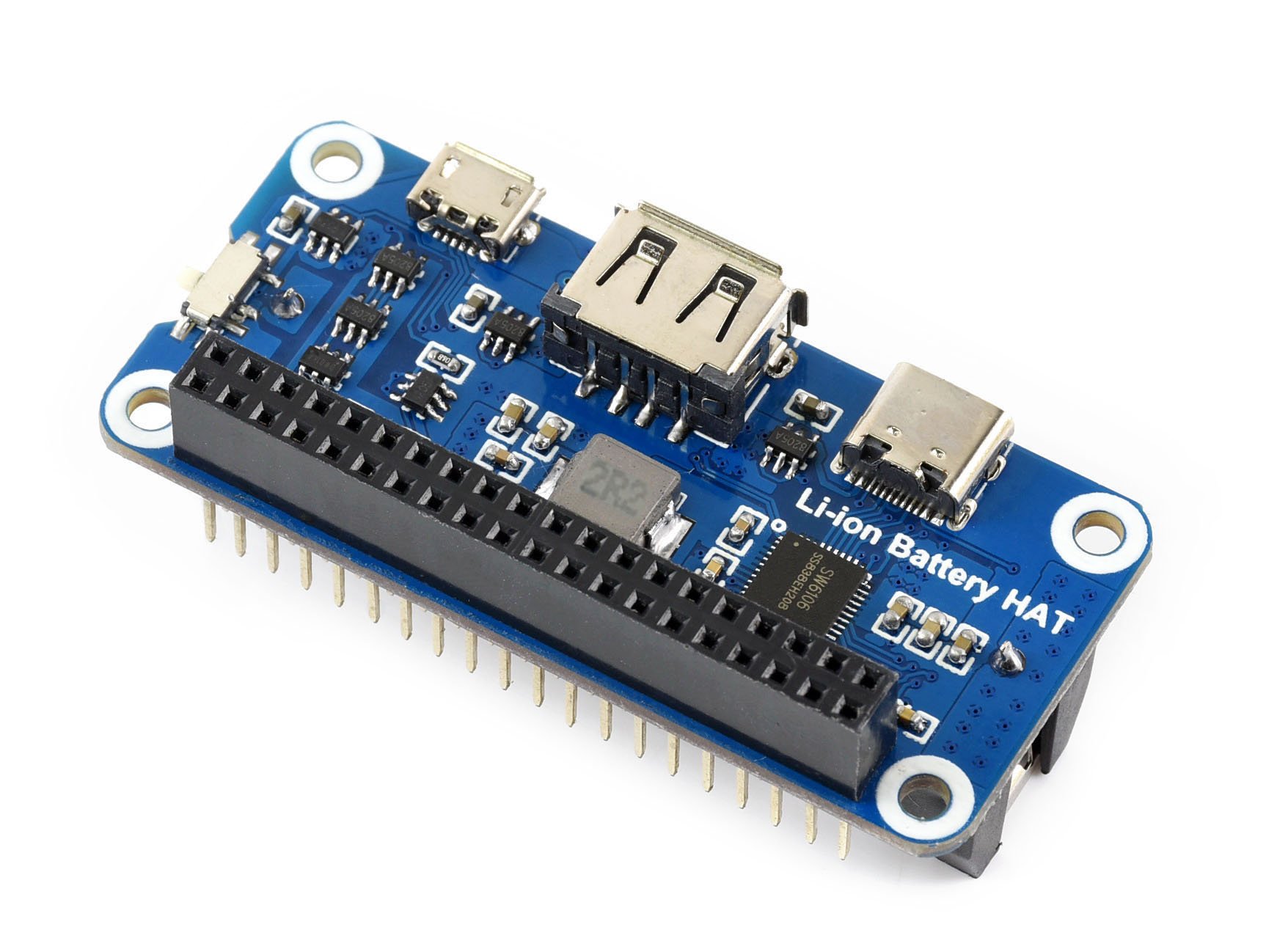

Waveshare Li-ion batt HAT for Raspberry Pi 5V Regulated Output Bi-Directional Quick Charge

• The Li-ion batt HAT integrates SW6106 power bank management chip, allows providing 5V regulated power supply to your Pi from a batt, makes the Pi becomes a portable device.
• It will charge the batt as well, supports bi-directional quick charge. This module can be used as a universal mini power bank, also works with other 5V devices.
• Onboard SW6106 chip, supports bi-directional quick charge, supports multi quick charge protocols like PD/QC/FCP/PE/SFCP
• Lithium batt protection circuitry, provides reverse protection, over charge/discharge protection, over current protection, and short circuit protection
• Onboard indicators: quick charge, warning, and power capacity

Overview The Li-ion Battery HAT integrates SW6106 power bank management chip, allows providing 5V regulated power supply to your Pi from a battery, makes the Pi becomes a portable device. It will charge the battery as well, supports bi-directional quick charge. This module can be used as a universal mini power bank, also works with other 5V devices. Features Onboard SW6106 chip, supports bi-directional quick charge, supports multi quick charge protocols like PD/QC/FCP/PE/SFCP Battery protection circuitry, provides reverse protection, over charge/discharge protection, over current protection, and short circuit protection. Onboard indicators: quick charge, warning, and power capacity. Specifications: Output voltage: 5 V. Applicable battery: 3.7 V battery (4.2 V when full charged). Dimensions: 65 mm x 30 mm. Mounting hole size: 3 mm. Development Resources Wiki: www.waveshare.com/wiki/Li-ion_Battery_HAT? PACKAGE CONTENT Note: the Raspberry Pi and battery in the photo are not included. Li-ion Battery HAT x1 RPi screws pack (2 pieces) x1
