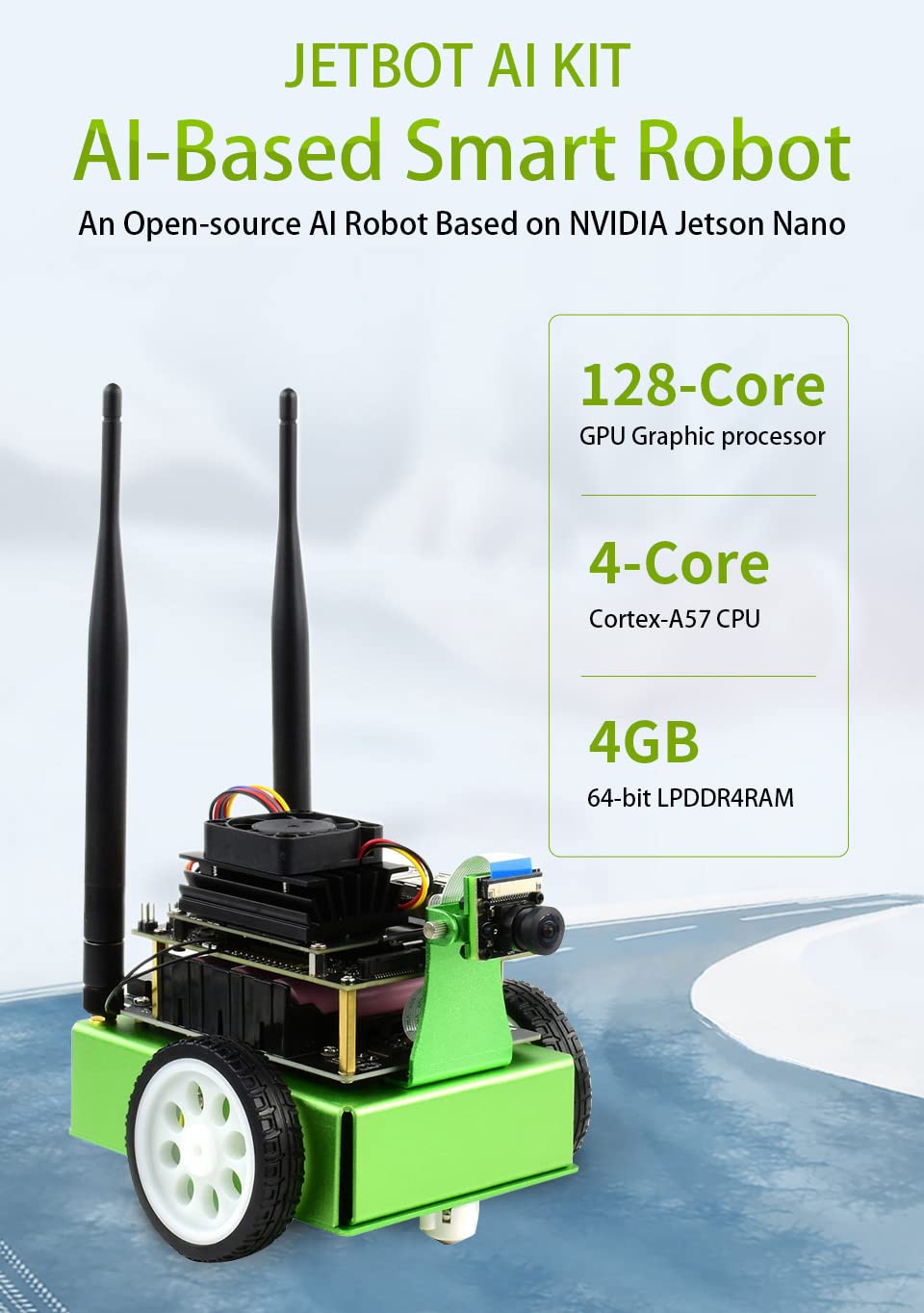

Waveshare JetBot AI Kit Accessories Add-ons for Jetson Nano Developer Kit to Build JetBot Smart Robot with Expansion Board Onboard TB6612FNG Dual H-bridge Motor Driver

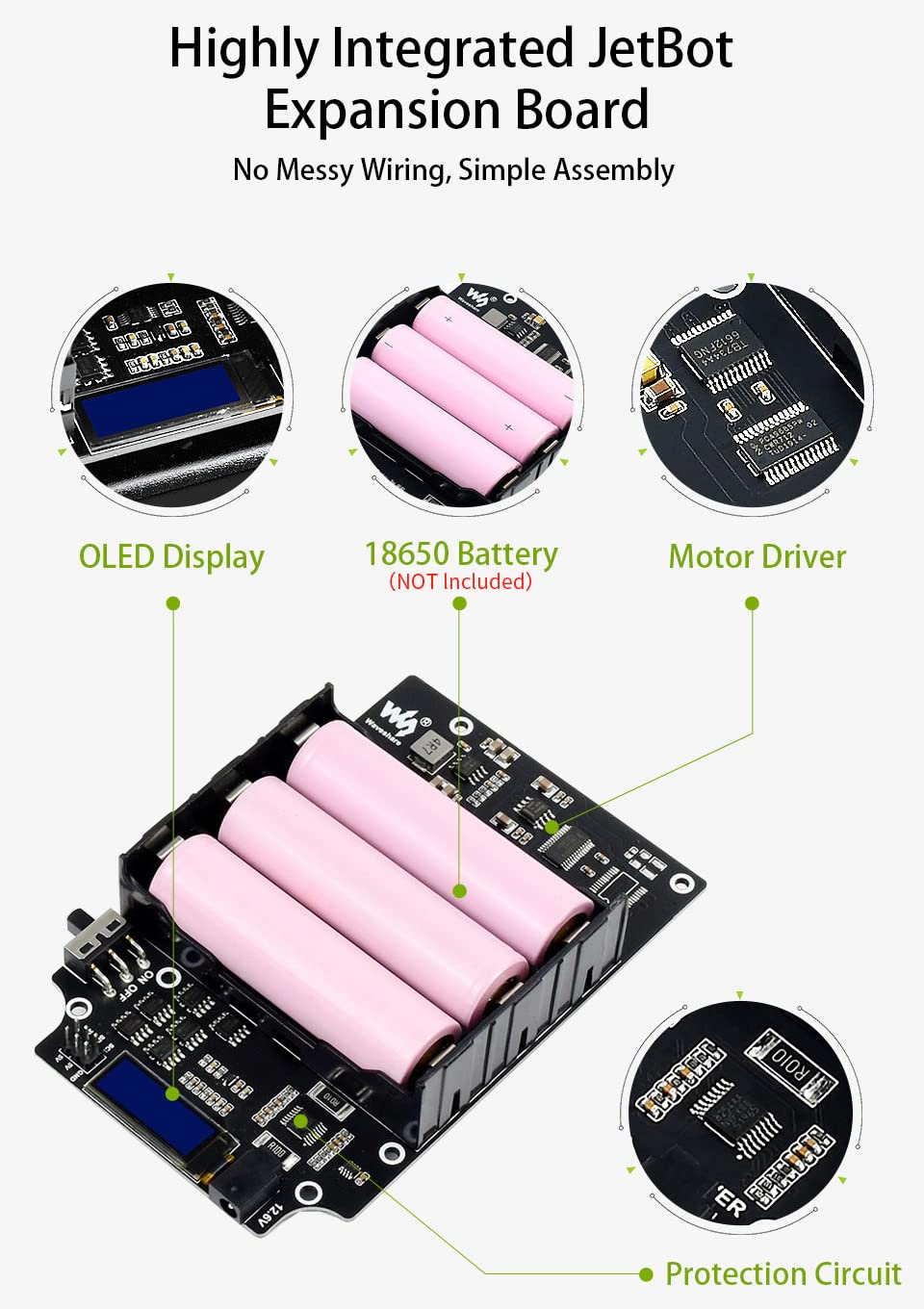

• Highly Integrated JetBot Expansion Board: Equipped with OLED Display, Motor Driver and Protection Circuit. No Messy Wiring, Simple Assembly(18650 batt are not included)

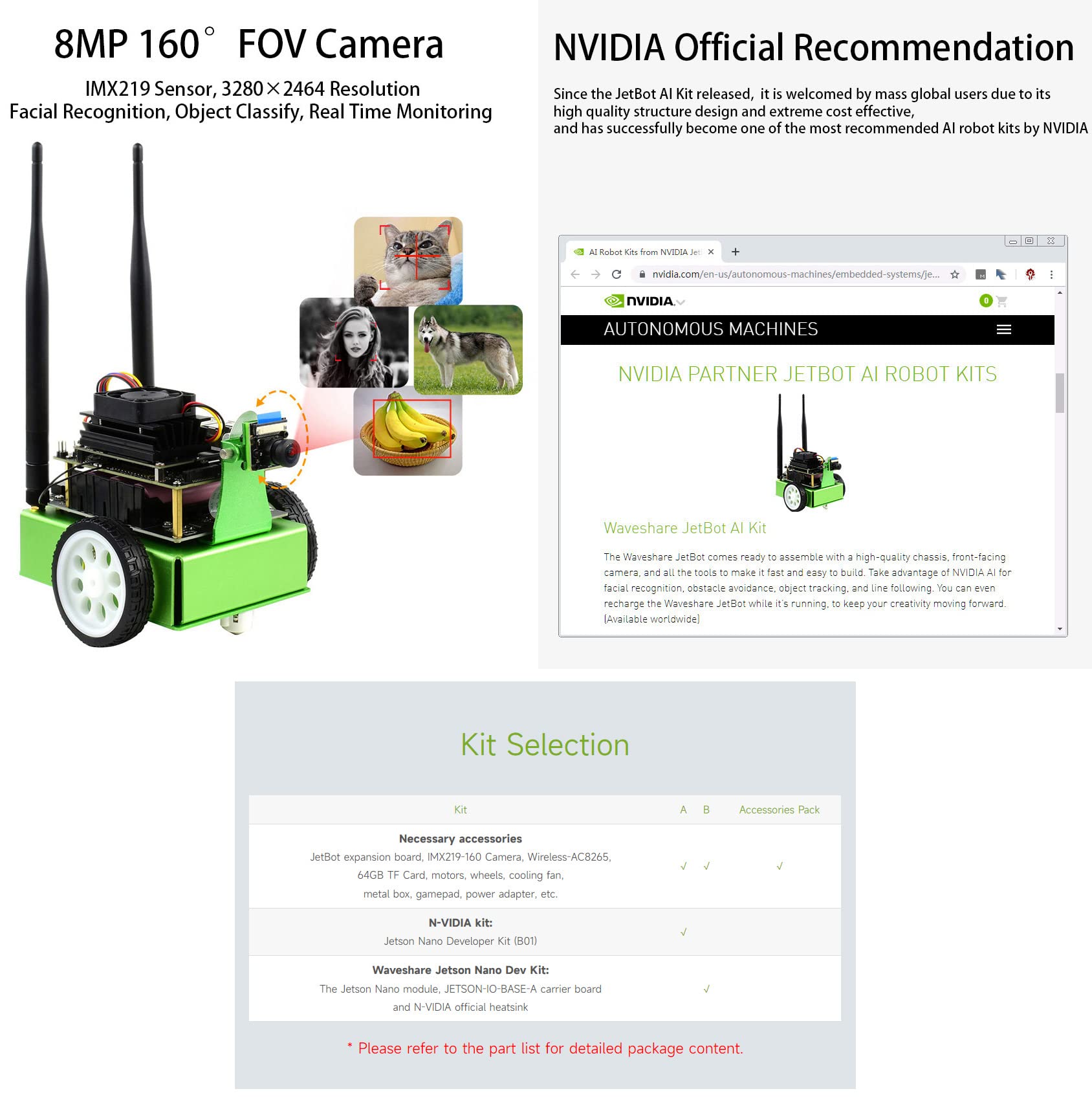

• 8MP 160° FOV Camera: IMX219 Sensor, 3280 X 2464 Resolution, Facial Recognition, Object Classify, Real Time Monitoring

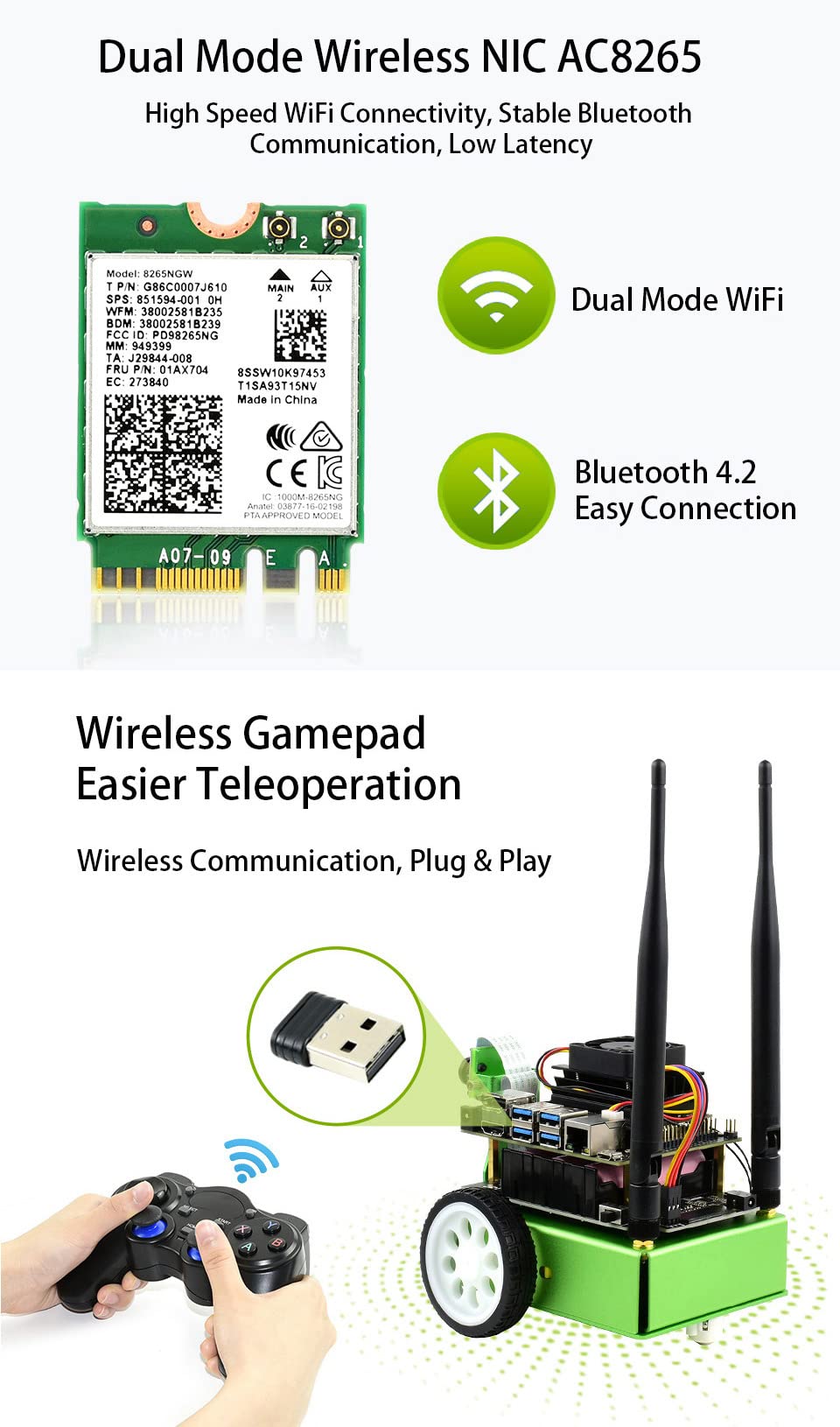

• Dual Mode Wireless NIC AC8265: High Speed WiFi Connectivity, Stable BT Communication, Low Latency(Dual Mode WiFi, Easy Connection BT 4.2)
• Wireless Gamepad: Easier Teleoperation, Wireless Communication, Supports Plug & Play
• batt Charger: For batt charging only, will not power the Jetson Nano directly. If you need a stand-alone power supply for the Jetson Nano, please buy another 5V/4A power adapter

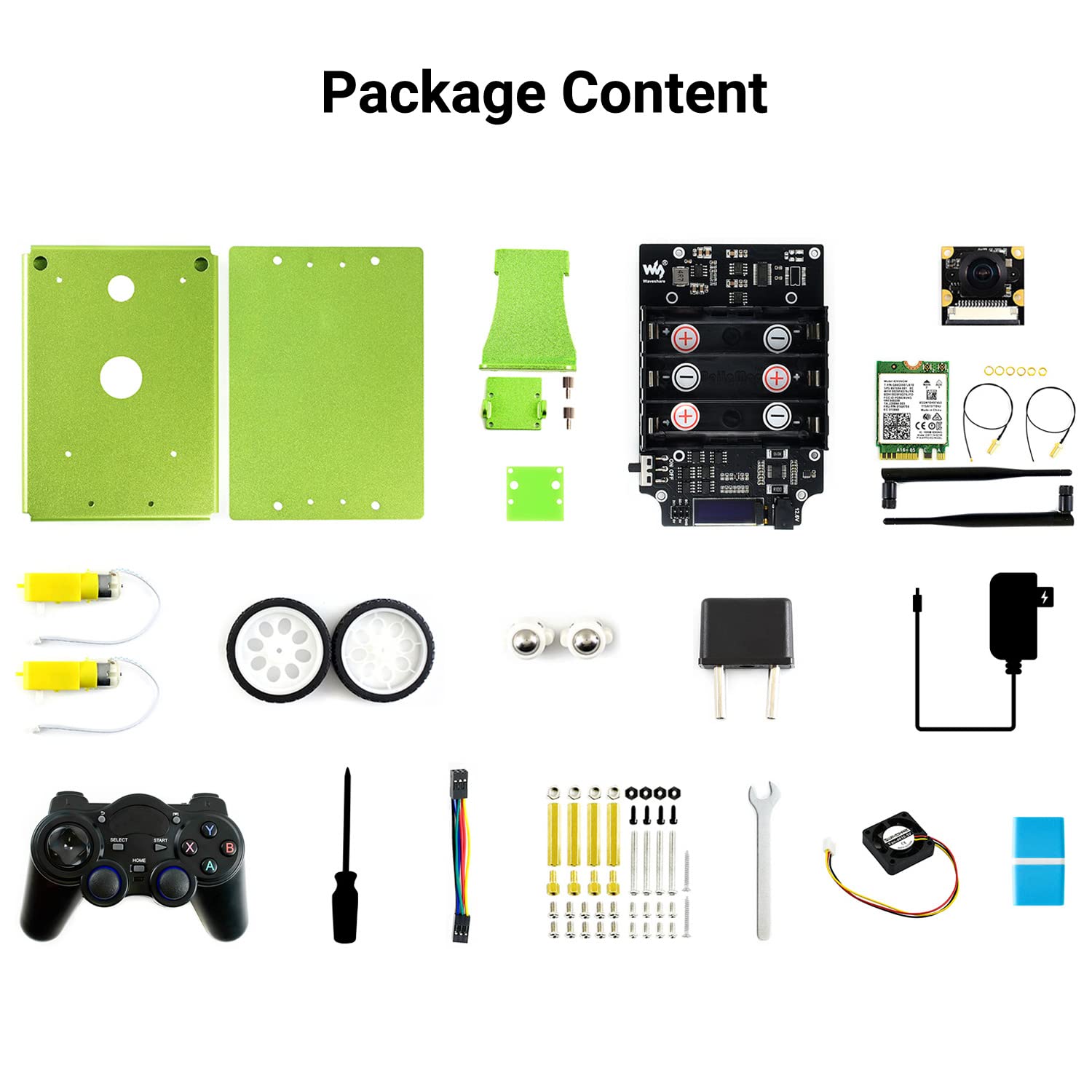

Note: Jetson Nano is NOT included. Overview Smart robot is always the favorite project of electronic enthusiasts, however, a robot will be "not that smart" if it is not AI-based. If you've got a Jetson Nano on your desk right now, combined with our open source codes and tutorials, these add-ons would be the ideal choice for you to learn AI robot designing and development. JetBot Expansion Board Features Adopts 3x 18650 batt (NOT included), high batt capacity, up to 12.6V voltage output, more powerful driving force Integrates S-8254AA + AO4407A lithium batt protection circuit, provides protections for over-charge, over-discharge, over-current, and short circuit Onboard APW7313 voltage regulator, provides stable 5V voltage for the Jetson Nano Onboard TB6612FNG dual H-bridge motor driver Onboard 0.91inch 128×32 pixels OLED, allows to display robot IP address, RAM, batt life, etc. Onboard ADS1115 AD acquisition chip for monitoring the batt in real time Wiki : www.waveshare.com/wiki/JetBot_AI_Kit?Amazon PACKAGE CONTENT Note: this product requires three 18650 batt((Spec: 3.7V voltage, 2600mAh, diameter: 18mm, length: 65mm)) to work, which are NOT included and should be purchased separately. Metal box x1 Camera holder x1 Acrylic piece x1 Jetbot expansion board x1 IMX219-160 Camera x1 Wireless-AC8265 x1 Engine 2PCS x1 Wheel 2PCS x1 Omni-direction wheel 2PCS x1 Power adapter EU head x1 12.6V batt charger x1 Wireless gamepad x1 Screwdriver 2PCS x1 6Pin 9cm cable x1 Screws pack x1 Spanner x1
