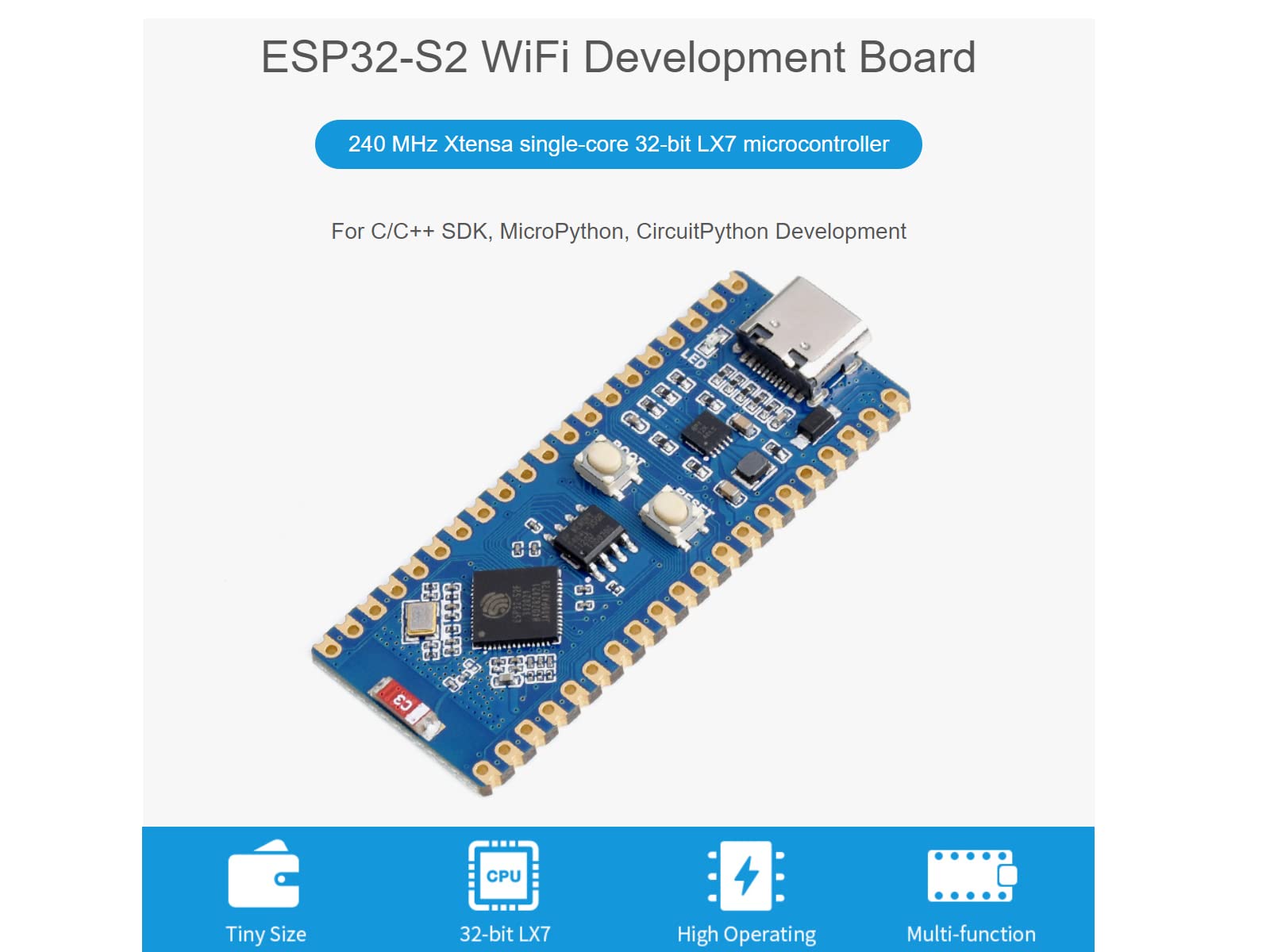

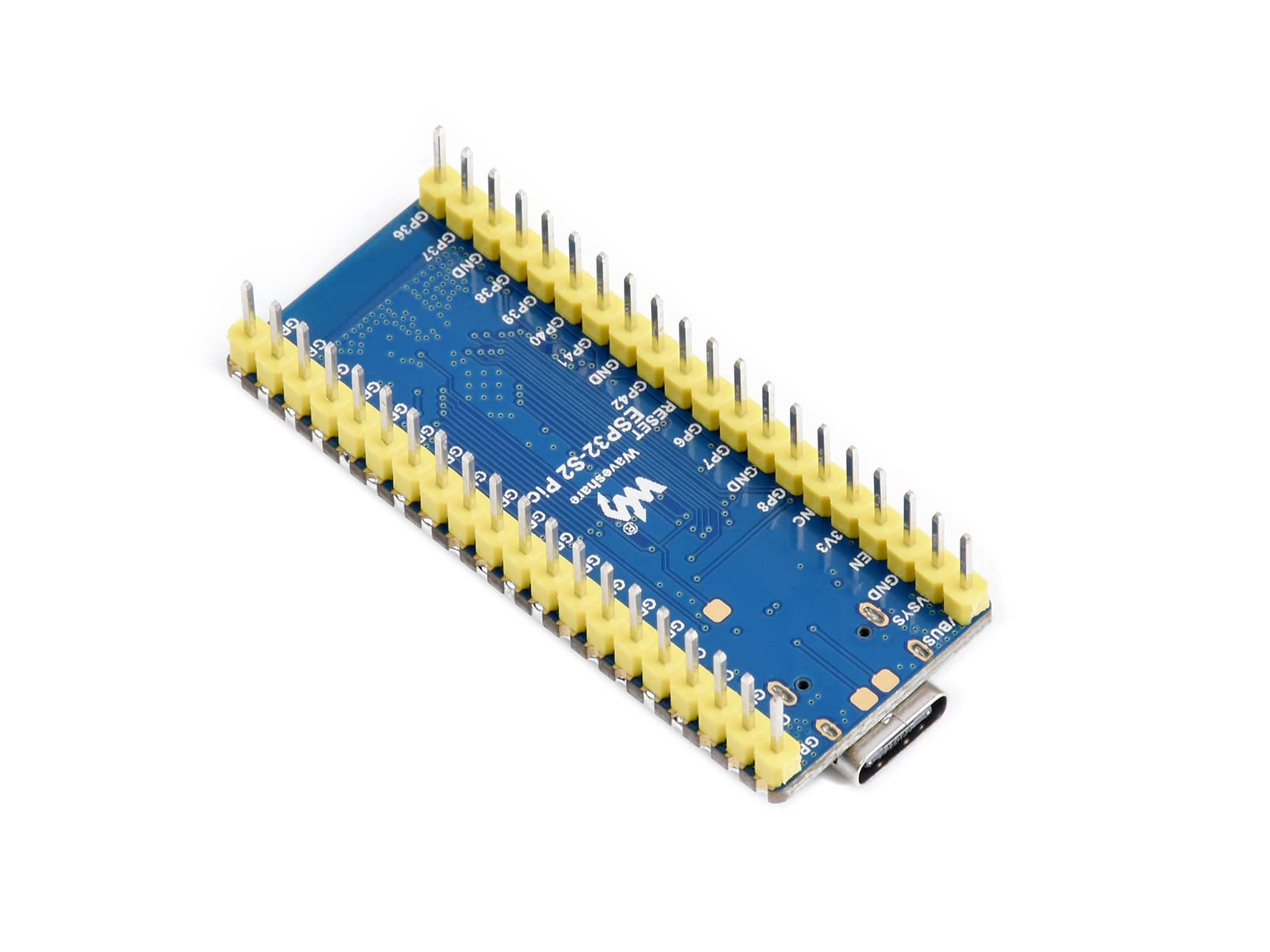

ESP32-S2 MCU WiFi Development Board Support with Pre-soldered Pin Header,240MHz Single-core 32-bit Microcontroller ESP32-S2FH4,Support C/C++ SDK, MicroPython, CircuitPython,USB-C Connector

• Support Raspberry Pi Pico expansion board ecosystem to satisfy creative IoT application development.Xtensa single-core 32-bit LX7 microprocessor, ESP32-S2FH4, support clock frequency up to 240 MHz
• Integrated 320KB SRAM, 128KB ROM, 8MB PSRAM, 4MB Flash memory.Support IEEE802.11 b/g/n, on-board WiFi ceramic antenna, up to 150 Mbps data transfer rate
• USB-C connector, no more plug orientation problem.On-chip integrated full-speed USB OTG interface, LCD interface (8-bit serial RGB/8080/6800), TWAI controller (ISO11898-1 compatible), capacitive sensor GPIO, temperature sensor, and RMT (TX/RX)
• Support a variety of low-power operating states for adjusting the optimal balance between communication distance, data rate, and power consumption, to meet the power requirements of various application scenarios
• On-board 1.8A current high-efficiency boost/buck DC-DC TPS63000 power supply IC.Castellated module allows soldering direct to user-designed carrier boards

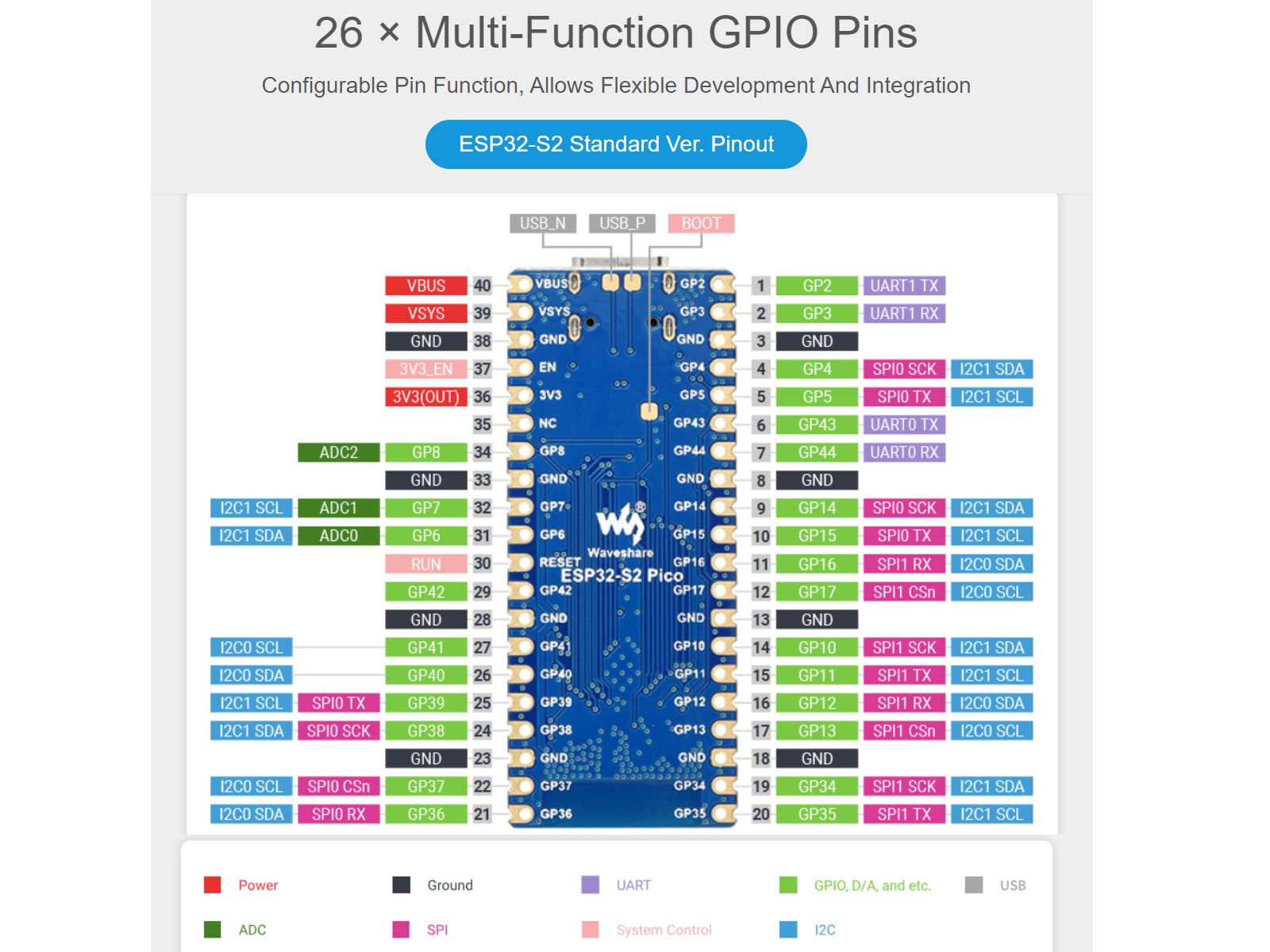

Overview This is a WiFi development board with compact size, plenty of peripheral interfaces, integrated low-power Wi-Fi System-on-Chip (SoC), and mass memory, supporting the Raspberry Pi Pico expansion board ecosystem. Equipped with a hardware crypto accelerator, RNG, HMAC, and Digital Signature module, it can meet the security requirements of the Internet of Things. Multiple low-power operating states to satisfy power requirements in IoT, mobile devices, wearable electronics, smart home, and other application scenarios, etc. Feature 1.ESP32-S2 WiFi Development Board with Pre-soldered Pin Header 240 MHz Xtensa single-core 32-bit LX7 microcontroller For C/C++ SDK, MicroPython, CircuitPython Development 2.C/C++, MicroPython, CircuitPython Support Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started 3.26 × Multi-Function GPIO Pins Configurable Pin Function, Allows Flexible Development And Integration Pinout ESP32-S2-Pico, ESP32-S2-LCD-0.96 bring out the same pins, all the pins can be set to SPI, I2C, UART, TWAI, AD/DA, I2S hardware functions through the powerful IO MUX of ESP32-S2, Putting default UART0 pin in a fixed position, do not recommend setting it to other functions ESP32-S2 has 2 x 8-bit DACs independent operating channel The USB pins of ESP32-S2(GPIO19, GPIO20) can be used for firmware downloading and serial debugging For more details, please check ESP32-S2 Datasheet, Chapter 3.10 Peripheral Pin Assignments, and the schematic Package Content ESP32-S2-Pico-M (Standard Ver. with pinheader) Development Resources https://www.waveshare.com/wiki/ESP32-S2-Pico?Amazon Note Technical Support is provided , Please feel free to contact us via Amazon message if you have any problem.
