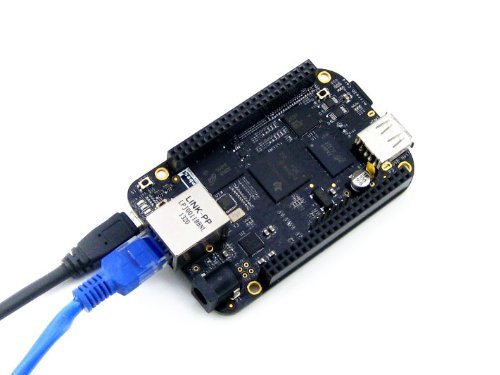

Waveshare BeagleBone Black Rev C 1GHz ARM Cortex-A8 512MB DDR3 4GB 8bit eMMC Board Mini PC Development Board from Element14

• Processor: TI Sitara AM335x, 1GHz, 2000 MIPS
• Memory SDRAM: 512MB DDR3L 800MHZ eMMC Flash:Rev B: 2GB (discontinued);Rev C: 4GB (as of 2014.05.21)

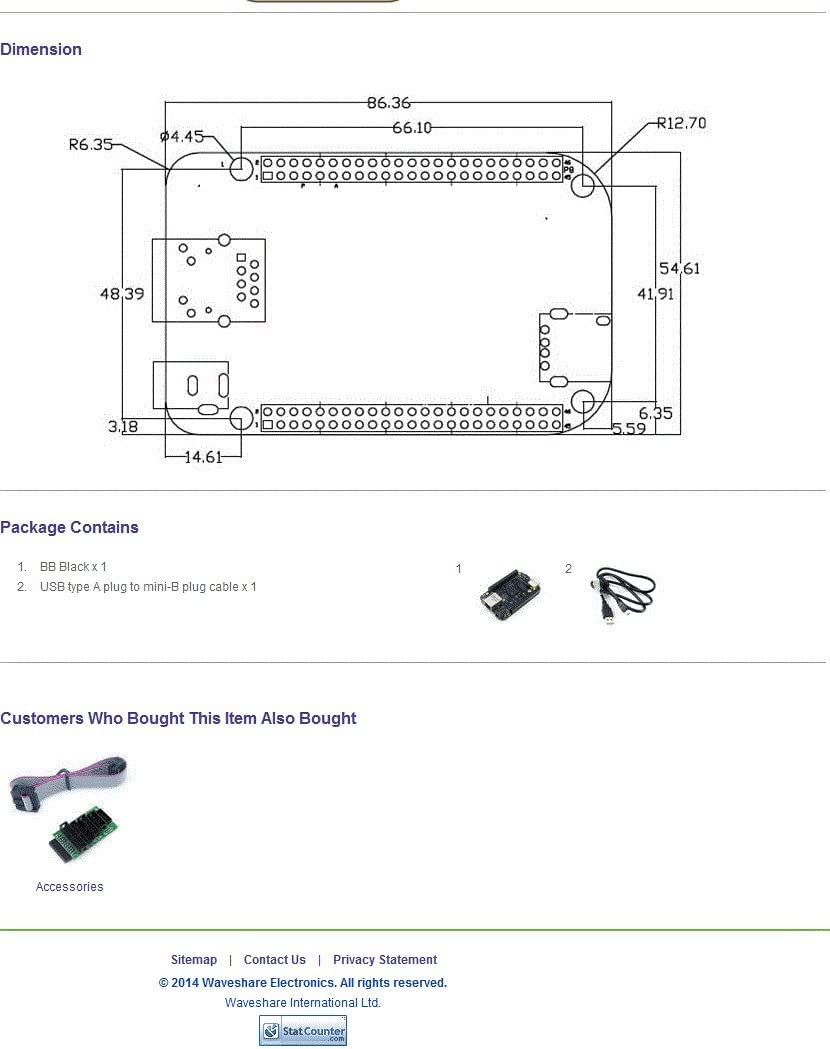

• SD/MMC Connector for microSD; Operating Power: 5V@0.35A; Board Size: 3.4” x 2.1”
• Power management: TPS65217C PMIC is used along with a separate LDO to provide power to the system; Debug Support: Optional Onboard 20-pin CTI JTAG, Serial Header
• Debug Support: Optional Onboard 20-pin CTI JTAG, Serial Header Power Source:miniUSB USB or DC Jack; 5VDC External Via Expansion Header

Processor: TI Sitara AM335x, 1GHz, 2000 MIPS 1 GHz ARM Cortex-A8 SGX530 Graphics Engine Programmable Real-Time Unit Subsystem Memory SDRAM: 512MB DDR3L 800MHZ eMMC Flash:Rev B: 2GB (discontinued); Rev C: 4GB (as of 2014.05.21) SD/MMC Connector for microSD Power management: TPS65217C PMIC is used along with a separate LDO to provide power to the system Debug Support: Optional Onboard 20-pin CTI JTAG, Serial Header Power Source miniUSB USB or DC Jack 5VDC External Via Expansion Header Connectivity High speed USB 2.0 Client port: Access to USB0, Client mode via miniUSB High Speed USB 2.0 Host port: Access to USB1, Type A Socket, 500mA LS/FS/HS Serial Port: UART0 access via 6 pin 3.3V TTL Header. Header is populated 10/100M Ethernet (RJ45) User Input / Output Reset Button Boot Button Power Button LED power indicator 4 user configurable LEDs Video/Audio Interfaces HDMI D type interface LCD interface Stereo audio over HDMI interface Expansion Interfaces LCD, UART, eMMC ADC, I2C, SPI, PWM Operating Power: 5V@0.35A Board Size: 3.4” x 2.1” PACKAGE CONTENT BB Black x 1 USB type A plug to mini-B plug cable x 1 Optional Items The BB Black supports 7inch HD capacitive touch screen : 7inch HDMI LCD (B) Development resources:user manual, Image, schematic, etc. Download: www.waveshare.com/wiki/BB_Black
