Waveshare Atmel-ICE-C Kit, A Powerful Development Tool for Debugging and Programming Atmel SAM & AVR Microcontrollers

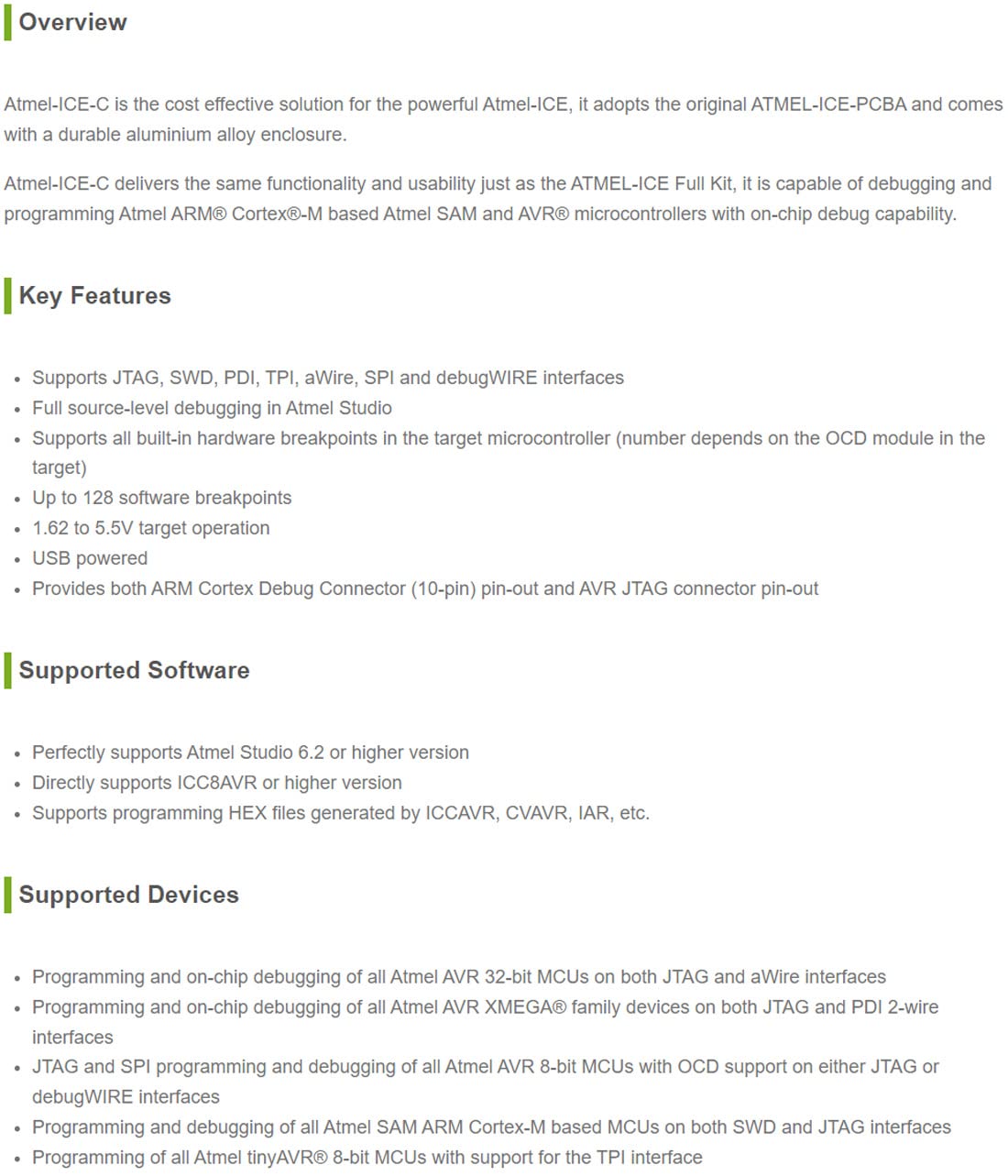

• Atmel-ICE-C is the cost effective solution for the powerful Atmel-ICE, it adopts the original ATMEL-ICE-PCBA and comes with a durable aluminium alloy enclosure.
• Atmel-ICE-C delivers the same functionality and usability just as the ATMEL-ICE Full Kit, it is capable of debugging and programming Atmel ARM Cortex-M based Atmel SAM and AVR microcontrollers with on-chip debug capability.
• Supports JTAG, SWD, PDI, TPI, aWire, SPI and debugWIRE interfaces Full source-level debugging in Atmel Studio Up to 128 software breakpoints 1.62 to 5.5V target operation
• Supports all built-in hardware breakpoints in the target microcontroller (number depends on the OCD module in the target)
• Perfectly supports Atmel Studio 6.2 or higher version Directly supports ICC8AVR or higher version Supports programming HEX files generated by ICCAVR, CVAVR, IAR, etc.

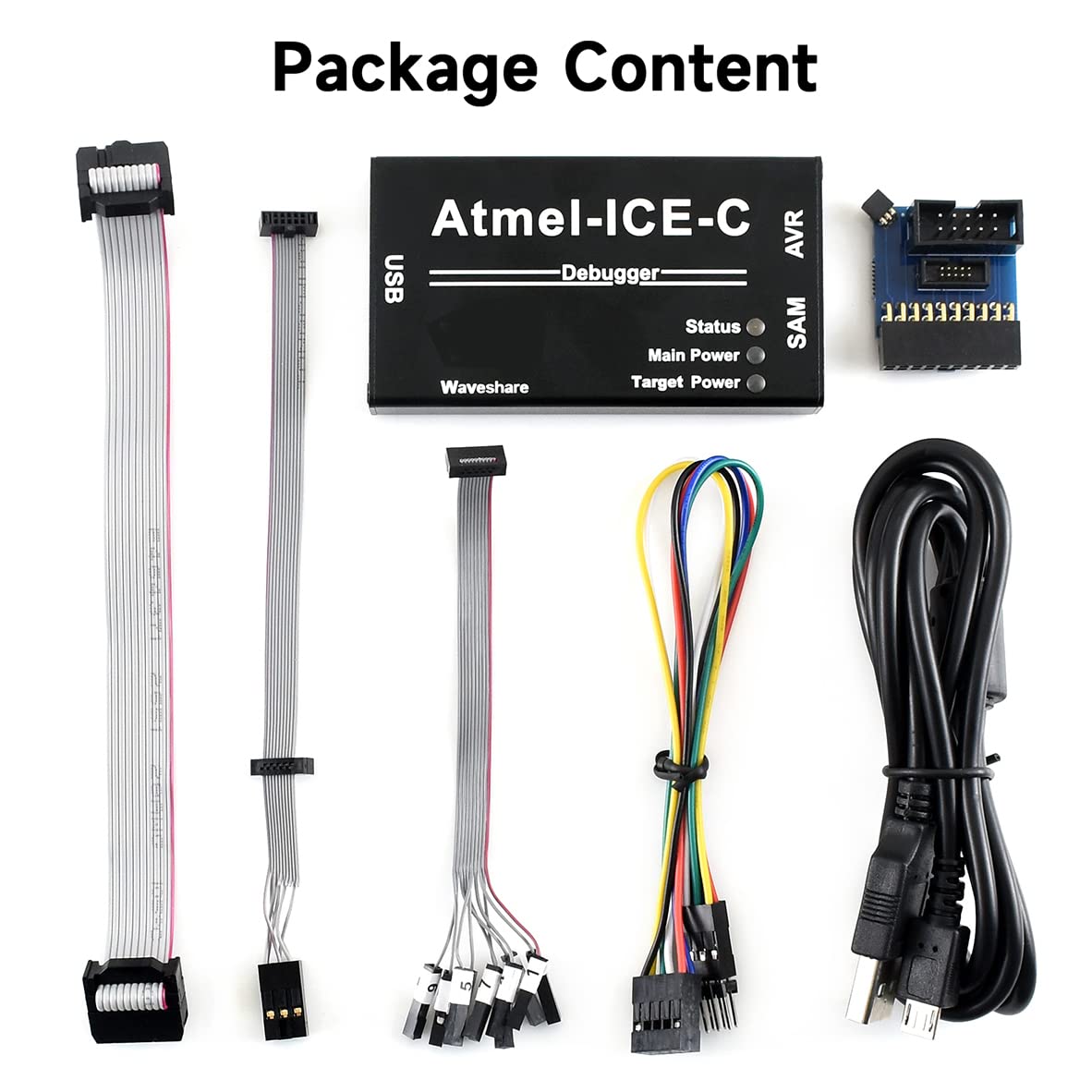

Key Features Supports JTAG, SWD, PDI, TPI, aWire, SPI and debugWIRE interfaces Full source-level debugging in Atmel Studio Supports all built-in hardware breakpoints in the target microcontroller (number depends on the OCD module in the target) Up to 128 software breakpoints 1.62 to 5.5V target operation USB powered Provides both ARM Cortex Debug Connector (10-pin) pin-out and AVR JTAG connector pin-out Supported Software Perfectly supports Atmel Studio 6.2 or higher version Directly supports ICC8AVR or higher version Supports programming HEX files generated by ICCAVR, CVAVR, IAR, etc. Supported Devices Programming and on-chip debugging of all Atmel AVR 32-bit MCUs on both JTAG and aWire interfaces Programming and on-chip debugging of all Atmel AVR XMEGA family devices on both JTAG and PDI 2-wire interfaces JTAG and SPI programming and debugging of all Atmel AVR 8-bit MCUs with OCD support on either JTAG or debugWIRE interfaces Programming and debugging of all Atmel SAM ARM Cortex-M based MCUs on both SWD and JTAG interfaces Programming of all Atmel tinyAVR 8-bit MCUs with support for the TPI interface PACKAGE CONTENT Atmel-ICE-C unit x1 USB type A plug to micro B plug cable x1 IDC flat cable with 10-pin 50-mil connector and 6-pin 100-mil connector x1 Multi-functional adapter board x1 10pin flat cable x1 10pin 100mil squid cable x1 6-pin to 10-pin ISP cable x1 Development Resources Wiki : www.waveshare.com/wiki/Atmel-ICE-C
