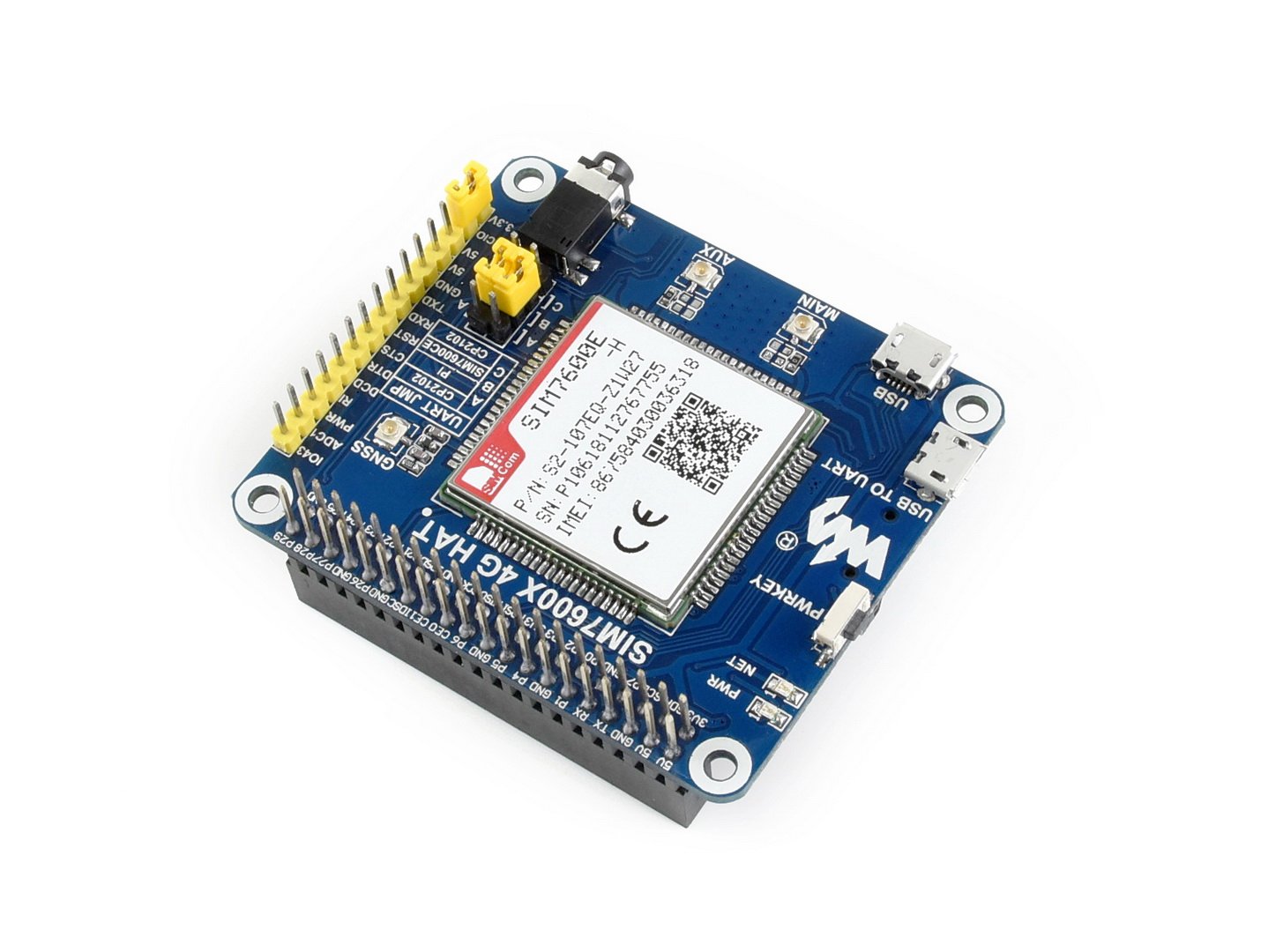

Waveshare 4G/3G/2G/GSM/GPRS/GNSS Hat Based SIM7600E-H for Raspberry Pi/Jetson Nano Support LTE CAT4 for Downlink Data Transfer/4G High-Speed Connection/Telephone Call/Sending SMS

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• Supports dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc; Supports GPS, BeiDou, Glonass, LBS base station positioning; Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT

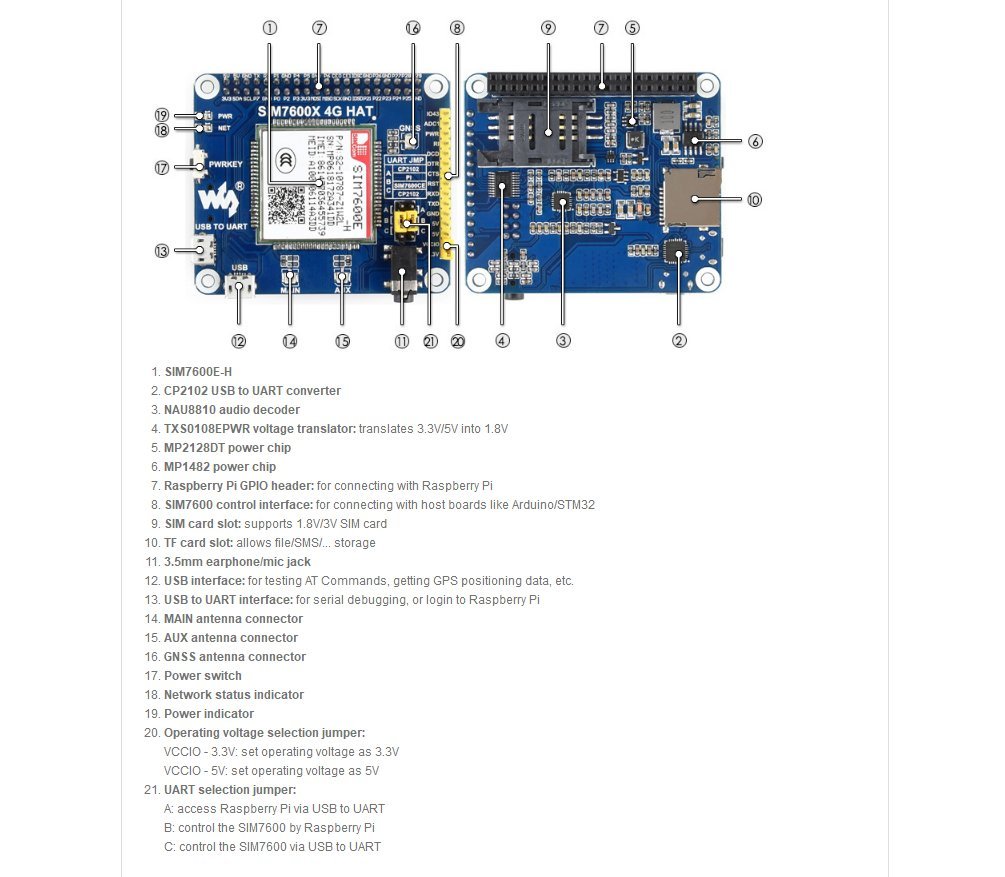

• Onboard USB interface, to test AT Commands, get GPS positioning data, and so on; Onboard CP2102 USB to UART converter, for serial debugging; Breakout UART control pins, to connect with host boards like Arduino/STM32
• Onboard audio jack and audio decoder for making telephone call;Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper;Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32), development resources: www.waveshare.com/wiki/SIM7600E_4G_HAT

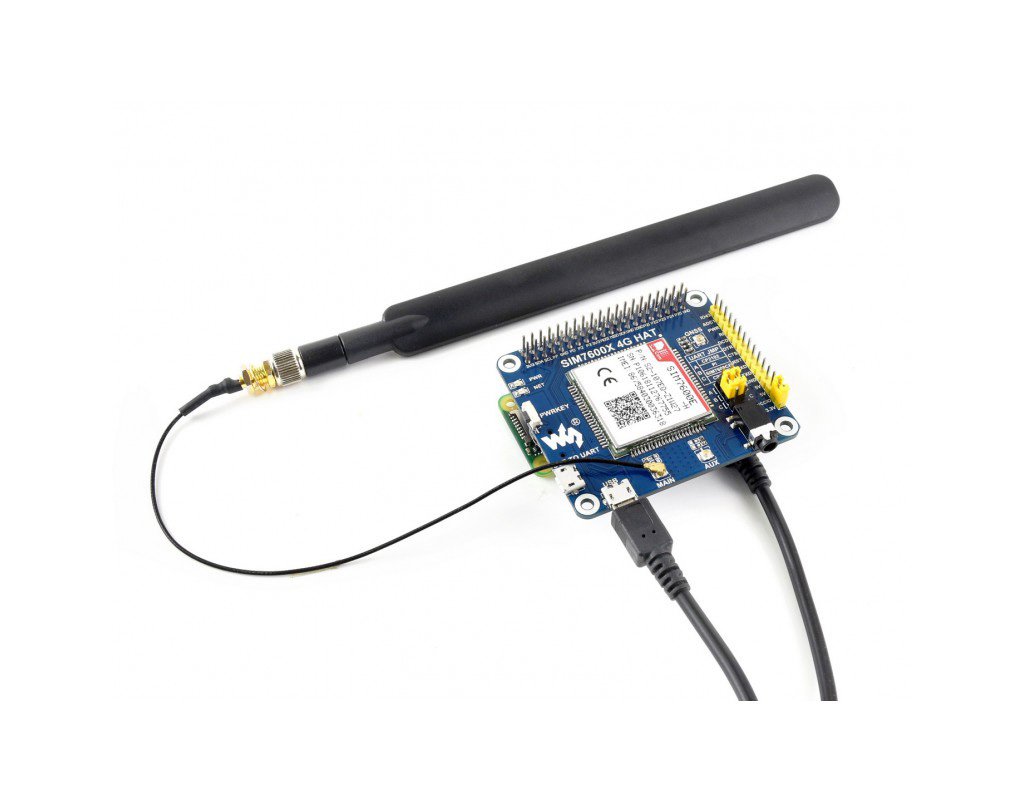

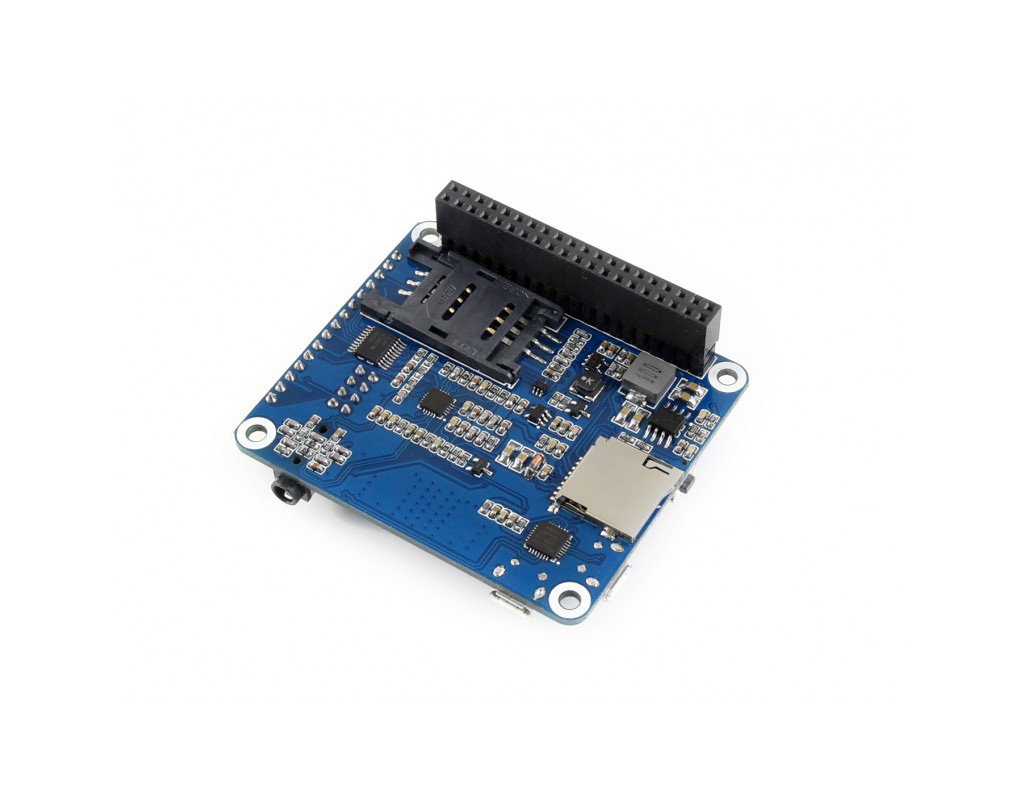

Description You can connect this 4G module with computer to surf the Internet, or attach it onto Raspberry Pi to enable functions like 4G high speed connection, wireless communication, making telephone call, sending SMS, global positioning, etc. Note: this is a region-specific module, please check the supported bands before placing order. Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano Supports dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, BeiDou, Glonass, LBS base station positioning Onboard USB interface, to test AT Commands, get GPS positioning data, and so on Onboard CP2102 USB to UART converter, for serial debugging Breakout UART control pins, to connect with host boards like Arduino/STM32 SIM card slot, supports 1.8V/3V SIM card TF card slot for storing data like files, messages, etc. Onboard audio jack and audio decoder for making telephone call 2x LED indicators, easy to monitor the working status Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper Baudrate: 300bps ~ 4Mbps (default: 115200bps) Autobauding baudrate: 9600bps ~ 115200bps Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set) Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT Package Content Note: the Raspberry Pi in the photo is NOT included. 1. SIM7600E 4G HAT x1 2. LTE Antenna x1 3. GPS External Antenna (B) x1 4. USB type A plug to micro plug cable x2 5. RPi screws pack (2pcs) x1
