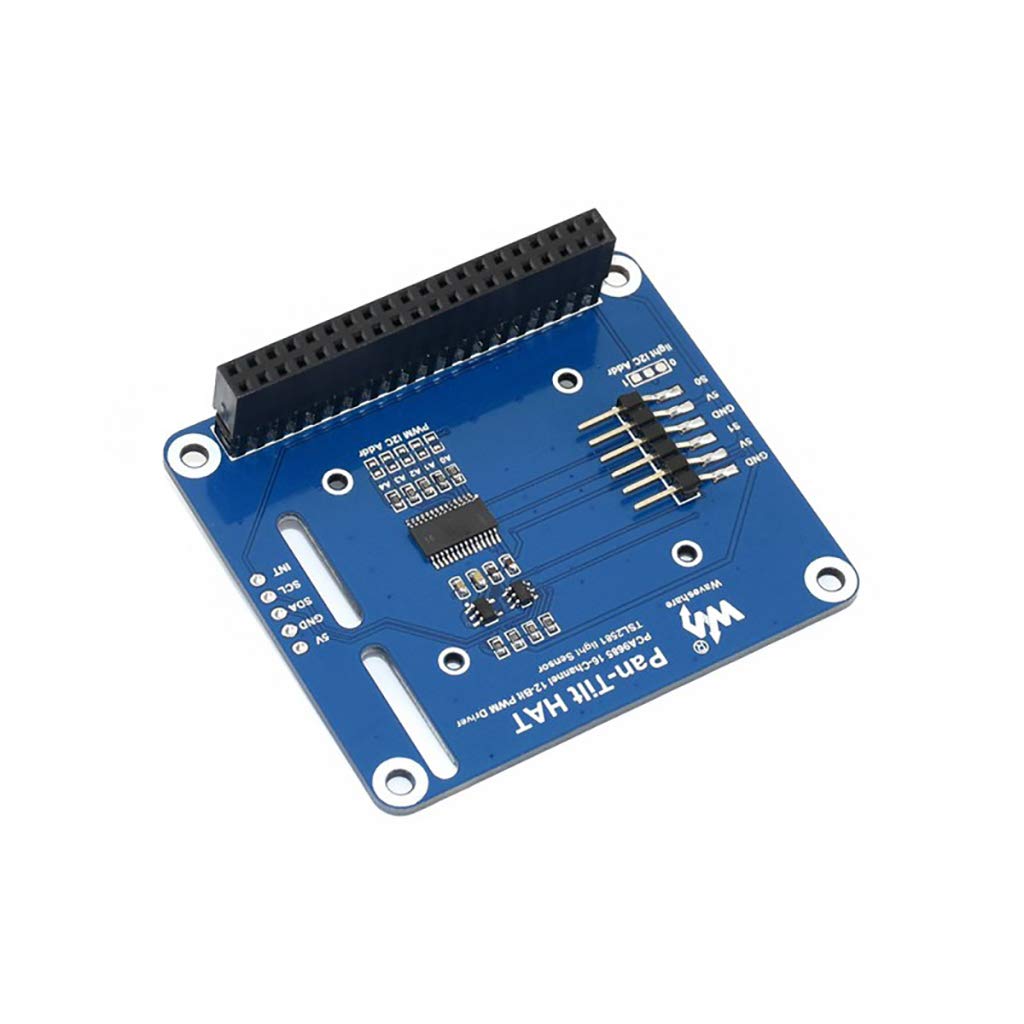

Waveshare 2-DOF Pan-Tilt HAT for Any Version of Raspberry Pi/Jetson Nano Onboard PCA9685 PWM Chip and TSL2581 Ambient Light sensor for Camera Moving and Light Intensity Sensing

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• I2C interface, only 2 pins are required for moving and light intensity sensing; Onboard PCA9685 chip, provides 12-bit resolution PWM signal for moving control
• Onboard TSL2581FN light-to-digital converter, with embedded ADC, provides a value that approximates the human eye response to assist the module
• Onboard voltage level translator, compatible with 3.3V/5V operating voltage; Specific acrylic board to fix the Raspberry Pi camera, make it easy to install

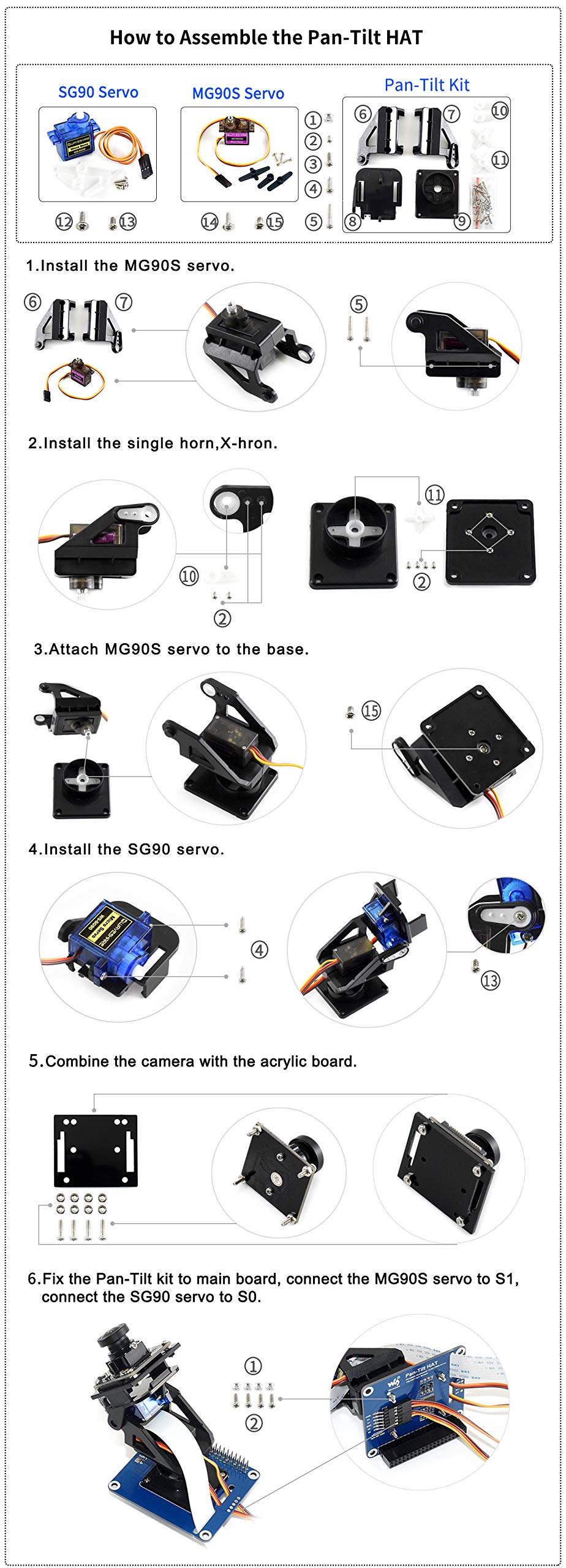

• Comes with development resources and manual (demo code, assembly guide),wiki:www.waveshare.com/wiki/Pan-Tilt_HAT

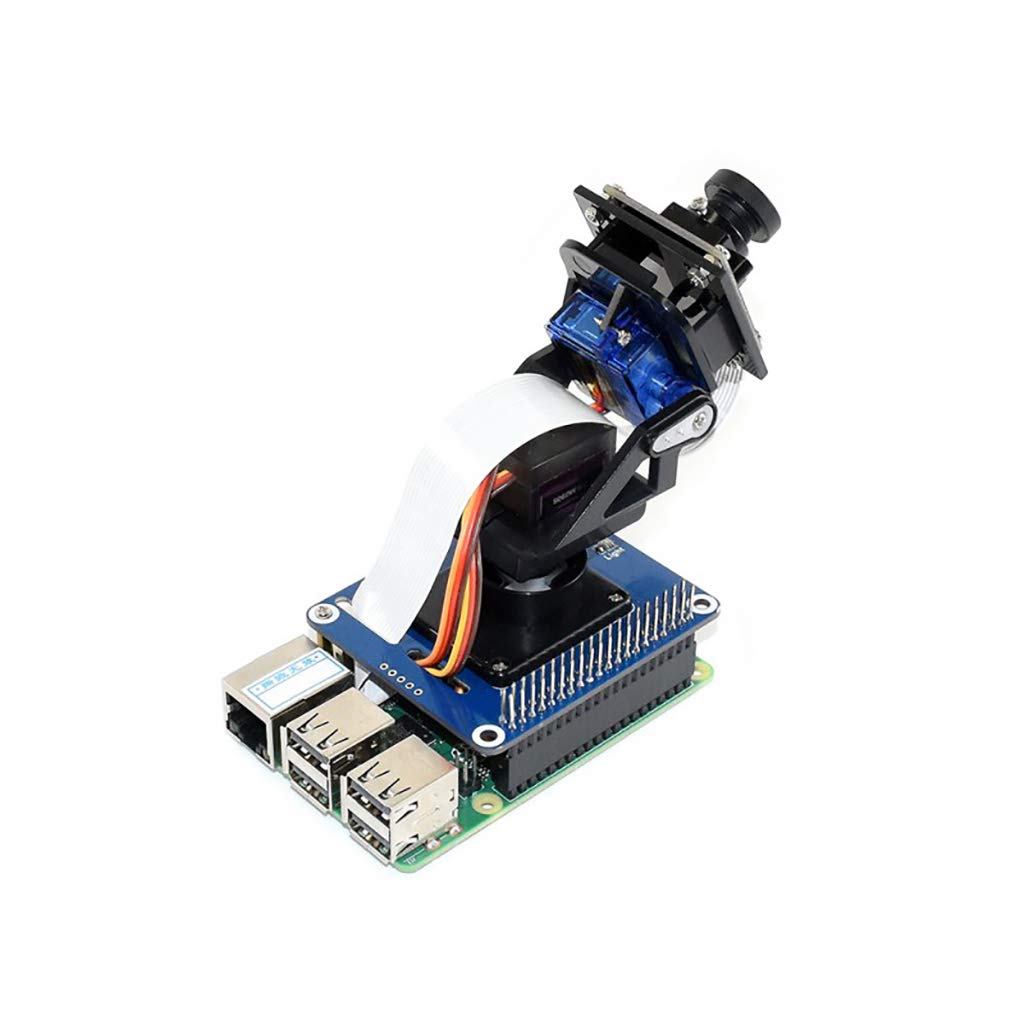

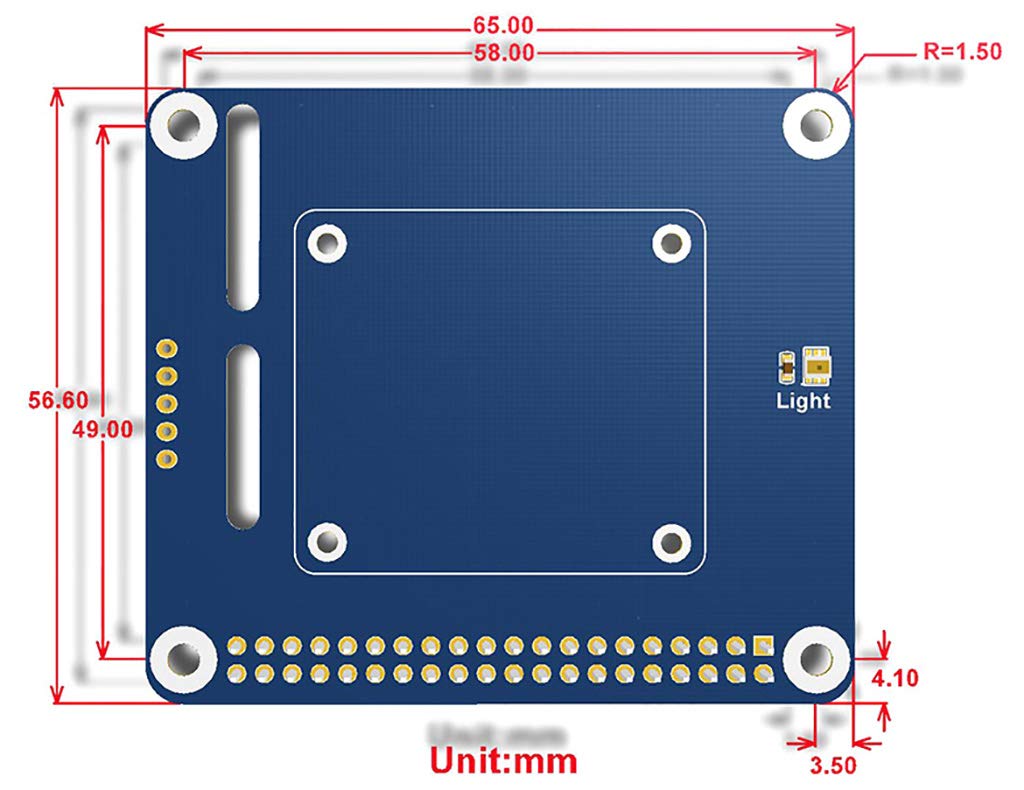

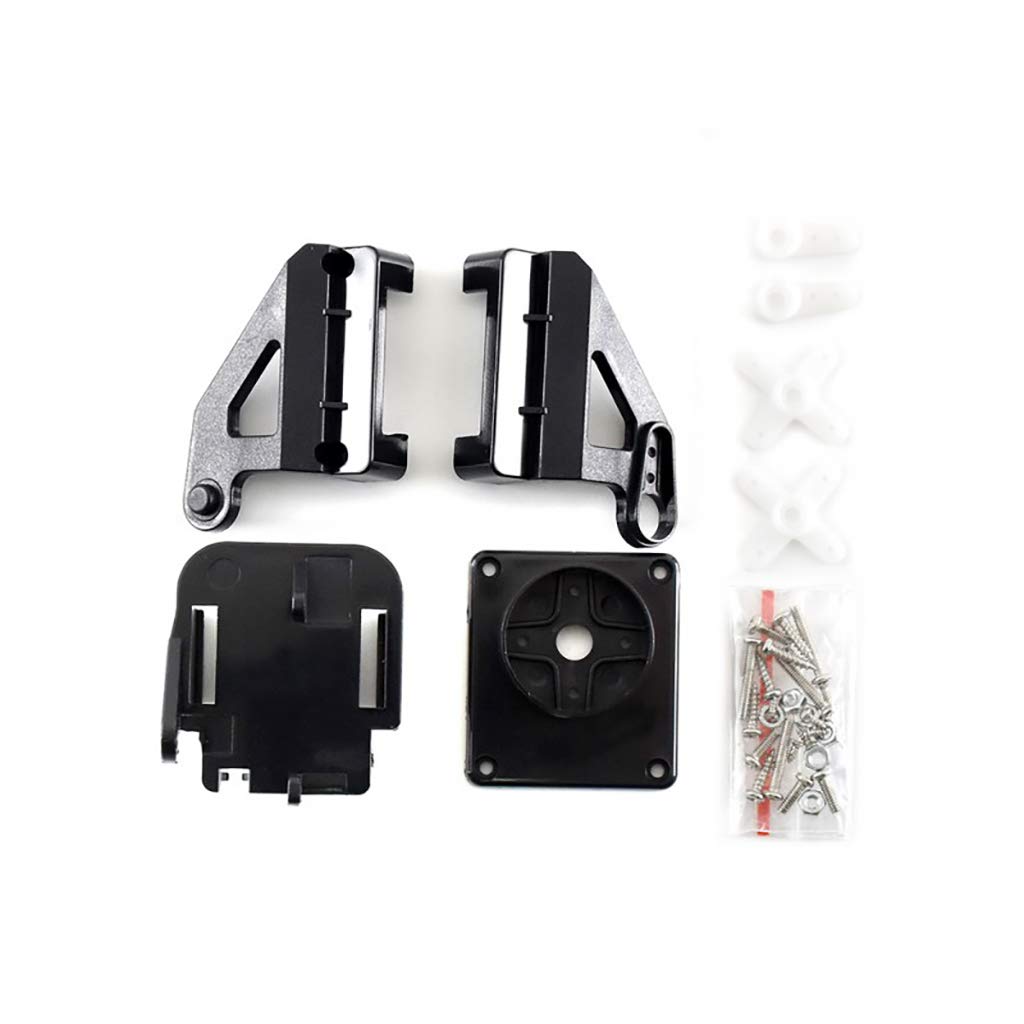

Overview This is a 2-DOF pan-tilt kit designed for Raspberry Pi. With onboard PCA9685 PWM chip and TSL2581 ambient light sensor, it allows the Pi to control camera movement and sense light intensity through I2C interface. Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano I2C interface, only 2 pins are required for moving and light intensity sensing Onboard PCA9685 chip, provides 12-bit resolution PWM signal for moving control Onboard TSL2581FN light-to-digital converter, with embedded ADC, provides a value that approximates the human eye response to assist the module Onboard voltage level translator, compatible with 3.3V/5V operating voltage Specific acrylic board to fix the Raspberry Pi camera, make it easy to install Comes with development resources and manual (demo code, assembly guide) Specifications PWM driver: PCA9685 PWM resolution: 12-bit Ambient light sensor: TSL2581FN Ambient light resolution: 16-bit Communication interface: I2C Operating voltage: 3.3V/5V Dimension: 56.6mm x 65mm PACKAGE CONTENT 1. Pan-Tilt HAT x1 2. 2-DOF pan-tilt kit x1 3. SG90 servo x1 4. MG90S servo x1 5. Acrylic board x1 6. M2 screws pack x1 7. RPi screws pack (2pcs) x1 100% original, support technical service, please contact us!
