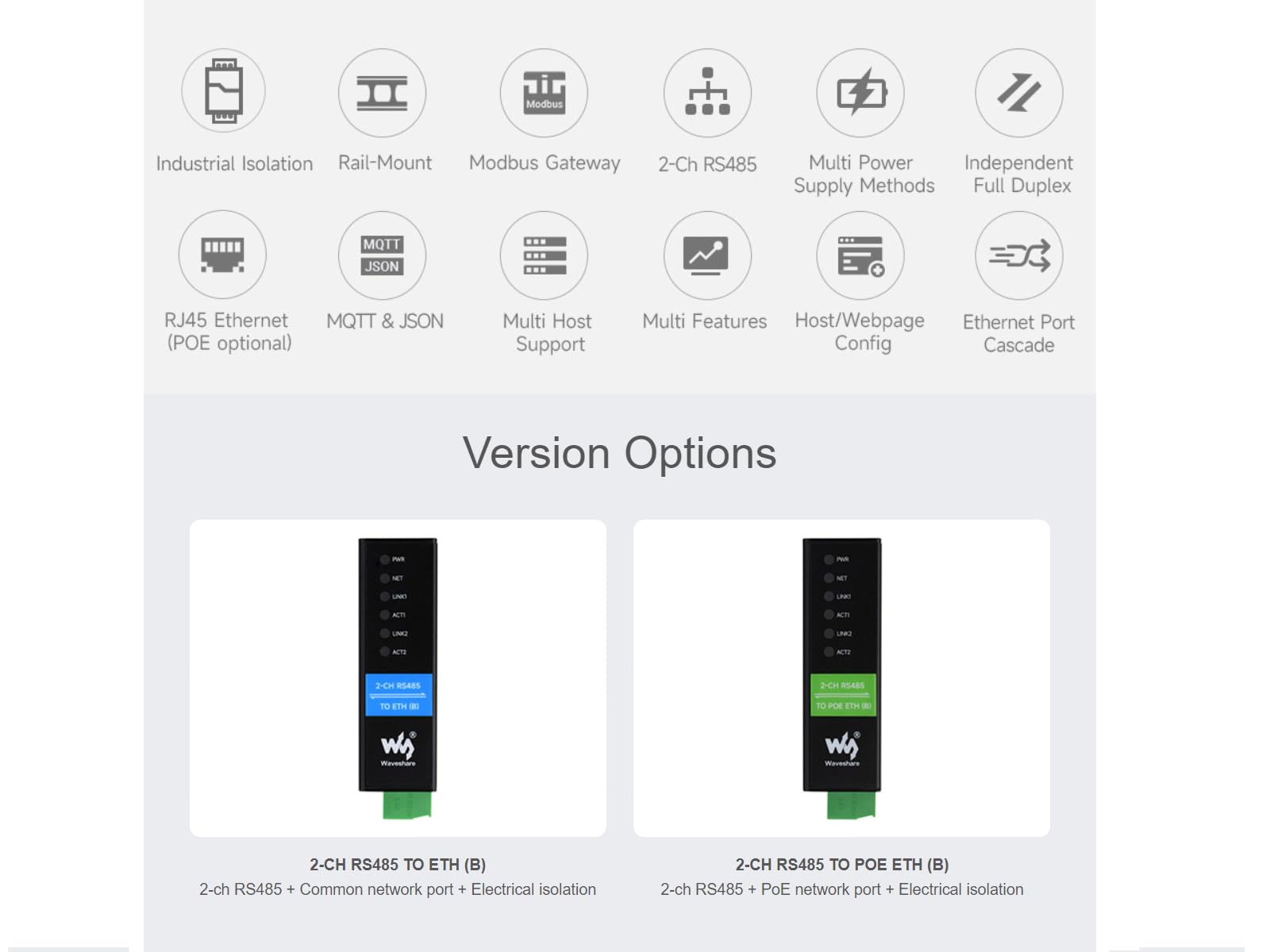

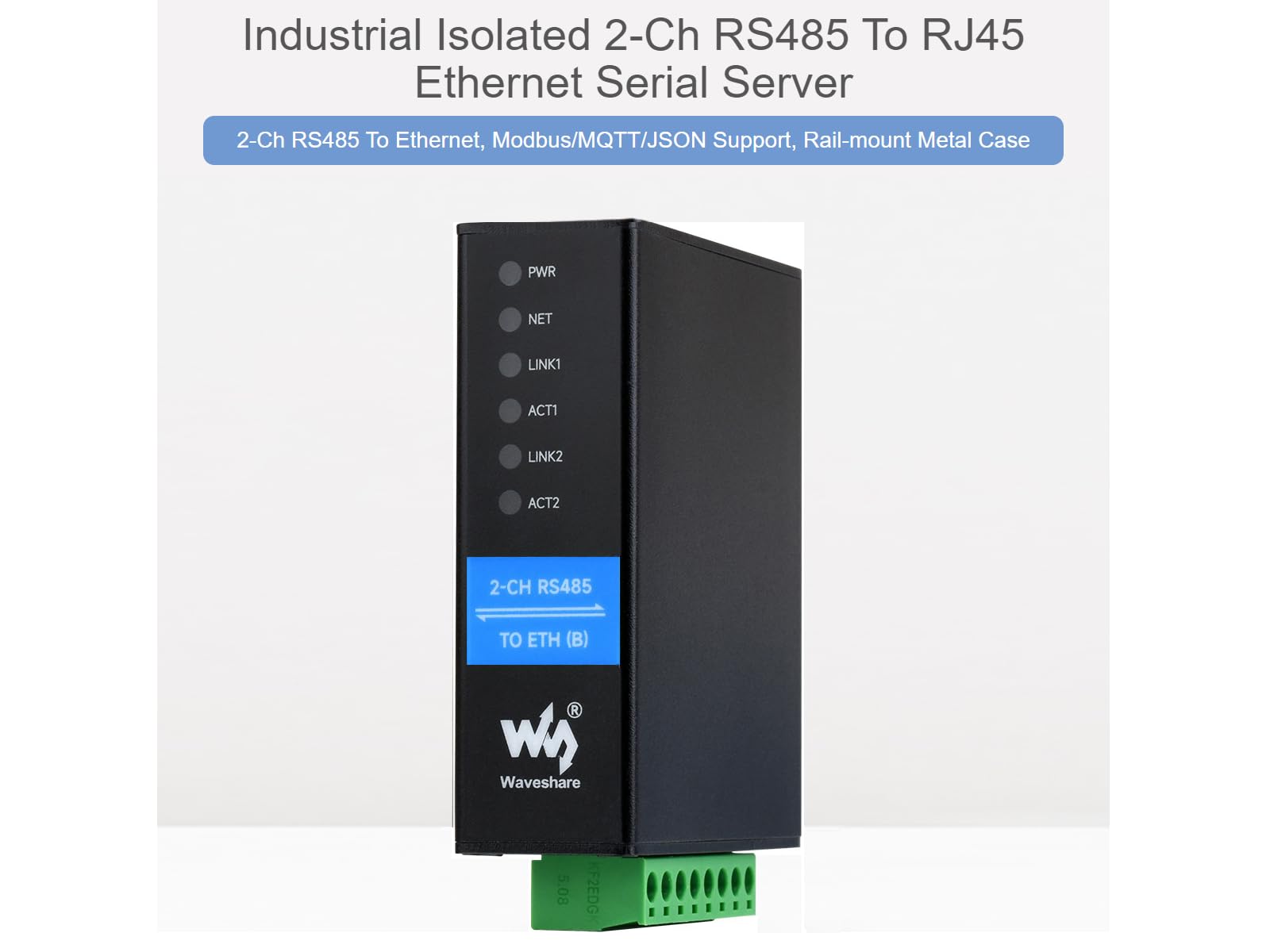

Waveshare 2-CH RS485 to RJ45 Ethernet Converter Module, Industrial Rail-mount Isolated Serial Server,Dual Channels RS485 Independent Operation,Dual Ethernet Ports

• 【Industrial Isolated 2-Ch RS485 To RJ45 Ethernet Serial Server】2-Ch RS485 To Ethernet, Modbus/MQTT/JSON Support, Rail-mount Metal Case

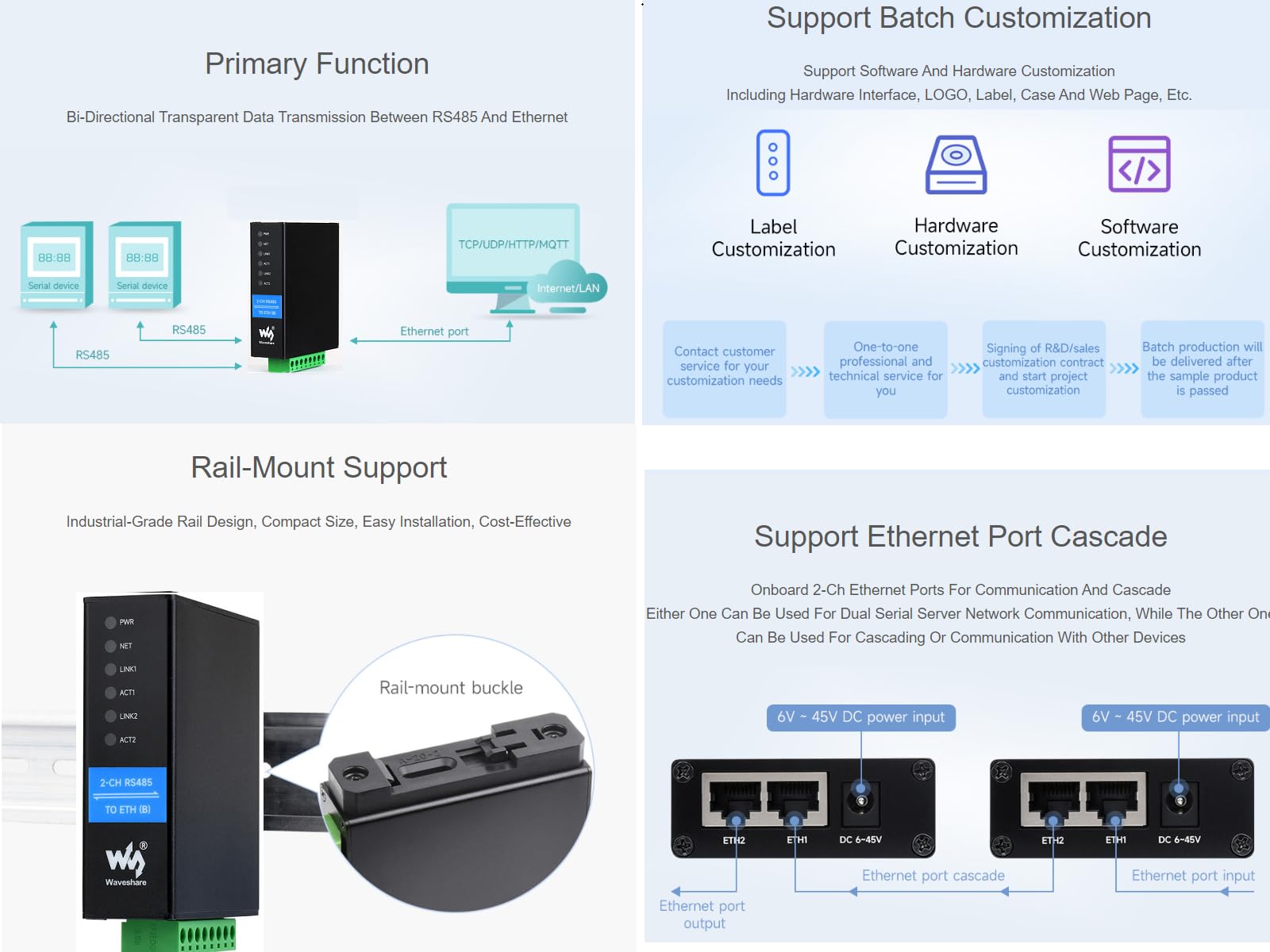

• 【Primary Function】Bi-Directional Transparent Data Transmission Between RS485 And Ethernet
• 【Multi Power Supply Options】Support PoE Ethernet Port Power Supply*, Suitable For IEEE 802.3af PoE Standard.Support Screw Terminal And DC Power Port For Power Supply, DC 6~45V.Wide Voltage Range Input

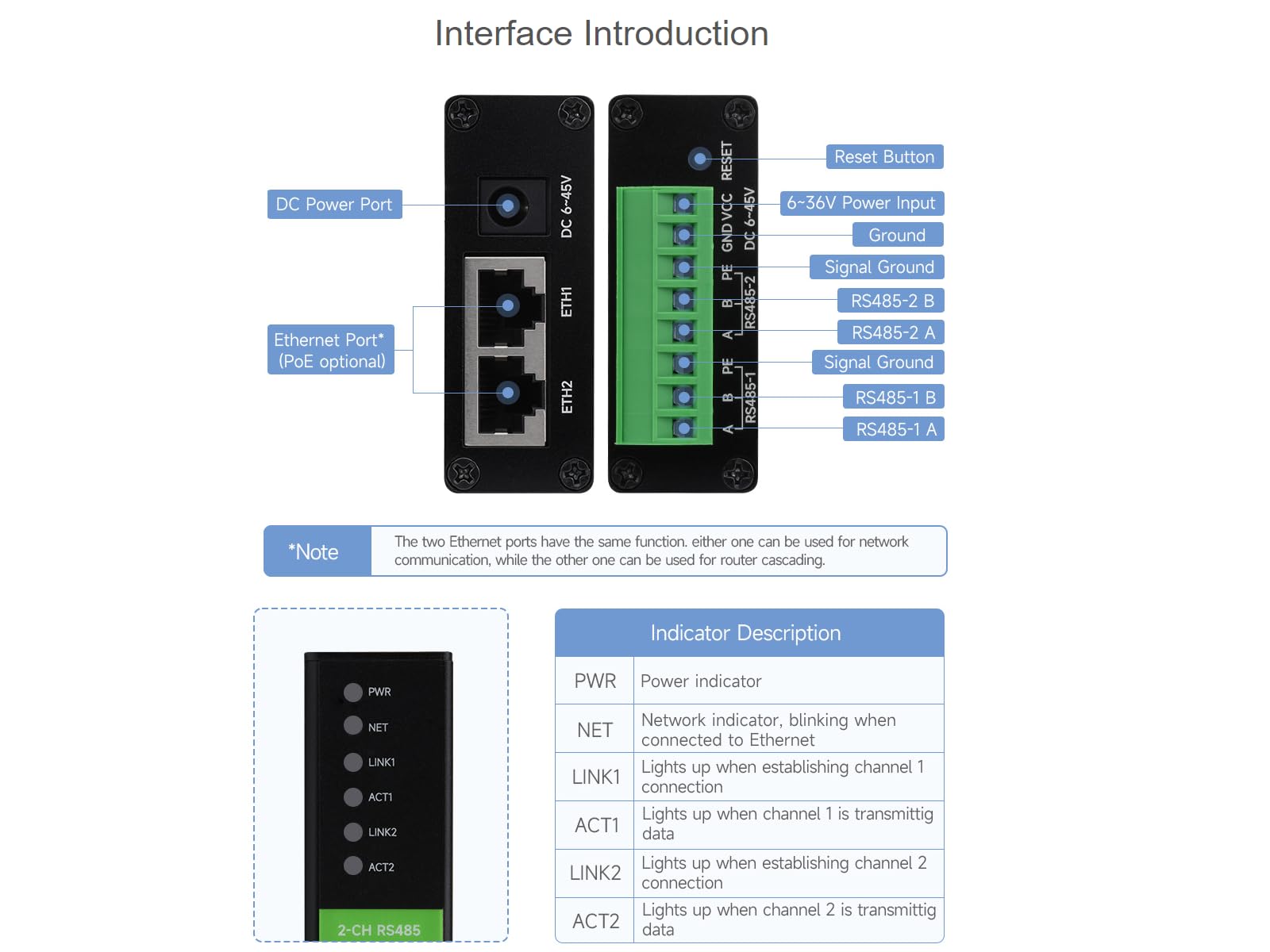

• 【Support Ethernet Port Cascade】Onboard 2-Ch Ethernet Ports For Communication And Cascade.Either One Can Be Used For Dual Serial Server Network Communication, While The Other One Can Be Used For Cascading Or Communication With Other Devices

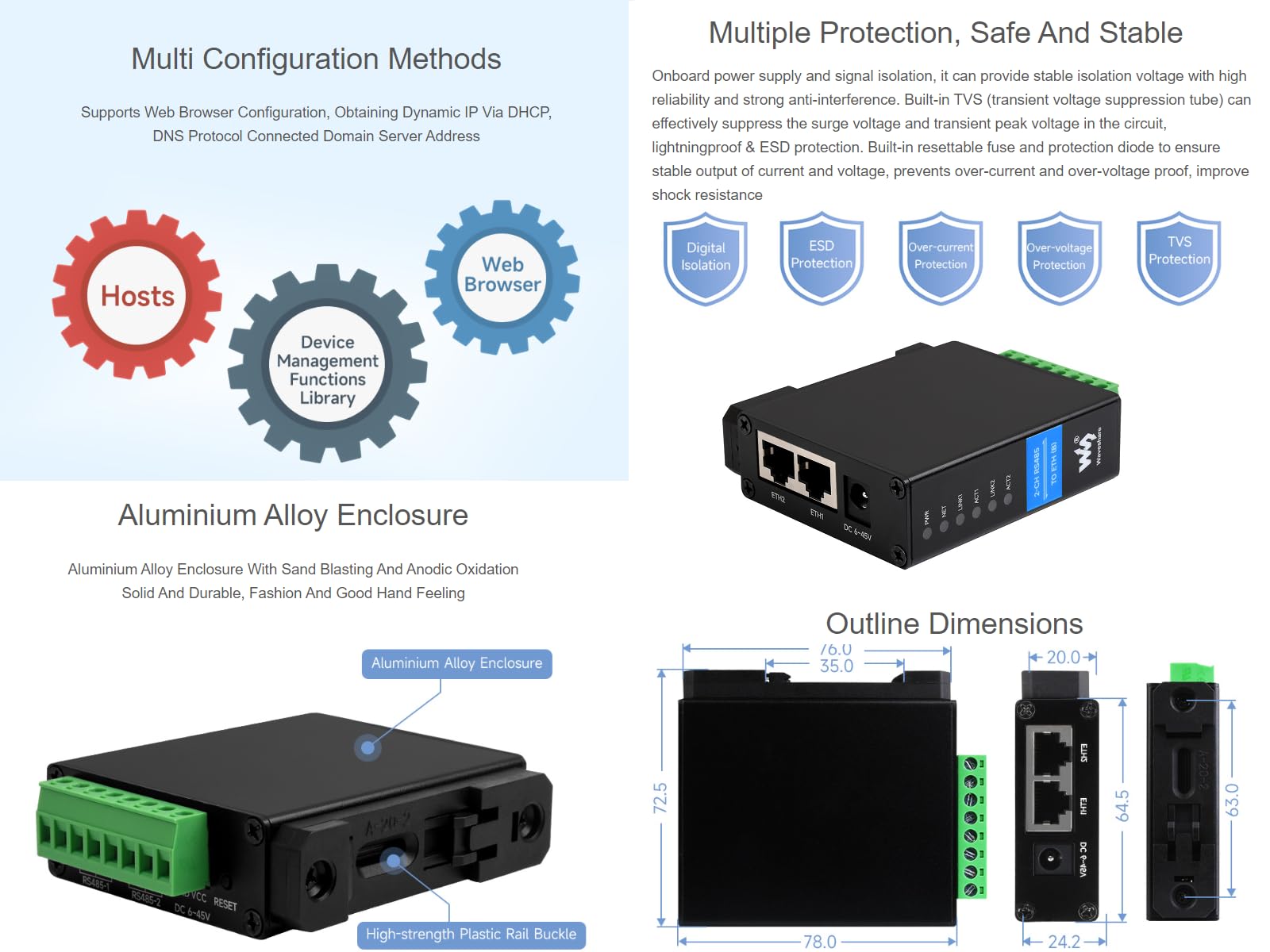

• 【Rail-Mount Support】Industrial-Grade Rail Design, Compact Size, Easy Installation, Cost-Effective

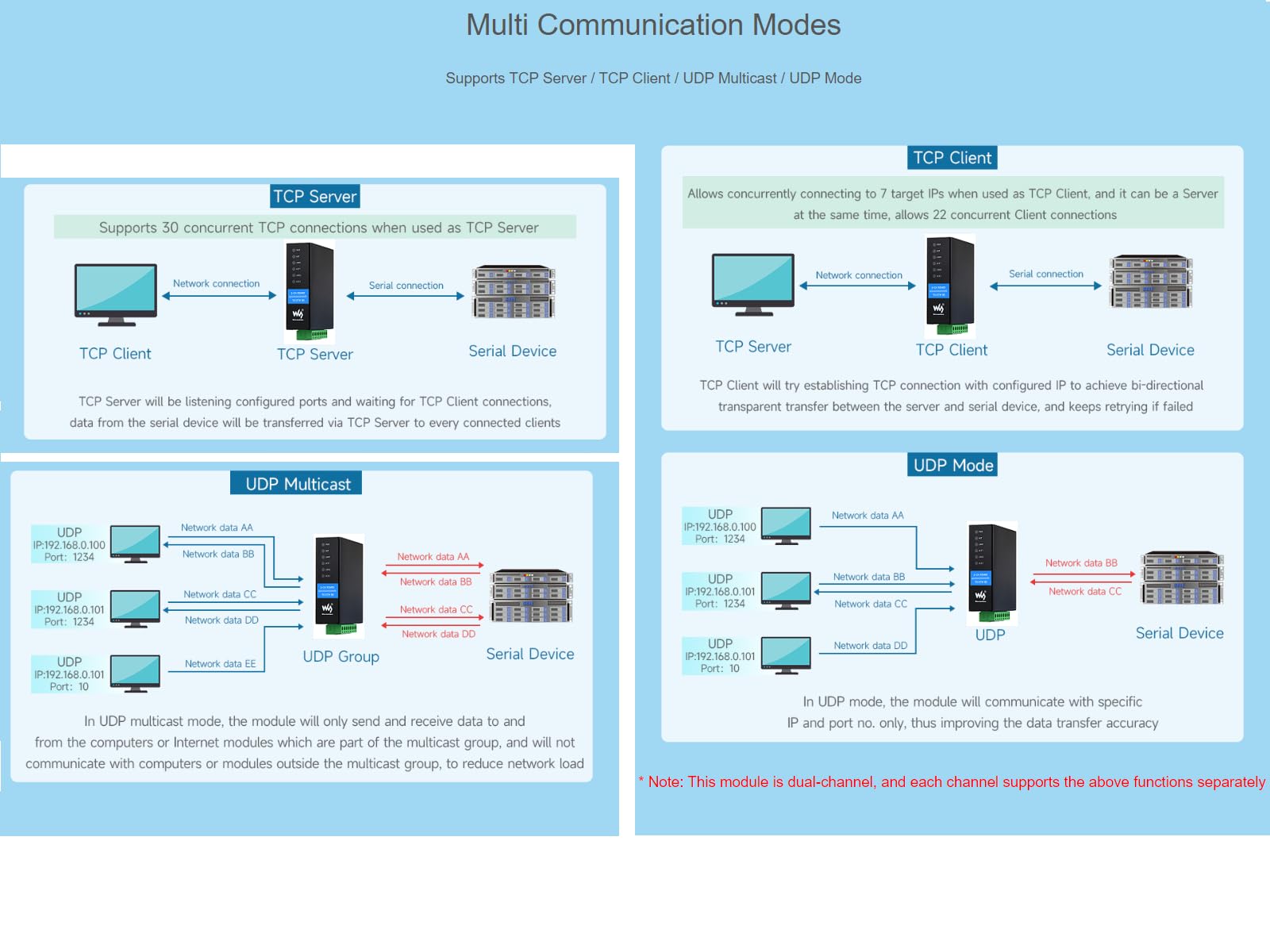

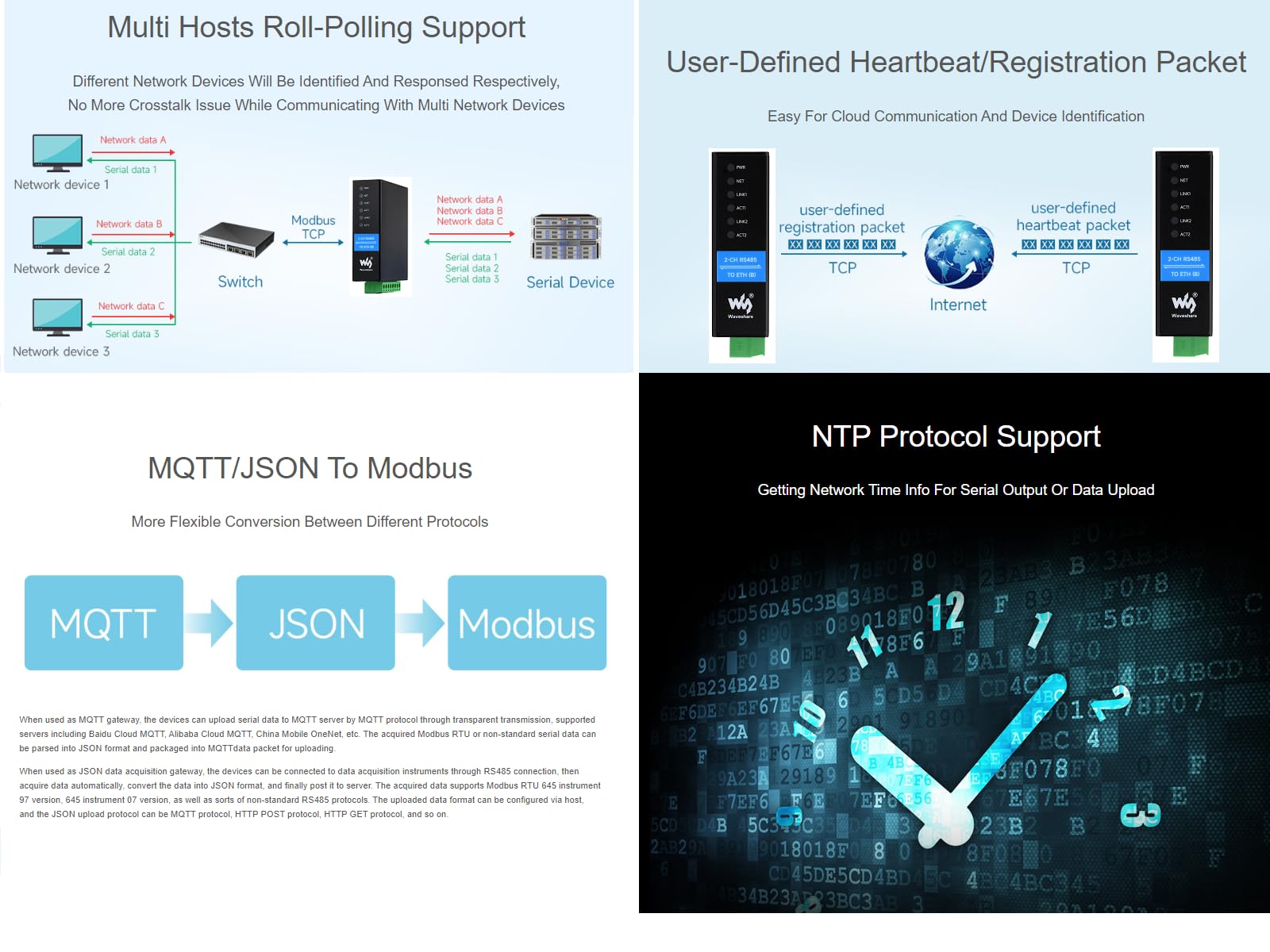

2-Ch RS485 To RJ45 Ethernet Serial Server, Dual Channels RS485 Independent Operation, Dual Ethernet Ports, Rail-Mount Industrial Isolated Serial Module, Bi-Directional Transparent Transmission Overview This is an RS232/485/422 device data acquisitor/IoT gateway designed for an industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS232/485/422 to JSON, etc. Adopting RS232/485/422 and Ethernet interface with PoE function, it can be connected with screw terminals for power input by the power port (outer diameter: 5.5mm, inner diameter: 2.1mm). The rail-type case design, is small in size, easy to install, and cost-effective. It is very suitable for collecting the data of RS232/485/422 and sensors in the industrial field, including local network collection or uploading to the data that the cloud server autonomously collects and sends. Features At A Glance This is a 2-ch RS485 device data acquisitor / IoT gateway designed for the industrial environment. Dual RS485 can work simultaneously without interfering with each other. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, and network switch. The module features dual RS485 and dual Ethernet ports (PoE function optional), uses a DC port (outer diameter: 5.5mm, inner diameter: 2.1mm) and screw terminal for power input. The case with rail-mount support, is small in size, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring... Development Resources https://www.waveshare.com/wiki/RS232/485/422_TO_POE_ETH_(B)?Amazon Package Content 2-CH RS485 TO ETH (B) x1
