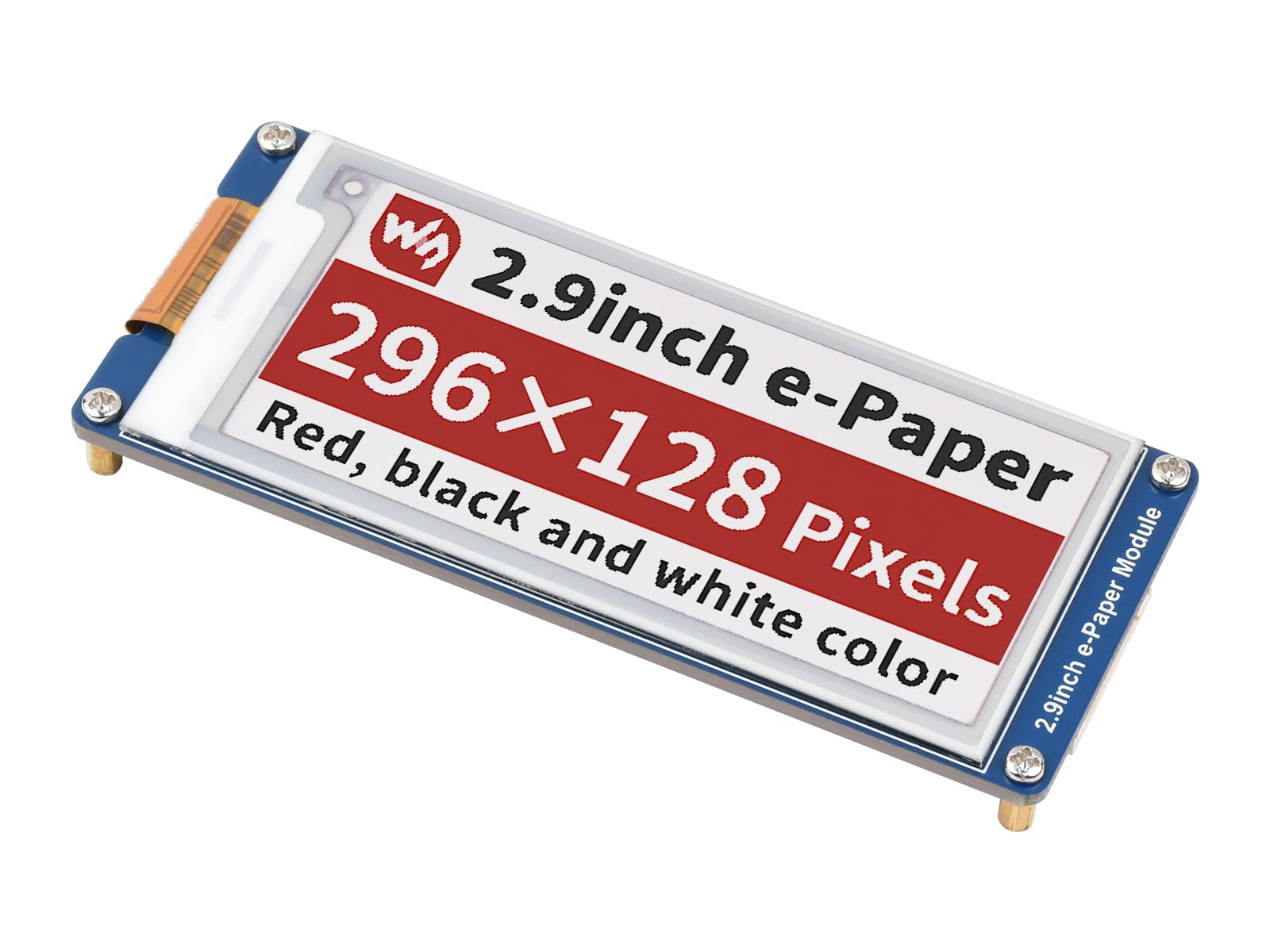

Waveshare 2.9Inch E-Paper Display Module(B),296x128 Resolution E-Ink Electronic Paper Screen,Red Black White Three-Color Display for Raspberry Pi/Jetson Nano/Arduino/STM32

• Note:please use corresponding demo code in wiki.This is an E-Ink display module, 2.9inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing

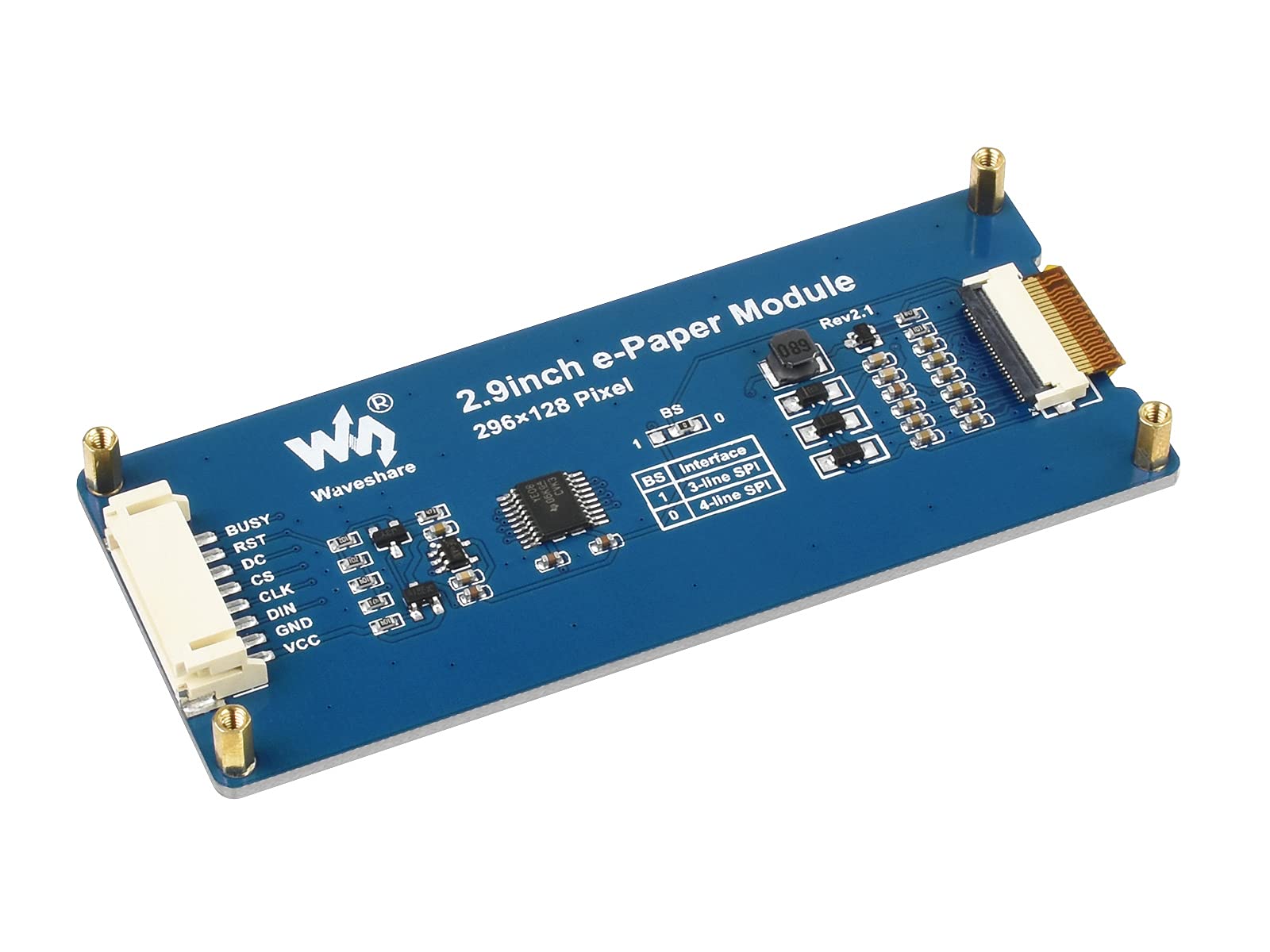

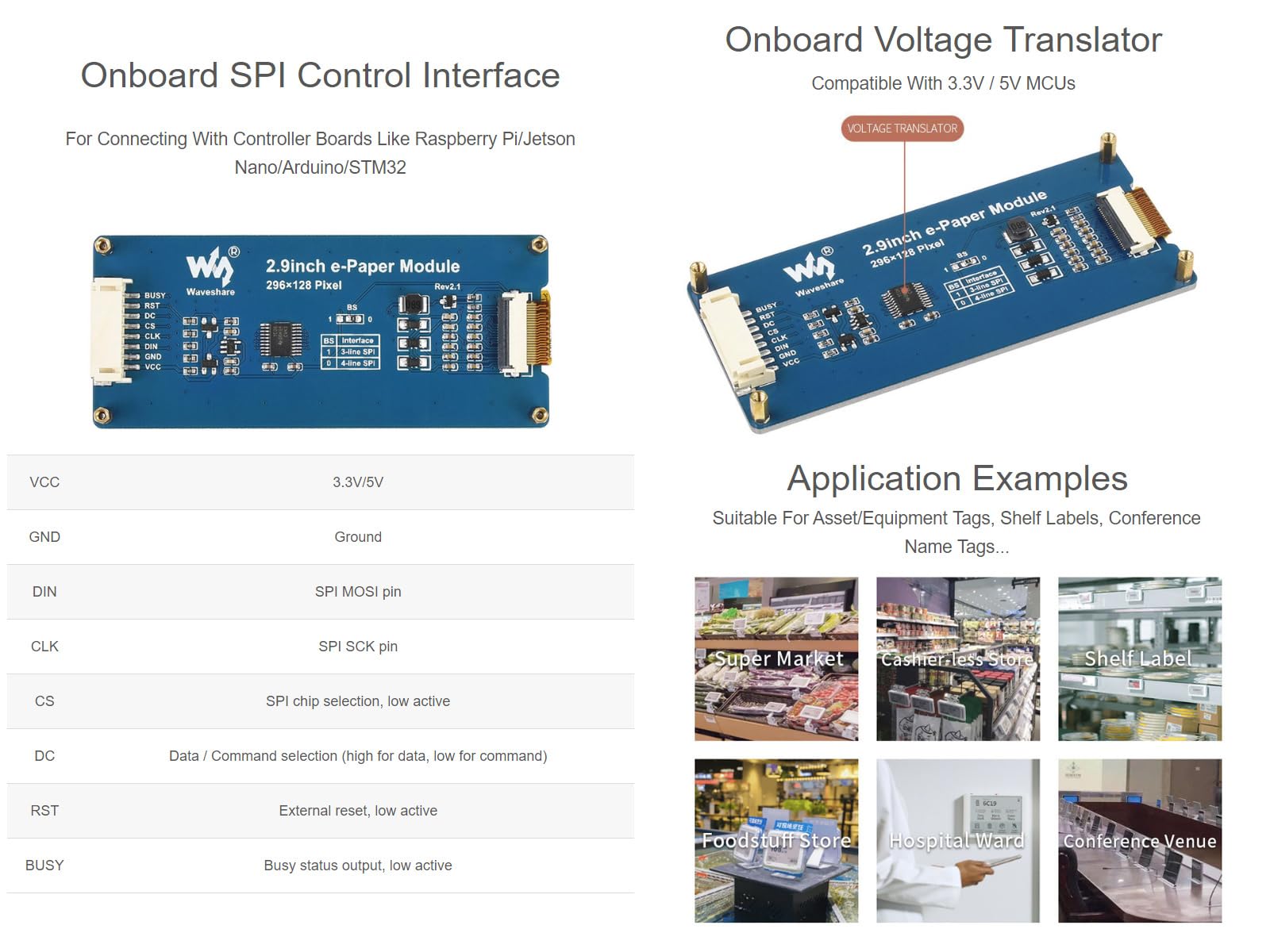

• SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc. Onboard voltage translator, compatible with 3.3V/5V MCUs
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

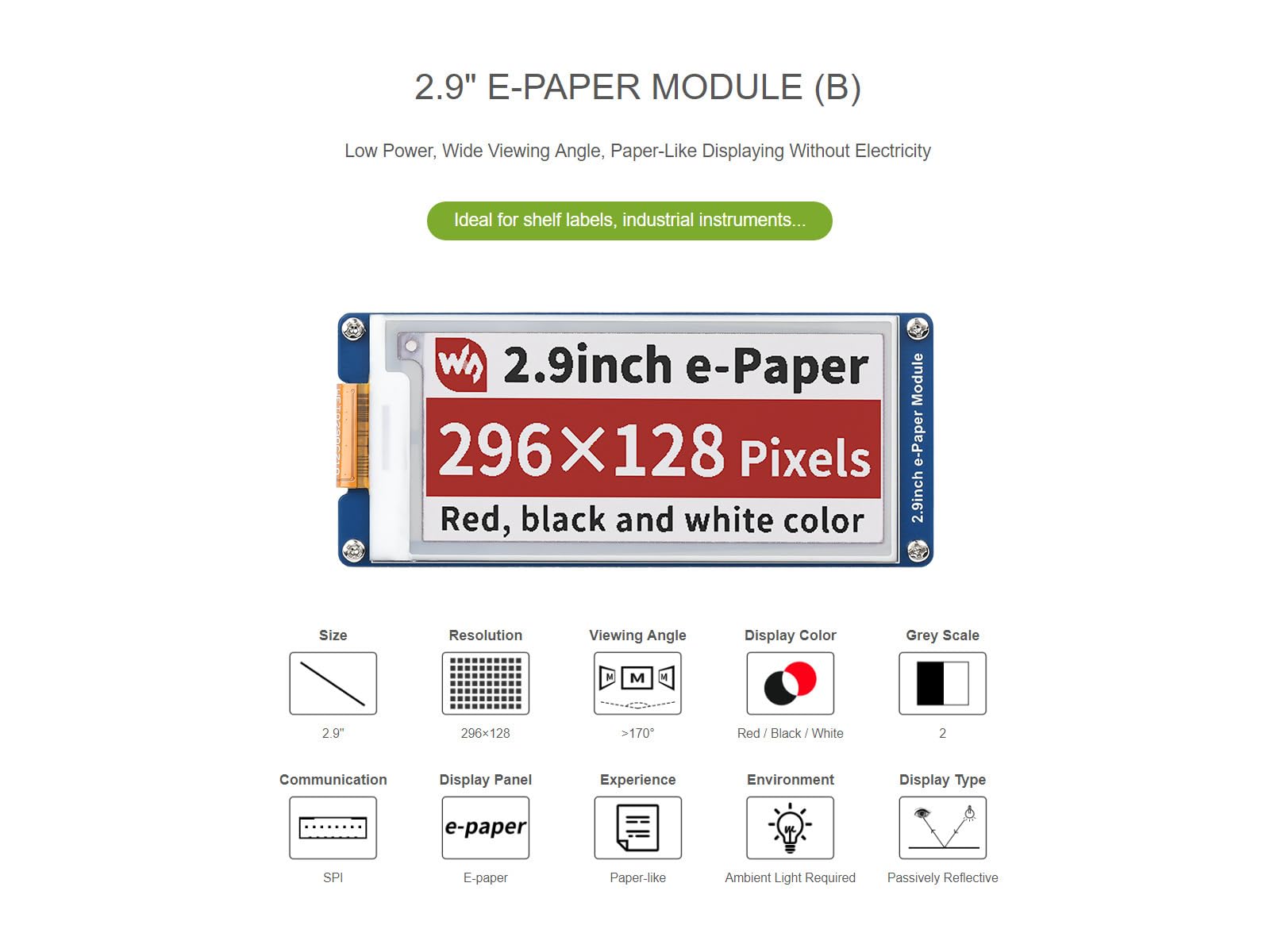

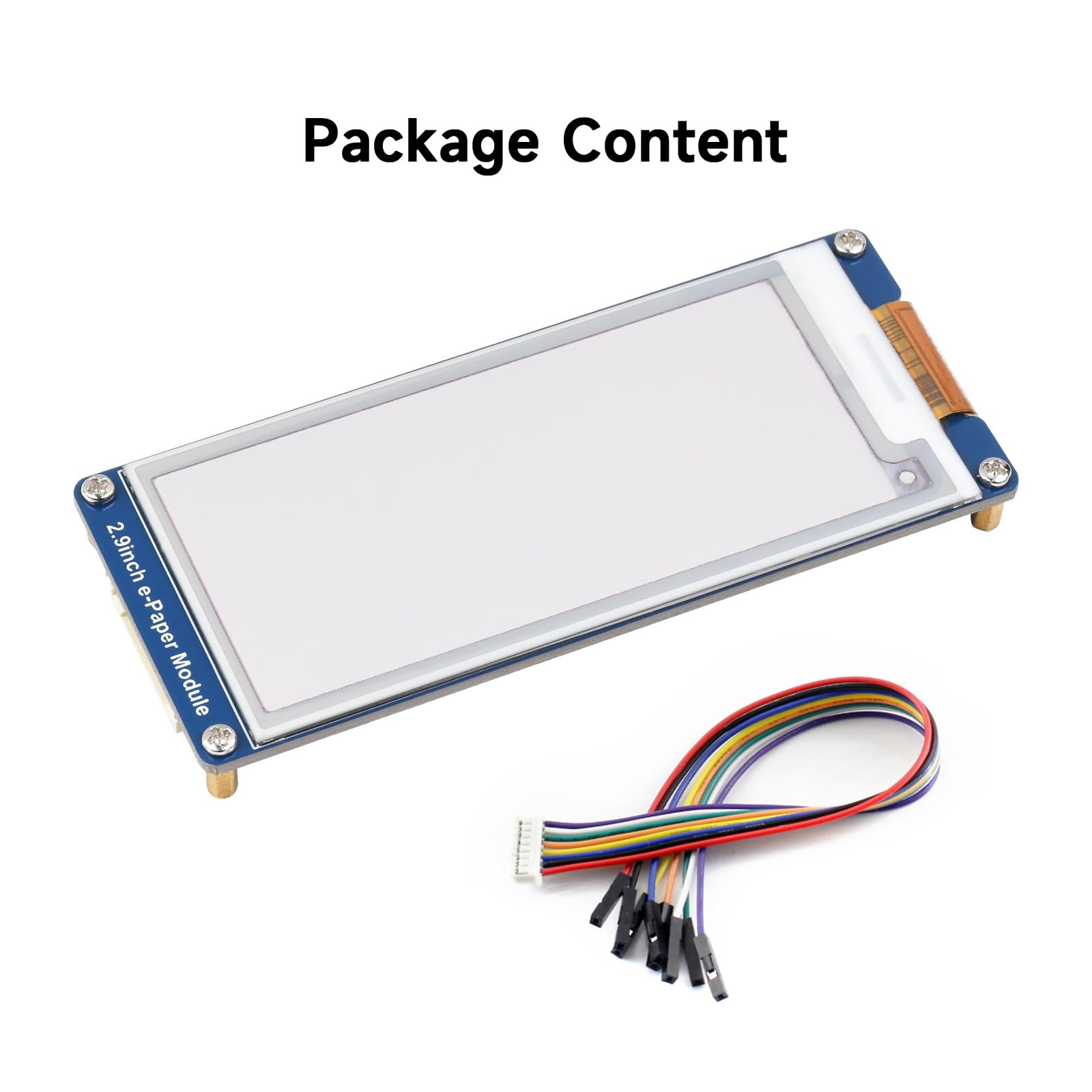

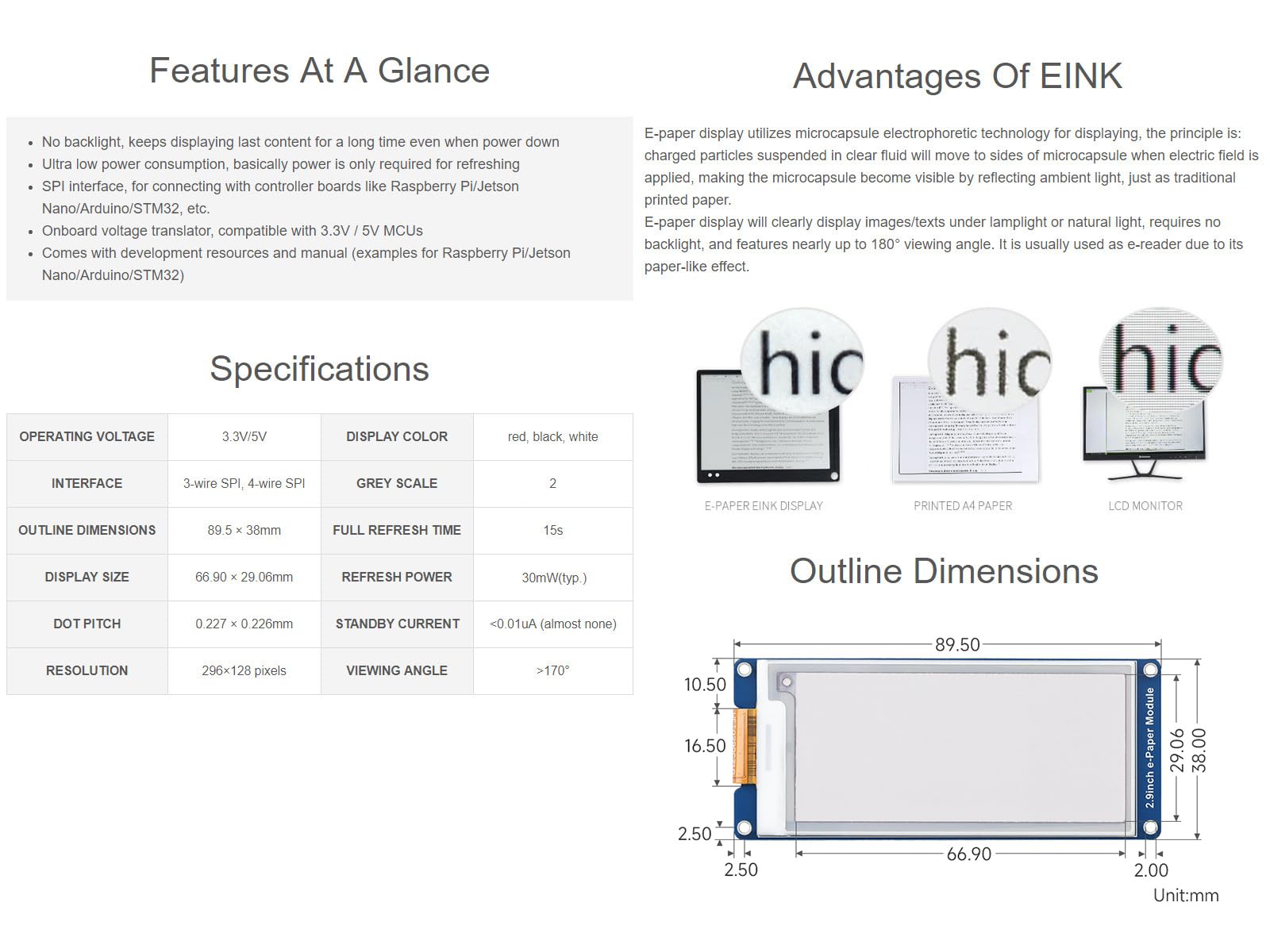

Overview This is an E-Ink display module, 2.9inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Features No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc. Onboard voltage translator, compatible with 3.3V/5V MCUs Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32) Specifications Operating voltage: 3.3V/5V Interface: 3-wire SPI, 4-wire SPI Outline dimension: 89.5mm × 38mm Display size: 66.89mm × 29.05mm Dot pitch: 0.138 × 0.138 Resolution: 296 × 128 Display color: red, black, white Grey level: 2 Full refresh time: 15s Refresh power: 30mW(typ.) Standby power: <0.017mW Viewing angle: >170° Package Content 2.9inch e-Paper Module (B) x1 PH2.0 20cm 8Pin x1 Development Resources Wiki : www.waveshare.com/wiki/2.9inch_e-Paper_Module_(B)?amazon
