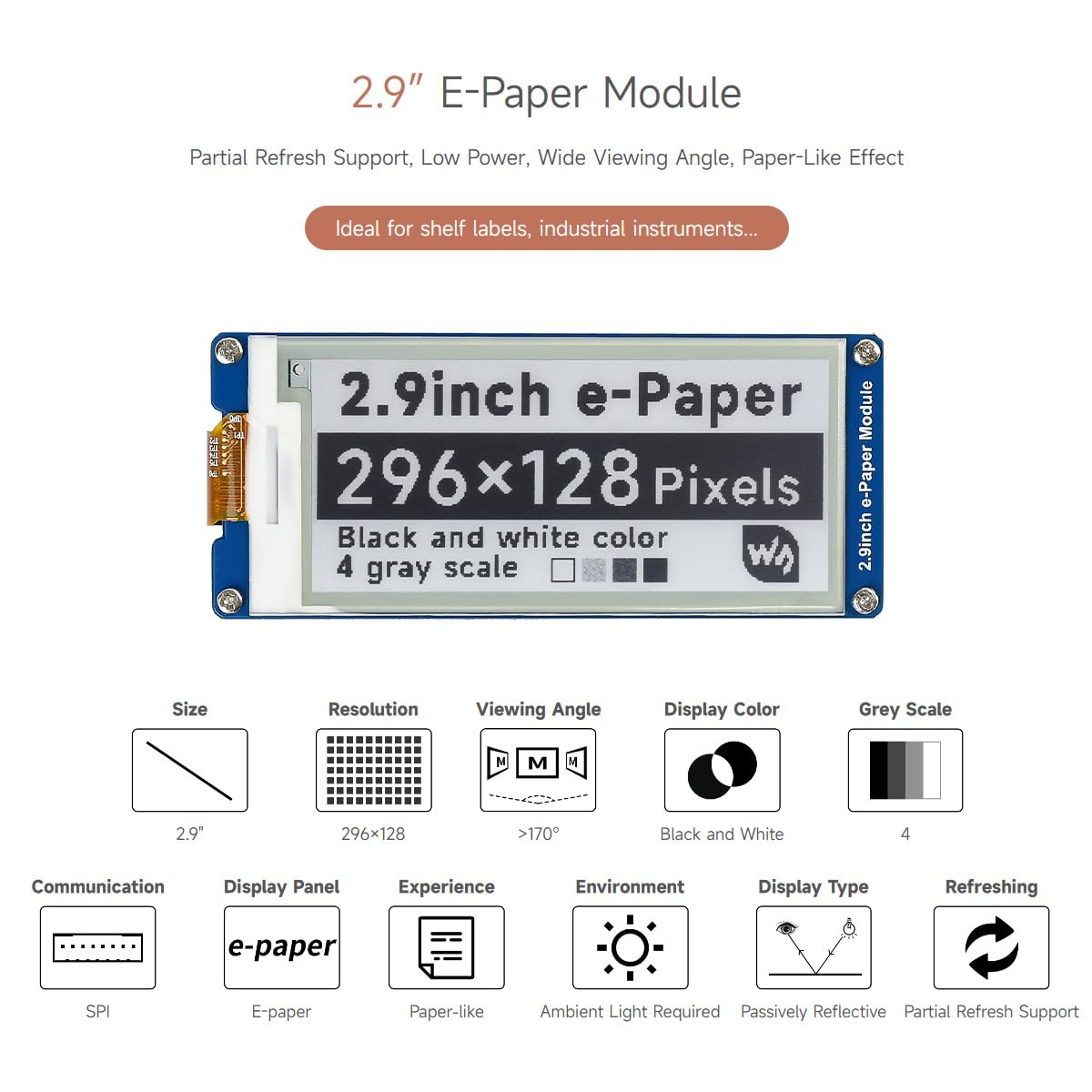

Waveshare 2.9 Inch E-Paper Display Panel Module Kit 296x128 Resolution E-Ink Electronic Screen for for Raspberry Pi/Jetson Nano/Arduino/STM32 Support Partial Refresh SPI Interface

• This is an E-Ink display module, 2.9inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

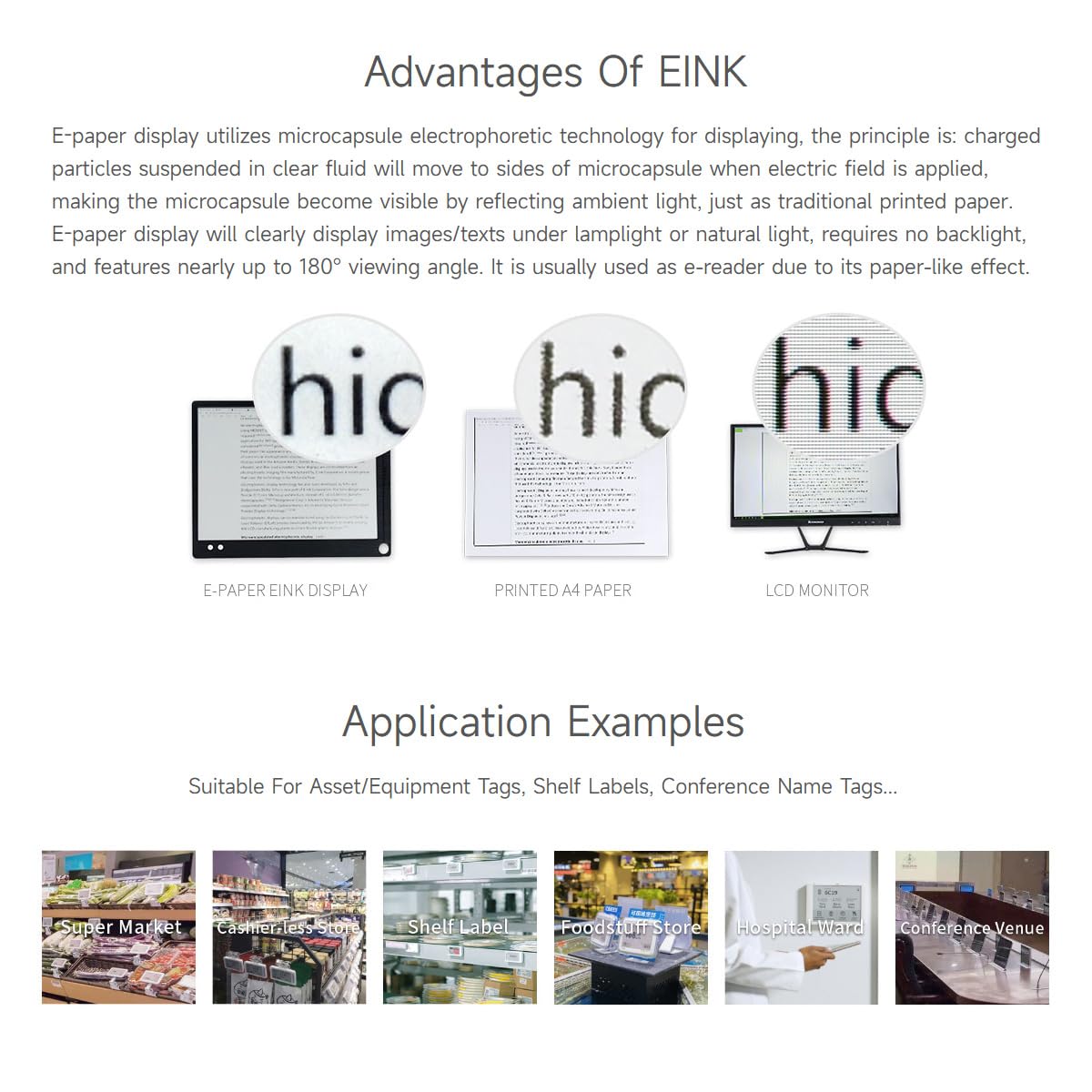

• Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing

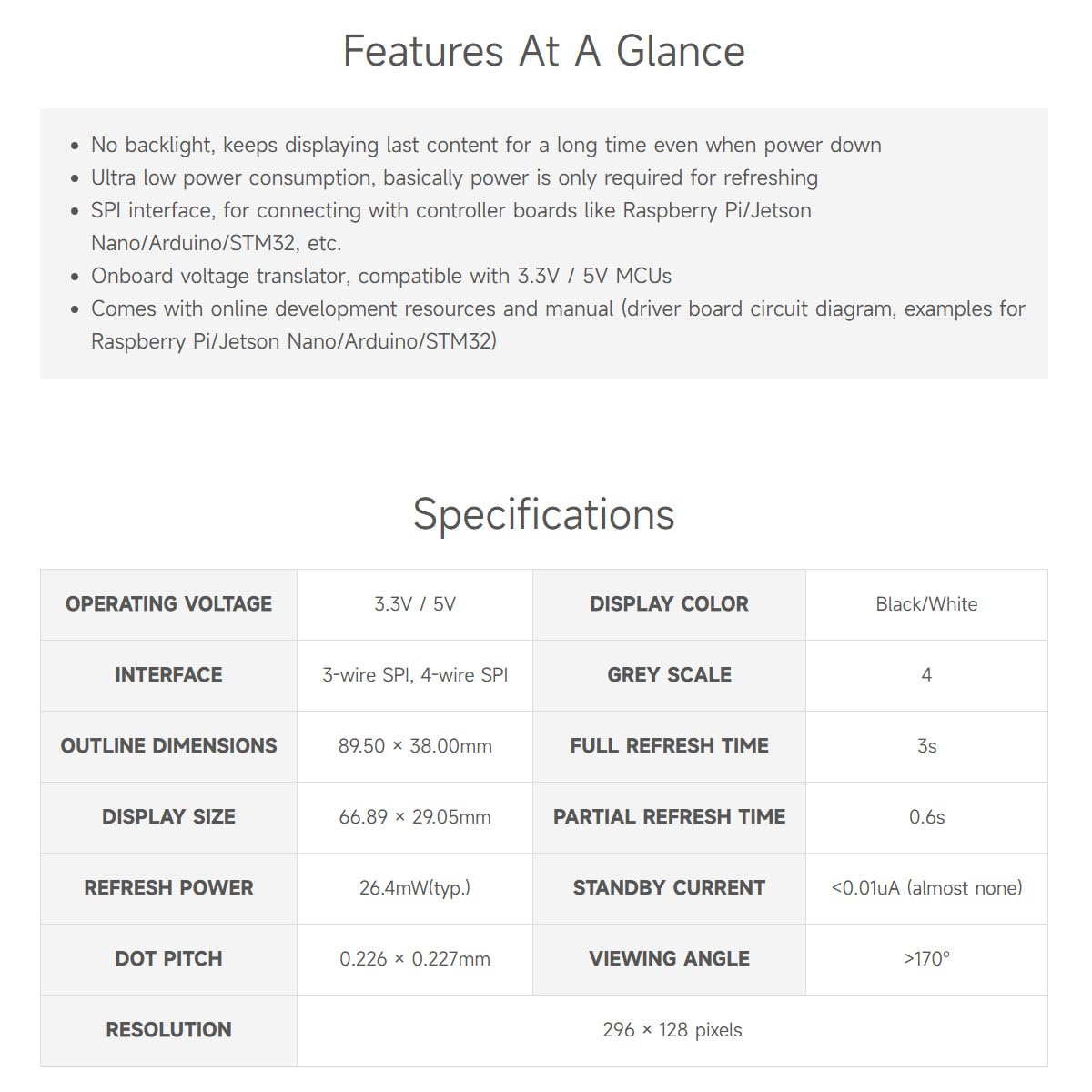

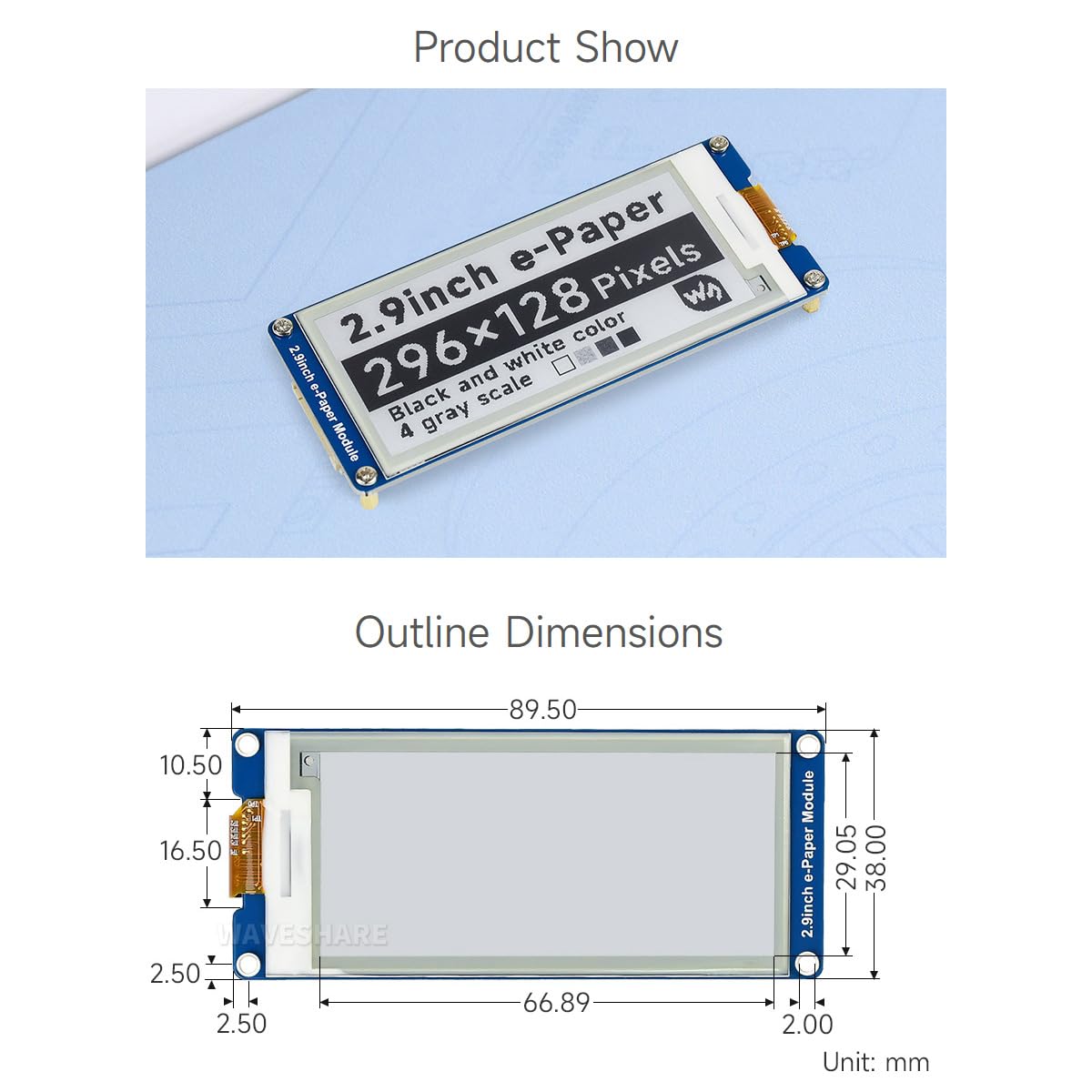

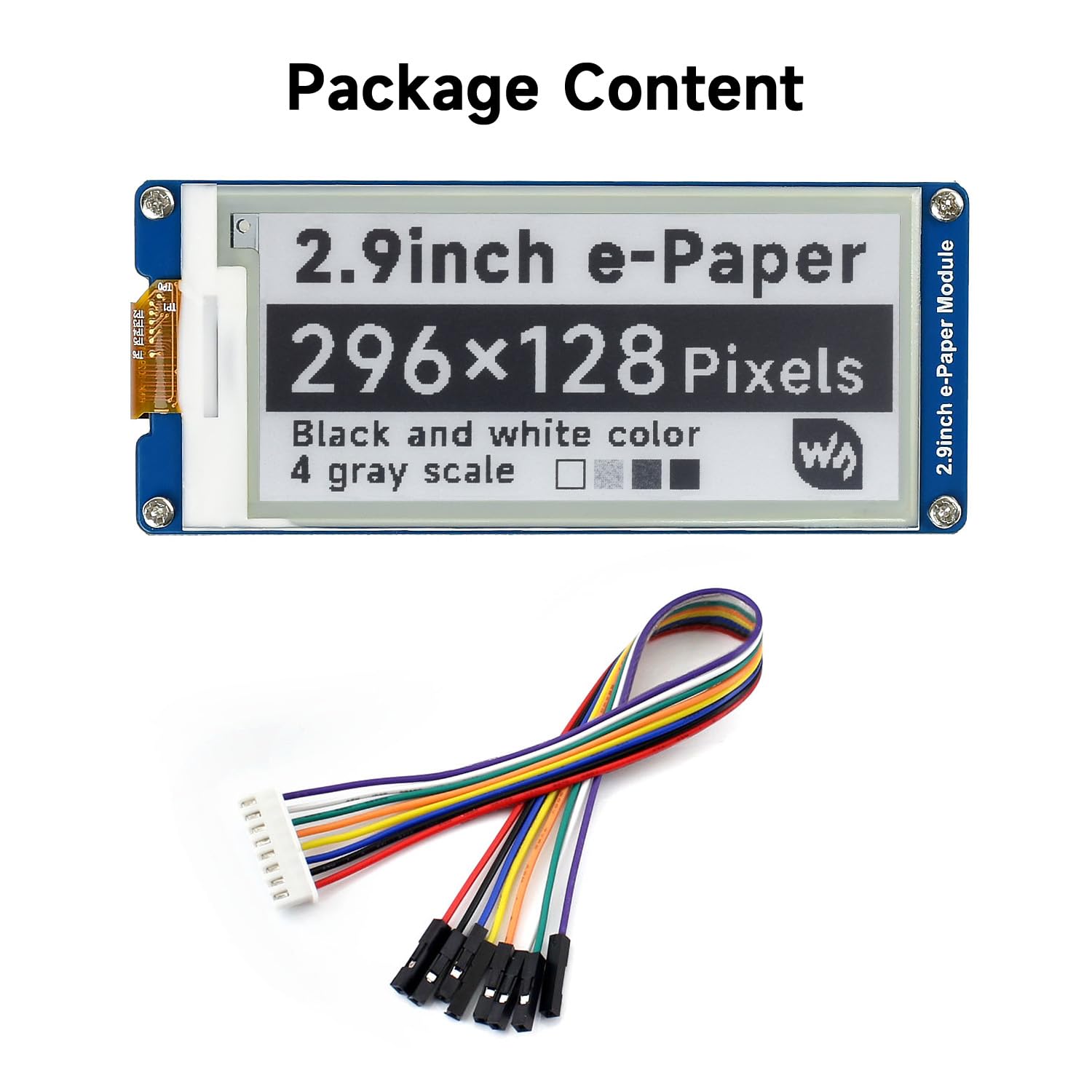

Description 296x128, 2.9inch E-Ink display module, SPI interface Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32) Specifications Operating voltage:3.3V/5V Interface: 3-wire SPI, 4-wire SPI Outline dimension: 89.5mm × 38mm Display size: 66.89mm × 29.05mm Dot pitch: 0.138 × 0.138 Resolution: 296 × 128 Display color: black, white Grey level: 2 Partial refresh time: 0.3s Full refresh time: 2s Refresh power: 26.4mV(typ.) Standby power: <0.017mW Viewing angle: >170° Development Resources Wiki : www.waveshare.com/wiki/2.9inch_e-Paper_Module?amazon Package Contains 2.9inch e-Paper Module x1 PH2.0 20cm 8Pin x1
