Waveshare 1.54 Inch E-Paper Display Panel Module V2 Kit 3.3v/5v 200x200 resolution E-ink Electronic Screen Partial refresh for Raspberry Pi/Jetson Nano/Arduino/STM32 with SPI Interface

• Ultra low power consumption, basically power is only required for refreshing
• Note:Version 2 please use corresponding demo code in wiki. This is an E-Ink display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports partial refresh
• Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on
• No backlight, keeps displaying last content for a long time even when power down

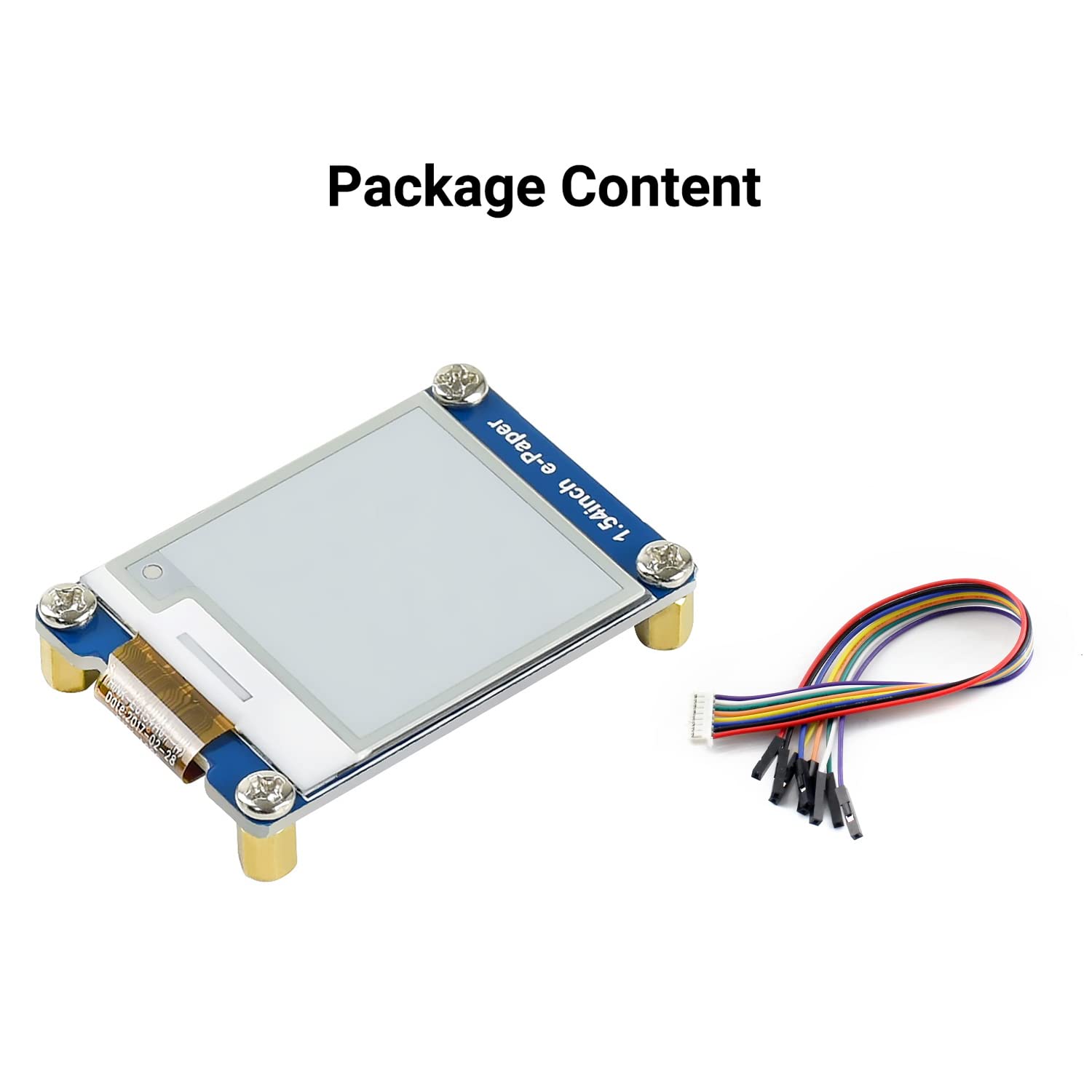

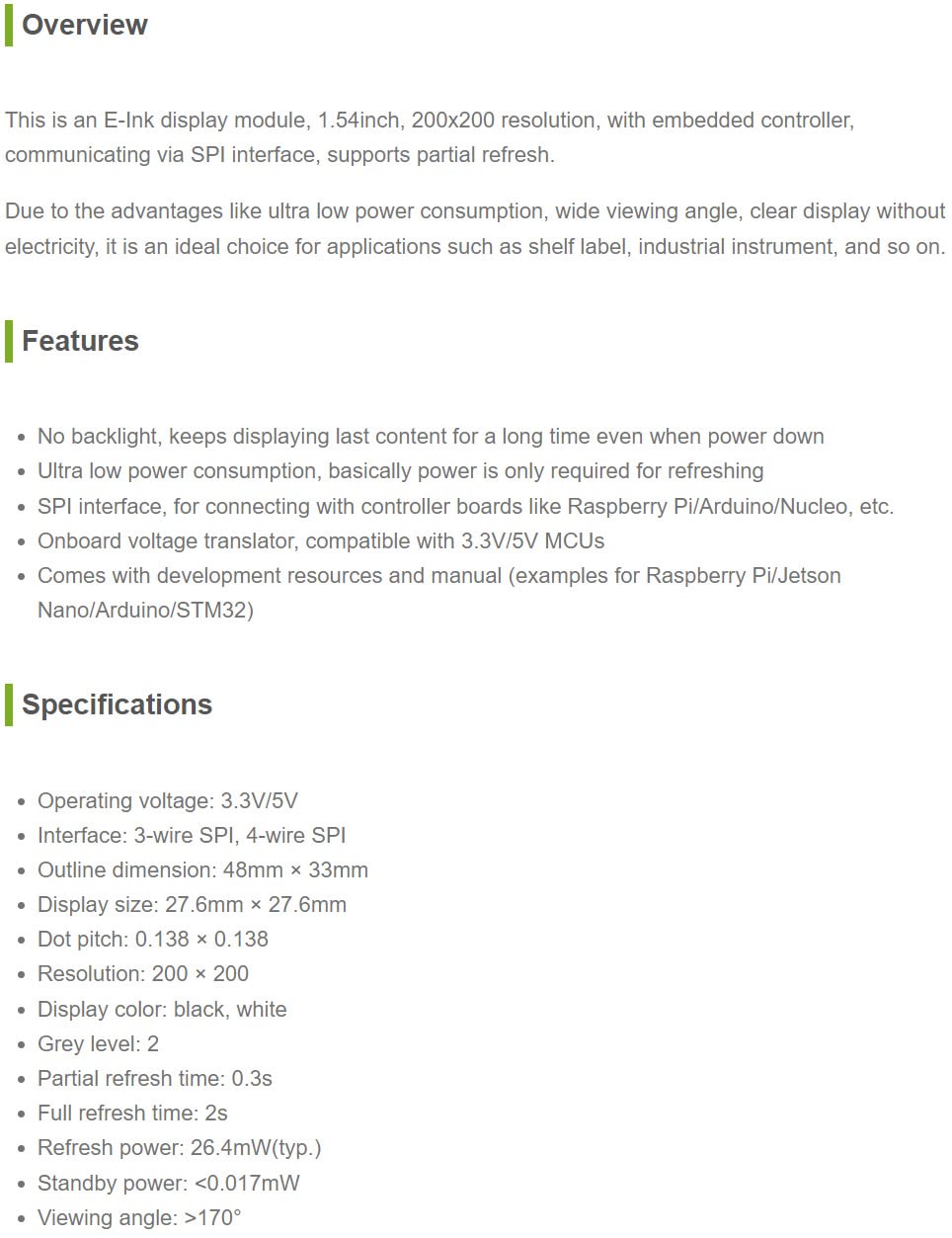

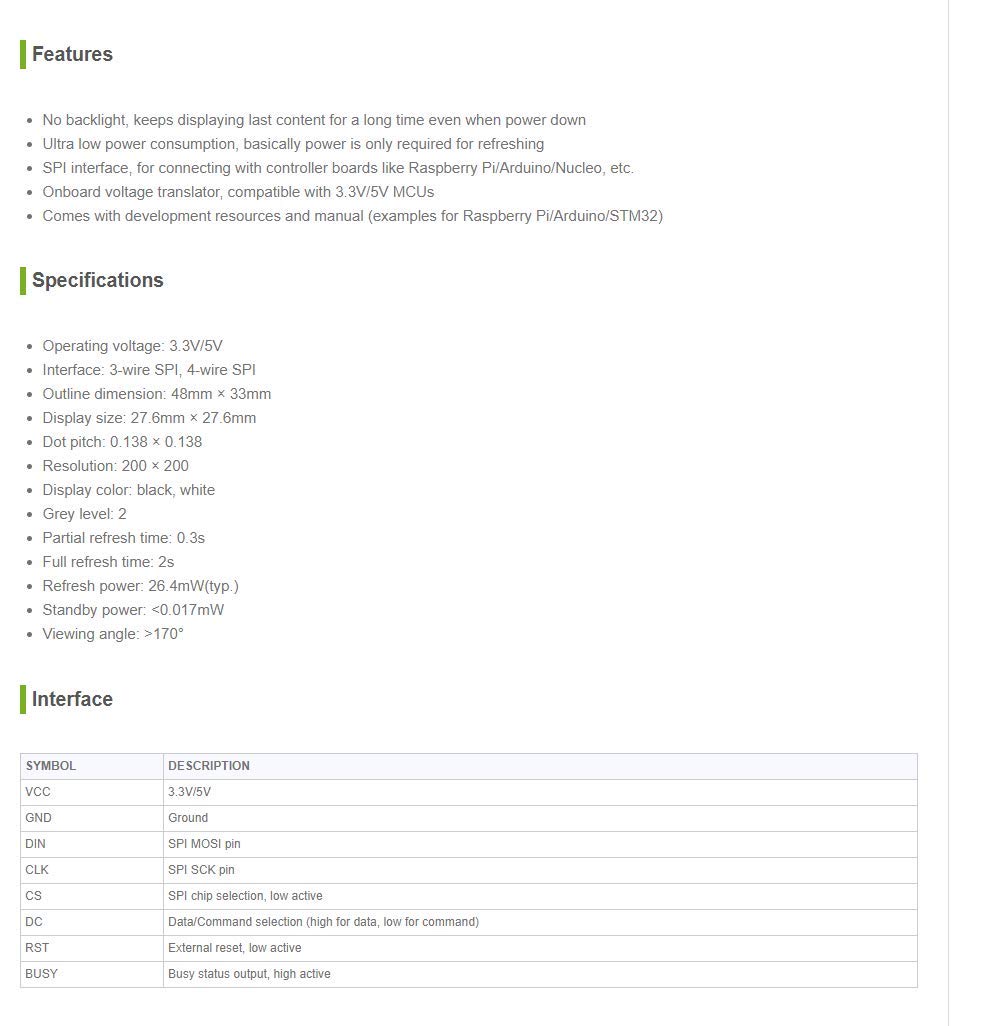

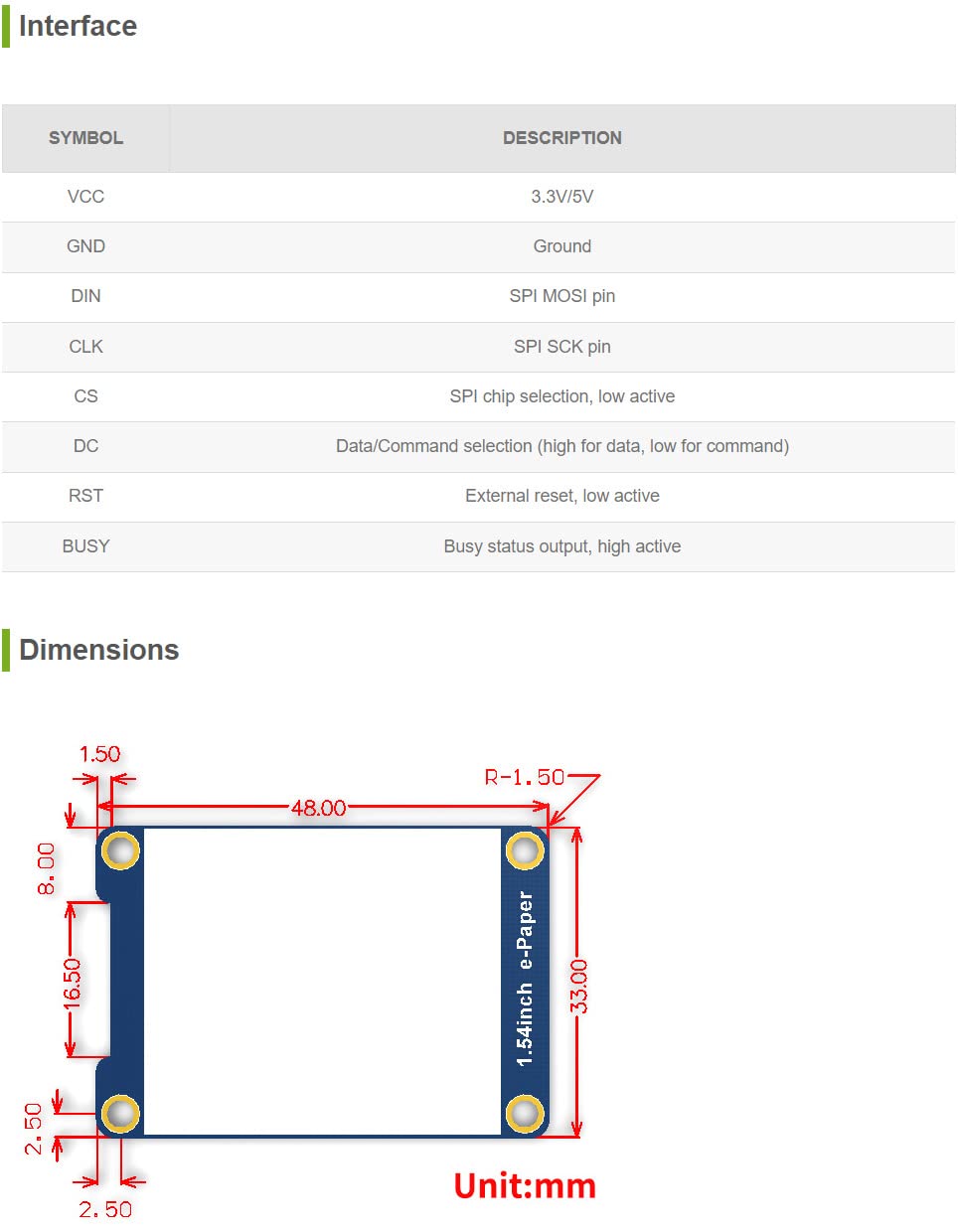

Description 200x200, 1.54inch E-Ink display module, SPI interface Comes with development resources and manual (examples for Raspberry Pi/Arduino/Jetson Nano/STM32) Specifications Operating voltage: 3.3V/5V Interface: 3-wire SPI, 4-wire SPI Outline dimension: 48mm × 33mm Display size: 27.6mm × 27.6mm Dot pitch: 0.138 × 0.138 Resolution: 200 × 200 Display color: black, white Grey level: 2 Partial refresh time: 0.3s Full refresh time: 2s Refresh power: 26.4mV(typ.) Standby power: <0.017mW Viewing angle: >170° Package Contains 1.54inch e-Paper Module x1 PH2.0 20cm 8Pin x1 Development Resources Wiki : www.waveshare.com/wiki/1.54inch_e-Paper_Module?amazon
