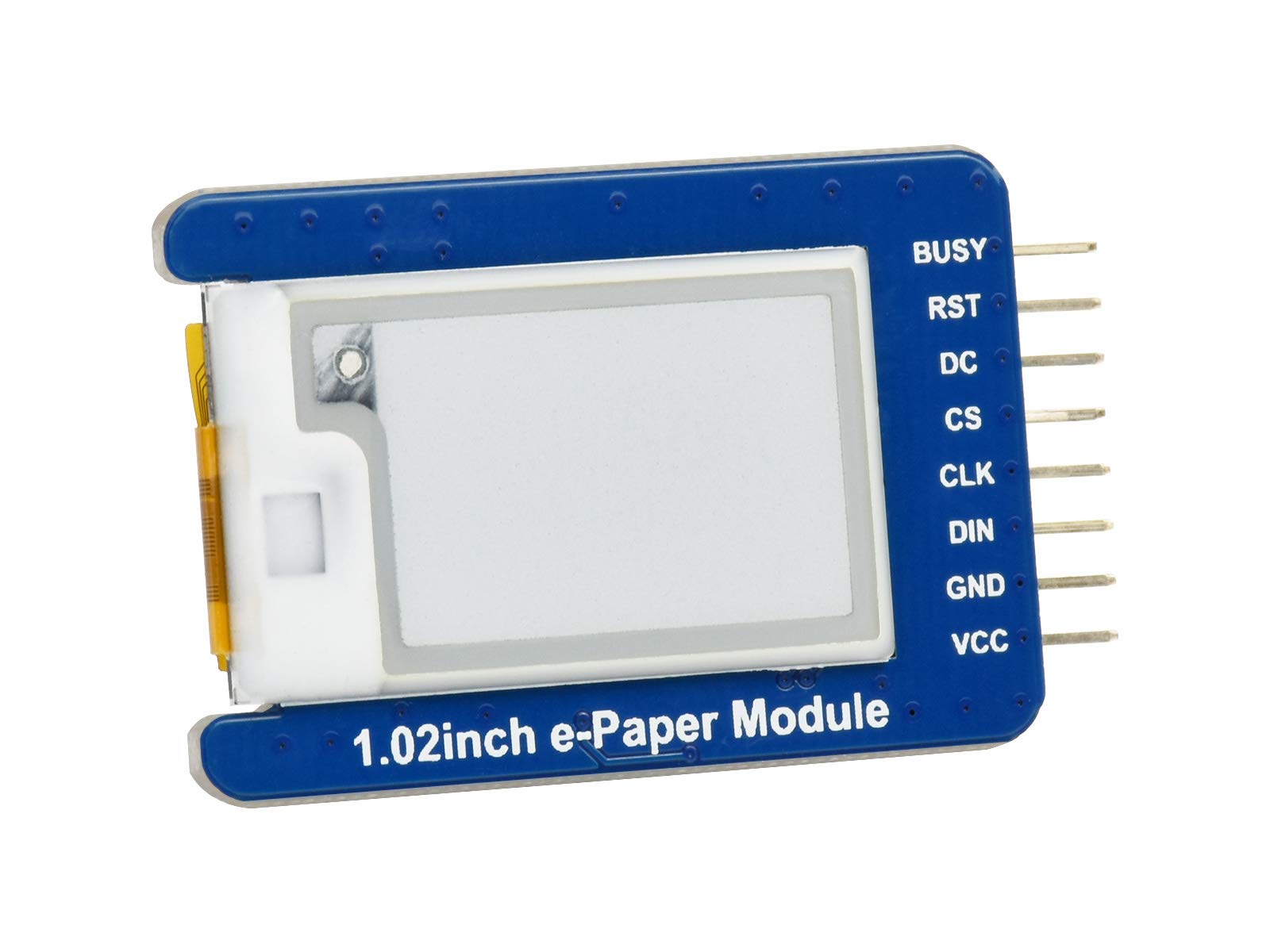

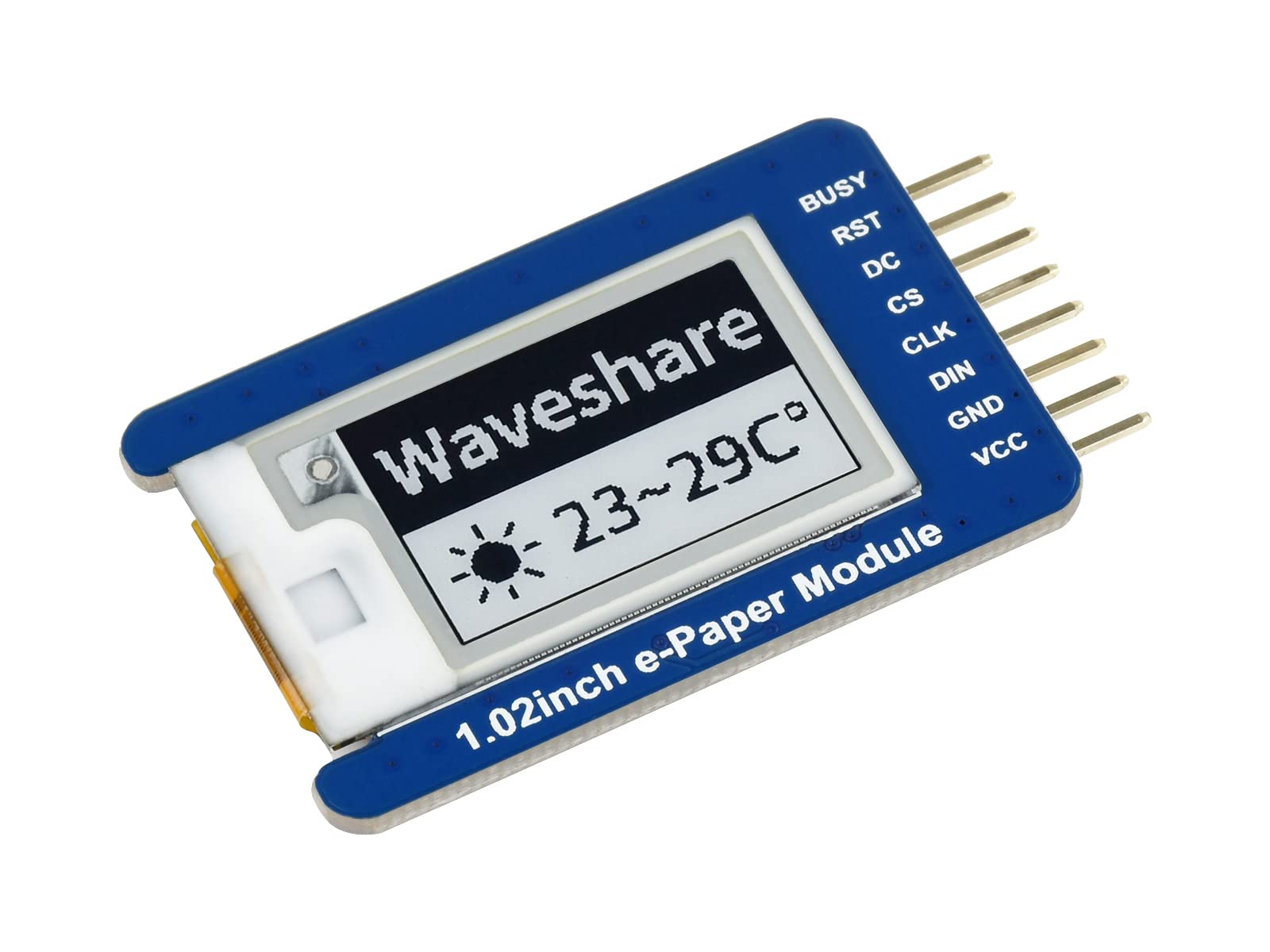

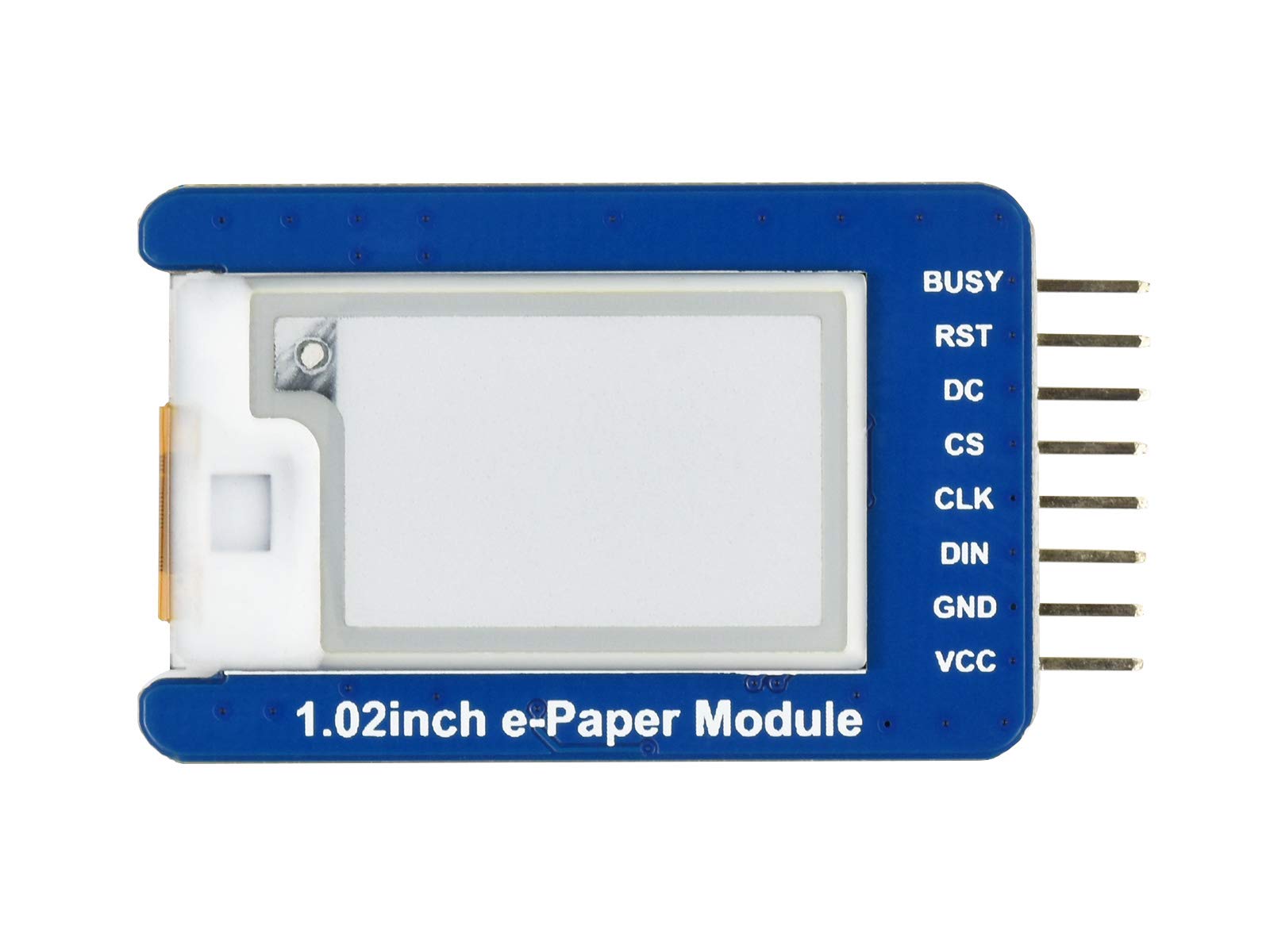

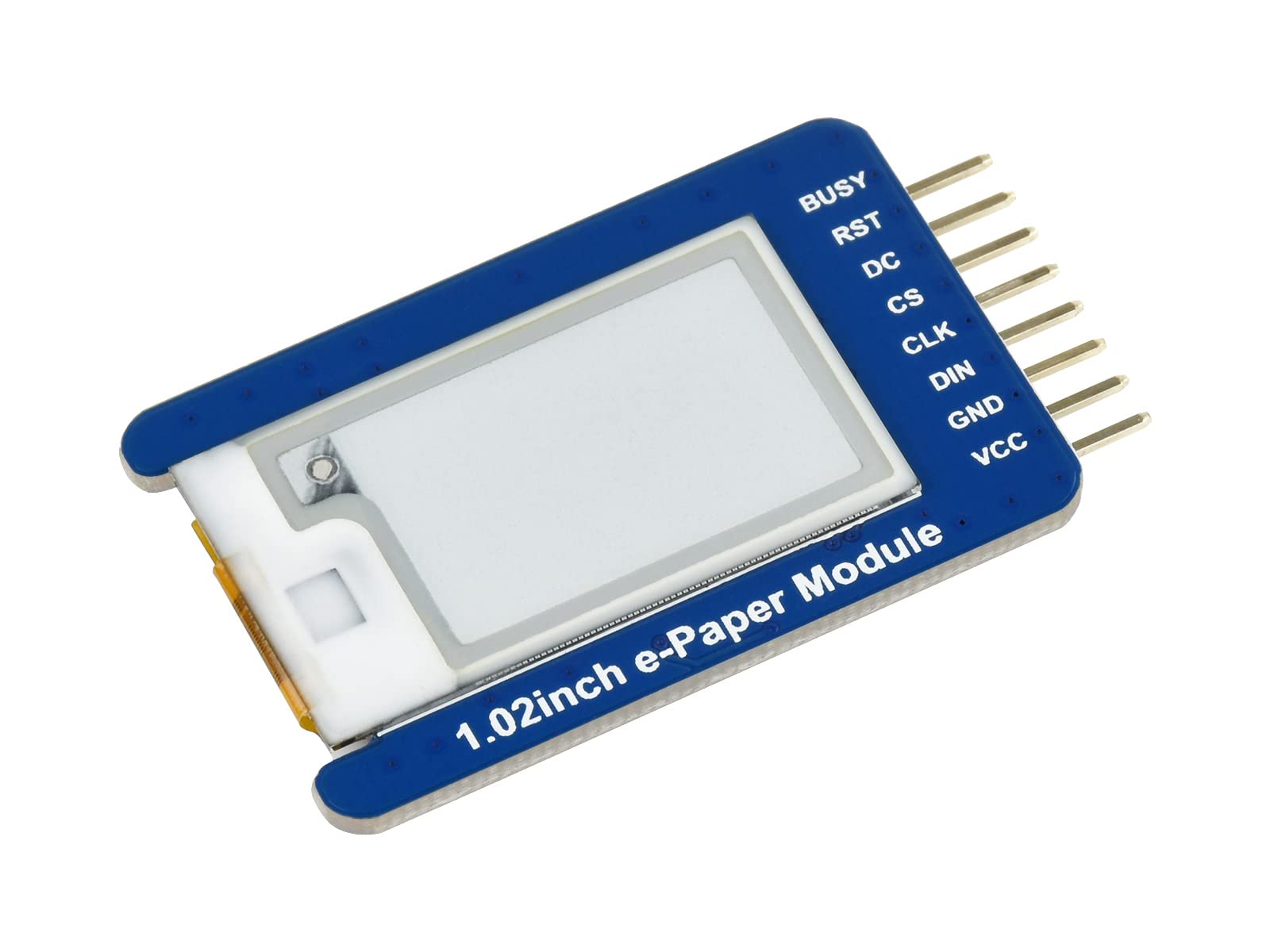

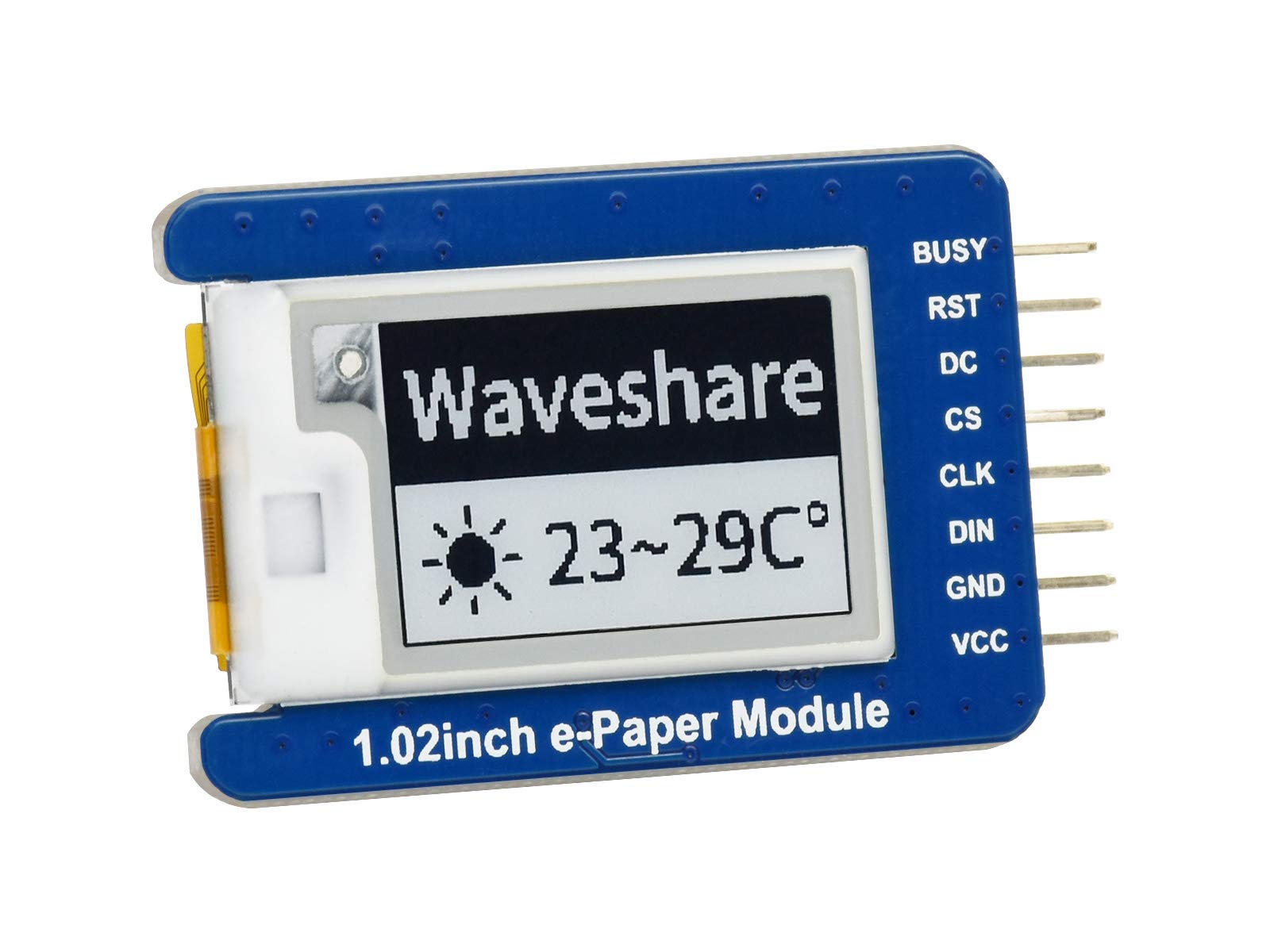

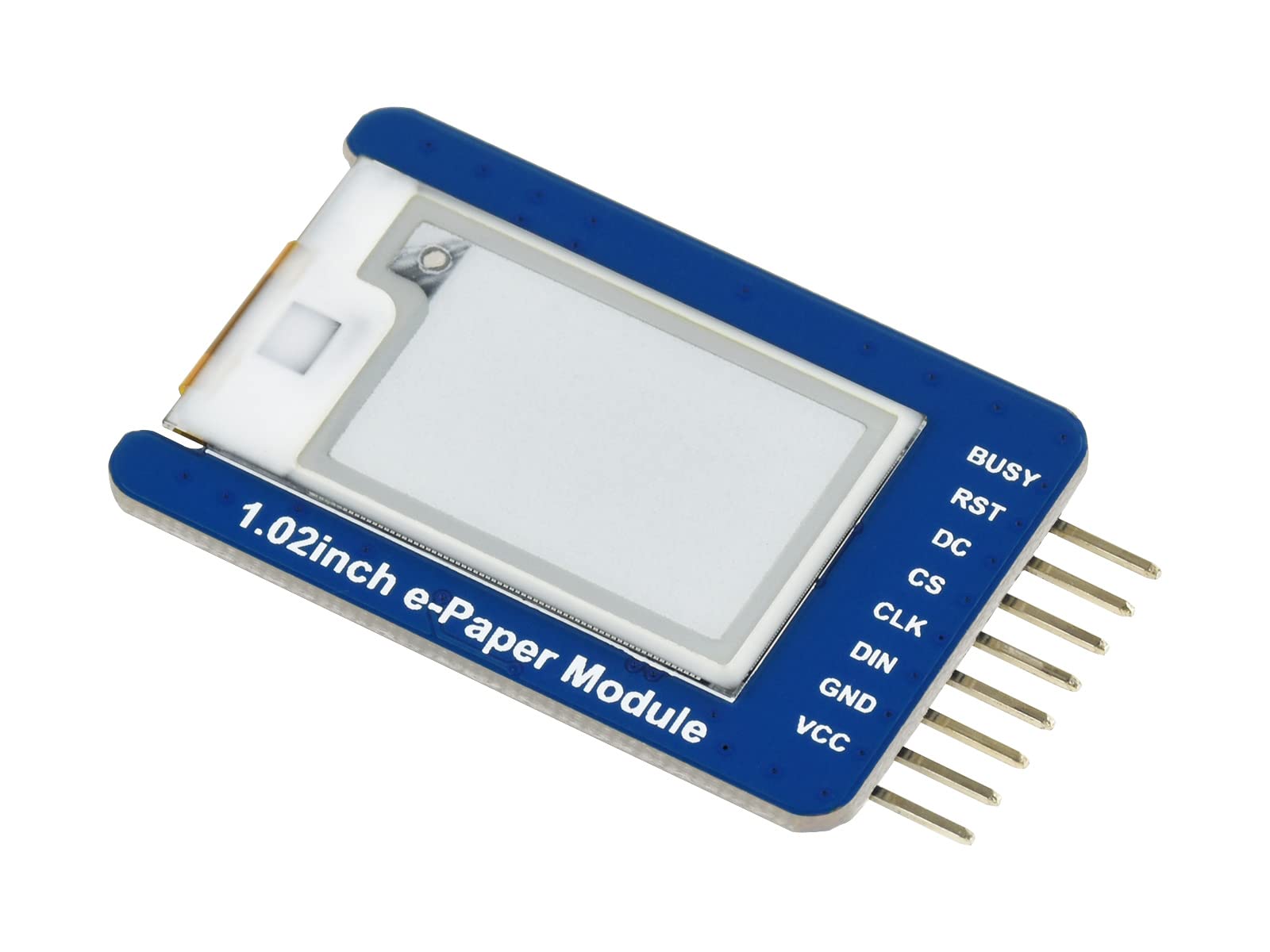

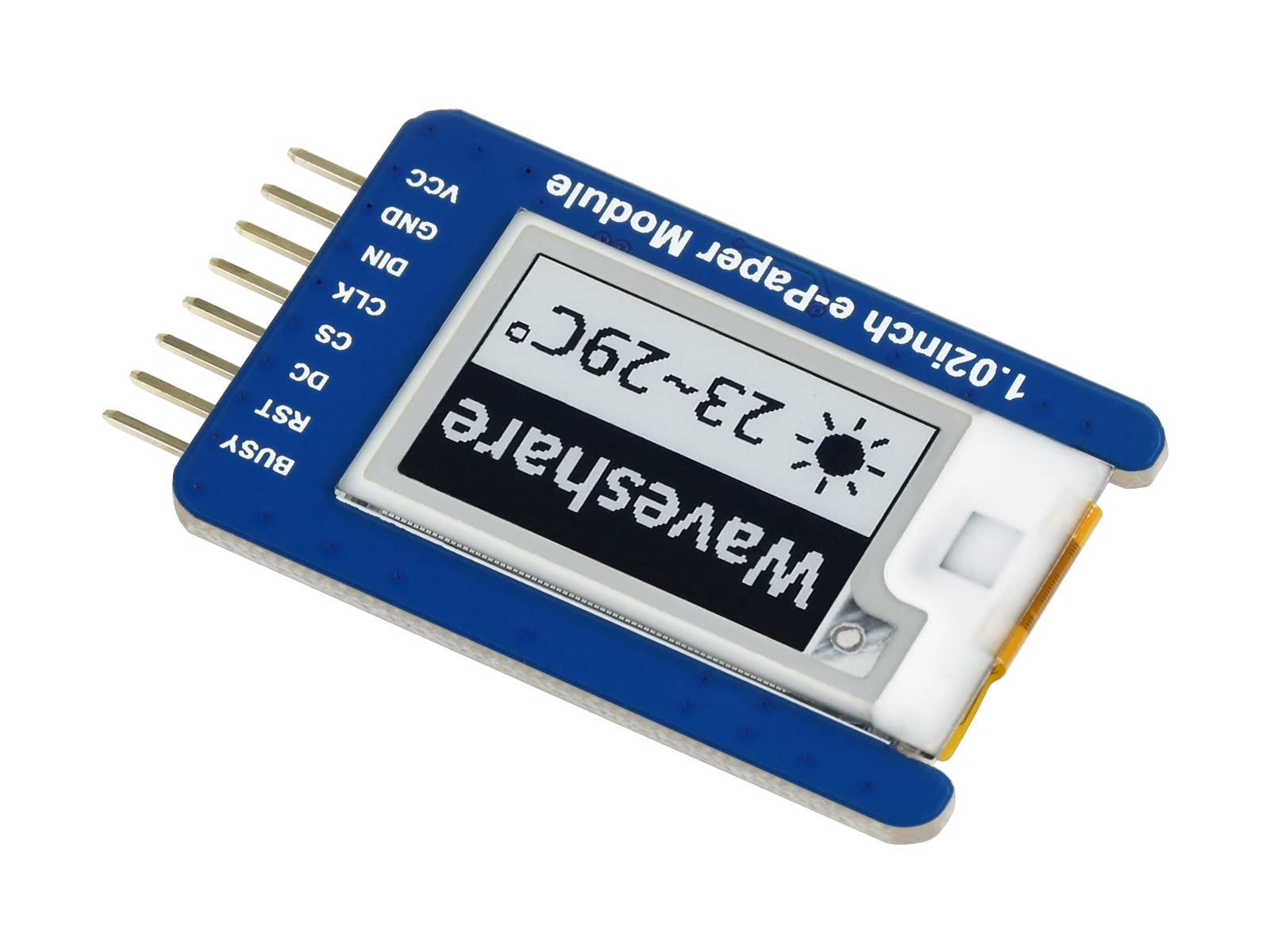

Waveshare 1.02inch E-Ink Display Module 128×80 Resolution Black/White Dual-color With Embedded Controller Communicating Via SPI Interface Supports Partial Refresh

• No backlight, keeps displaying last content for a long time even when power down.
• Ultra low power consumption, basically power is only required for refreshing.
• SPI control interface, for working with host boards such as Raspberry Pi/Jetson Nano/Arduino/Nucleo.
• Onboard voltage translator, compatible with 3.3V/5V MCUs.
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32).

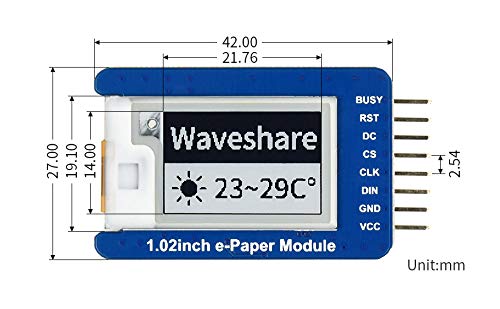

Overview This is an E-Ink display module, 1.02inch, 128×80 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Features No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing SPI control interface, for working with host boards such as Raspberry Pi/Jetson Nano/Arduino/Nucleo Onboard voltage translator, compatible with 3.3V/5V MCUs Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32) Specifications Operating voltage: 3.3V / 5V Interface: 3-wire SPI, 4-wire SPI Outline dimension: 42mm × 27mm Display size: 21.76mm × 14mm Dot pitch: 0.175 × 0.17 Resolution: 128 × 80 Display color: black, white Grey scale: 2 Full refresh time: 2s Refresh power: 26.4mW(typ.) Standby power: <0.017mW Viewing angle: >170° User Manual Wiki : www.waveshare.com/wiki/1.02inch_e-Paper_Module
