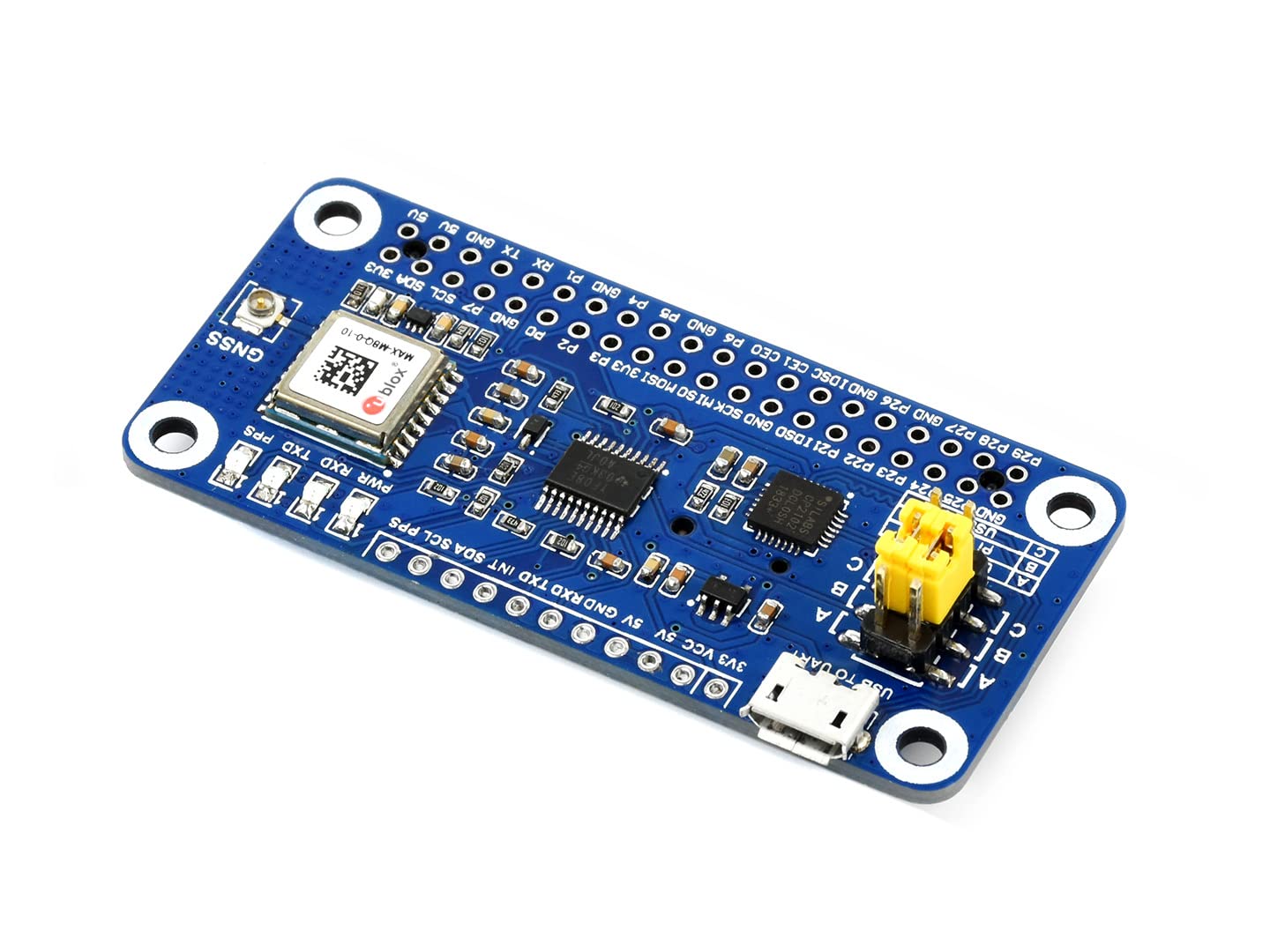

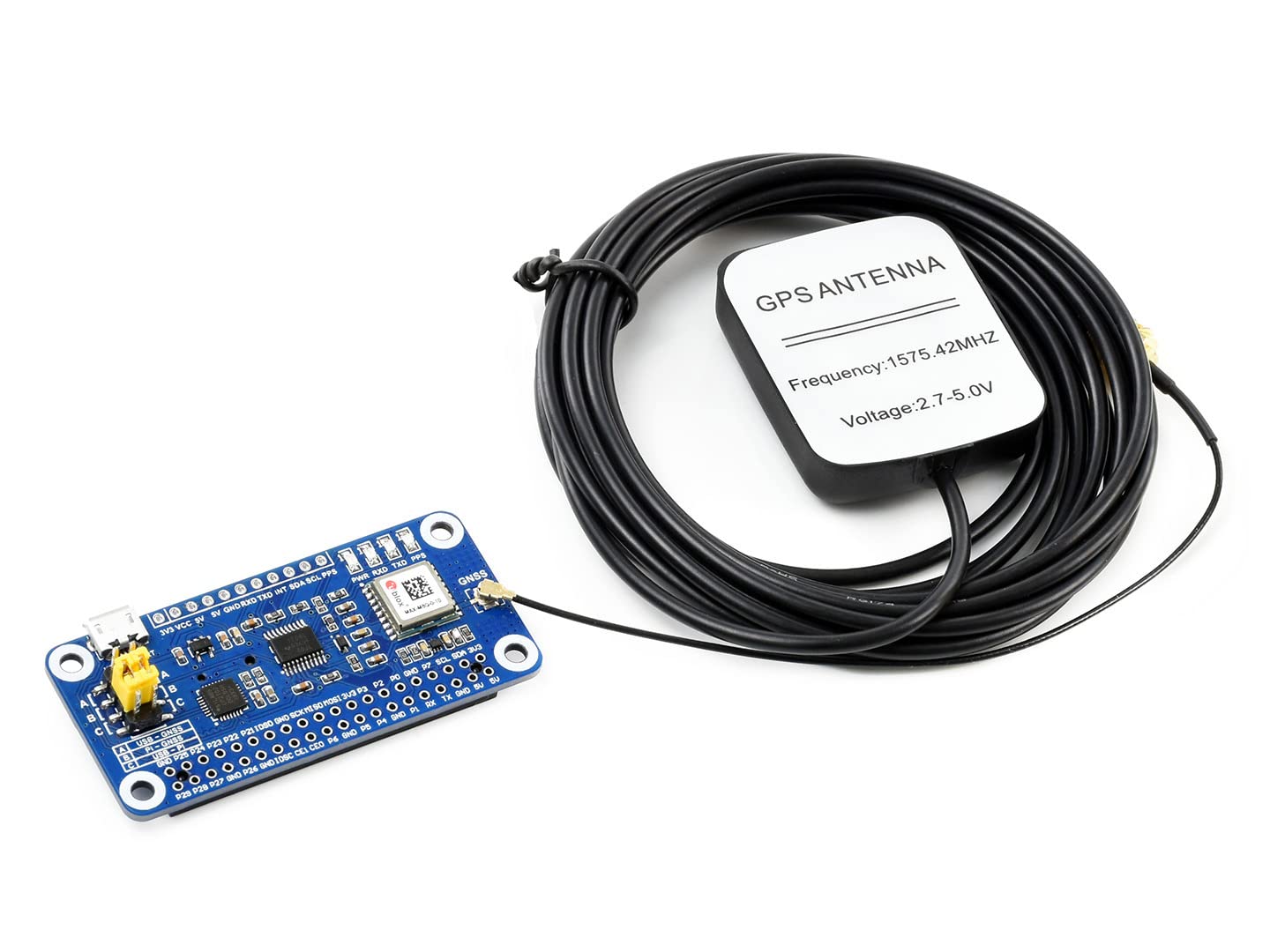

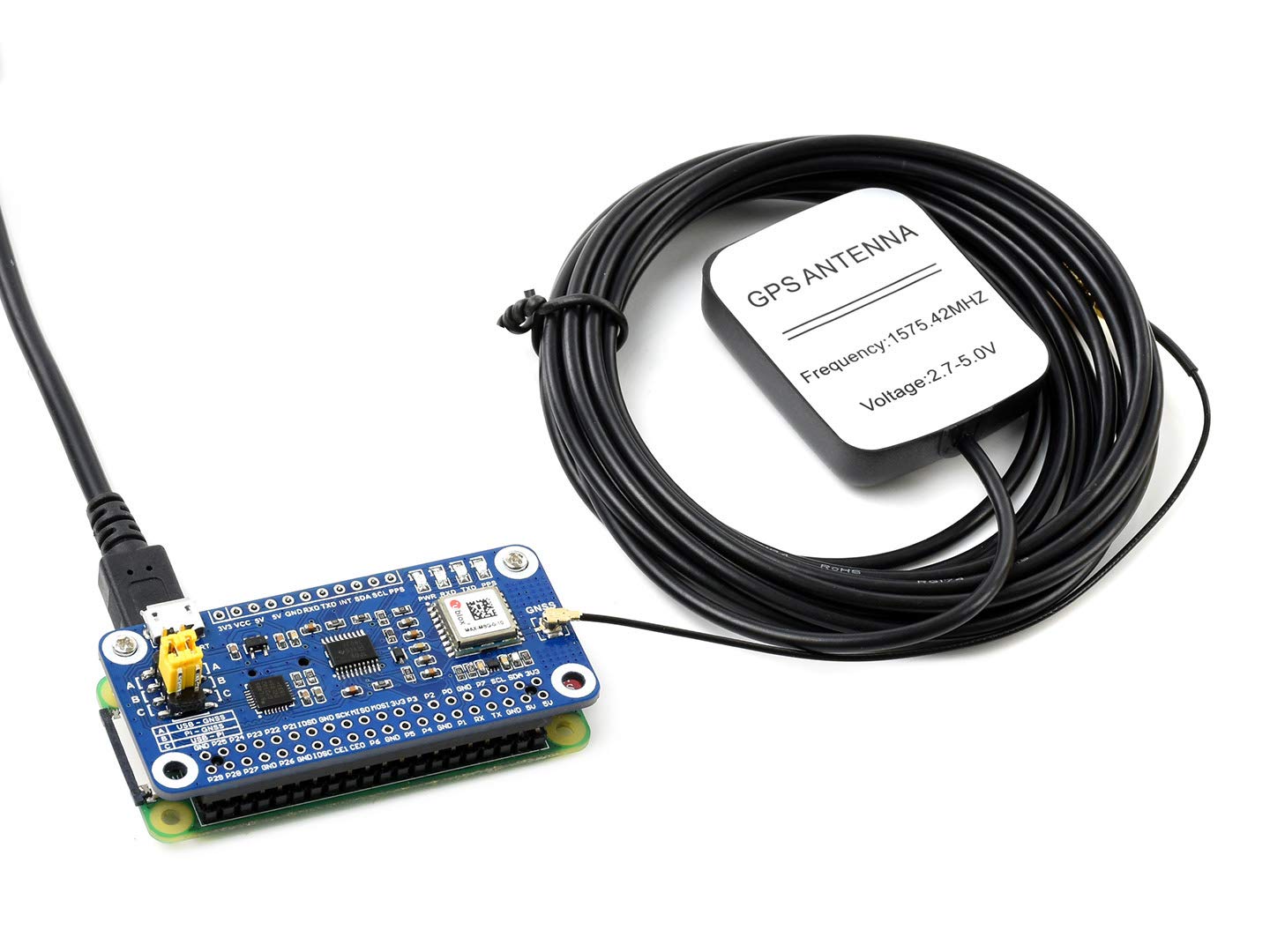

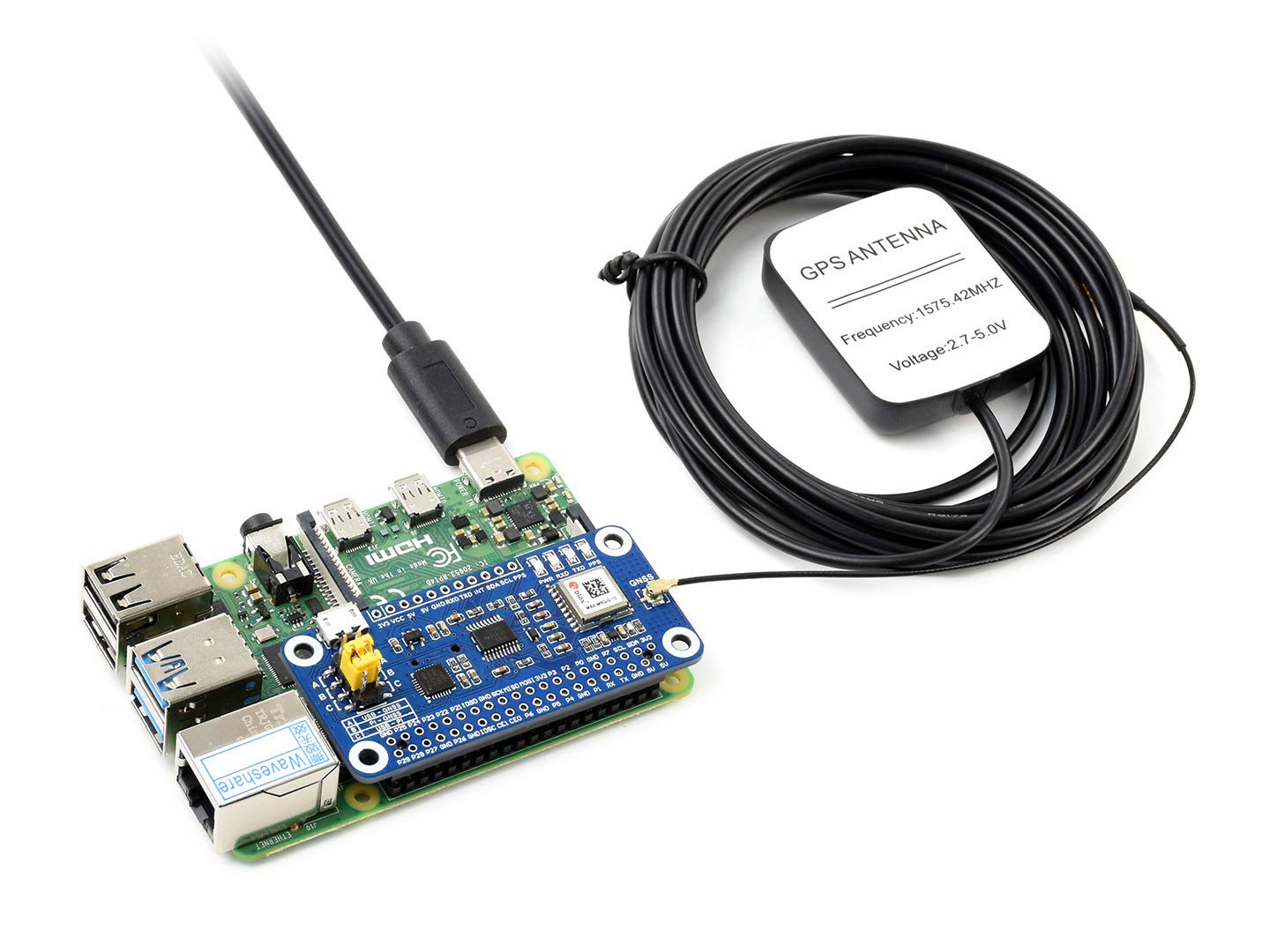

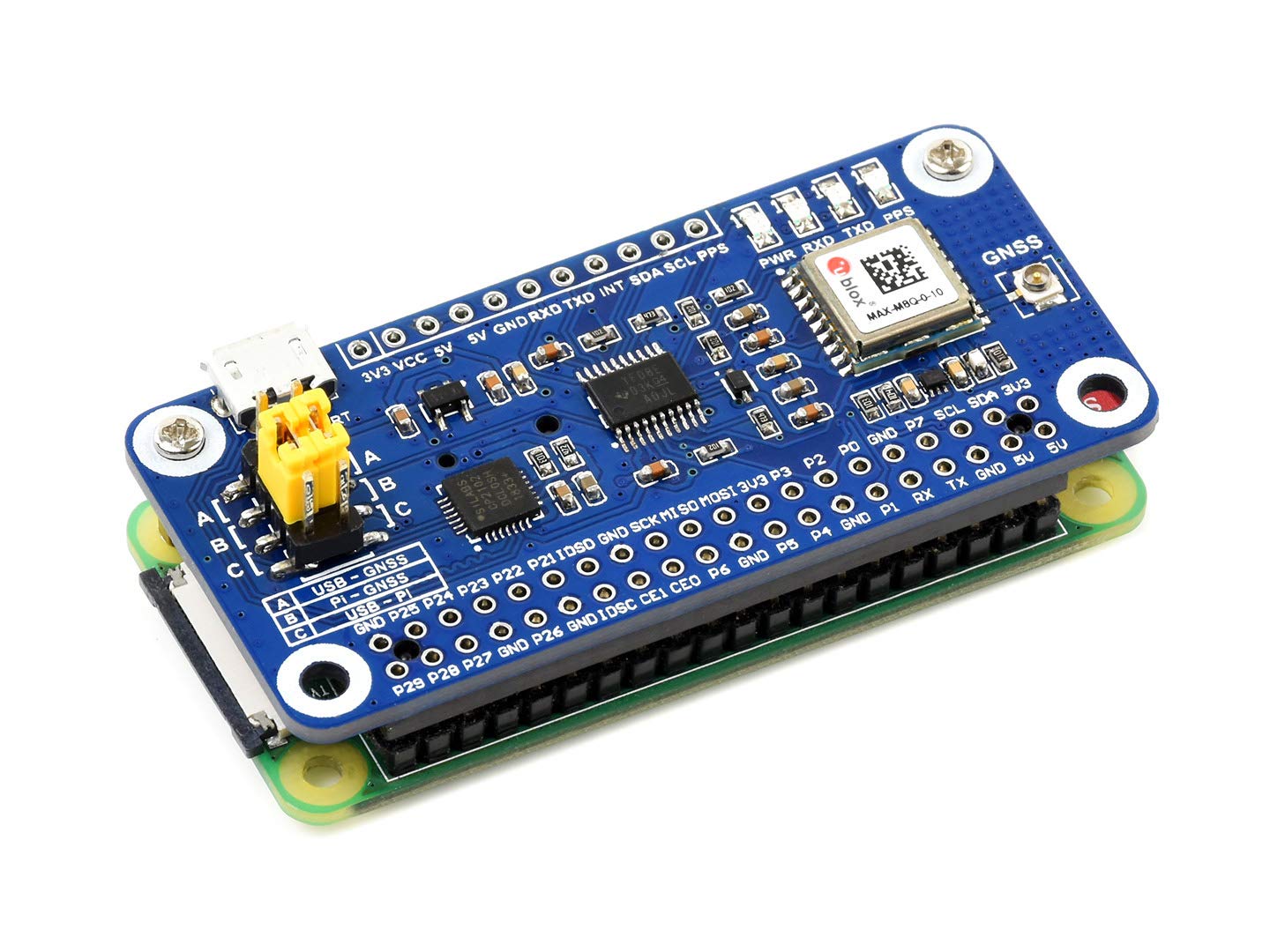

Waveshare MAX-M8Q GNSS HAT for Raspberry Pi with Multi-Constellation Receiver Support and Support Augment Systems Like SBAS QZSS IMES and D-GPS

• Multi-constellation receiver support, concurrent reception of up to 3 types of GNSS satellite systems from GPS, Beidou, Galileo, and GLONASS, and still retains low power consumption. Augment systems support, including SBAS, QZSS, IMES, D-GPS, improving the positioning performance of service location
• A-GNSS (Assisted GNSS) support, reducing the first positioning time when powered up, improving the acquisition sensitivity. Features -167dBm navigating sensitivity and outstanding ability for anti-spoofing & anti-jamming, supports geo-fencing

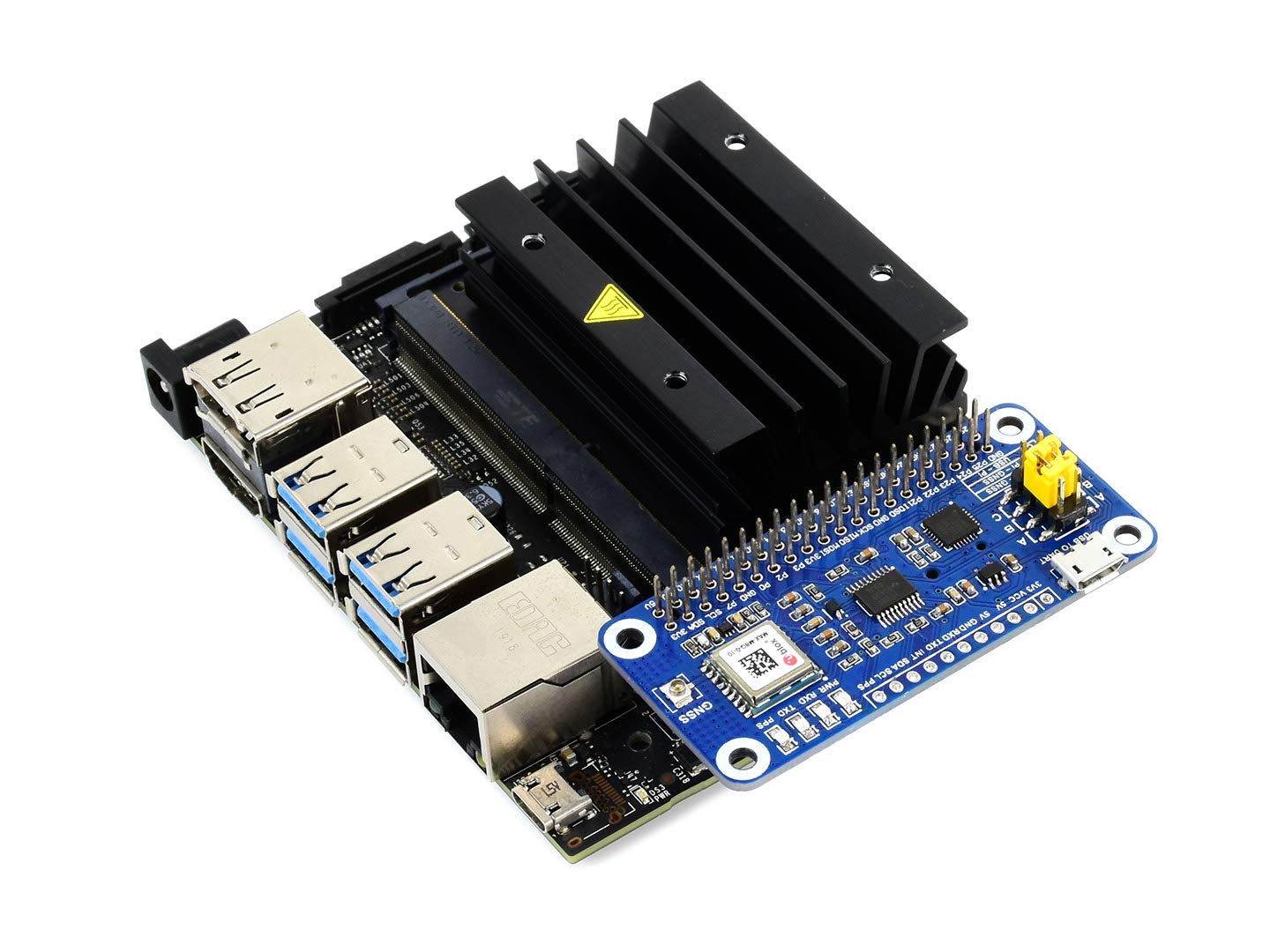

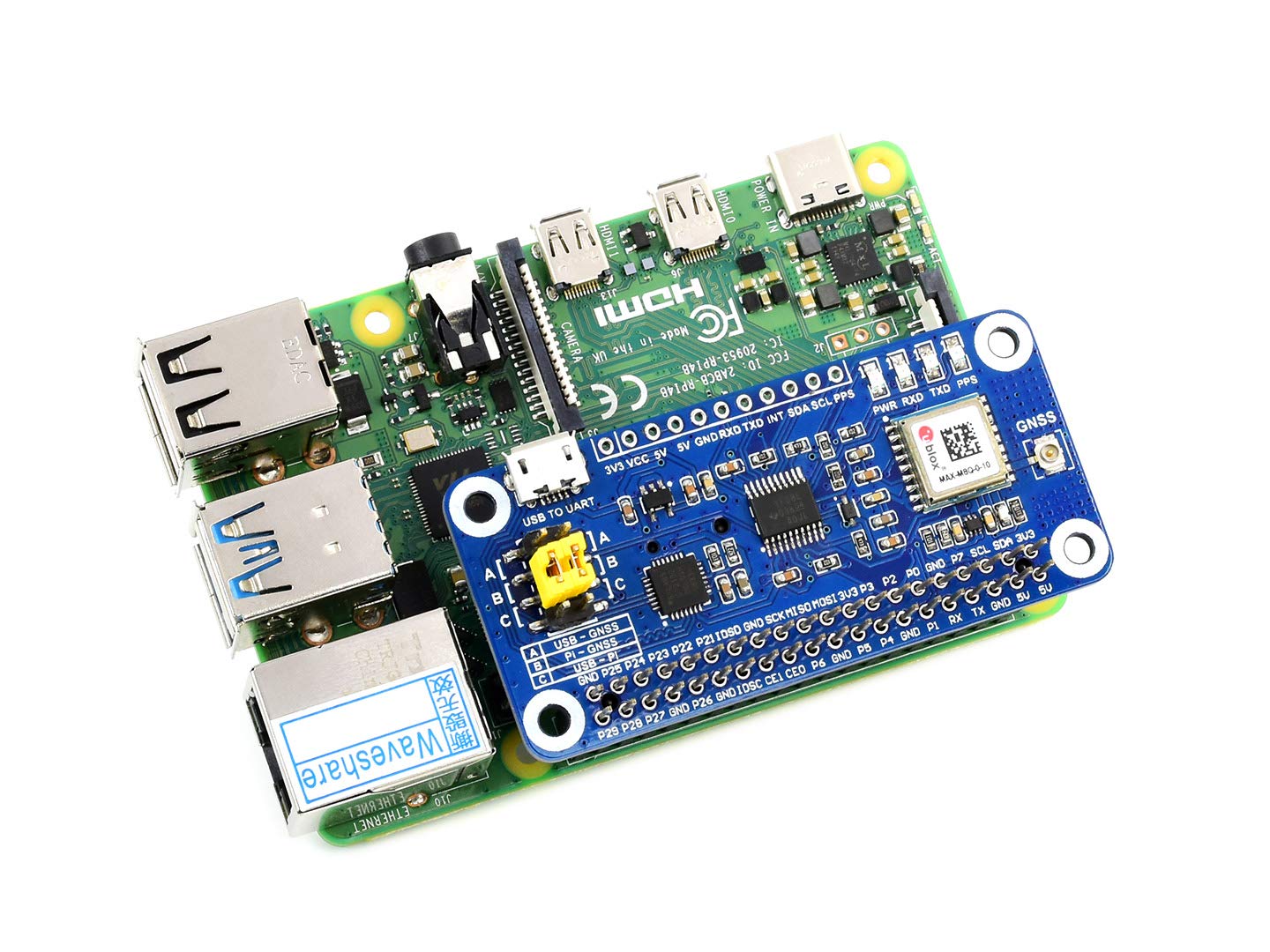

• Supports U-Center, an easy way to config the module. Standard Raspberry Pi 40PIN GPIO extension header. Supports Raspberry Pi series boards, Jetson Nano. Onboard USB TO UART converter CP2102 for serial debugging
• Breakouts the module's UART and I2C interface, for connecting with host boards like Arduino/STM32. Baudrate range: 4800~921600bps (9600bps by default). Supports DDC (I2C compliant) interface: up to 400KHz (max)
• Onboard batt holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts. 4x LEDs for indicating the module operating status. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Features At A Glance Multi-constellation receiver support, concurrent reception of up to 3 types of GNSS satellite systems from GPS, Beidou, Galileo, and GLONASS, and still retains low power consumption Augment systems support, including SBAS, QZSS, IMES, D-GPS, improving the positioning performance of service location A-GNSS (Assisted GNSS) support, reducing the first positioning time when powered up, improving the acquisition sensitivity Features -167dBm navigating sensitivity and outstanding ability for anti-spoofing & anti-jamming, supports geo-fencing Supports U-Center, an easy way to config the module Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano Onboard USB TO UART converter CP2102 for serial debugging Breakouts the module's UART and I2C interface, for connecting with host boards like Arduino/STM32 Baudrate range: 4800~921600bps (9600bps by default) Supports DDC (I2C compliant) interface: up to 400KHz (max) Onboard batt holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts 4x LEDs for indicating the module operating status Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32) User Manual:www.waveshare.com/wiki/MAX-M8Q_GNSS_HAT?amazon
