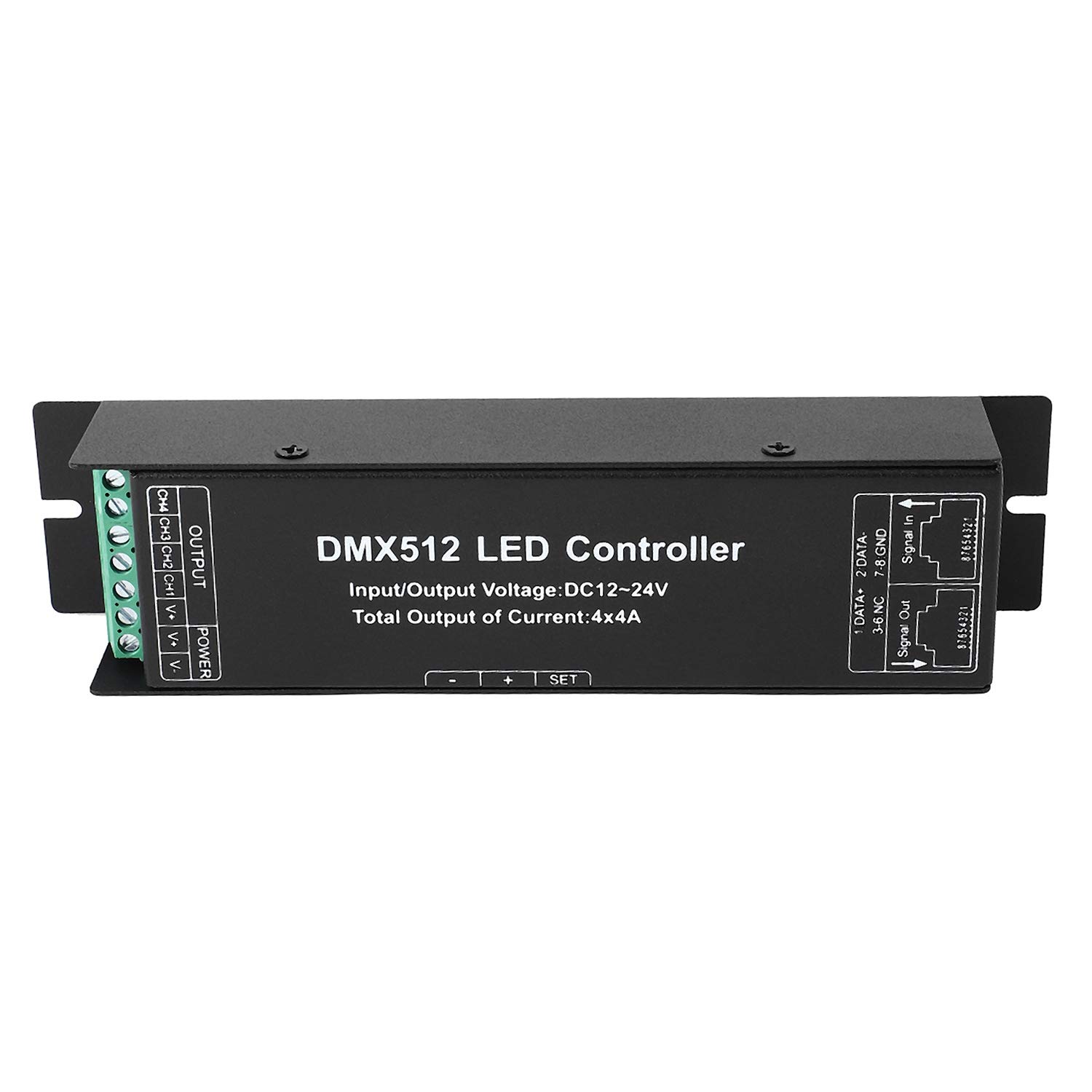

WATFOERS Dmx 512 Decoder Dimming Driver Dmx512 Rgbw Controller dmx cable For Rgbw Led Strip Light 12V-24V

• If the digital display shows "A001", it means that the first one is the address code 001, and the other three channels are 002, 003, 004.If this decoder is connected to the other decoder, then the other decoder first address code is 005, and the other three channels thereof are 006, 007, 008.The DMX controller can be connected to a variety of decoders or controlled alone.
• The build-in models are as follows:2) When the first letter "S" is displayed, the decoder is in the built-in speed setting state function. In this state, only H-08 and H-09 are valid. Lightly press the SET button to set the speed to the adjustable state and then press the +/- button. So you can realize the 11 steps speed option. Other functions are not effective.

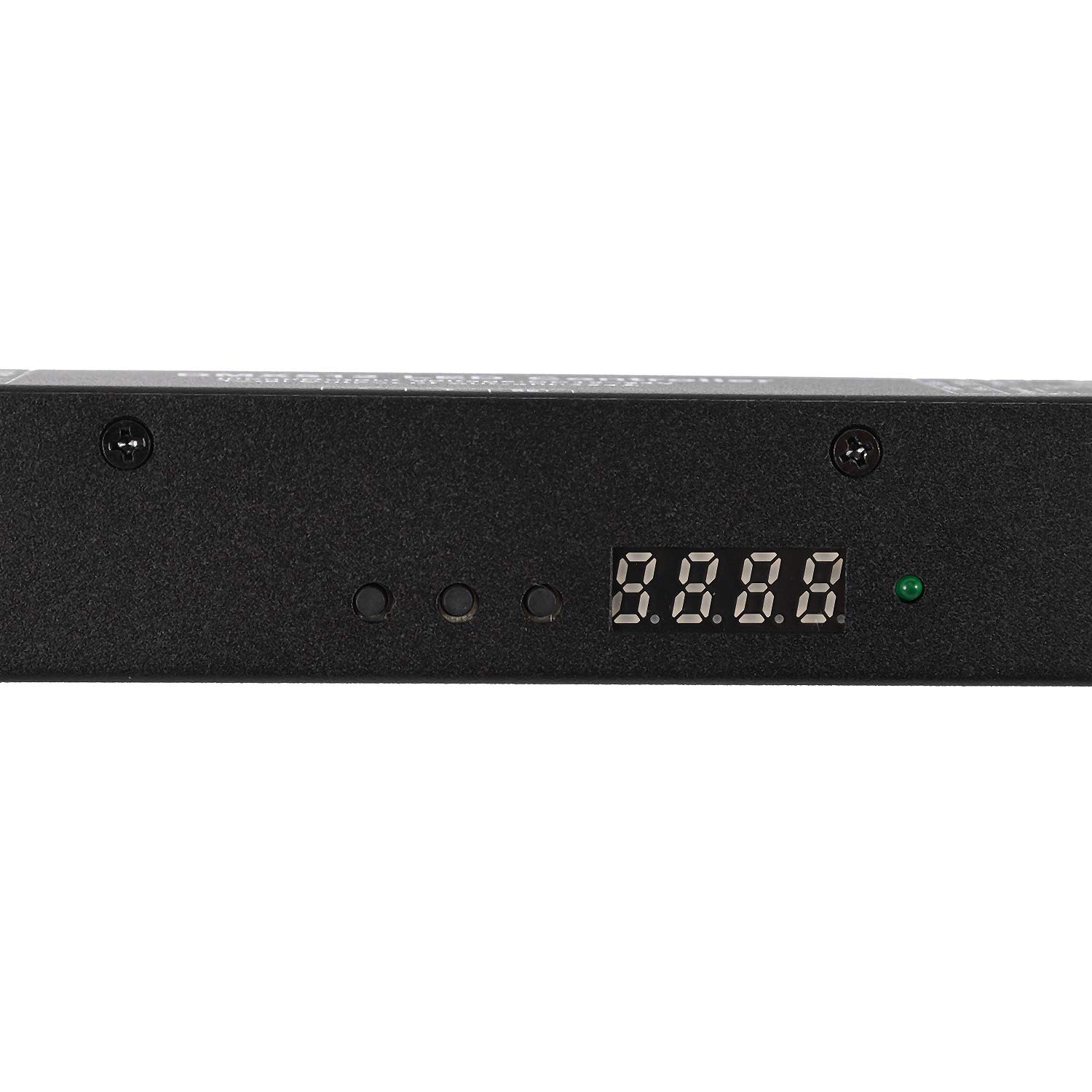

• The first number on the digital display shows the function icon.A, H or S display optional and the last three numbers show the Arabic date 001-512,If letter "A" is displayed, this means that DMX Controller is in the LTS state and that this decoder is in the state control signal DMX512 and at this time connect with power cord around the decoder to the DMX console.It can be controlled by the DMX console.
• If two or more address codes of the decoder are identical, that means that these same address code decoders change in the same effect and they can realize synchronously controlled effects.1) If the first letter "H" is displayed, it means that this decoder is in the built-in mode function and works in the built-in program.

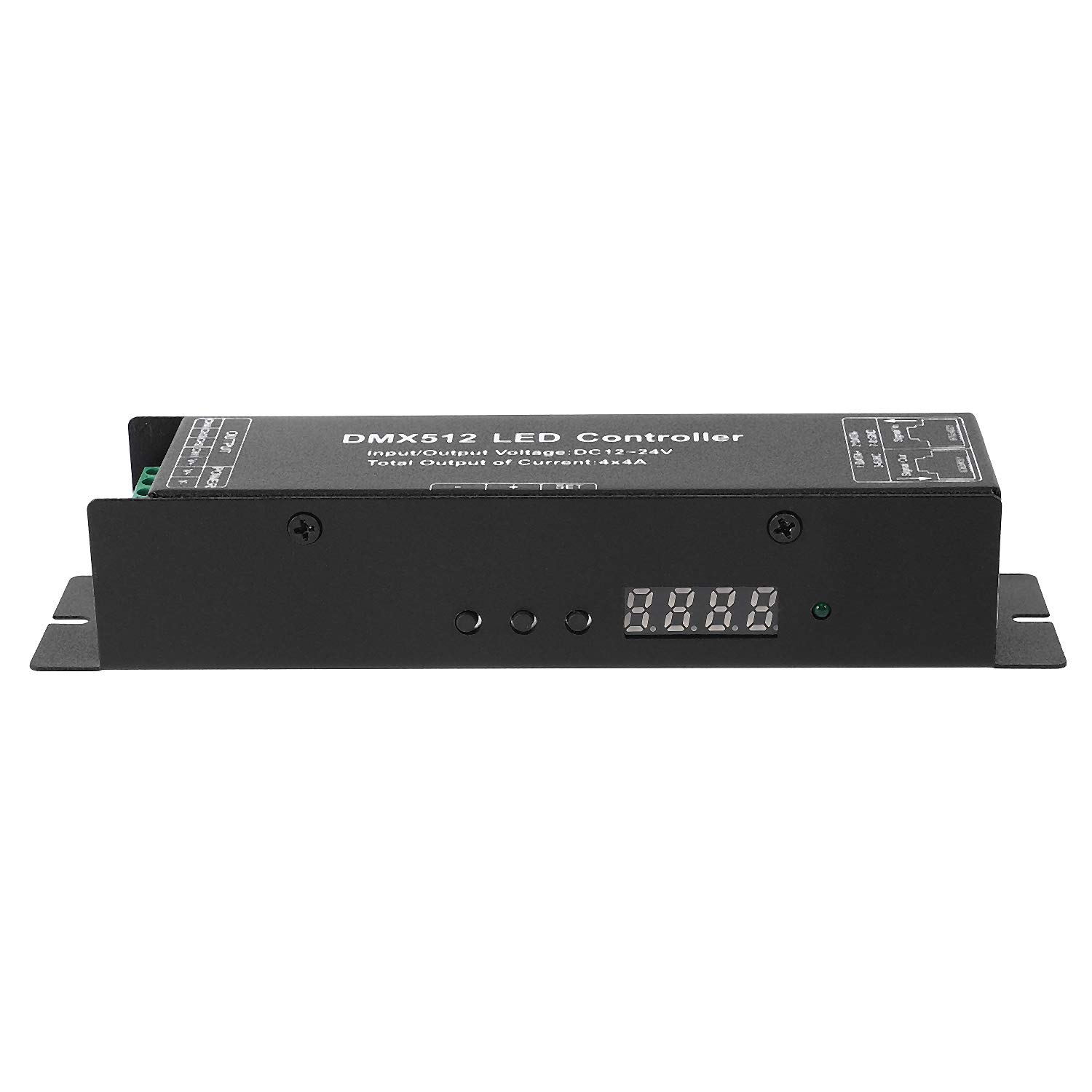

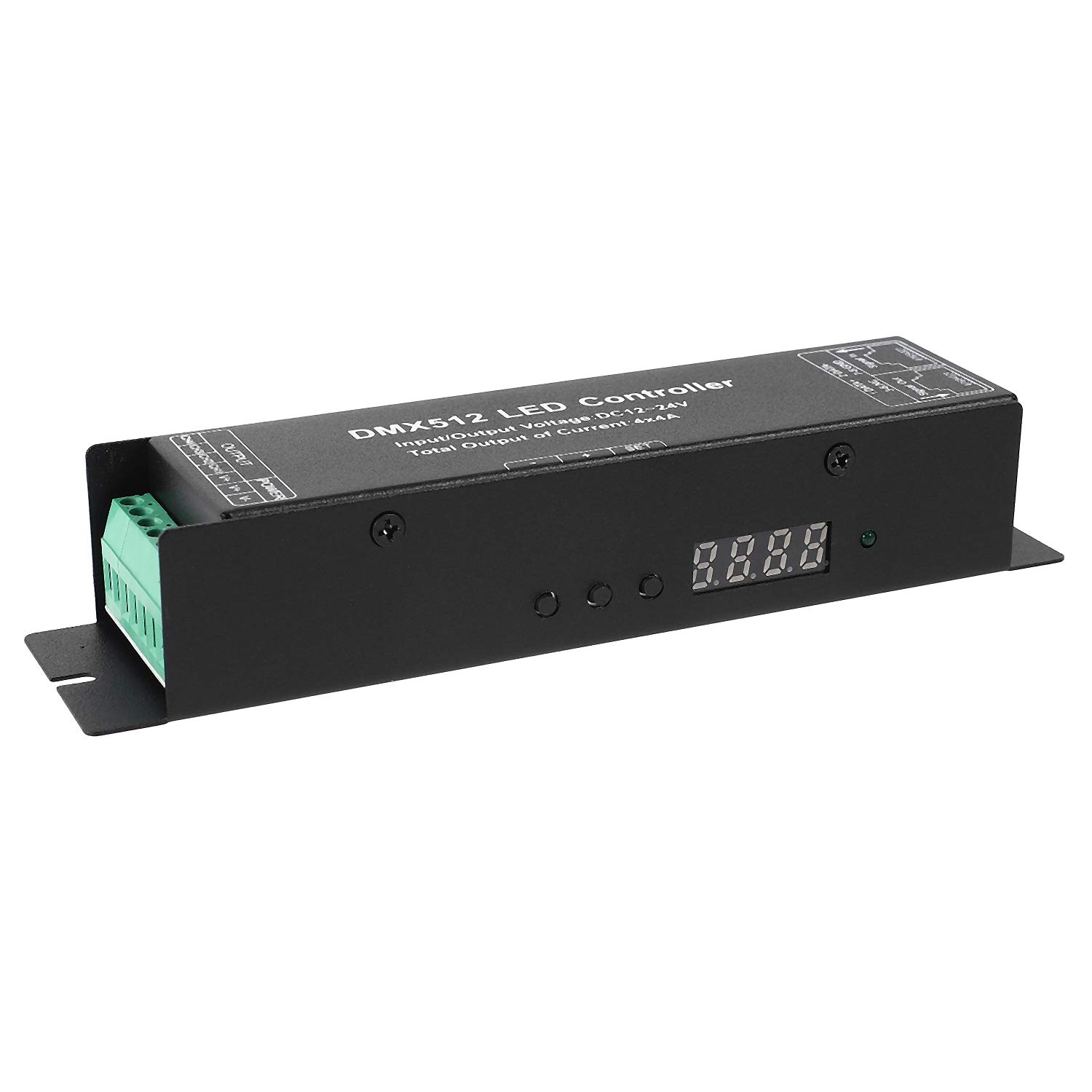

• Key Function Specification: There are three buttons (Button 1: SET, Button 2: -, Button 3: +) on the decoder, the function of them are as follows:Button SET, mode switch button, press this button last for about 2 seconds, so switch can be the shape of the function A S function (function S to work H)

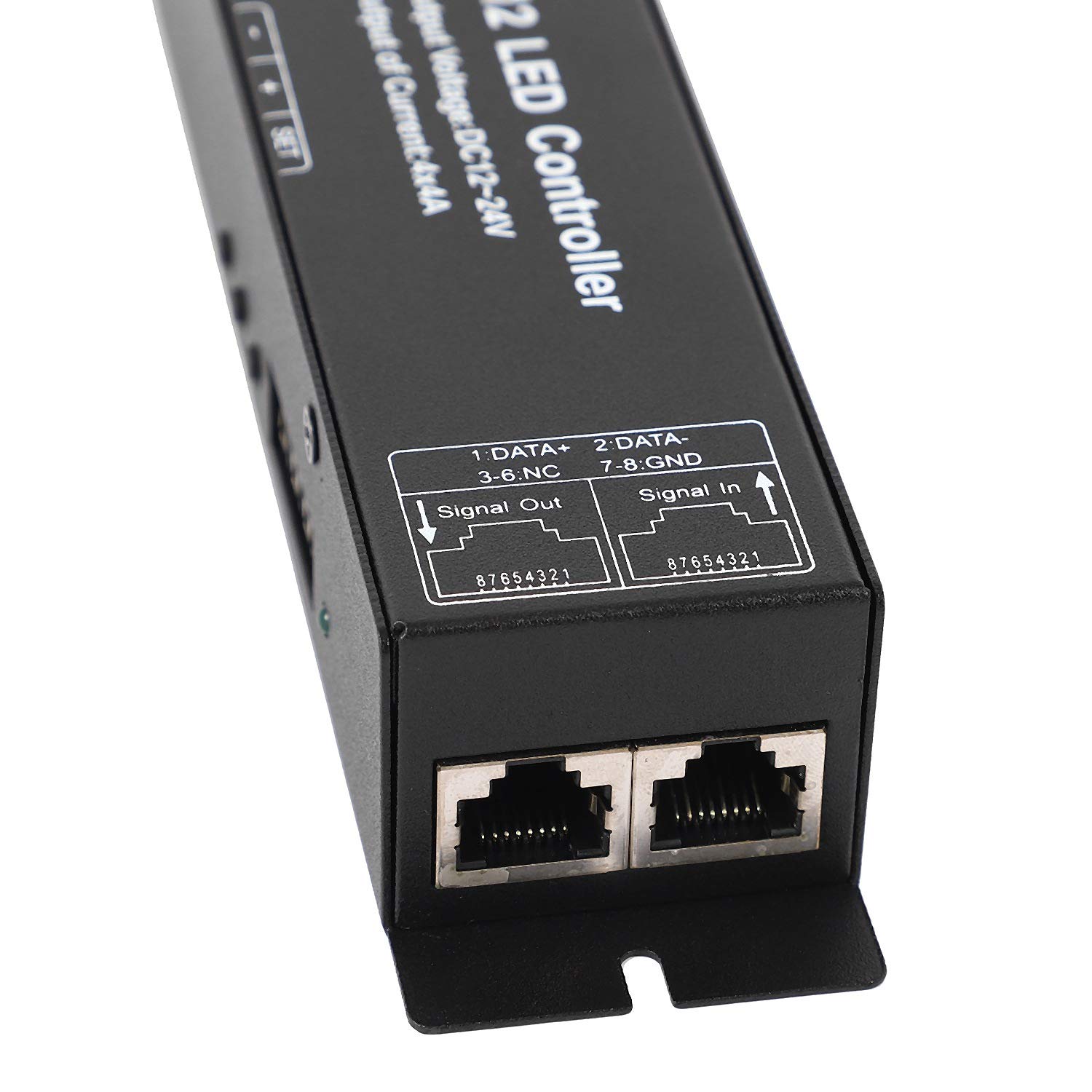

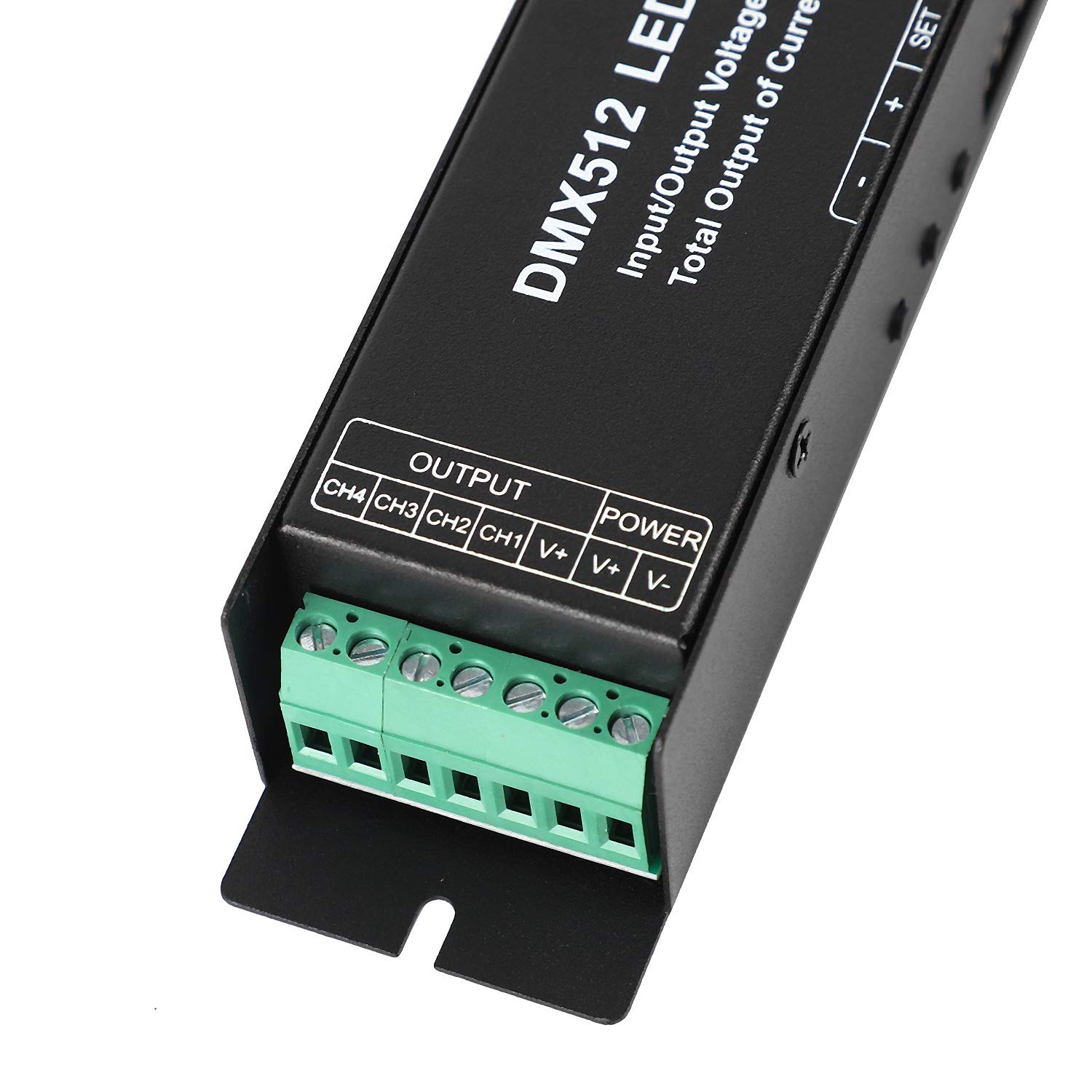

WATFOERS "+" Button: Raise button, increases the last three digits of the digital display when you press the + button each time. If you want to make address code boost faster, you simply have to just press this button for some time. (Notes: If the maximum address code 512 appears and you still press the "+" key it will return to 001 again) "-" button: Reduction button of the digital three-digit display, whereby the last number will decrease when you press the button - each time. If you want the address code to decrease quickly, all you have to do is press this button for a while. Technical parameters: Working temperature: -20 -60 Celsius Supply voltage: 12V or 24V Output: 3 channels Static power consumption: Less than 1W Output current: 4A per channel Output power: up to 192W at 12V or up to 384W at 24V DMX 512 Standard DMX512 / 1990 Connection Description: DMX input / output interface: RJ45 port Address Code and Function Setting Keys:led dmx512 controllers Power consumption and load-output interface led dmx512 controllers Connection plug with screws Direction indicator for use Digital display Specification: 4 numbers Three-button digital display for setting the address codes. Each decoder occupies 4 address codes. colour:black Material:plastic size:177×42×33mm Package Contents: 1 * DMX512 LED controller Only the above package content, other products are not included. Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
