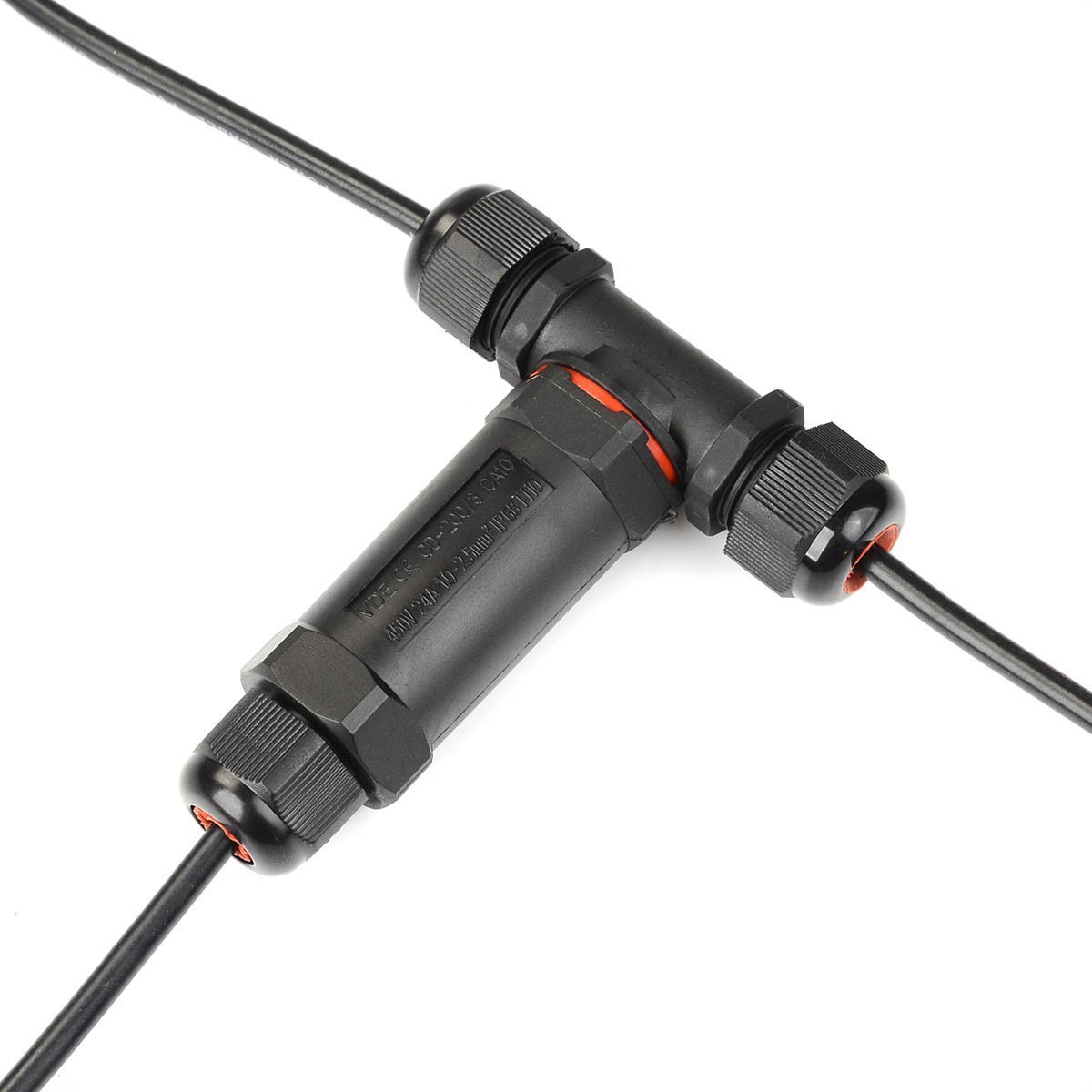

allpondsolutions Waterproof Power Cable Connector Joint Submersible Water Pond 3 Core CE / IP68 112mm T-Connector

• Weatherproof submersible IP68 cable connector joints
• Made of high quality material, rubber grommets design
• Easy connection
• 3 connector joints

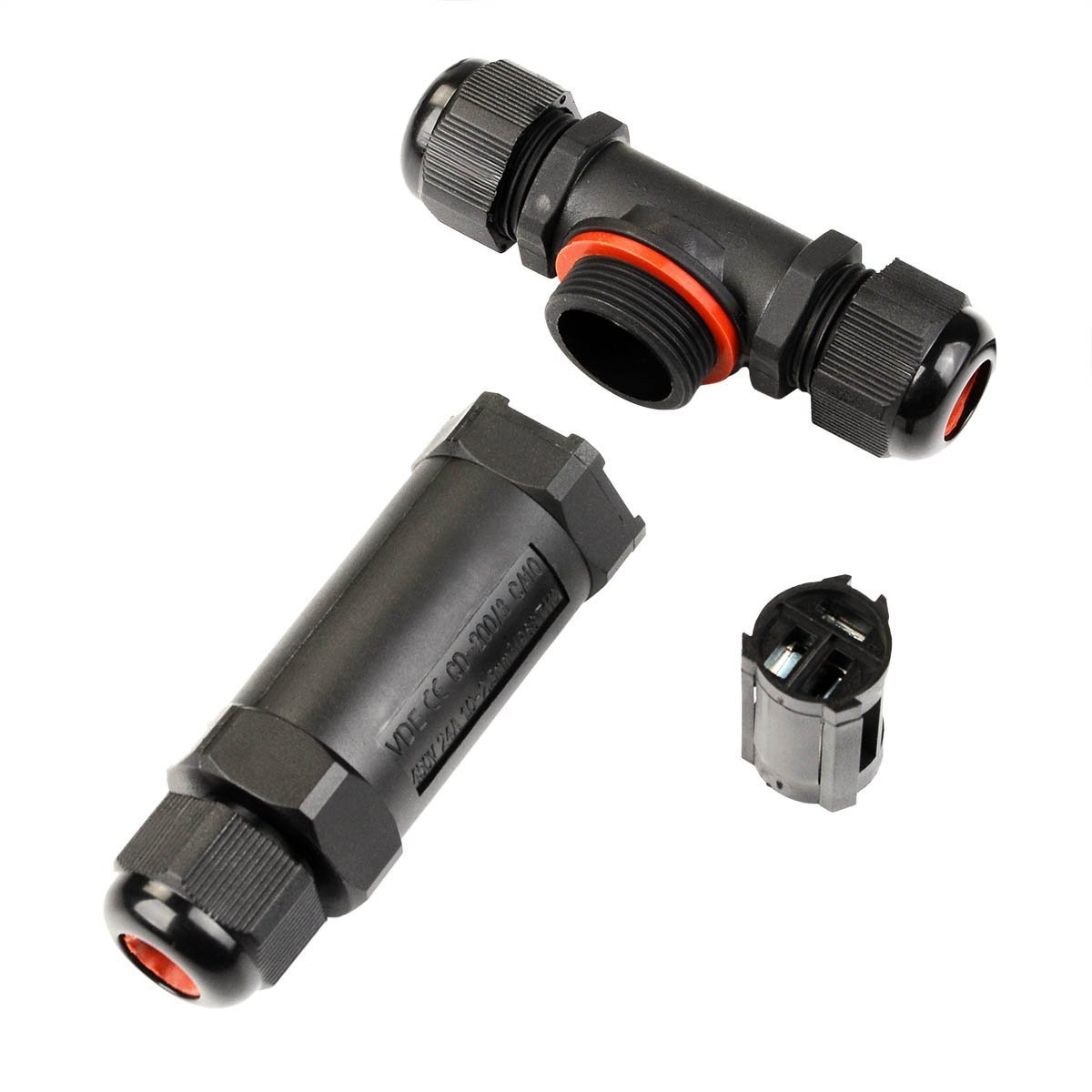

Product Description Waterproof fully submersible IP68 cable connector joints SAFETY As with any kind of electrical modification we ALWAYS recommend that a certified electrician is used to install products such as these. We also suggest the use of an amp meter after installation to ensure installation has been completed correctly. Only use with power cable's that are 0.75mm standard power cable thickness (commonly known as 3 core power cable). It is recommended that you complete regular checks of all included O-Rings. INSTALLATION Unscrewing the ends of the connectors will reveal either in the body or attached to the body 3 connection points on either side. Connect plug side of cable to one side and equipment side of cable to the other. IMPORTANT Always follow the markings on the connection points as follows; L = Live cable (Brown) N = Neutral (Blue) Earth Symbol or blank - Earth (Green/Yellow) IMPORTANT Always make sure no matter what that the following is correct before proceeding: Live connects to Live Neutral connects to Neutral Earth connects to Earth When reassembling each part MUST be tightened as tight as physically possible to ensure that the O-rings are tight to the power cable. CUJ-01 Length: 96mm Standard connection Cannot unscrew the joint without removing wiring (to separate the connector all wires need to be unscrewed). CUJ-02 Length: 123mm Standard connection Can unscrew the joint without removing any wiring (no wires need unscrewing to separate the connector). CUJ-03 Length: 112mm T connection - connect one source to two devices. Box Contains 112mm T-Connector
