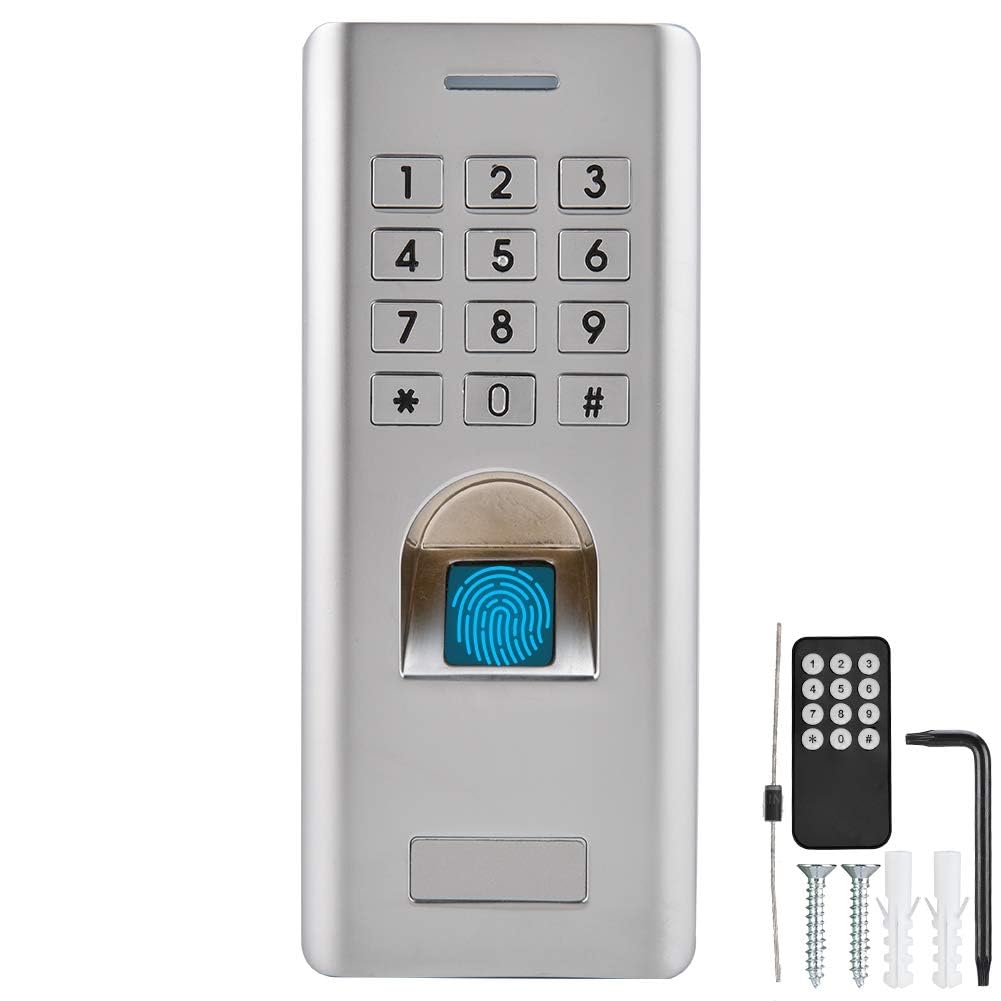

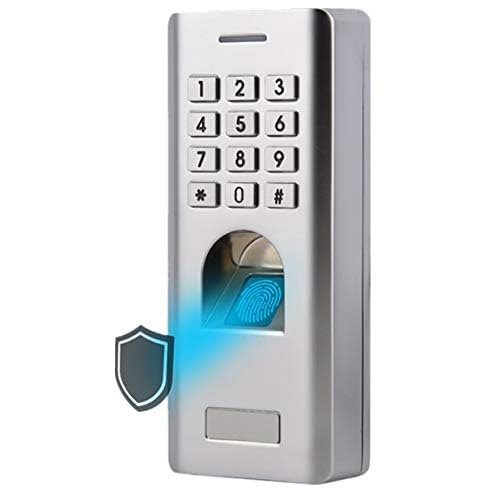

Waterproof IP66 Biometric Fingerprint Reader+Password Access Control System, Entry Door Lock, Multiple Fingerprint/PIN Access

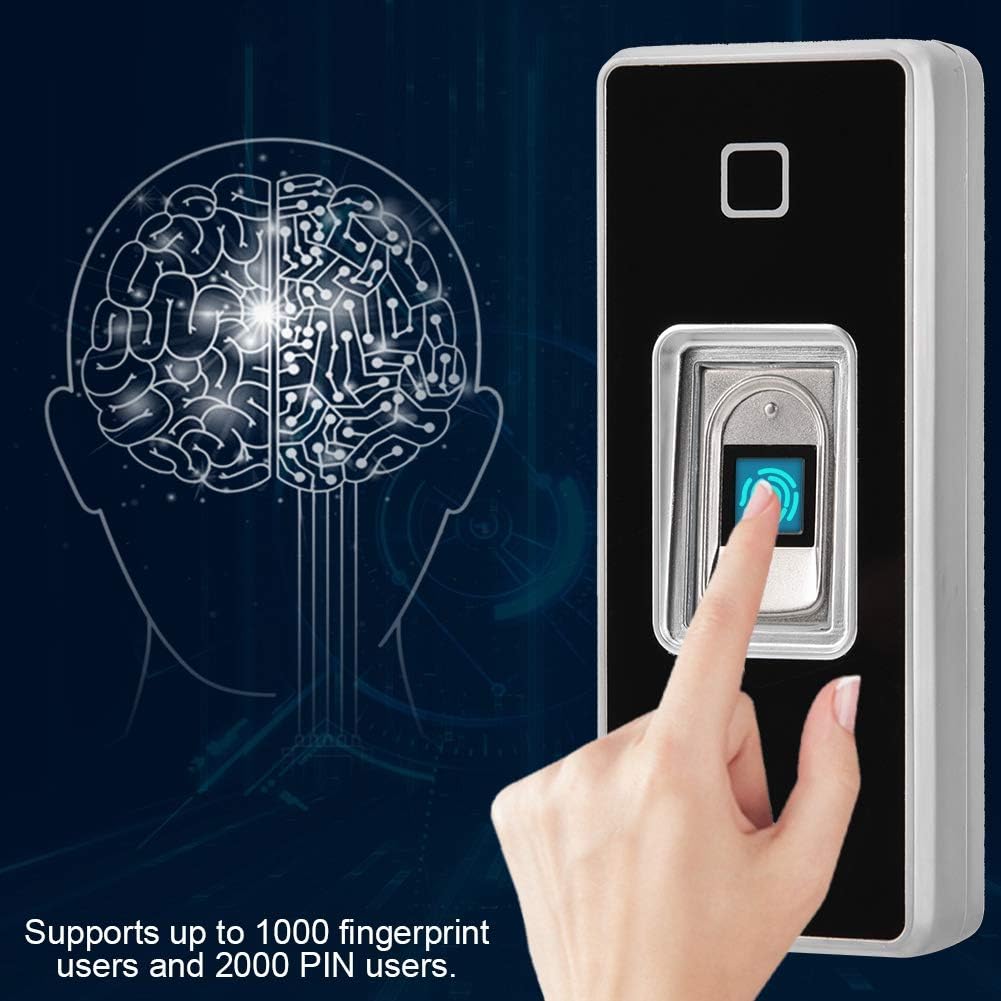

• 【Fingerprint Access Control】: This is a waterproof fingerprint reader for access control. It is equipped with a keyboard and supports multiple fingerprint access. Supports up to 1000 fingerprint users and 2000 PIN users.

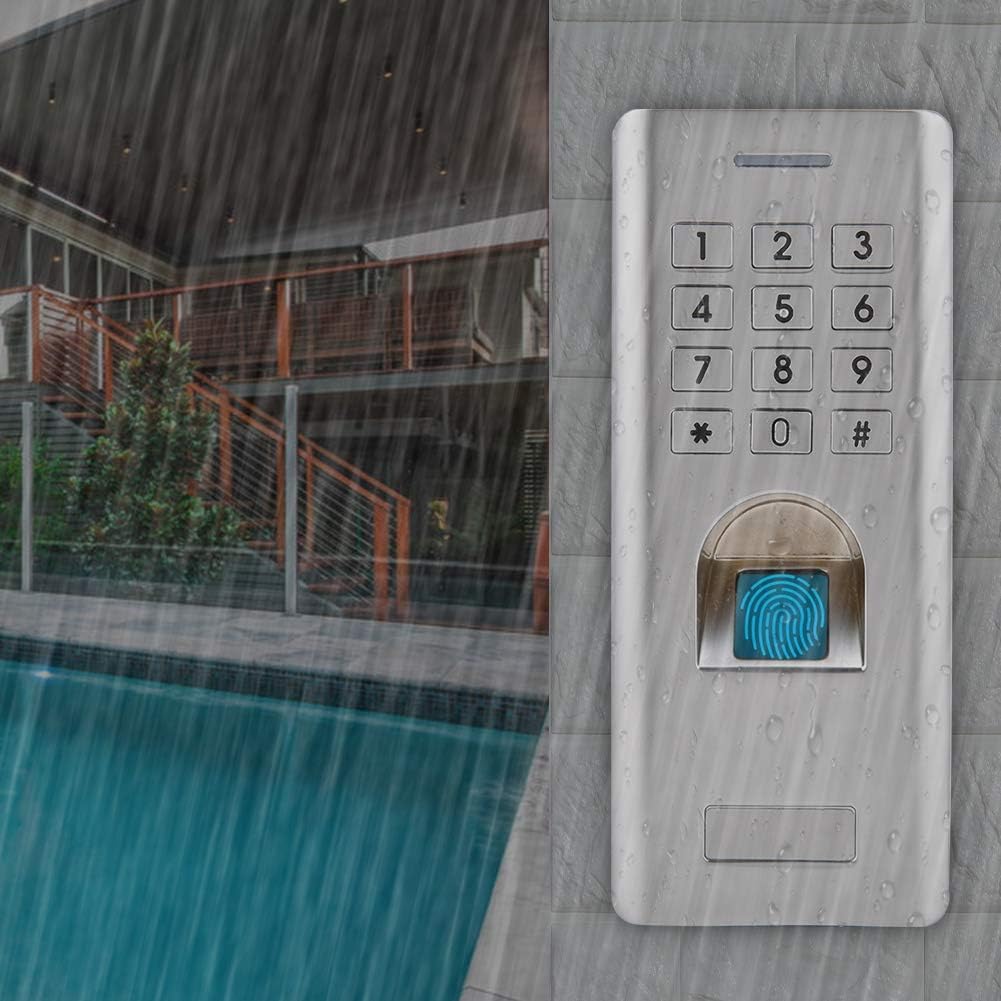

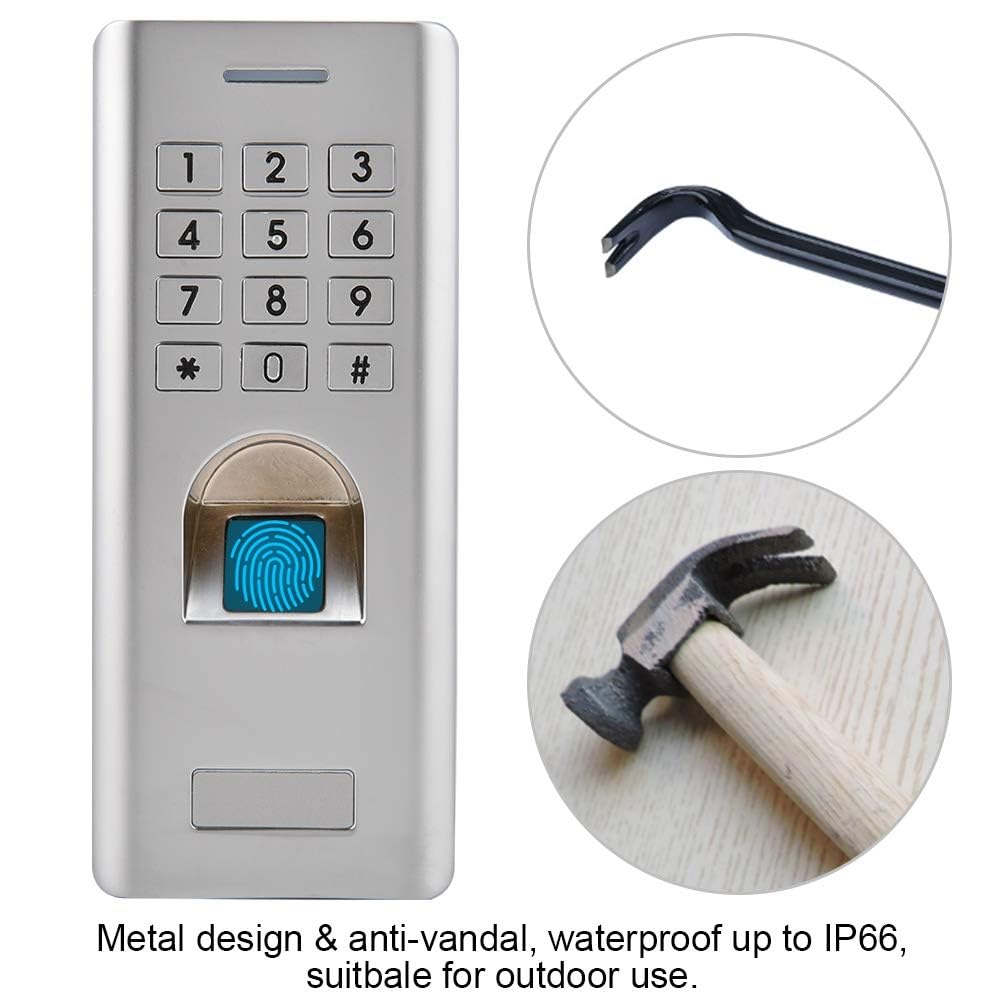

• 【Durable Design & Waterproof】: Metal design & anti-vandal, waterproof up to IP66, suitable for outdoor use. Don't need to worry about the bad weather outside.

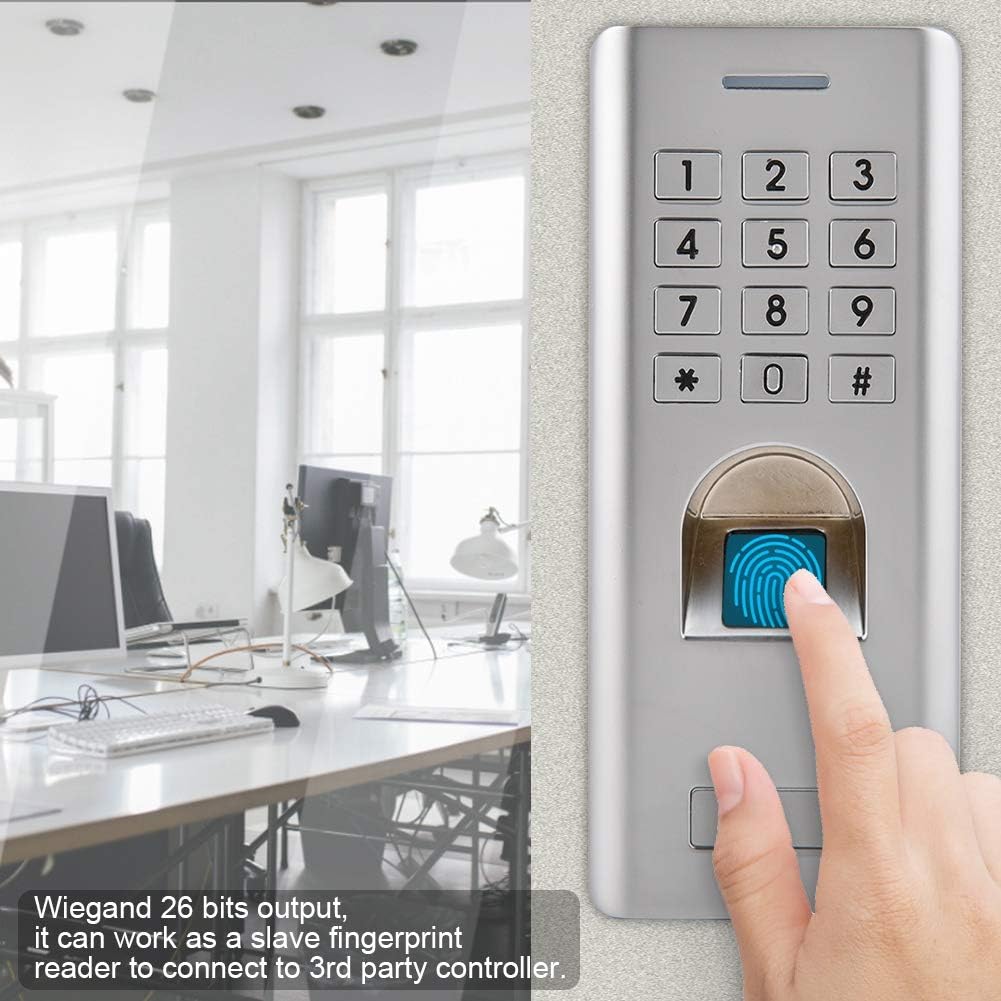

• 【Multi-functional】: Including ultra-low power consumption, independent password, Wiegand output, short circuit protection, relay output, exit button, alarm, door contact.
• 【Widely Use】: It is operated with a smart keyboard panel and built-in high-end microprocessor. It has strong anti-interference ability, high security and reliability. It is very convenient to use and can be widely used in families, offices, houses, etc.
• 【After-sales Service】: If there are any using problems or unsatisfactory with our products, please feel free to contact us, our professional customer service team will reply you within 24 hours, and we will consult the issues with sincerity.

Features: Multi-function including ultra-low power consumption, independent password, Wiegand output, short circuit protection, relay output, exit button, alarm, door contact. It is very convenient to use and can be widely used in families, offices, houses, etc. Specification: User Capacity: 3000 (1000 Fingerprint + 2000 PIN) PIN Length: 4~6 digits Operating Voltage: 12V DC Idle Current: ≤45mA Active Current: ≤150mA Fingerprint Reader: Optical Fingerprint Module Resolution: 500DPI Identification time: <1S FAR: <0.001% FRR: <0.01% Wiring Connections: Relay output, exit button, alarm, door contact, Wiegand output Relay: One (NO, NC, Common) Adjustable Relay Output Time: 0~99 Seconds (5 seconds default) Adjustable Alarm Output Time: 0~3 Minutes (default: 1 minute) Lock Output Load: 2Amp Maximum Alarm Output Load: 5Amp Maximum Wiegand Interface: Wiegand 26 bits output Waterproof: IP66 Operating Temperature: -30℃~60℃ / -22℉~140℉ Operating Humidity: 20%RH~90%RH Material: Zinc Alloy Surface Finish: Powder Coat Package list: 1 * Door Access Control Unit 1 * Set of Mounting Accessory 1 * User Manual
