Waterproof F540 4370KV 4 Pole Brushless Motor 60A ESC Set with Heat Sink Combo RC Brushless Motor Set for 1/10 RC Car Rc Car Model Accessory

• MAXIMIZE EFFICIENCY: High‑purity copper windings can maximize efficiency and are precisely designed to achieve maximum energy conversion.With precisely balanced rotor, the smoothness can achieve the best reliability and maximum RPM.
• MULTIPLE PROTECTION FUNCTIONS: Brushless motor has multiple protection functions, such as low voltage cut‑off protection, overheat protection, and throttle signal loss protection.

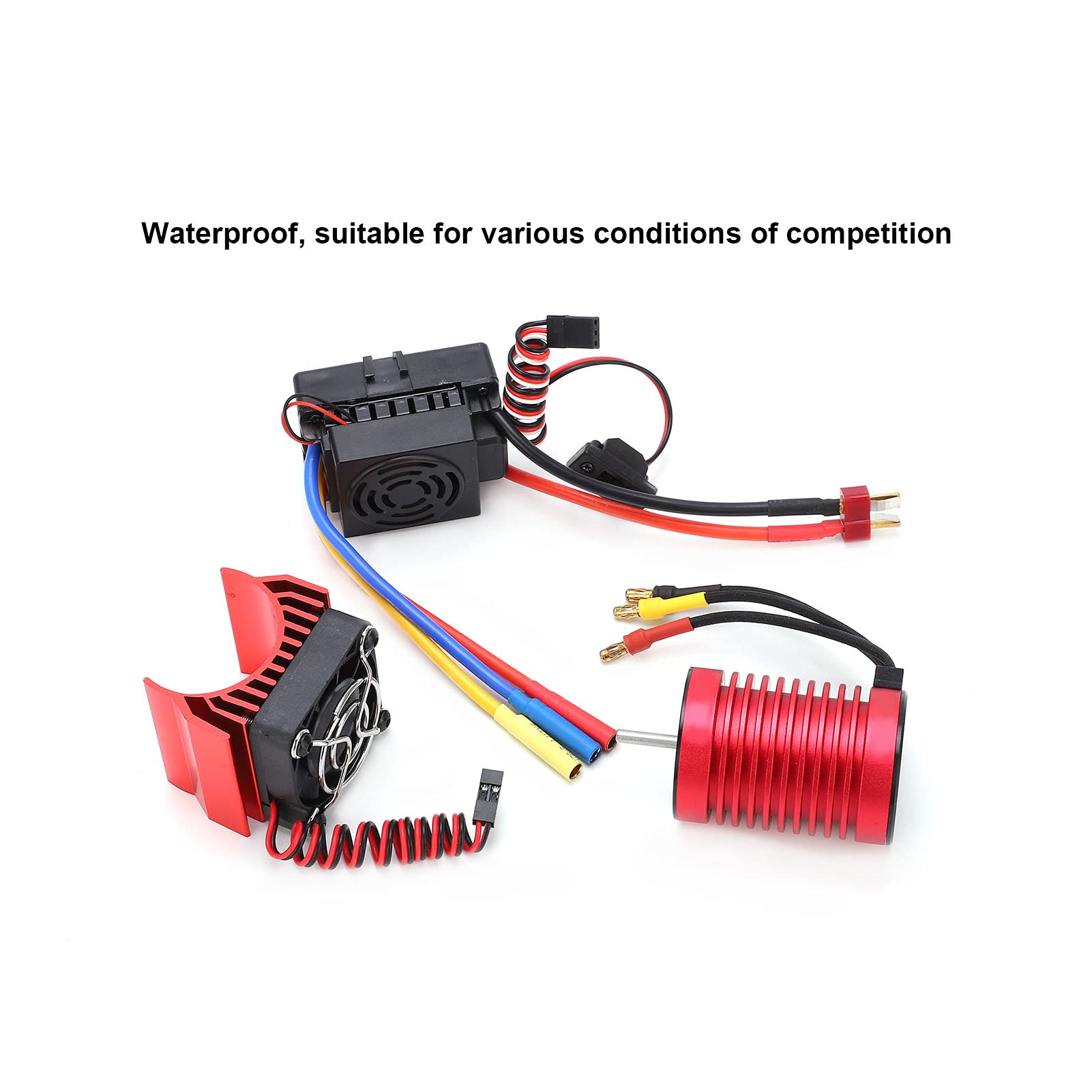

• WATERPROOF DESIGN: 4 pole 12 slot high torque motor and waterproof design, it is suitable for various conditions of competition.

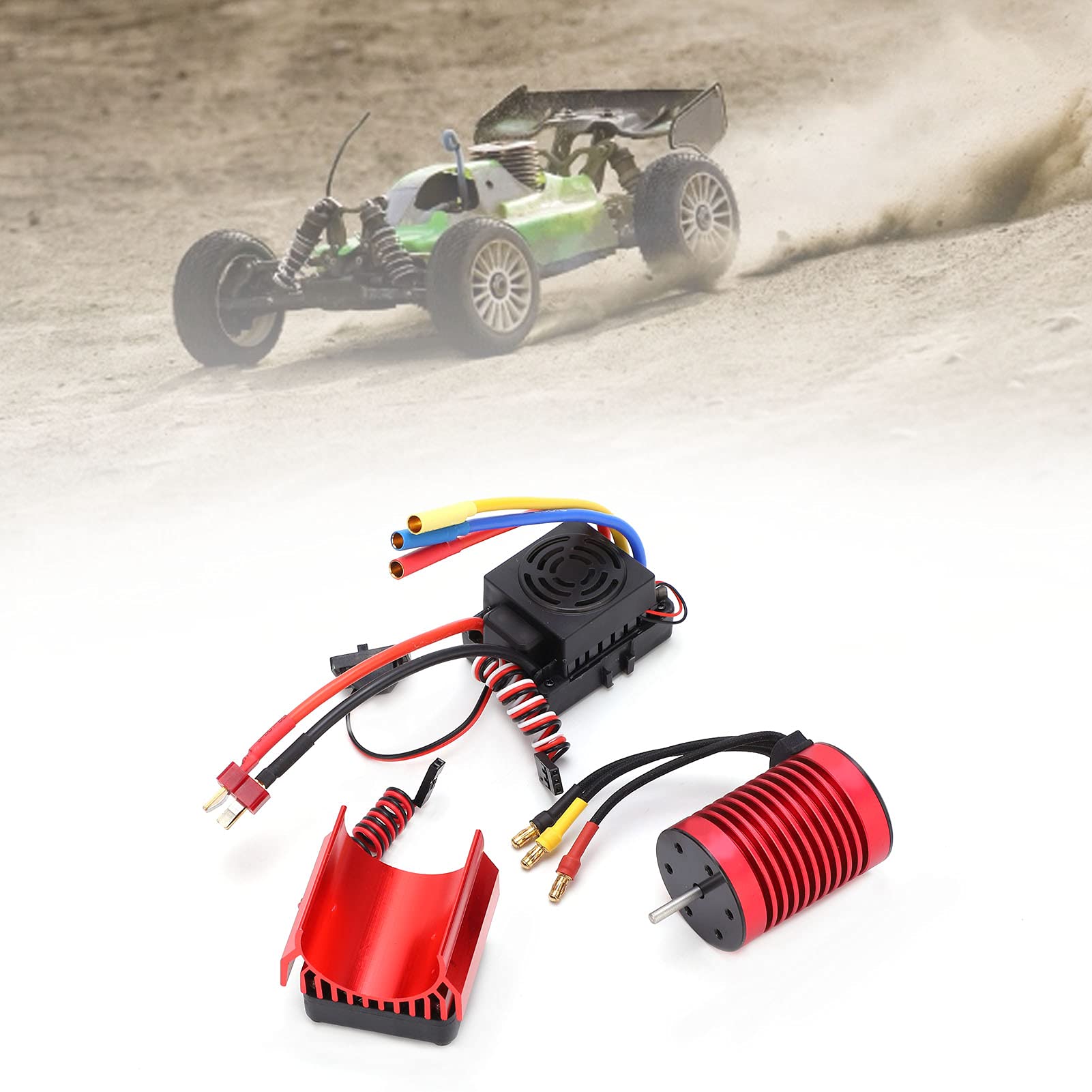

• SUITABLE FOR: Fits fot 1/10 RC Car, it has enhanced throttle response, excellent acceleration, strong braking and throttle linearity.
• GUARANTEE: If you are not satisfied with our product you received, you can send emails to us at any time. We will reply you instantly and help you solve your problem.

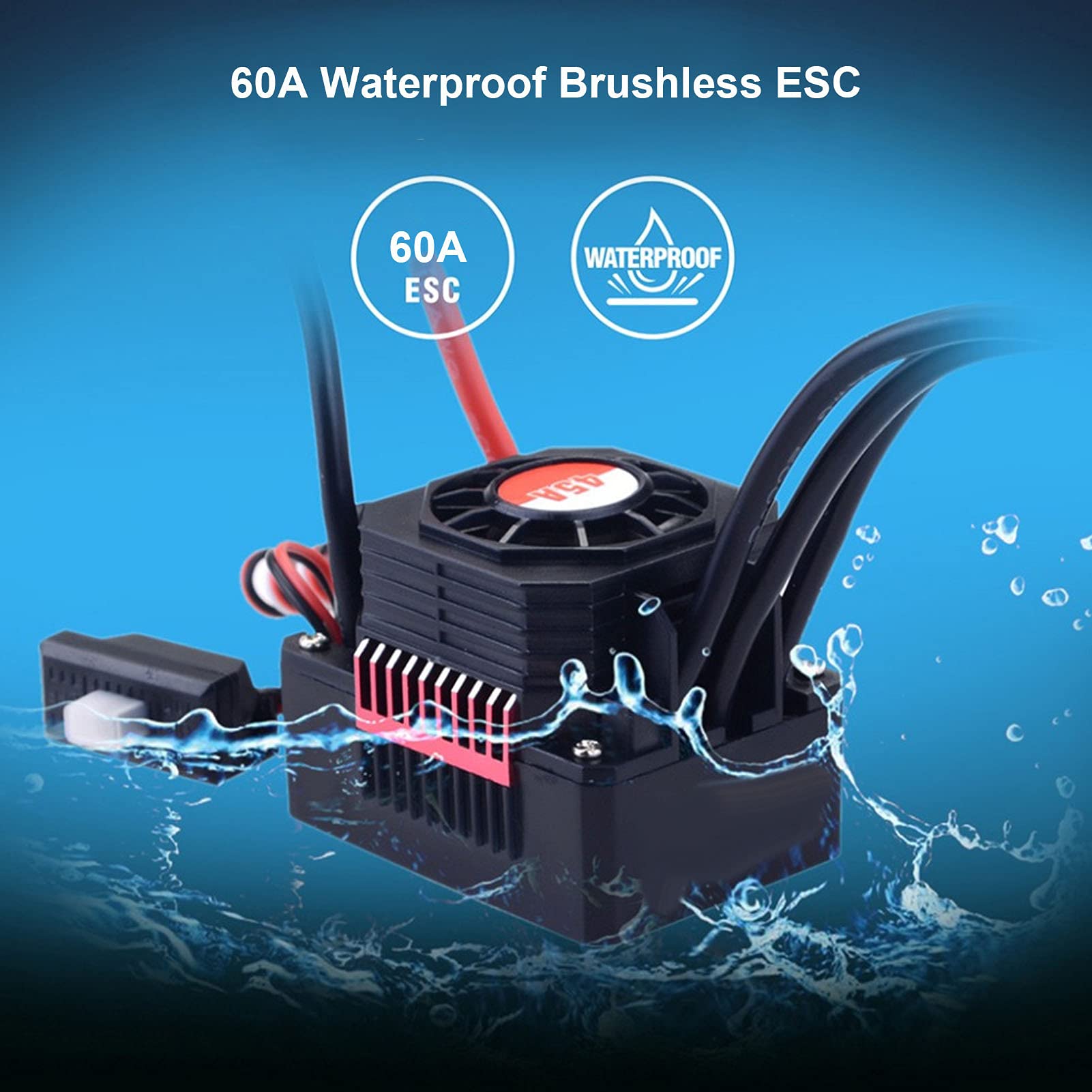

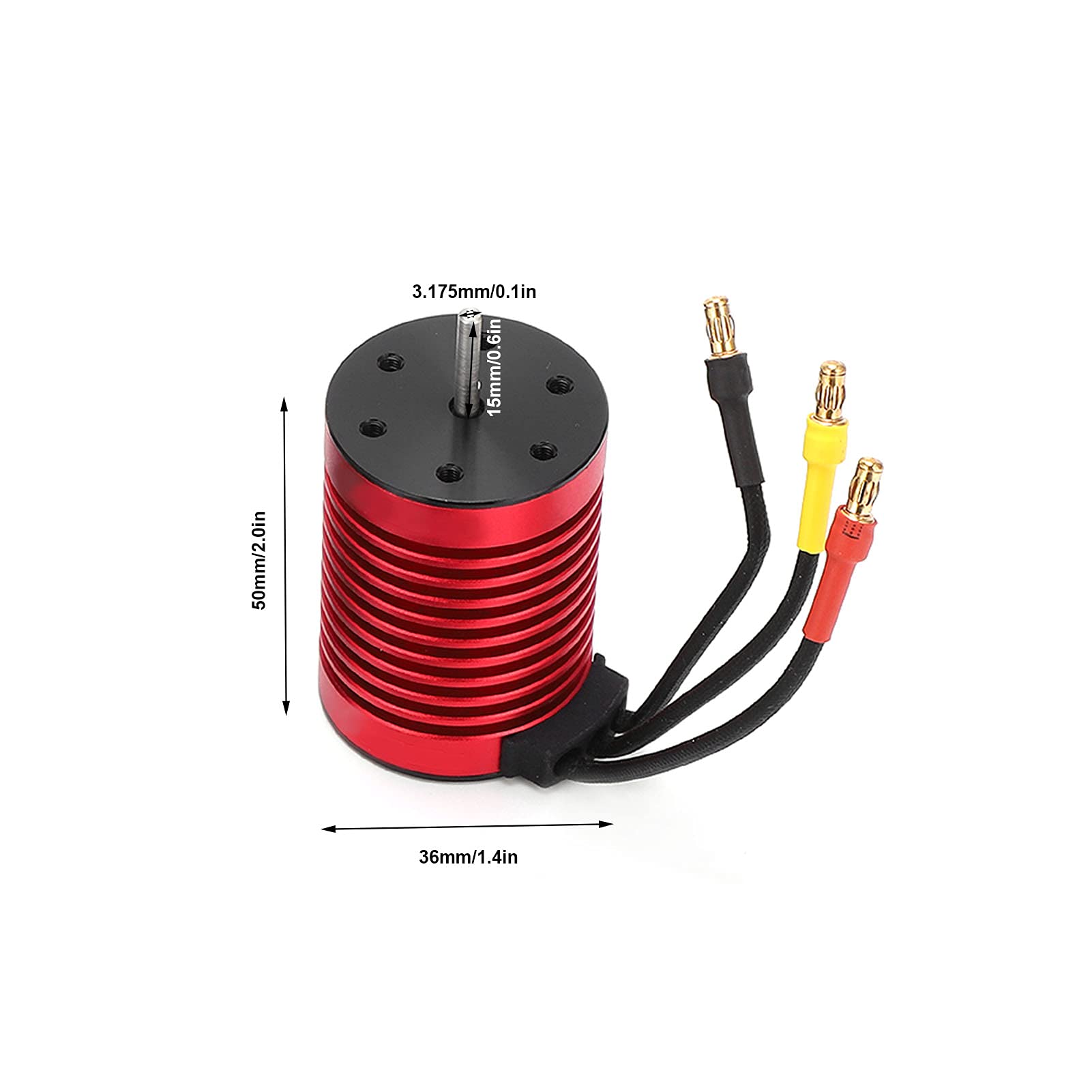

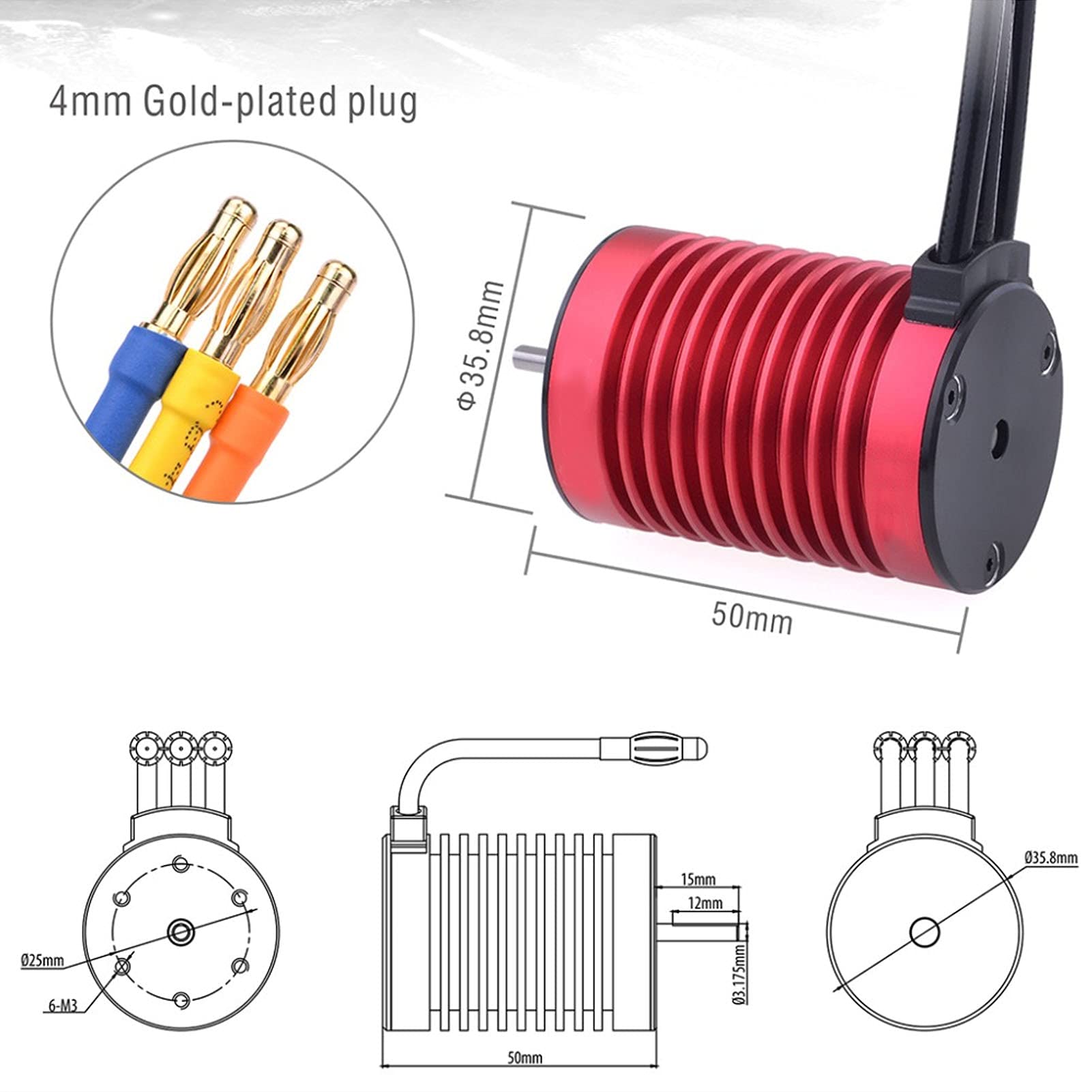

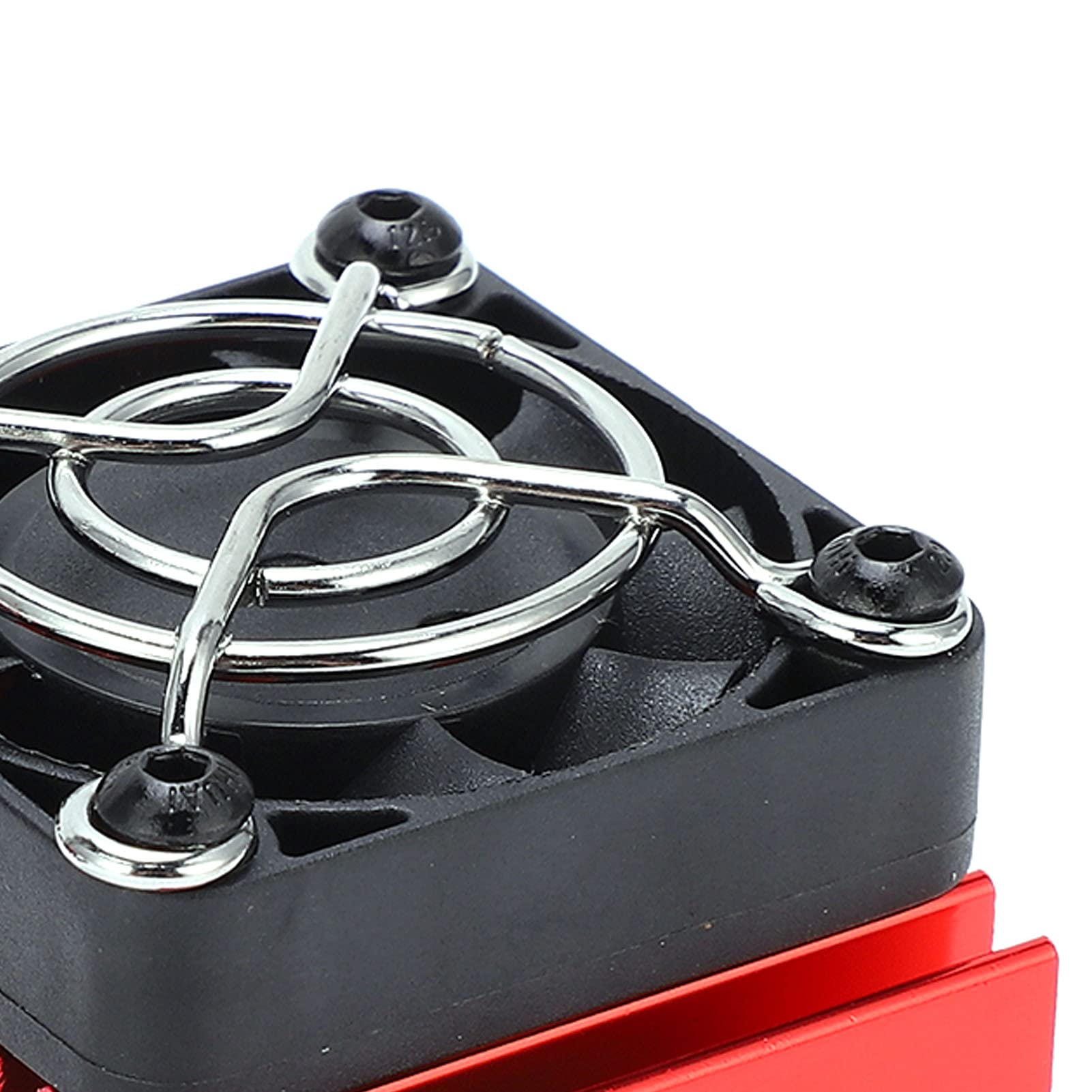

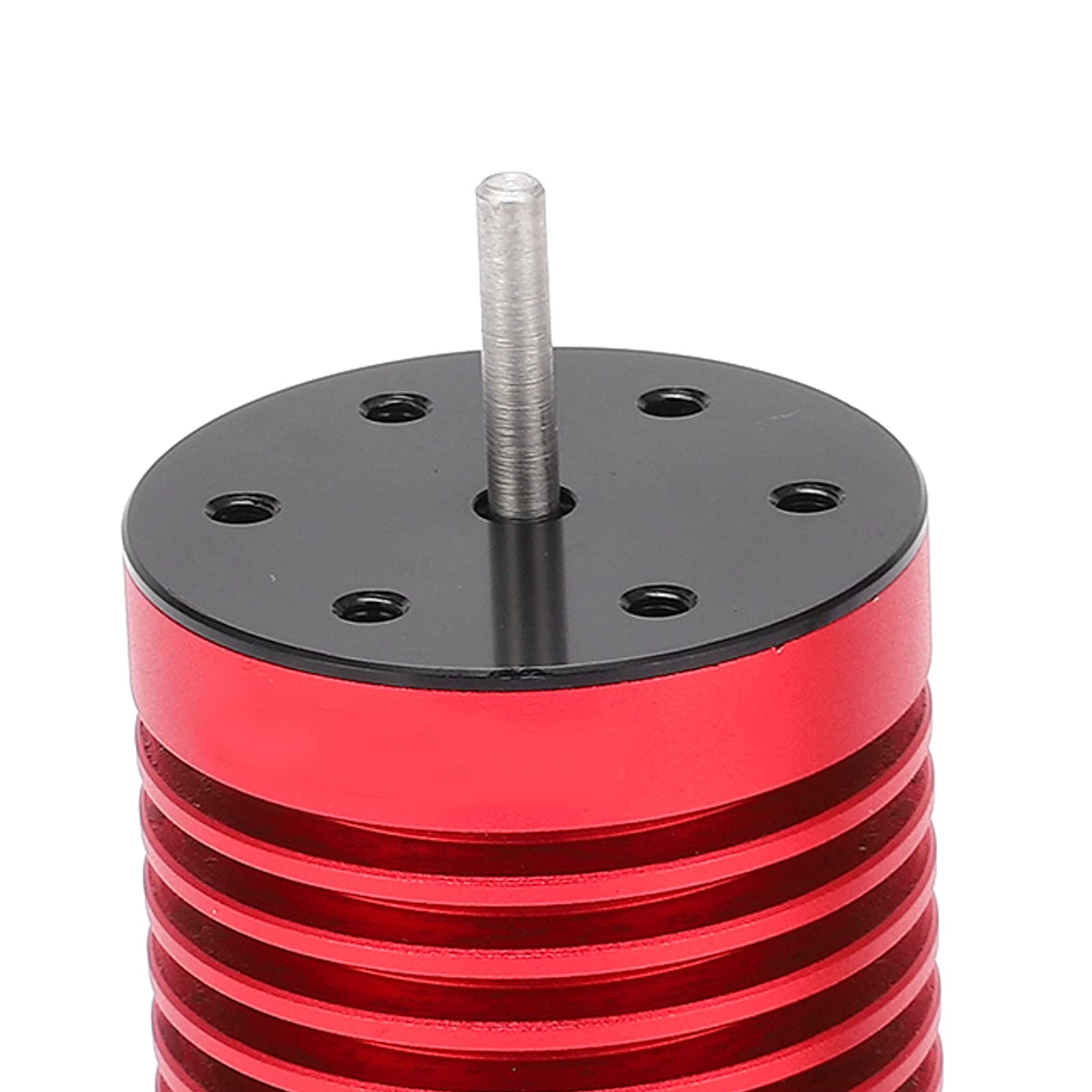

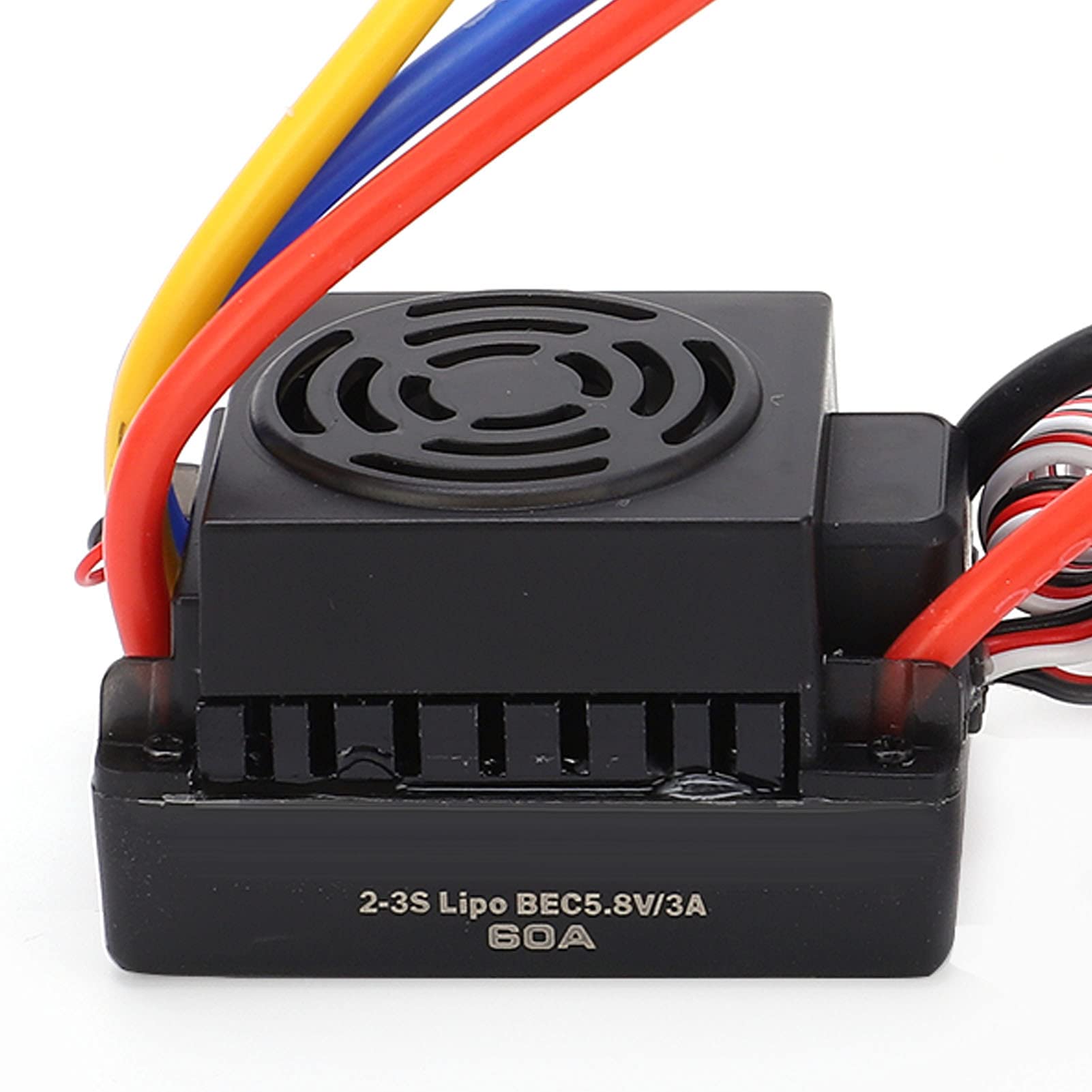

How to Use: 1. Connect the BEC cable to the receiver. 2. Connect the motor lead to the ESC. 3. Turn on the transmitter. 4. Connect the battery pack to the ESC, and then turn on the ESC. 5. After the connection between the motor and the battery is completed, the motor will emit a beep sound. 6. When the throttle stick is in the neutral position, the motor will beep again. 7. ESC is available. Specification: Item Type: 540 Brushless Motor Set Material: Aluminum Alloy + Plastic Product Color: As Pictures Shown Product Weight: Approx. 280g / 9.9oz Compatible: Fit fot 1/10 RC Car Motor Parameters: Product Color: Red Motor Size: Approx. 50x36mm / 2.0x1.4in Motor Shaft Length: Approx. 15mm / 0.6in Motor Shaft Diameter: Approx. 3.175mm / 0.1in Wattage: 820W Maximum Voltage: <12V Maximum Current: 66A Kv (RPM/Volt): 4370KV Maximum Speed: 50000 Plug Type: 4mm Golden Banana Plug ESC Parameters: Continuous Current: 60A Burst Current: 320A Applicable Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd (not included) Bec Output: 5.8V/3A Power Plug: T Plug Male Motor Plug: 4mm Banana Plug Female Package List: 1 x Motor 1 x ESC 1 x Manual 1 x Heat Sink
