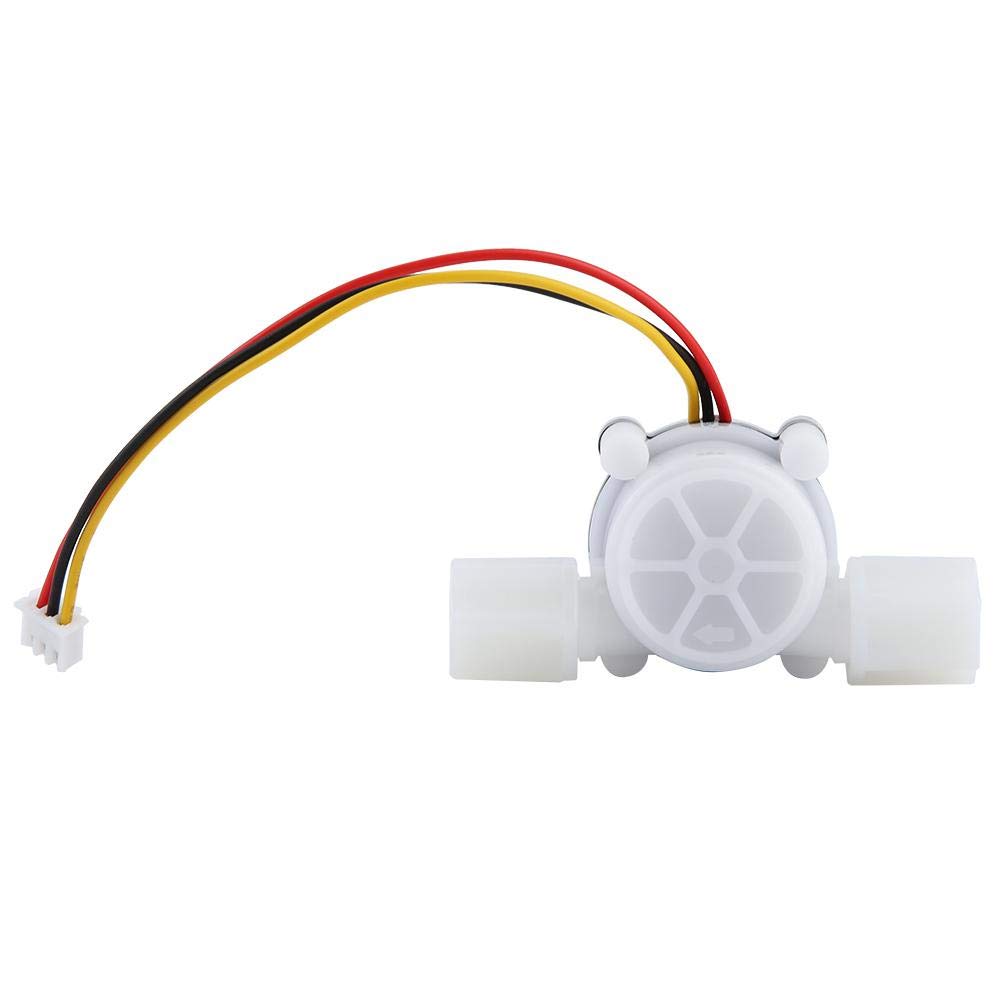

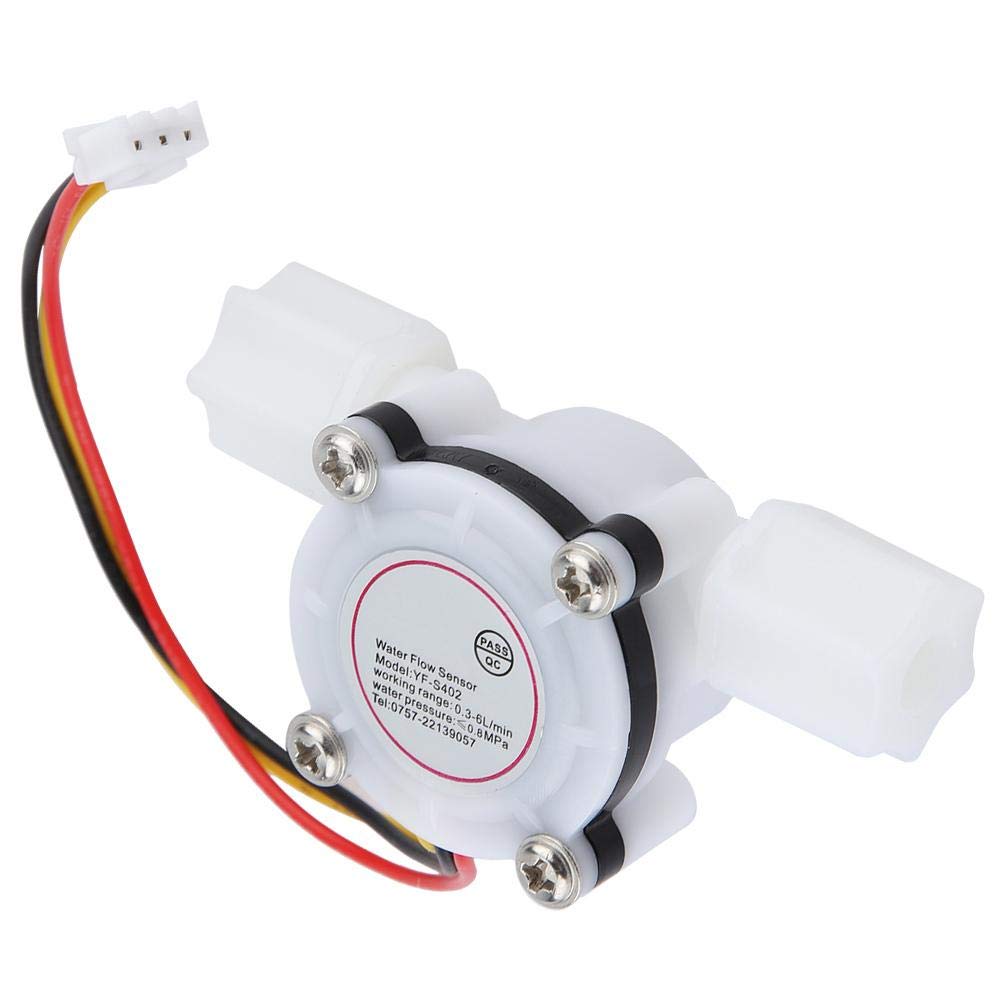

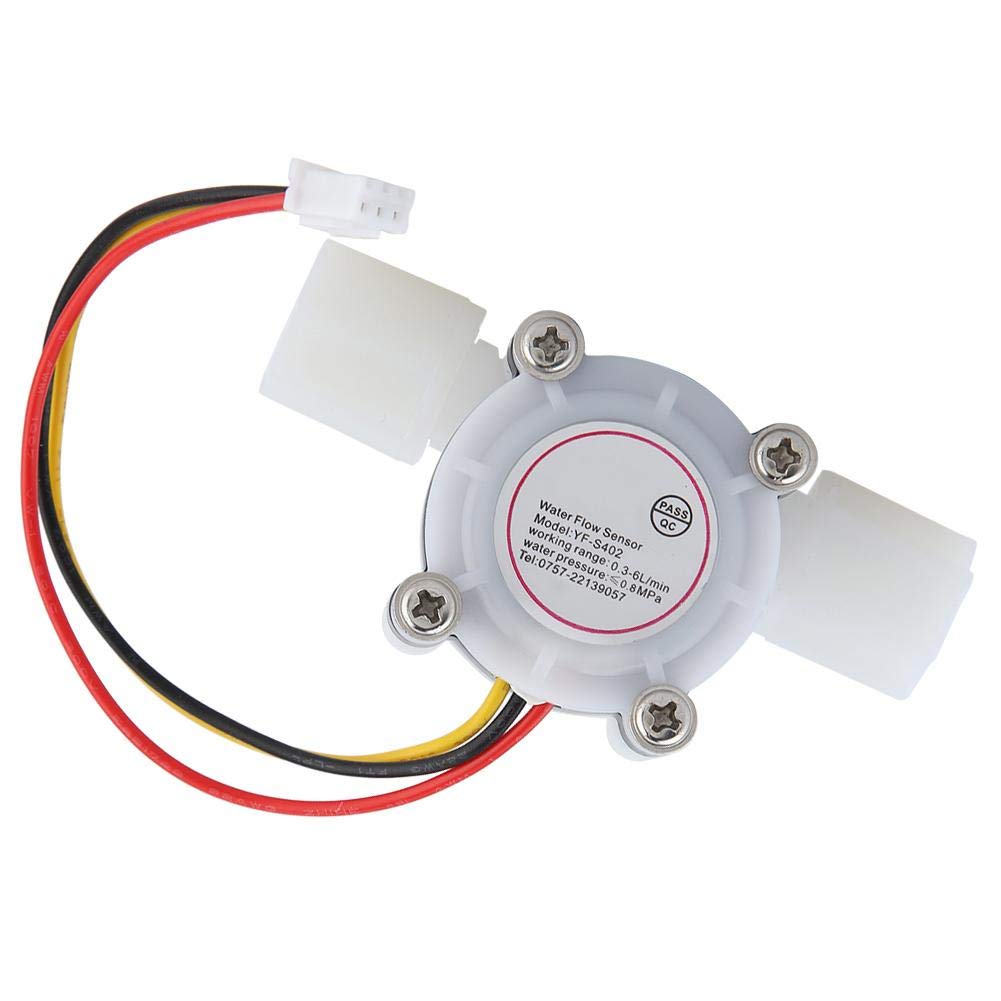

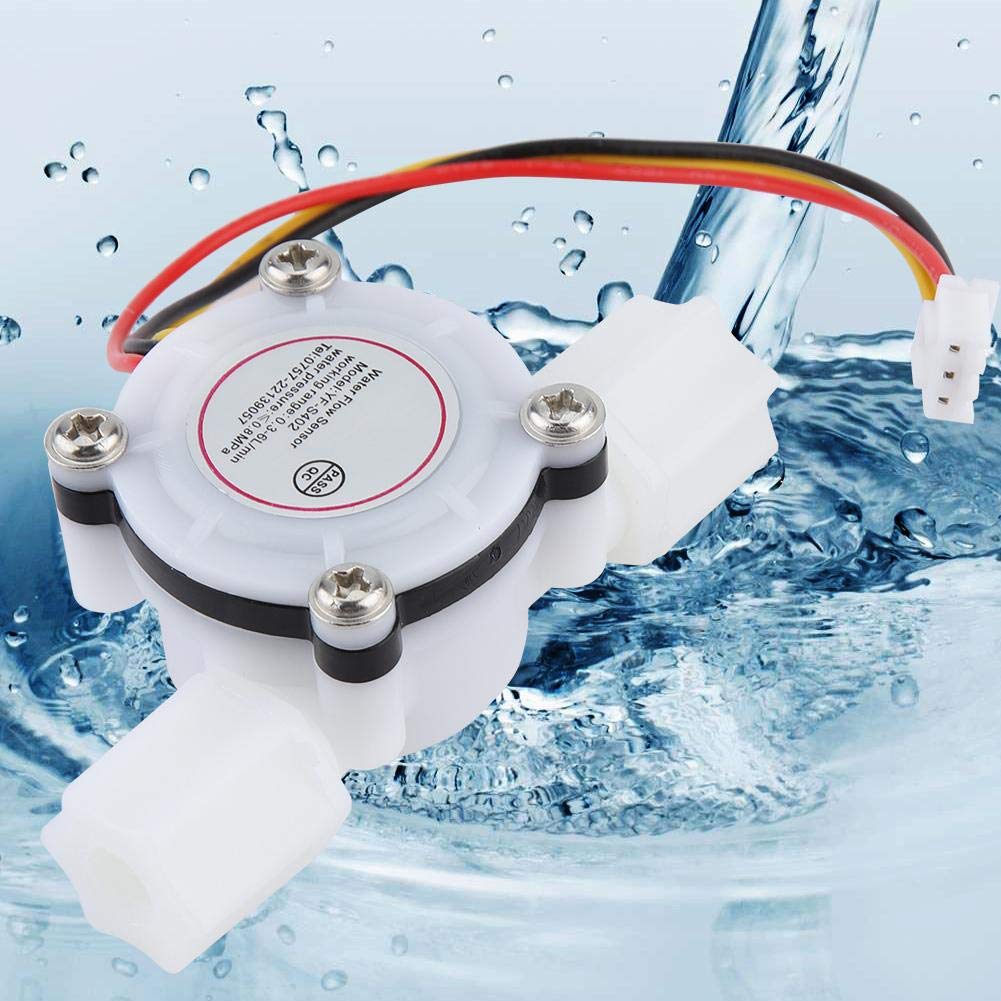

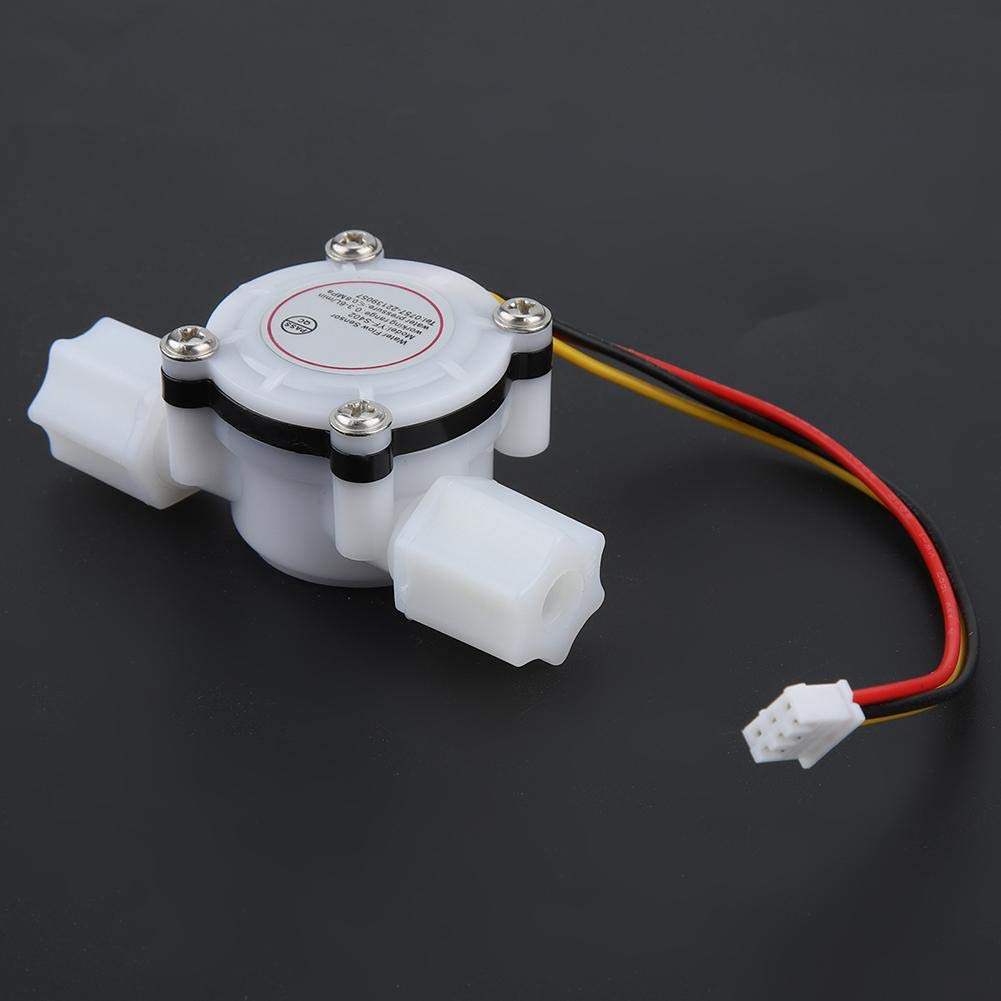

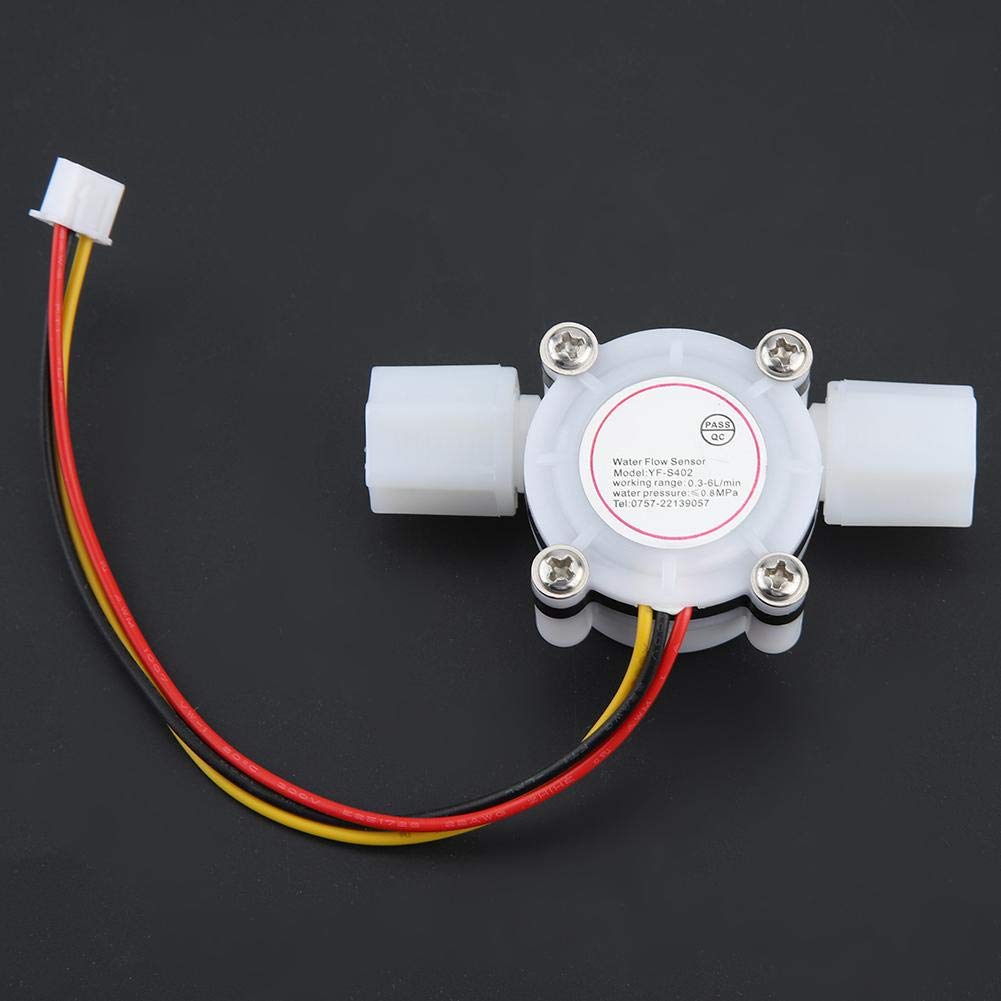

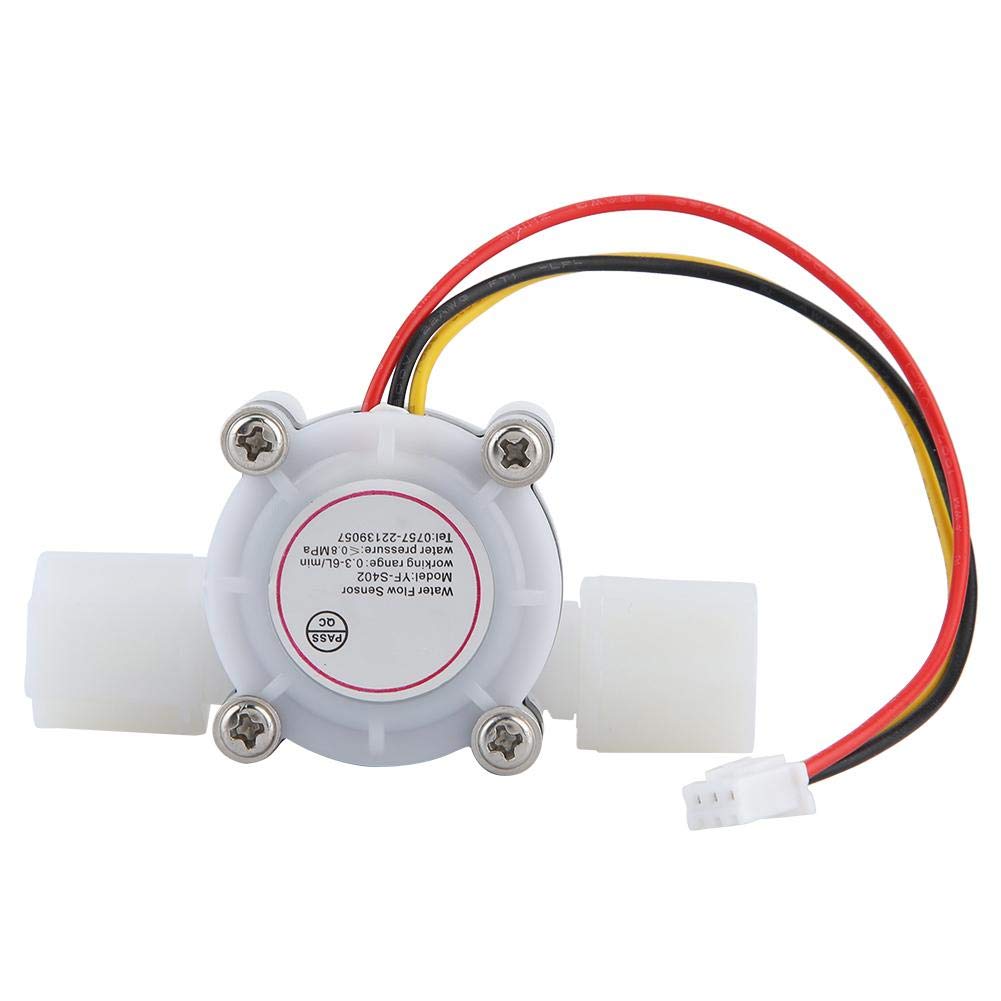

Water Sensor, YF-S402 0.3-6L 2 Water Sensor Control Meter G1 / 4 for Water Coolerwasserwaage blase sensor

• 【Product Specifications】: Our sensor monitoring range is 0.3-6L, accuracy is 3%, wiring mode is red +, black -, yellow output (NPN pulse signal), water pressure is 0.35MPa, working voltage The range is DC5~24V, the insulation resistance is 100MΩ, and the accuracy is (0.15-3L / Min)±2%.
• 【Wide Applications】: Our water controller is small, convenient, and has a wide range of trials for water coolers, coffee machines, water filters and etc.
• 【Premium Quality】: Our brand new water sensor adopts high quality material, whcih is of precision craftsmanship, stable performance, long service life.

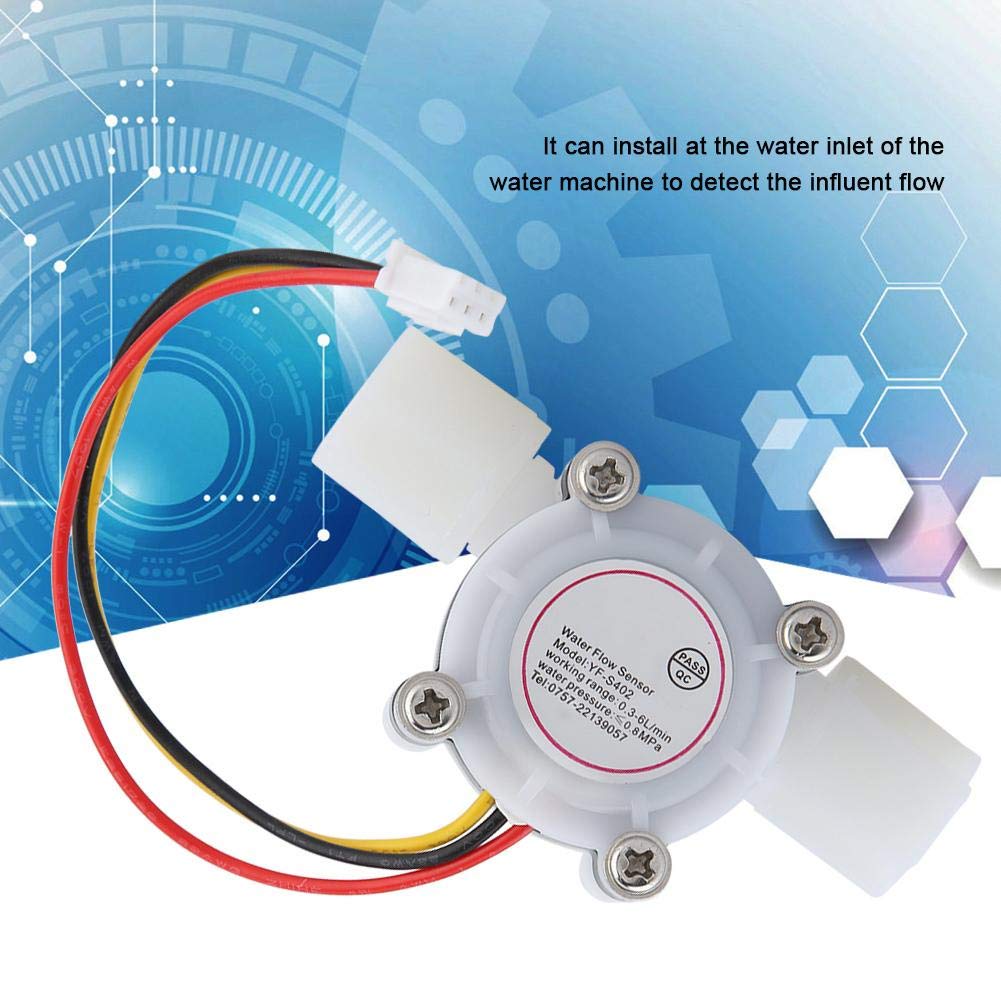

• 【Flow Pulse】: The water Hall sensor is small in size and can install at the water inlet of the water machine to detect the influent flow. Pulse Characteristics: f = (73 * Q)±2% Q = L / Min. Output Pulse High Level: >DC 4.7V (input voltage DC 5V). Output Pulse Duty Cycle: 50% ±10%.
• 【Guarantee】: Our product have 180 days warranty, if you have any question about this product, please feel to contact us, we will try our best to help you solve your problem.

YF-S402 0.3-6L 2 water sensor control meter G1 / 4 for water cooler Features: ☆The water sensor is made of high quality material, long service life. ☆ It can install at the water inlet of the water machine to detect the influent flow ☆Small body and stable performance ☆ Suitable for water cooler, coffee machine, water filter Specification: Condition: Brand New Model: YF-S402 Monitoring Range: 0.3-6L Accuracy: 3% Wiring Method: Red +, Black -, Yellow For Output (NPN Pulse Signal) Water Pressure Resistance: 0.35MPa Operating Voltage Range: DC5~24V Insulation Resistance: >100MΩ Accuracy: (in 0.15-3L / Min) ±2% Pulse Characteristics: f = (73 * Q)±2% Q = L / Min Output Pulse High Level: >DC 4.7V (input voltage DC 5V) Output Pulse Duty Cycle: 50% ±10% Package List: 1 * Water Sensor
