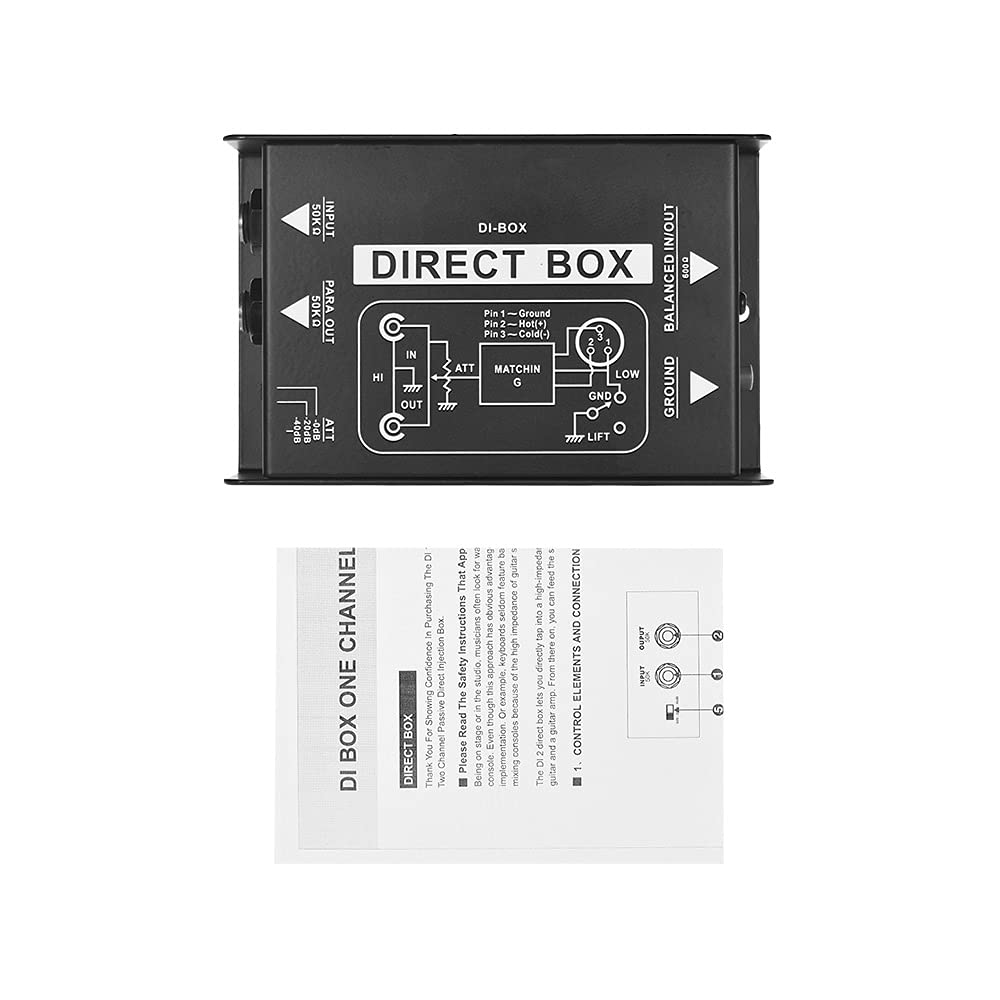

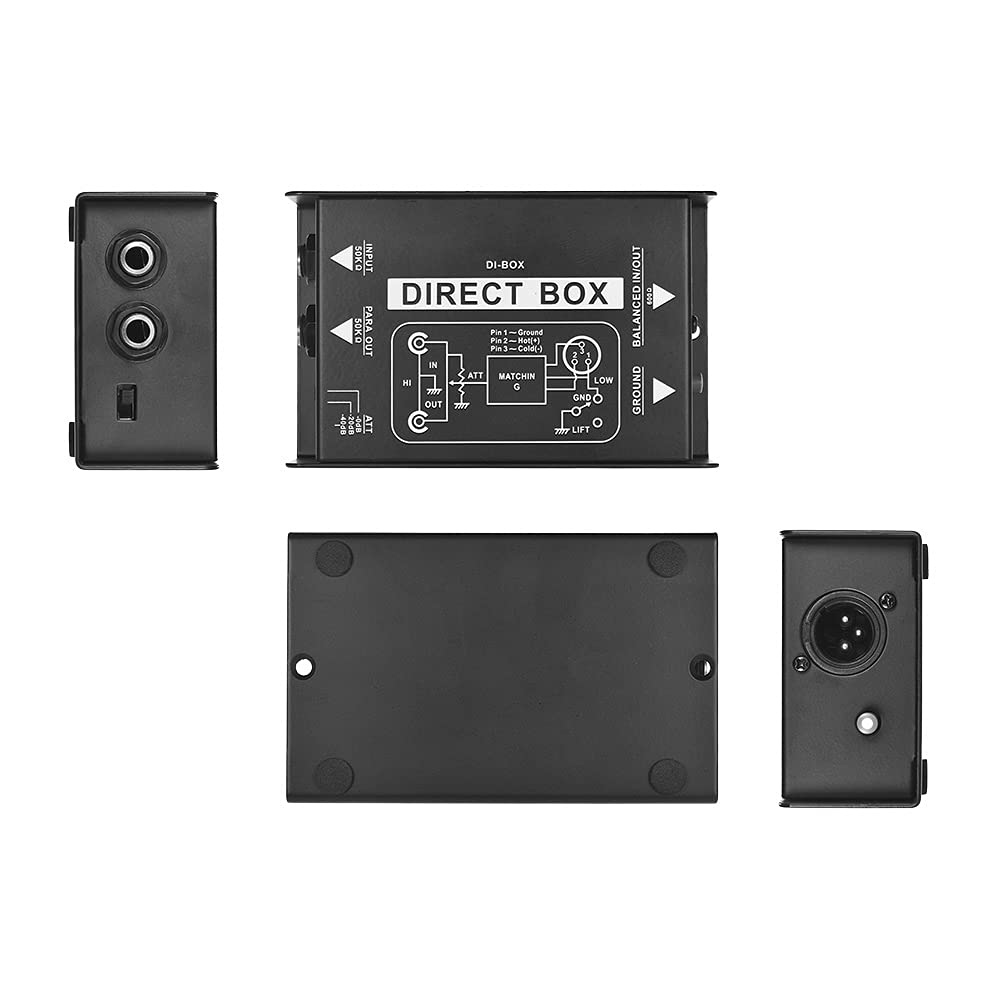

WANXIAO Professional Single Channel Passive DI-Box Direct Injection Audio Box Balanced & Unbalance Signal Converter with XLR TRS Interfaces for Electric Guitar Bass Live Performance

• Compact size passive metal direct box, for converting a high-impedance, line level and unbalanced output signal to a low-impedance, phone level and balanced input signal.
• With 1/4" TRS input & output jack, and ATT switch for adjusting input attenuation(-0dB, -20dB, -40dB); One balanced male XLR output jack, AES standard with pin-1 ground, pin-2 hot and pin-3 cold.
• With one ground lift switch, you can fully separate input and output grounding, which can lower hum noise or ground loops.
• Minimizing the unwanted noise, distortion, ground loops, and maintaining signal integrity, so that you can enjoy a rich and full sound.

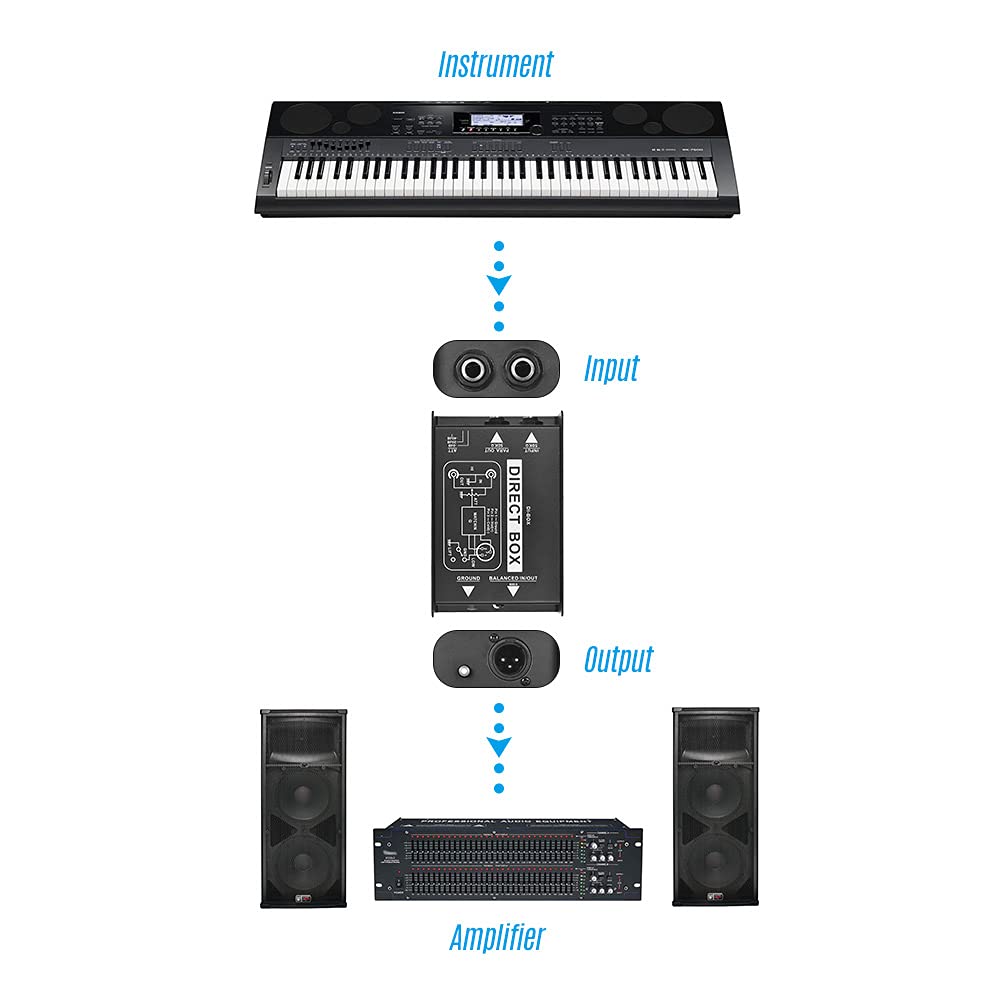

• Frequently be used to connect an electric guitar or electric bass to a mixing console's phone input jack.

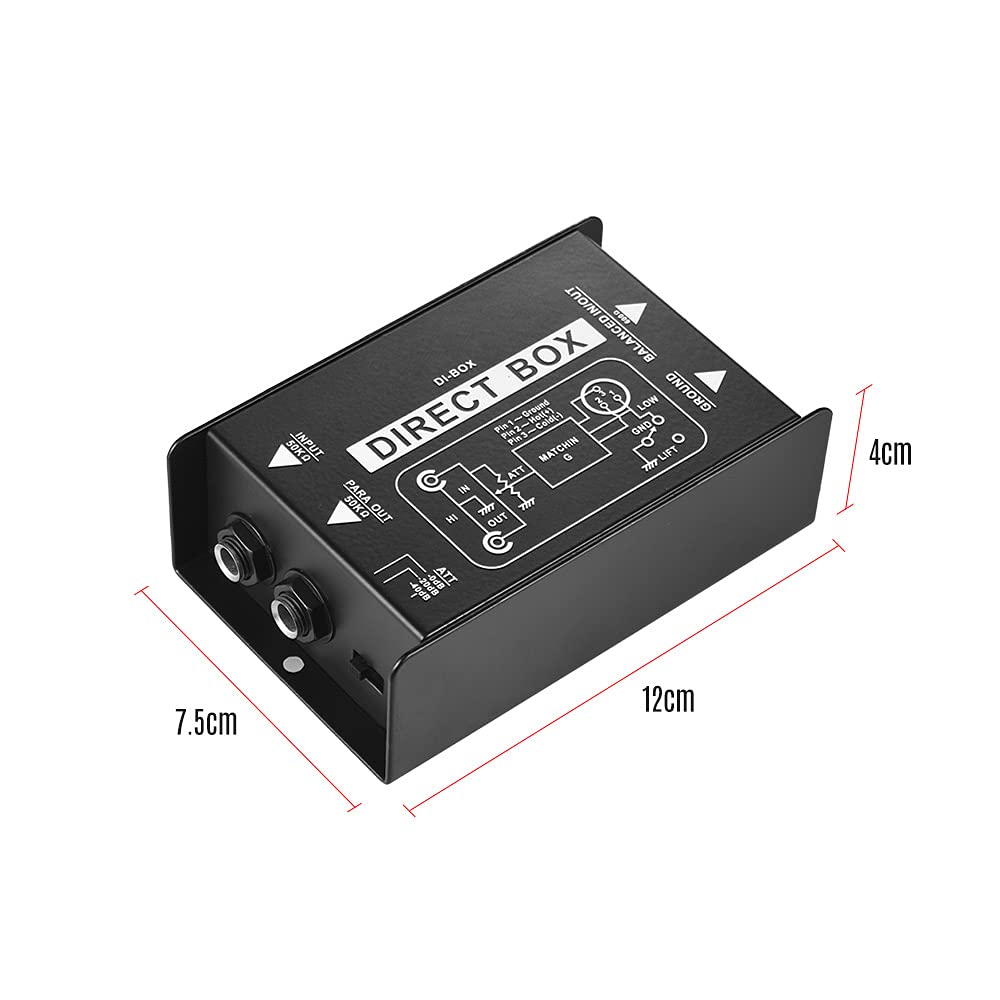

Specifications: Material: Metal Jack: 2 x 1/4" TRS; 1 x XLR Item Size: 12 x 7.5 x 4cm / 4.7 x 3 x 1.6in Item Weight: 370g / 13.1oz Package Size: 23.5 x 16 x 8cm / 9.3 x 6.3 x 3.1in Package Weight: 545g / 1.2lbs Package List: 1 x Audio Converter 1 x Users' Manual(English)
