walimex pro Audioadapter 101

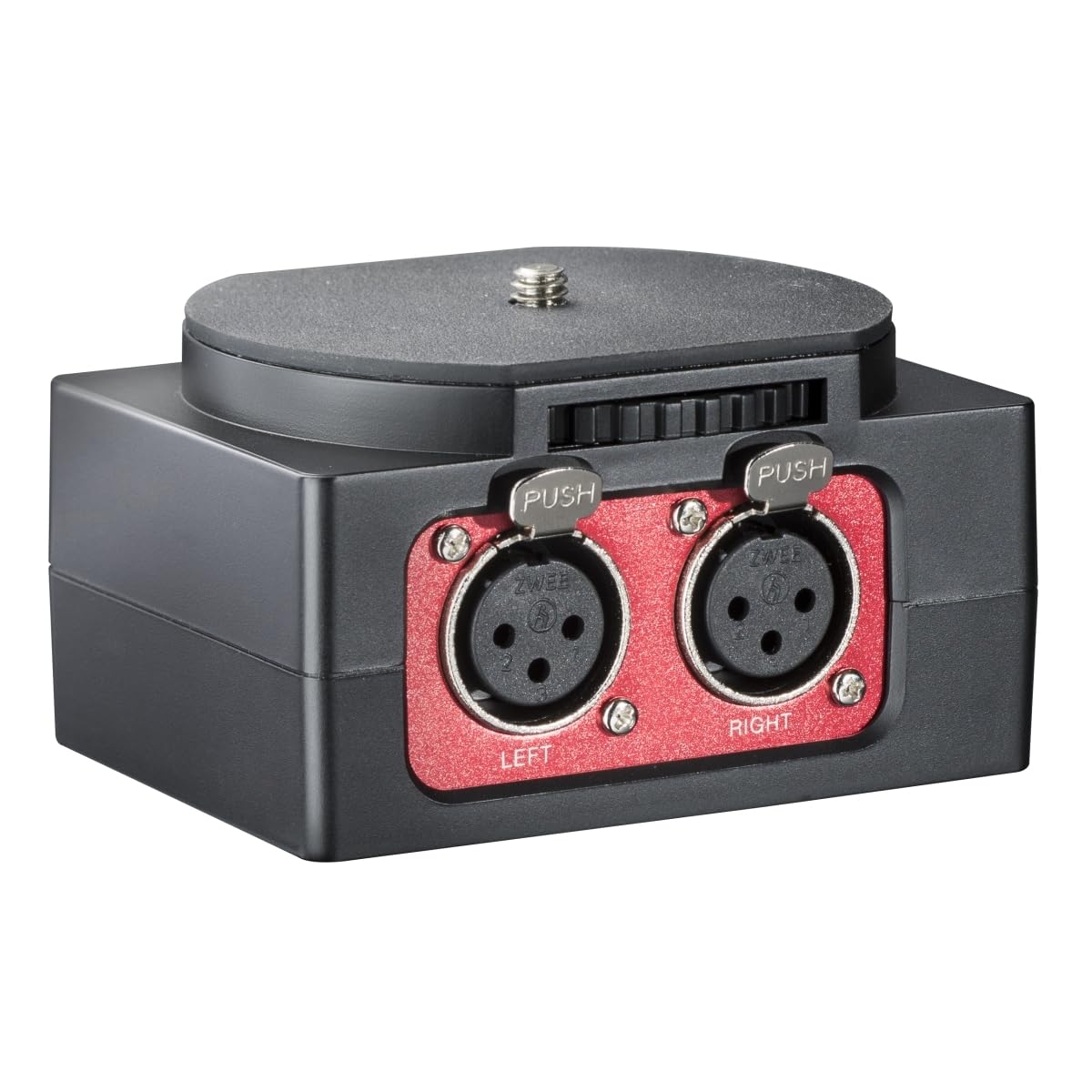

• Passive 2-channel XLR adapter for camcorders or DSLRs

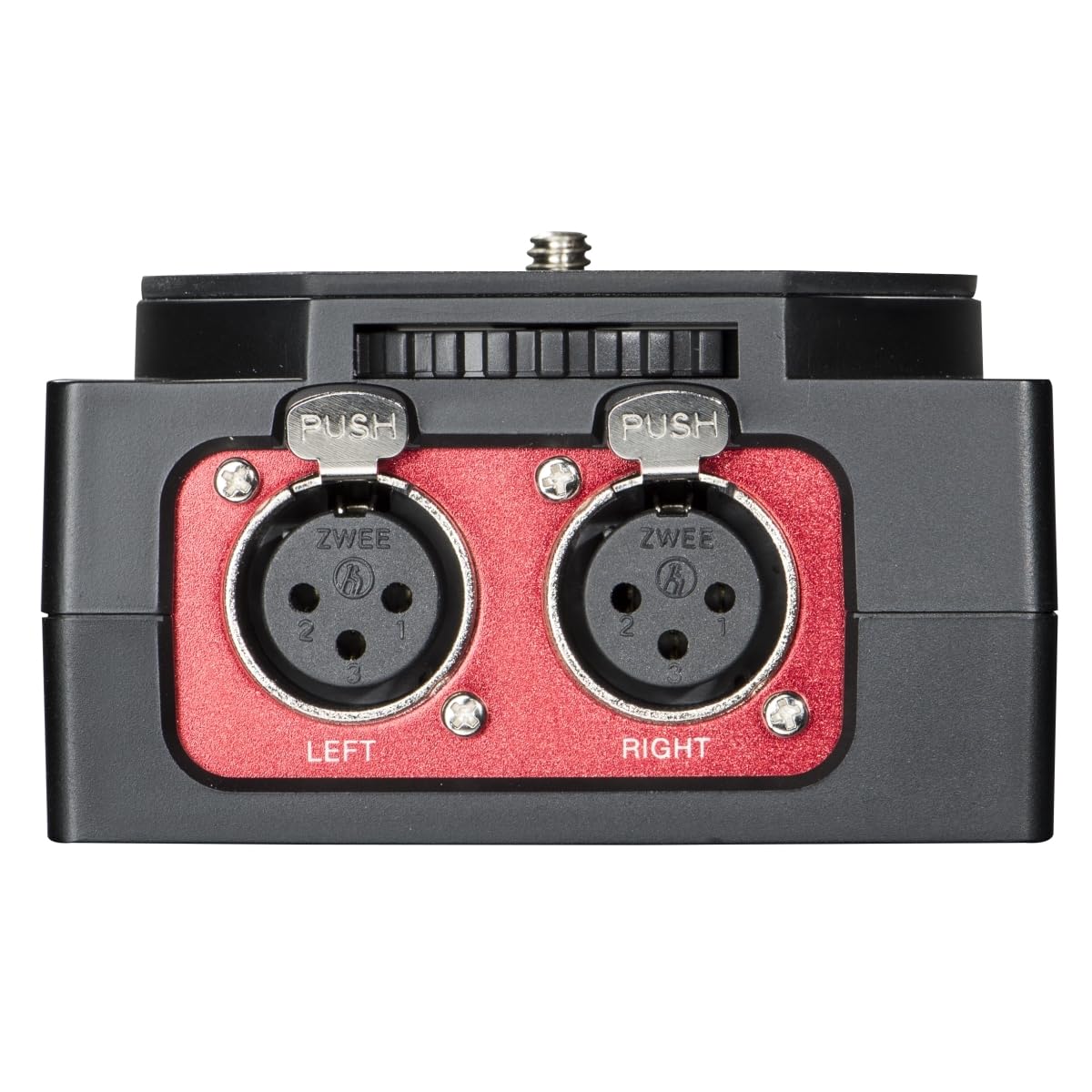

• for connecting audio devices to your camera via two XLR inputs
• Optimum acoustic control over the recorded sound

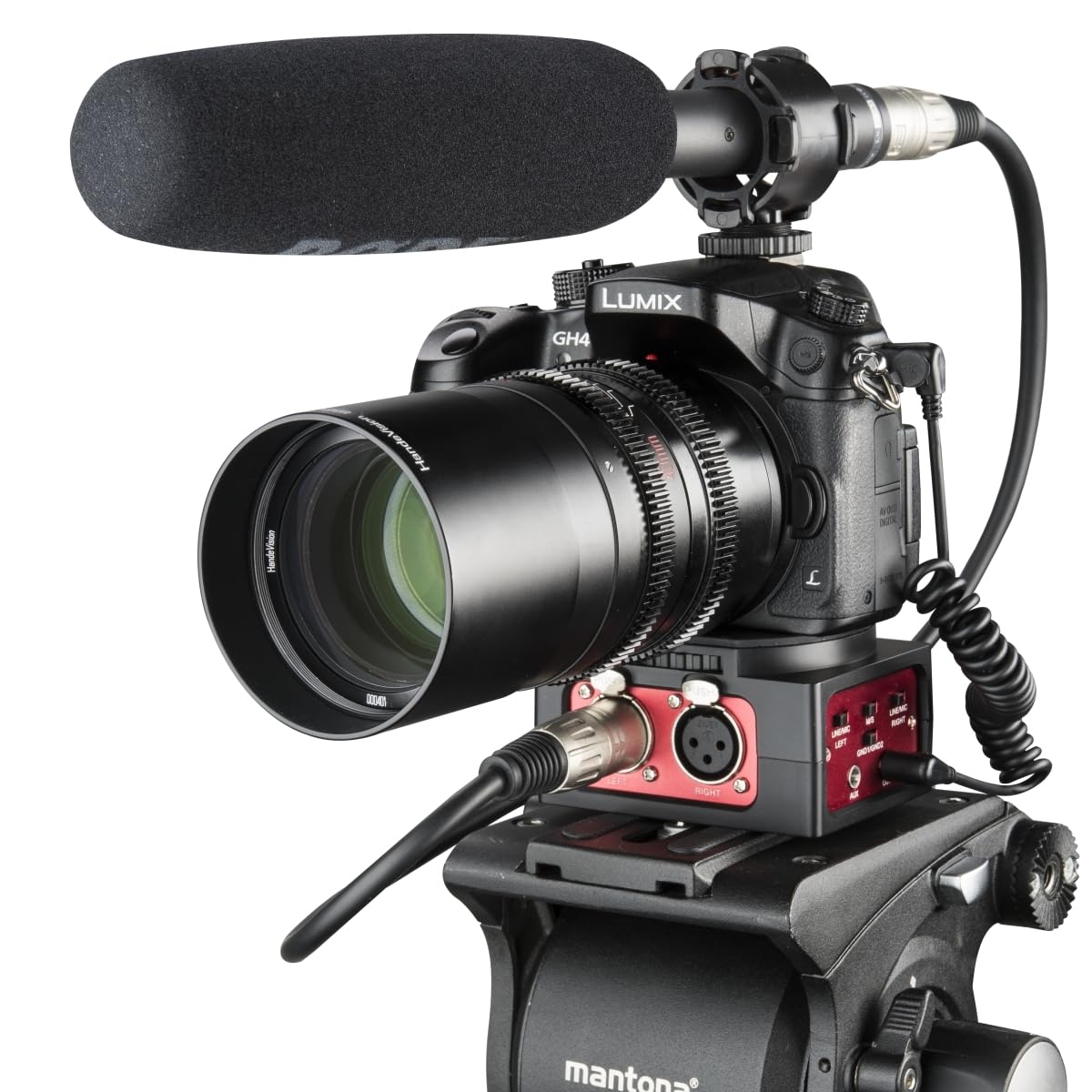

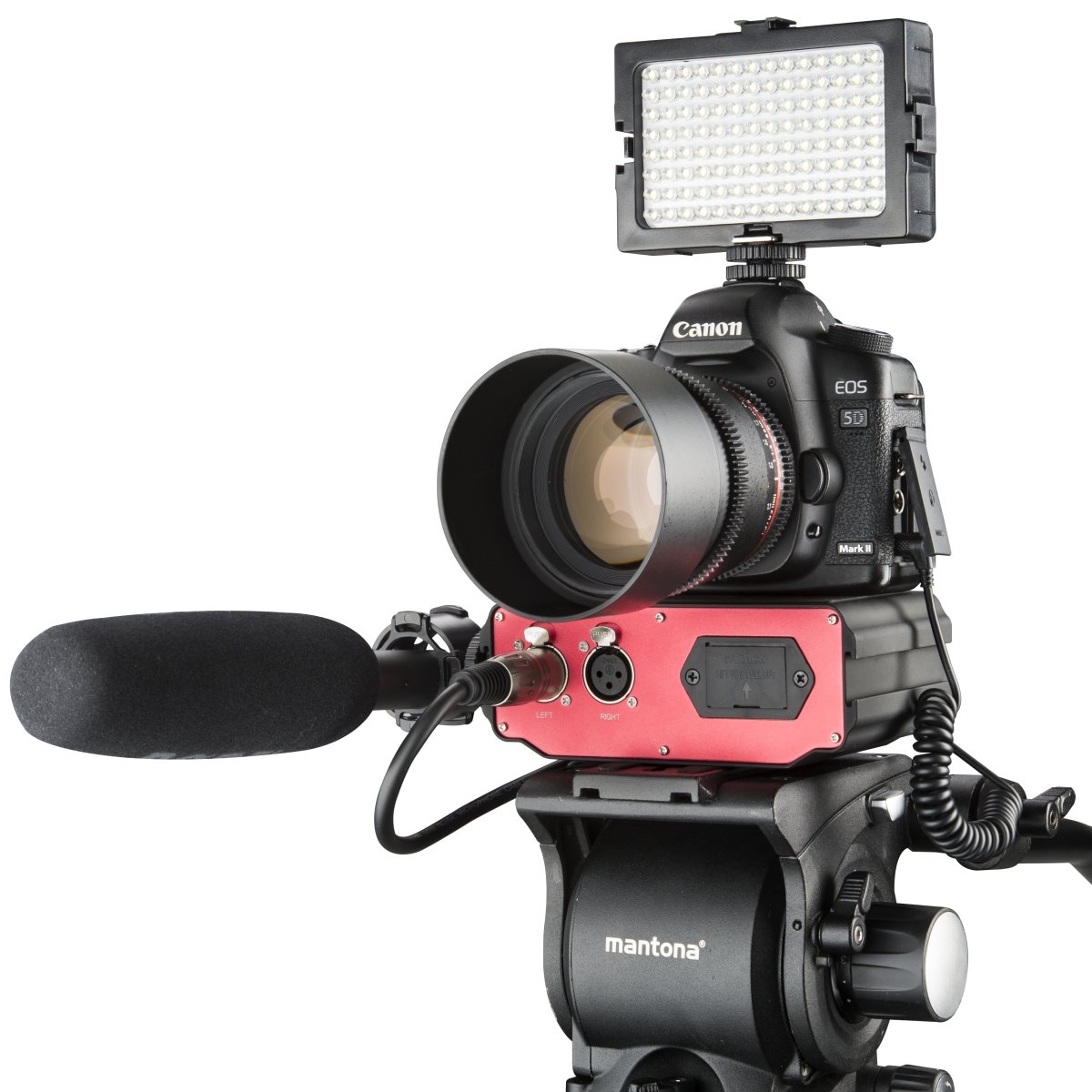

• Audio adapter can be attached to camera and tripod via 1/4 inch thread
• Scope of delivery 1 x Walimex Pro audio adapter 101, 1 x instruction manual, 1x cable jack (jack 3.5mm)

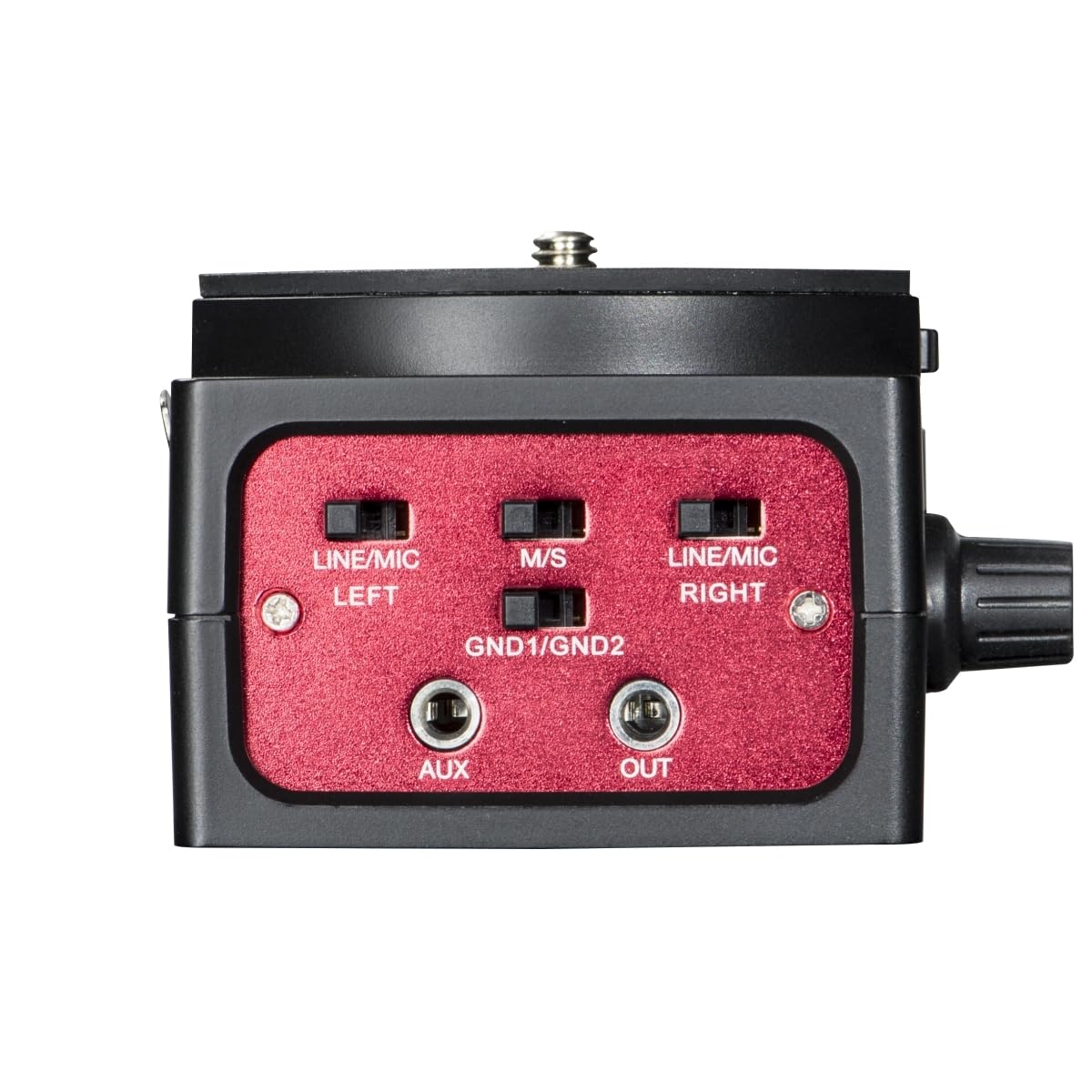

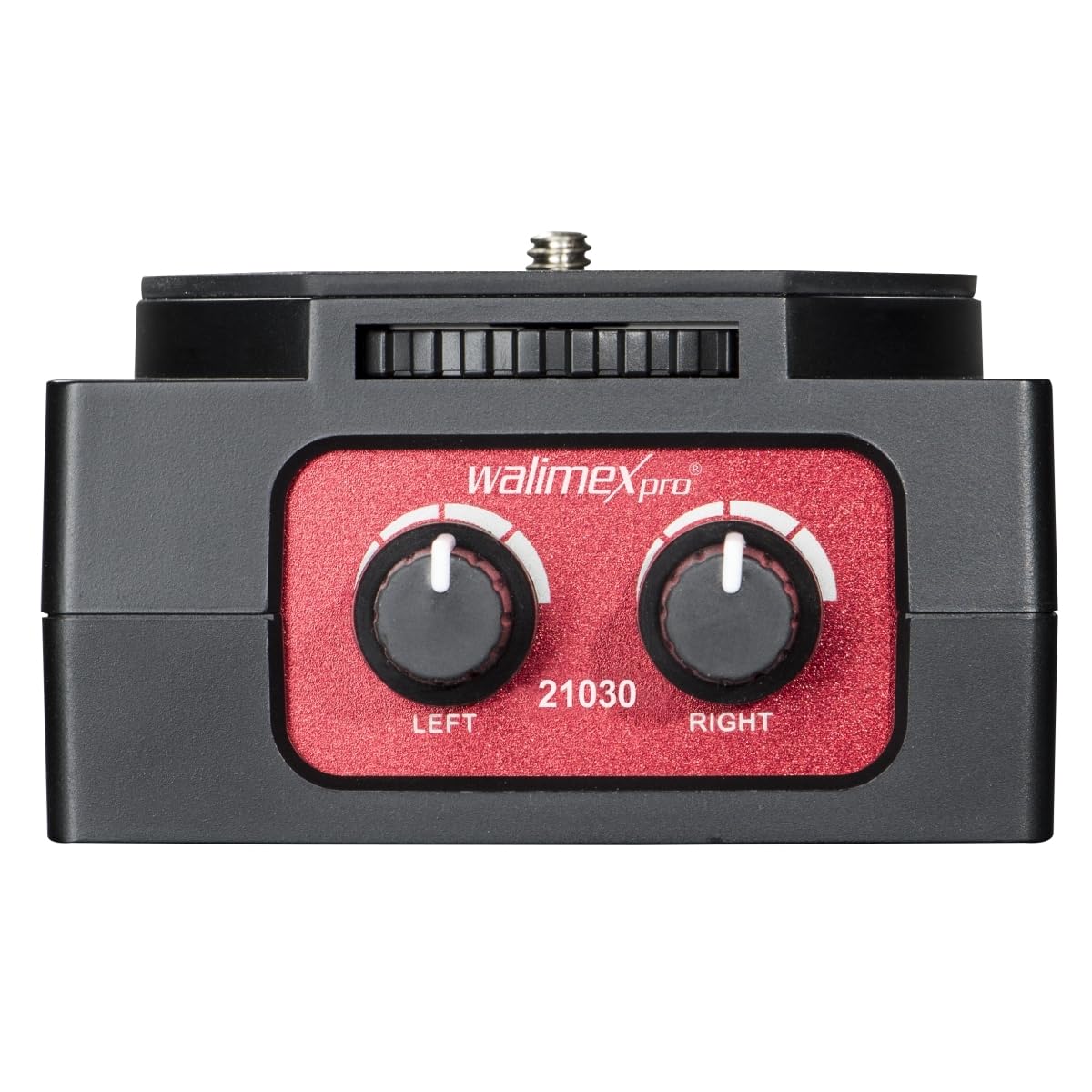

The walimex pro Audio Adapter is a passive 2-channel XLR adapter for camcorders or DSLR cameras with an integrated microphone jack. It allows you to connect a variety of audio devices, such as XLR or wireless microphones, external audio mixers or preamplifiers, to the camera via the adapter. The headphone jack gives you optimal control over the recorded sound. The audio adapter can be easily attached to the camera from below using a 1/4-inch thread. Features Dual trim control: Use the dual trim control to adjust and set the recording levels. Mono/Stereo switch: Select the output mode. Mono mode is for selecting a mono microphone. It can convert the mono audio signal into each channel and output stereo audio signal. Stereo mode is for two-channel recording, providing two separate audio channels. LINE/Mic. switch: Mic level is for microphones or wireless systems. The LINE level is for audio devices with a LINE output. The signal is attenuated to 40dB. GND1/GND2 ground switch: Eliminates noise such as hum and hiss. GND1: separates the output signal from the input signal, thus preventing noise from the input signal from affecting the output signal. GND2: controls the output signal based on the input signal.
