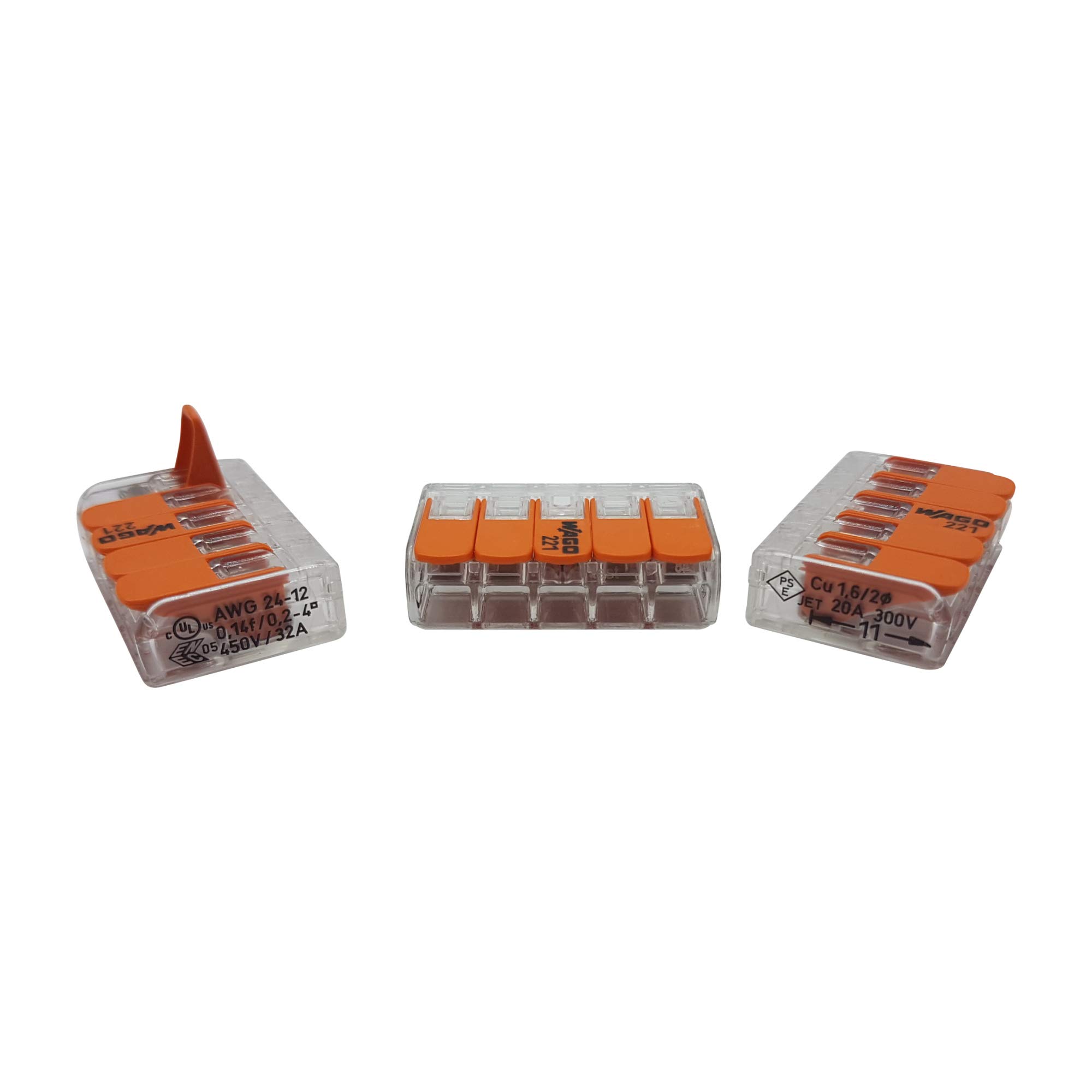

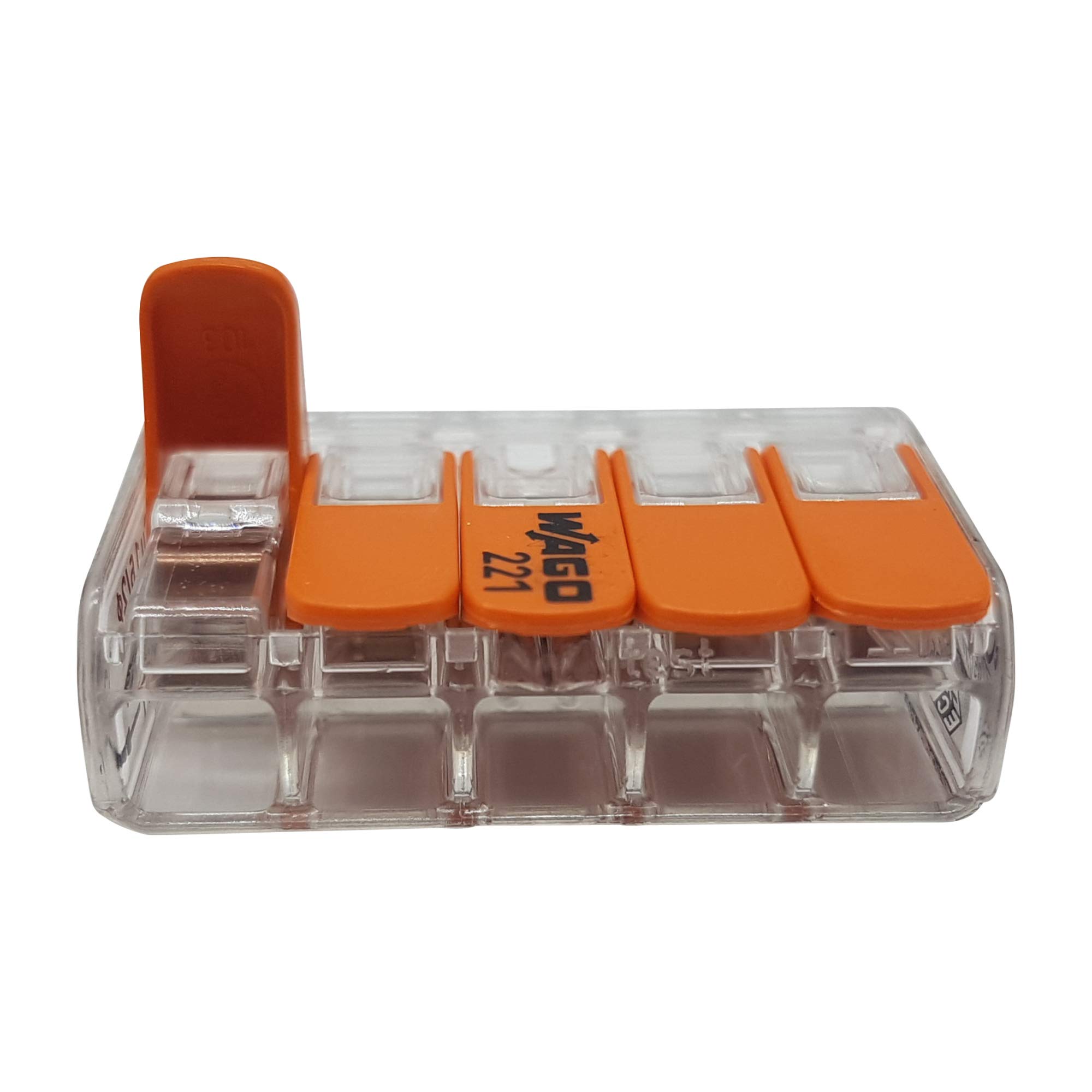

WAGO Plug-in terminal 5-way with lever for rigid (0.2-4 mm²) and flexible (0.14-4 mm²) wires to open again, transparent/orange, pack of 25

• WAGO lever connection terminal, 5-pole for rigid (0.2 - 4 mm²) and flexible (0.14 - 4 mm²) wires to open again, transparent/orange, 400 volts, 32 amps,
• , installation of single, fine and multi-stranded conductor
• more comfortable. 000000014 to 4 mm²
• 25 pieces in original Wagover packaging
• International products have separate terms, are sold from abroad and may differ from local products, including fit, age ratings, and language of product, labeling or instructions.

Electrical data: Rated data according to IEC/EN 60664-1. Rated voltage (II/2): 450 V. Rated surge voltage (II/2): 4 kV. Rated current: 32 A. Connection data: Connection technology: CAGE CLAMP. Actuation Type: Lever Connectable conductor materials: copper Nominal cross section: 4 mm². Single-stranded conductor: 0.2 - 4 mm²/24 - 12AWG. Multi-stranded conductor: 0.2 - 4 mm²/24 - 12AWG. Fine-stranded conductor: 0.14 - 4 mm²/24 - 12AWG. Stripping length: 11 mm/0.43 inch. Total number of clamping points: 5 Total number of potentials: 1 Wiring Type: Side Wiring Conductor cross-sections single-wire: 0.2 mm². Geometric data. Width: 29.9 mm / 1.177 inches. Height: 8.3 mm / 0.327 inches. Depth: 18.6 mm / 0.732 inches. Material data: Colour: transparent. Flammability cl according to UL 94: V2. Fire load: 0 MJ. Weight: 4.048 g. Environmental conditions Operating ambient temperature: 85°C. Continuous operating temperature: 105°C. T-marking according to EN 60998: T85.
