WADEO Rain Barrel Spigot, Brass Rain Barrel Quarter Turn Ball Valve Spigot with Bulkhead Fitting-Red

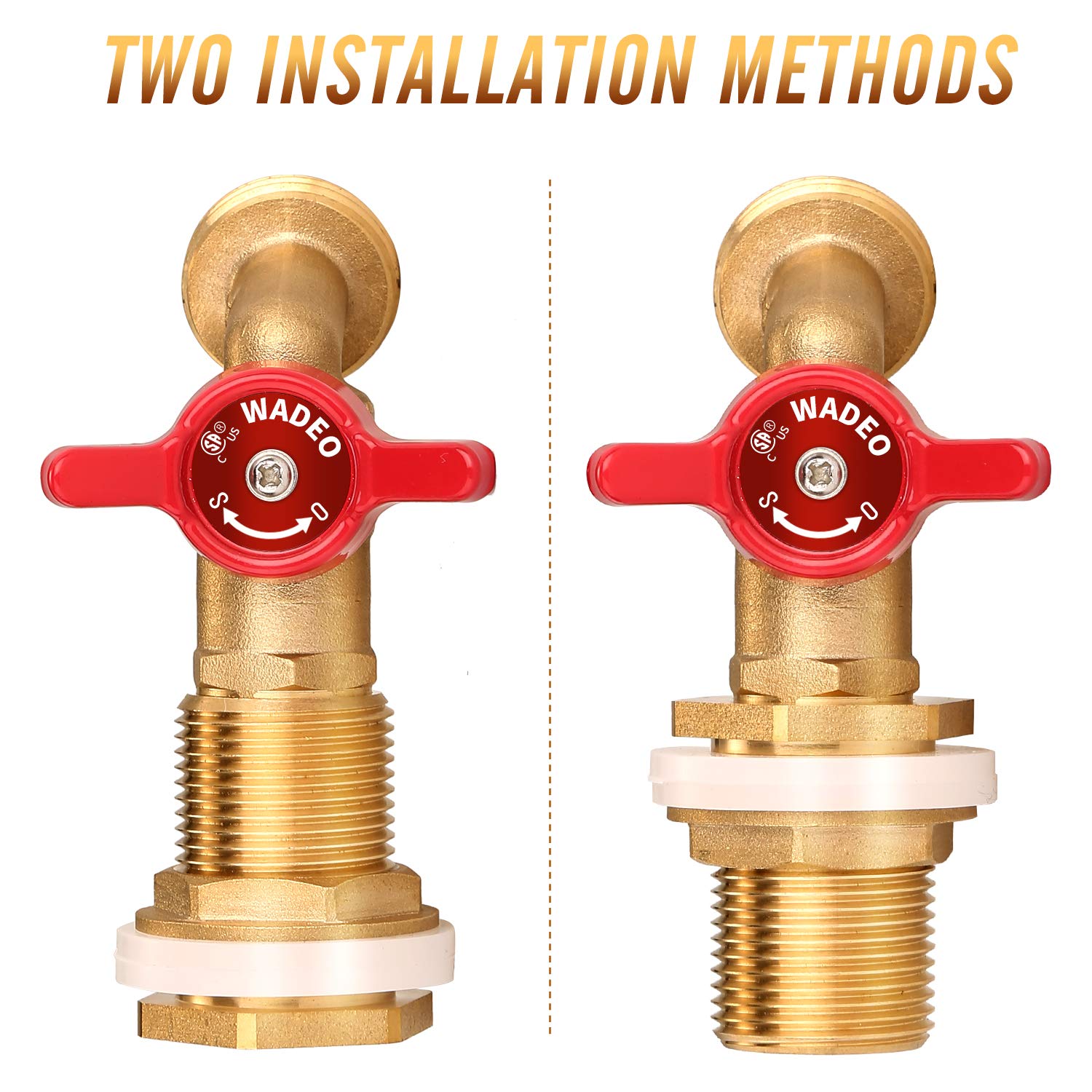

• Heavy Duty 3.14 oz Solid Brass Bulkhead Fitting, 1-1/8 inch female threaded all the way, install spigot on either end. Heavy Duty 1-1/8 inch No Kink Quarter Turn Solid Brass Ball Valve with Garden Hose Hook Up.

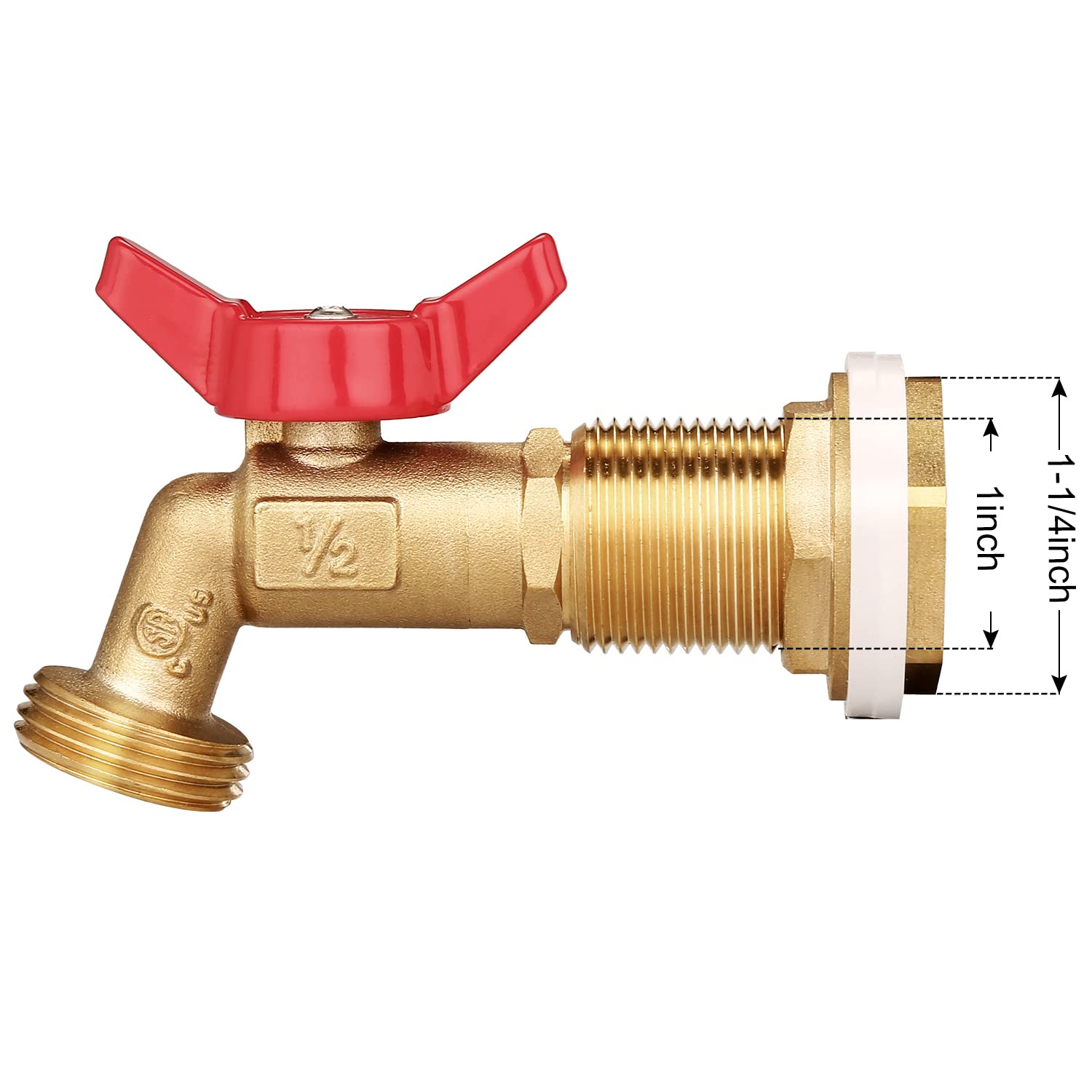

• Bulkhead fittings need 1.10 inch diameter holes to install.Fit up to 0.4 inch thickness wall. Large 10mm Flow Opening, Great Flow Rate at Approx. 15 Second/Gallon or 4GPM, Tested with 2 ft Water.
• Tools needed for installation: electric drill, 1-1/8 inch hole saw, and pipe wrench or adjustable wrench.
• Two washers(8mm between inner ring and outer ring) are effective in preventing leakage.
• International products have separate terms, are sold from abroad and may differ from local products, including fit, age ratings, and language of product, labeling or instructions.

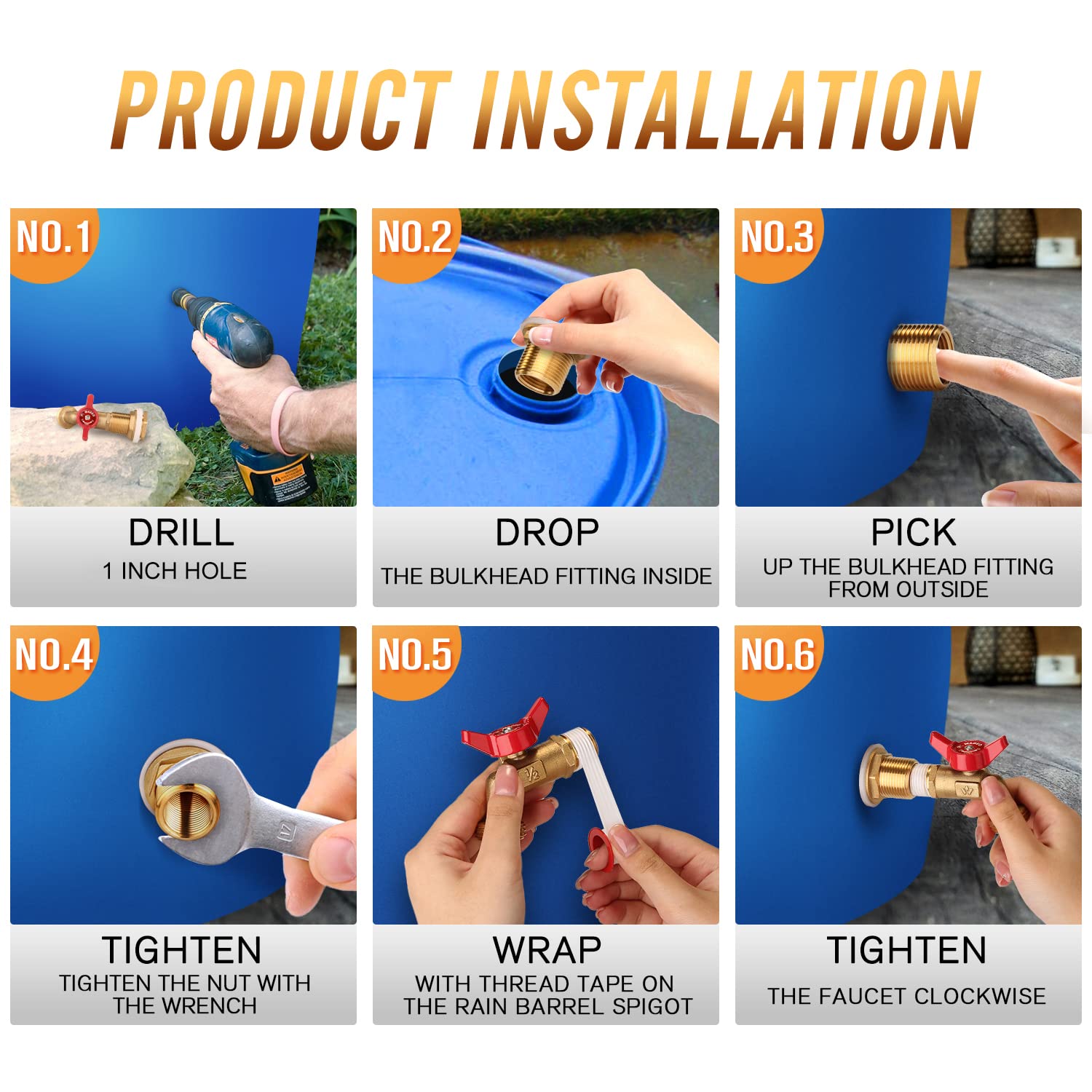

installation procedure Step 1: Drill 1-1/8inch hole. Step 2:Drop the bulkhead fitting inside. Step 3: Pick up the bulkhead fitting from outside. Step 4: Tighten the nut with the wrench. Step 5:Wrap with thread tape on the rain barrel spigot. Step 6:Tighten the faucet clockwise.
