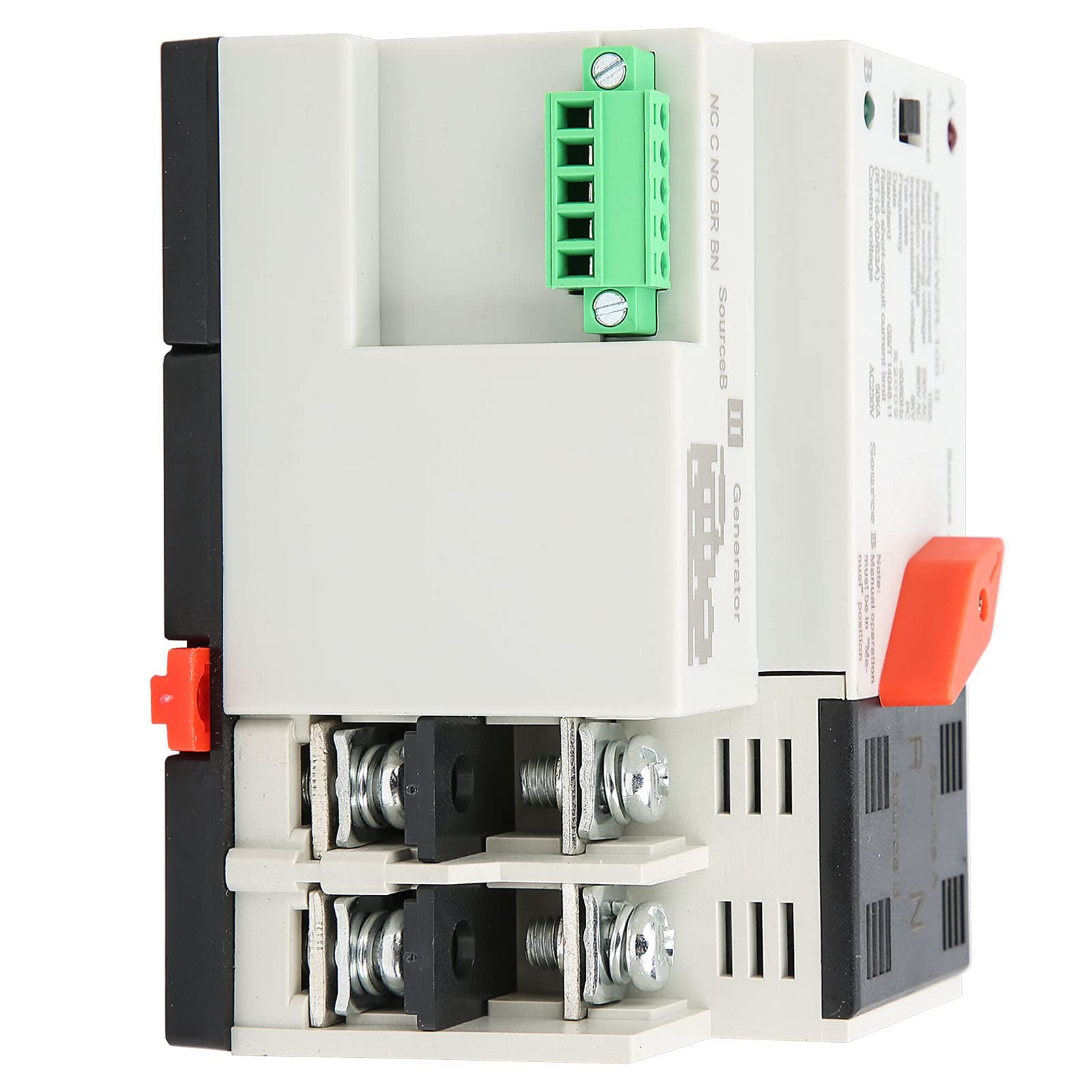

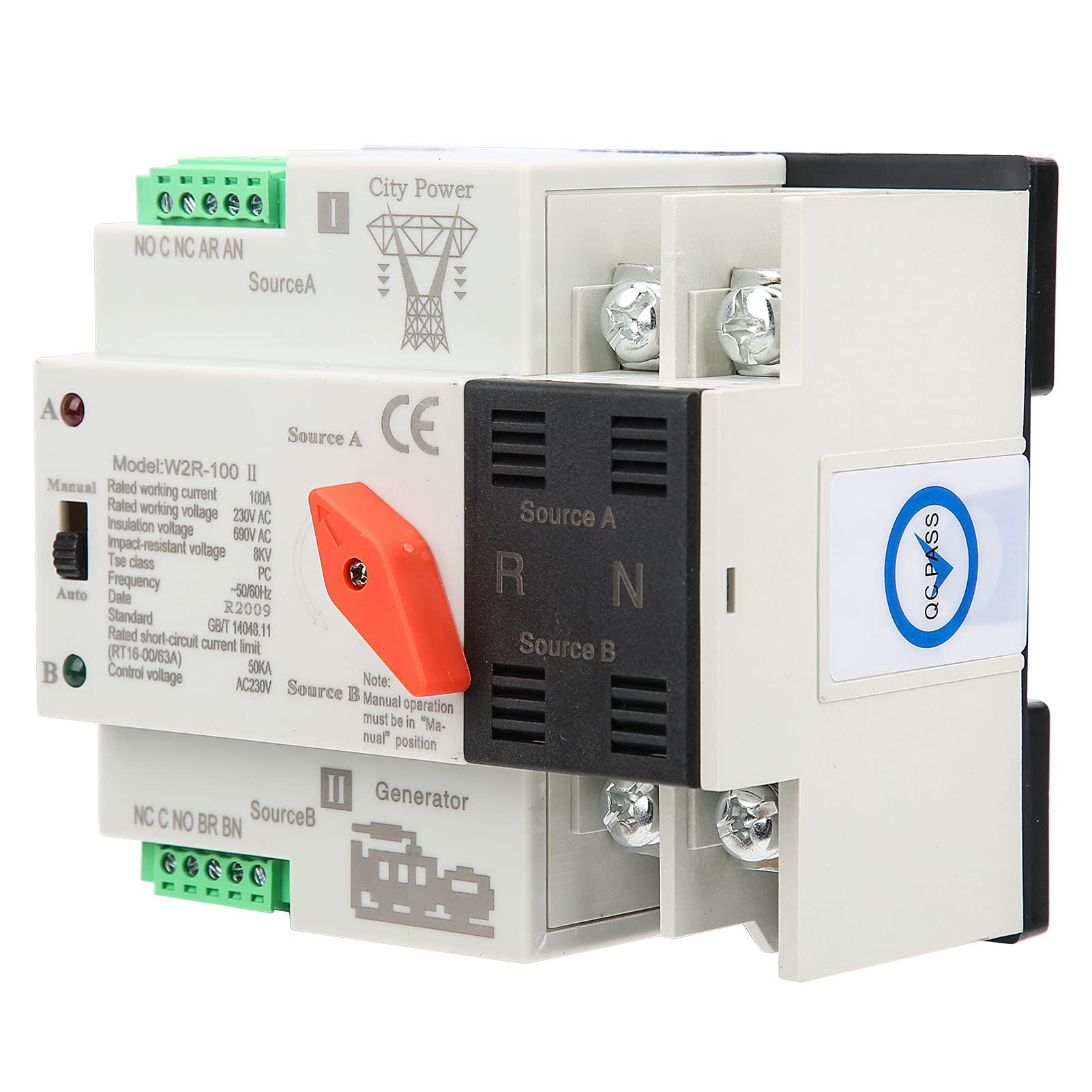

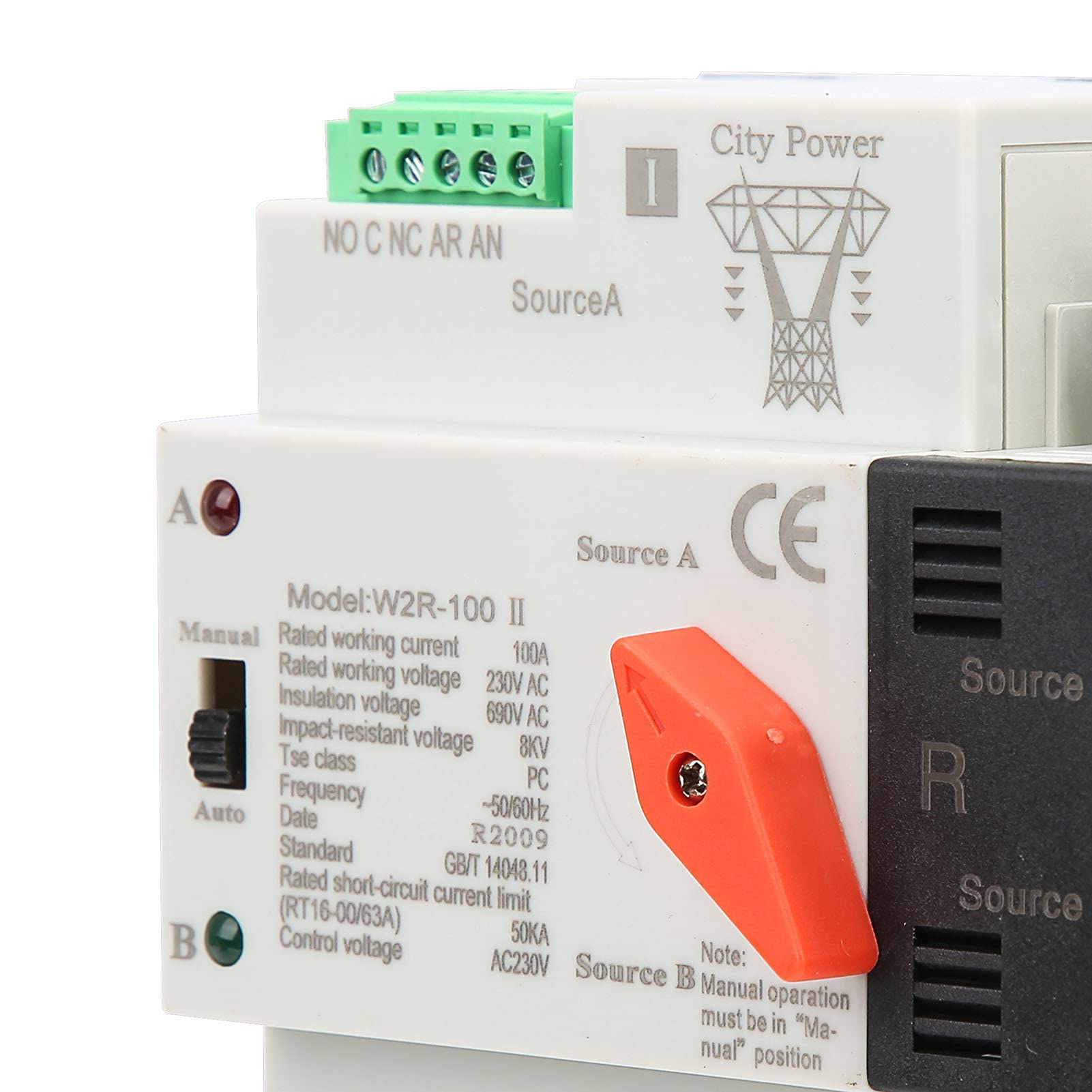

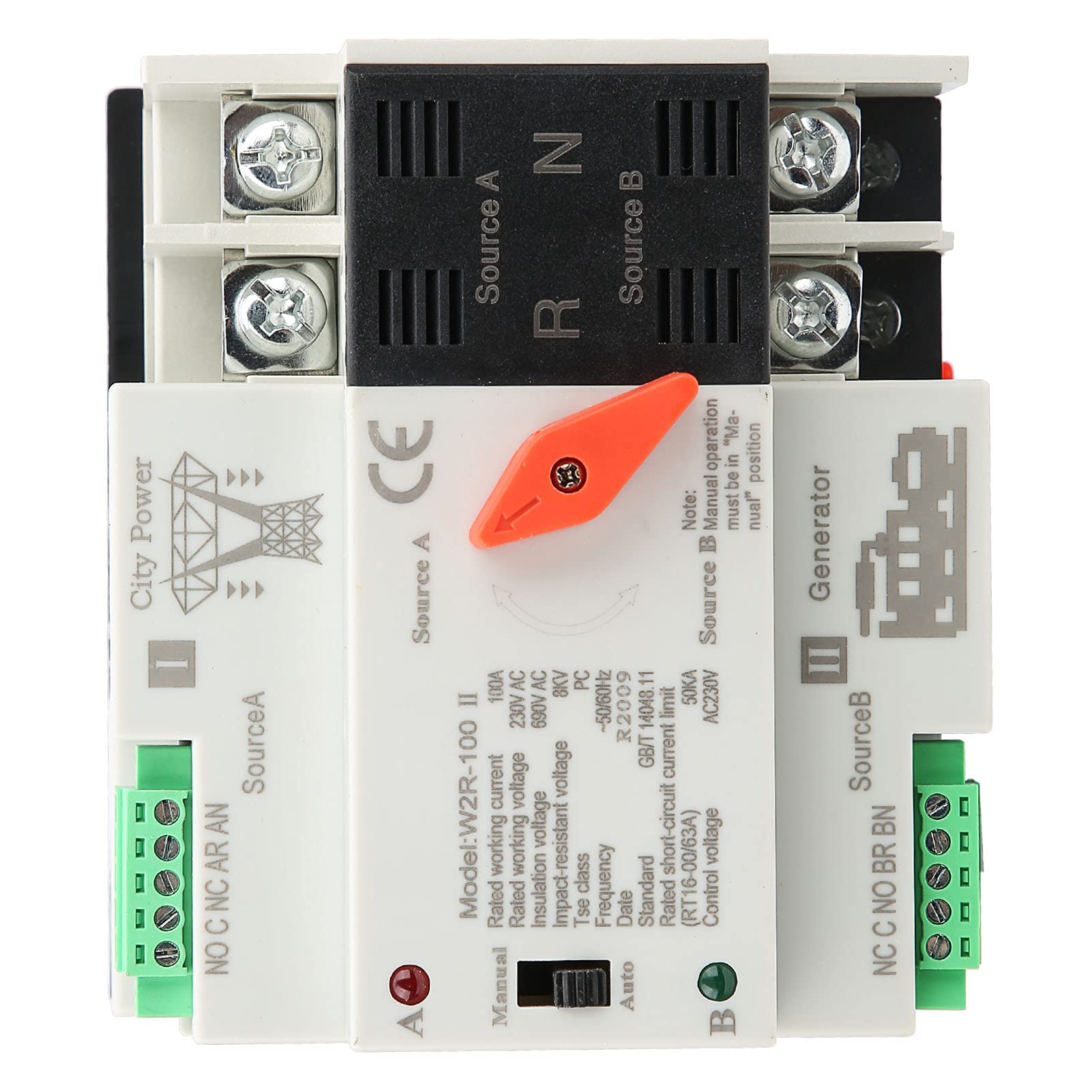

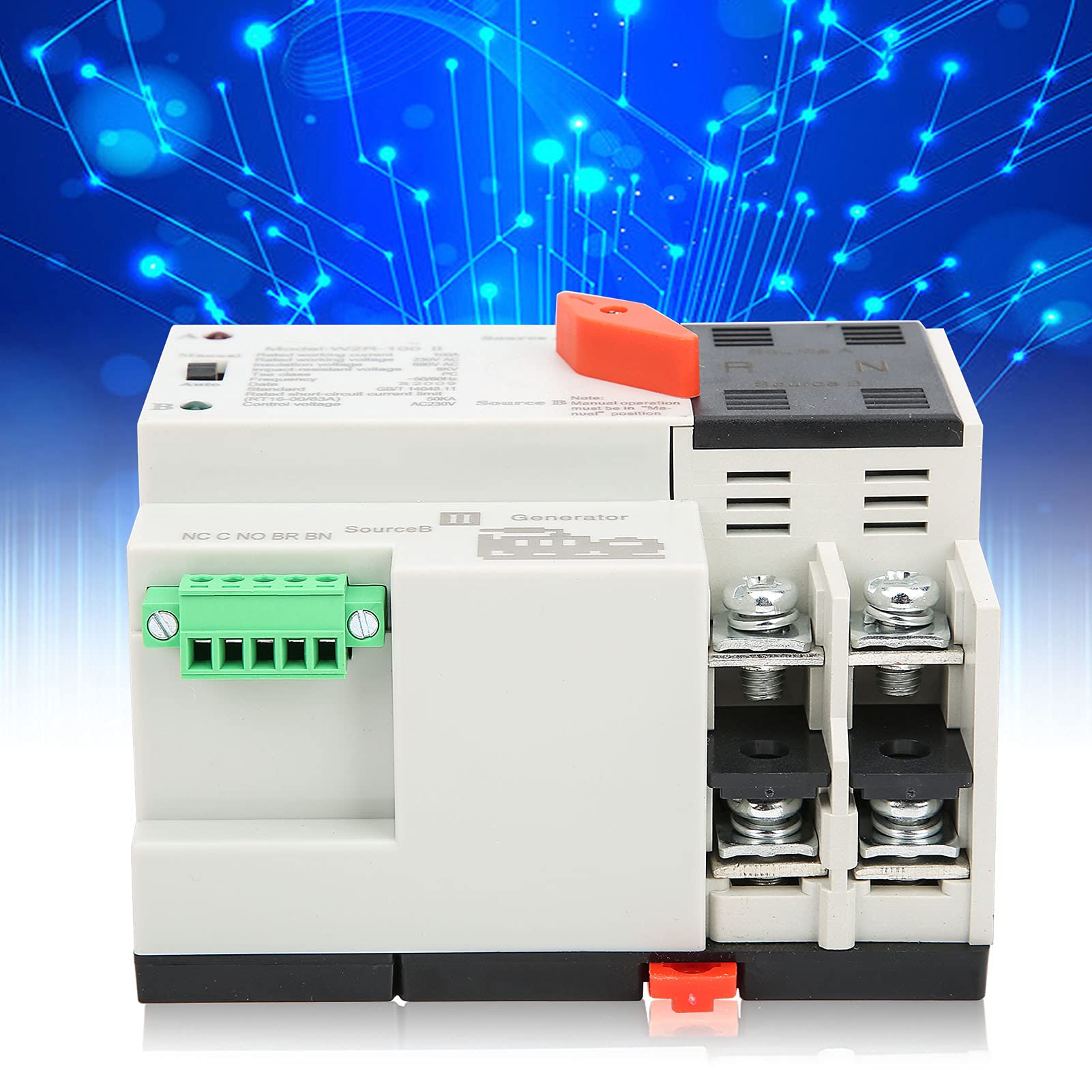

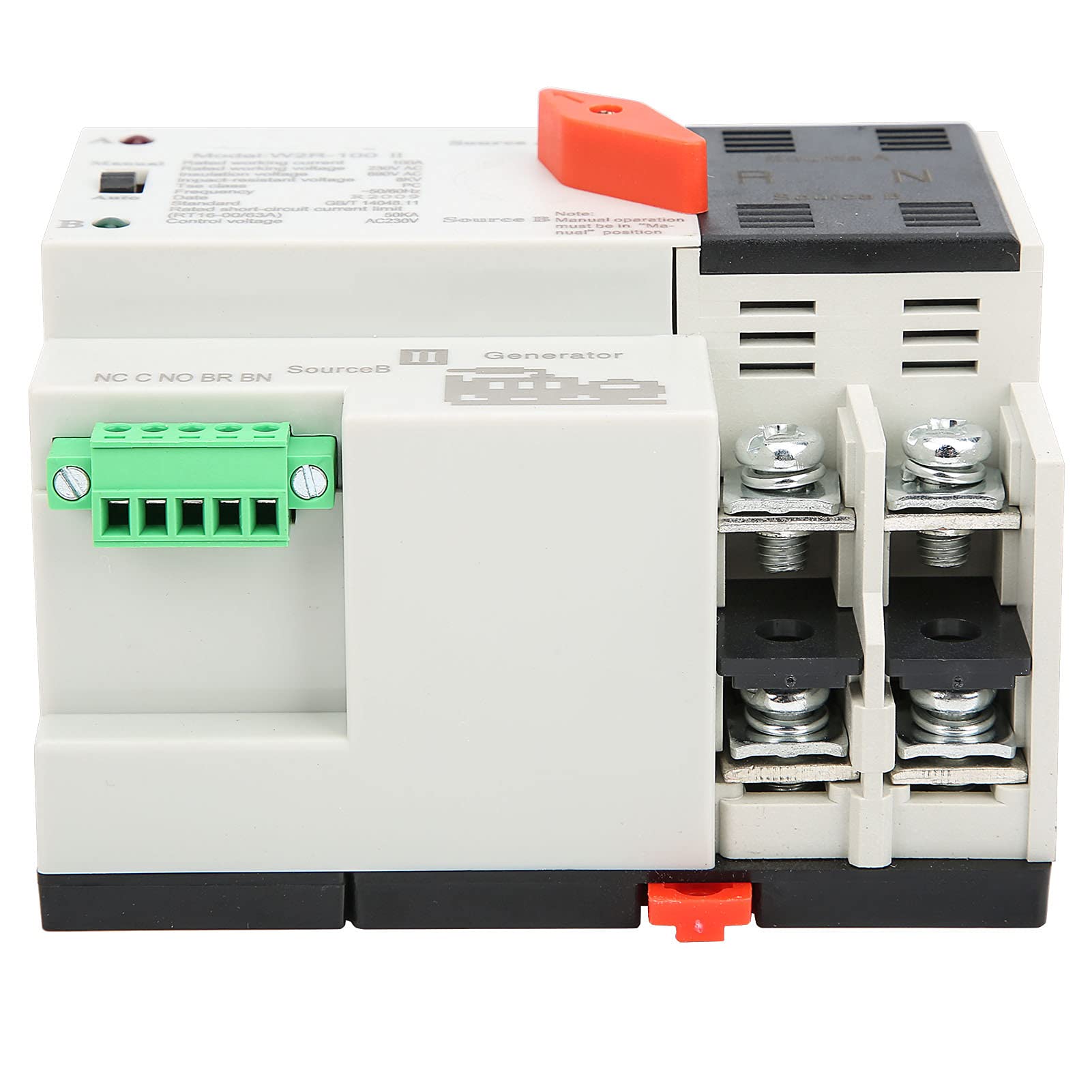

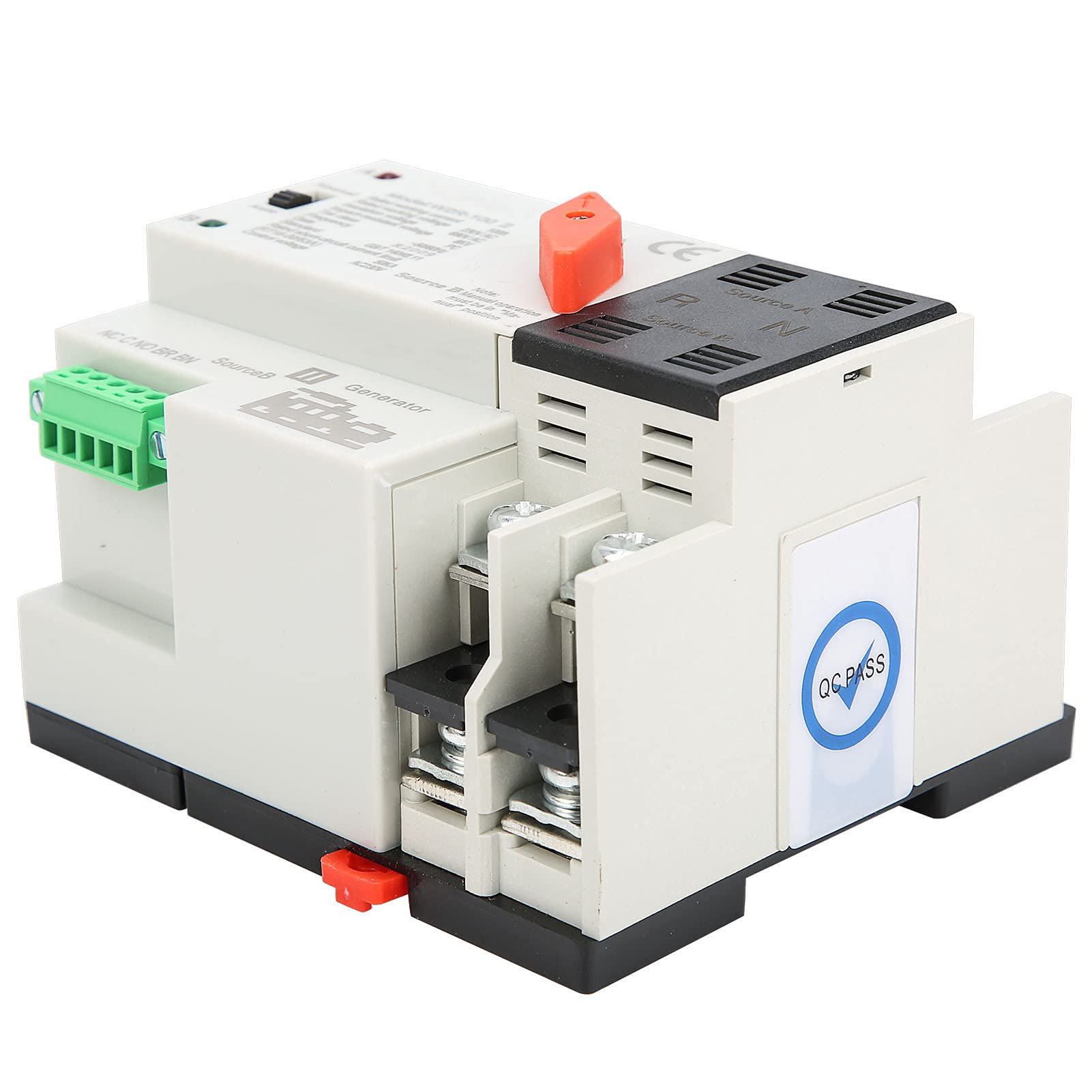

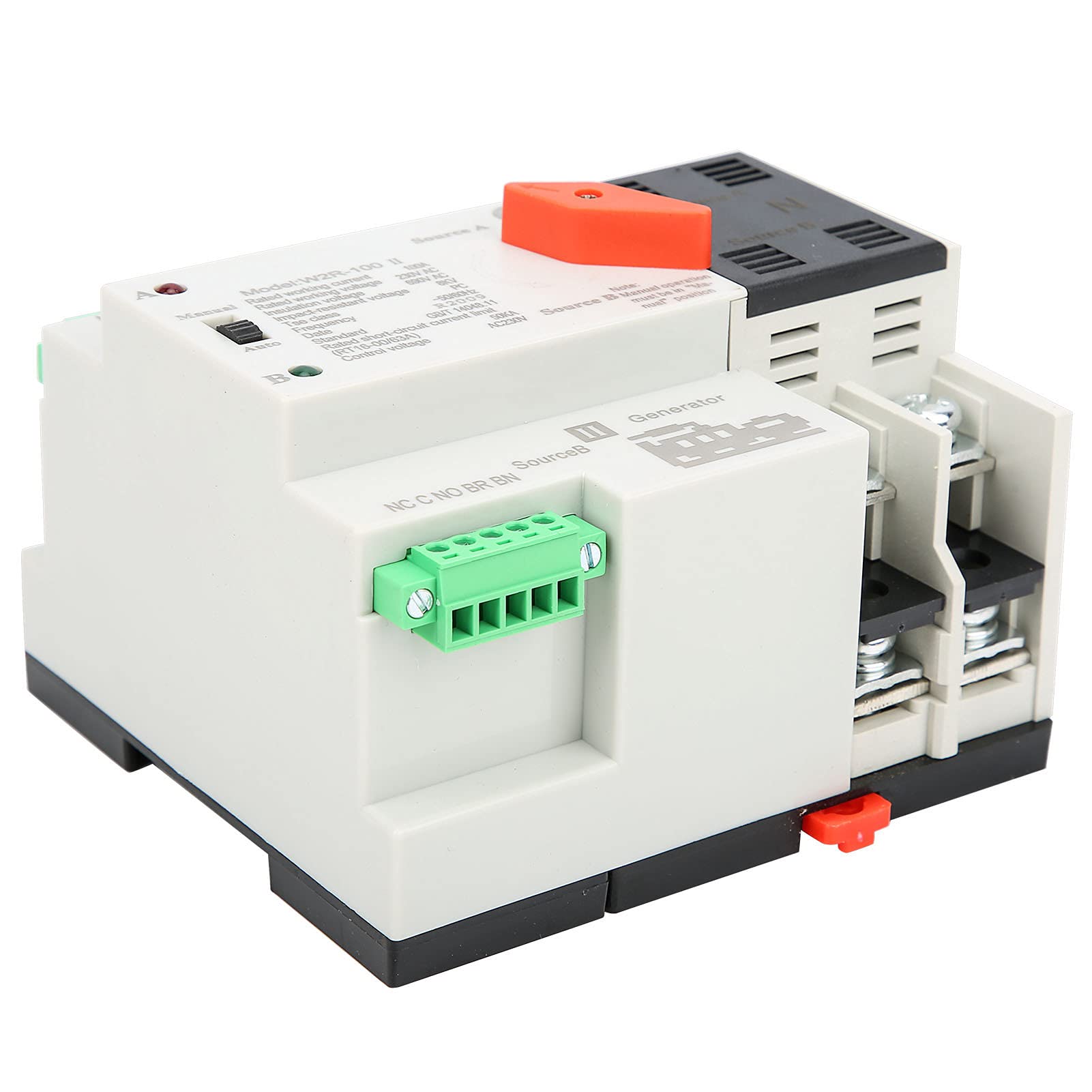

W2R-100 Automatic Transfer Switch 100A 2-Phase 50Hz | Dual Power Supply ATS for Electrical Circuit Protection | Miniature Automatic Changeover Switch

• Designed for home rail-type installations and specifically for PZ30 distribution boxes.
• When the normal power supply is abnormal, the backup power supply will work immediately ensures the continuity, reliability and safety of the power supply.
• Automatic transfer switch suitable for emergency power system with AC power of 50 or 60 Hz and rated current of 400V, 60A.
• ForTSE has compact structure, transmission, convenient installation and maintenance, and long service life.
• ATSE consists ofTSE and controller, widely used in various places that do not allow continuous power failure.

Specification: Item Type: Dual Power Automatic Transfer Switch Model: W2R-100 Rated Current Ie: 100A Insulation Voltage Ui: AC690V, 50Hz Rated Voltage Ue: AC400V, 50Hz Grade: PC Grade: Can be connected and withstood, without breaking short-circuit current Use Category: AC-31B Pole: 2P Life: Electrical: 2000 Times; Mechanical: 5000 times Rated Condition Short Circuit Current: 50kA SCPD RT16-00-63A Rated Impulse Withstand Voltage: 8kV Control Circuit: Rated Control Voltage Us: AC220 V, 50Hz Correct Working Conditions: 85% Us-110% Us Auxiliary Circuit: 2 independent relays, each relay includes 2 sets of transformer contacts Contact Capacity: AC220V 50Hz Touch Time: <50ms Operation Transition Time: <50ms Return Time: <50ms Off Time: <50ms Package List: 1 x Switch 1 x User Manual Note: For TSE was instantly excited. After the transfer is complete, the internal switch will damage the coils in the control circuit.The coil can work normally under 85% -110% of the rated operating voltage. Too low voltage in the coil may cause the coil to heat up and burn out.
