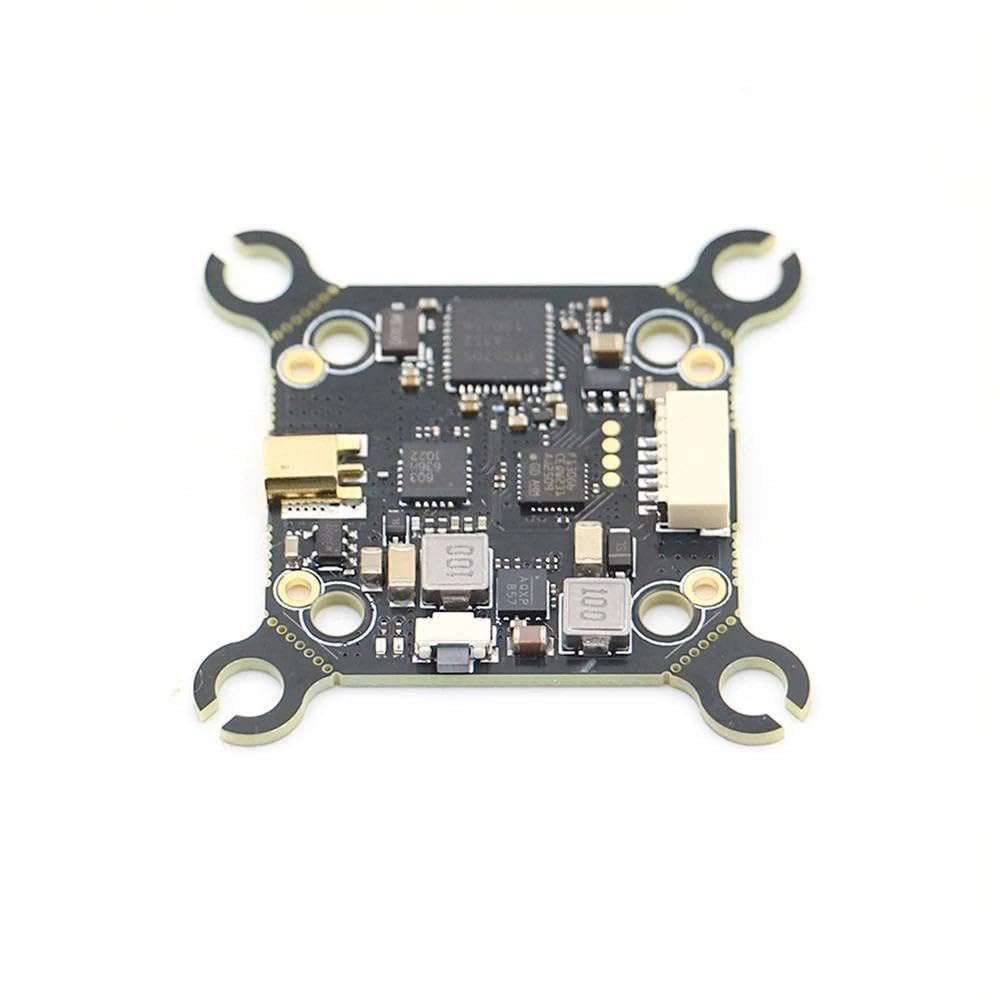

VTX1000 5.8G 1W/48CH VTX Simulate high-Power Image Transmission 7-26V 25/400/1000mW for RC Airplane FPV Drone (TX1000 1PC)

• Image transmission will generate a large amount of heat during work. Please ensure that it works in a well ventilated environment. Overheated environments can cause image transmission to malfunction. Contact with image transmission May cause burns.
• Please ensure that all cables and plugs are installed correctly. Incorrect connections or virtual soldering short circuits may cause the product to malfunction or damage. Before connecting the power, please Confirm the correct installation of the antenna at the RF output end of the image transmission.
• It is recommended to choose an antenna with better standing wave ratio and gain effect to obtain better signal quality.
• Material construction withstands high temperatures

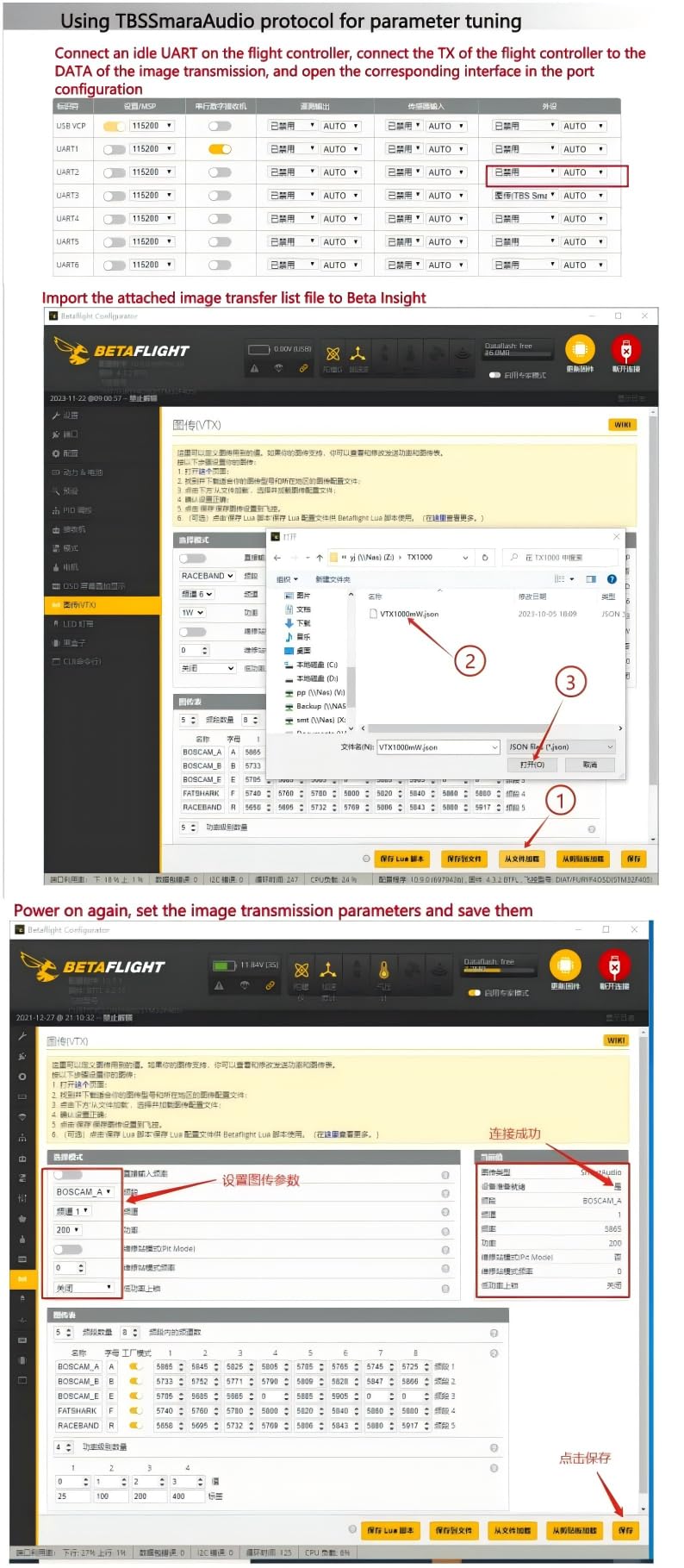

Itme:VTX1000 5.8G 1W/48CH VTX Simulate high-power image transmission Model: TX1000 Working Temperature:-25c°-105C° Input Voltage: 7-26V Control Protocol:TBS SmarAudio On-Board BEC Output: 5V Antenna Connector: MMcX Number of Transmission Channels: 48 Connection Mode: SH1.0-8P TransmittingPower:25/100/200/400/1000mW Installation Hole: 20mm & 30.5mm VideoFormat:PAL/NTSC Size:(29mm*29mm) &(37.5mm*37.5mm) Package Included: VTX1000 5.8G VTX *1 or VTX1000 5.8G VTX *1 Lollipop 5 RHCPR 100mm MMCX-S Black *1 or VTX1000 5.8G VTX *1 Lollipop 5 RHCPR 150mm MMCX-A Black *1
