VSDISPLAY 7 inch TB070-I5024H45C-02 1024x600 IPS LCD Screen 50 pin and Controller Board

• 【Screen Advantages】This 400nit IPS TTL screen is well made with full viewing angle. Display Area 154.21 × 85.92 (H×V)mm,Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC.
• 【LCD Controller Board】Audio: Earphone 3.5x1.35mm ,(Speaker :8ohm 2W PH1.25 connector ) ,Please use in insulated environment.
• 【Power 】 PH2.0 Micro USB,Input Power Adapter: 5Vdc More than 2A Mirco-USB Connector.(Pls prepare power adapter by yourself)

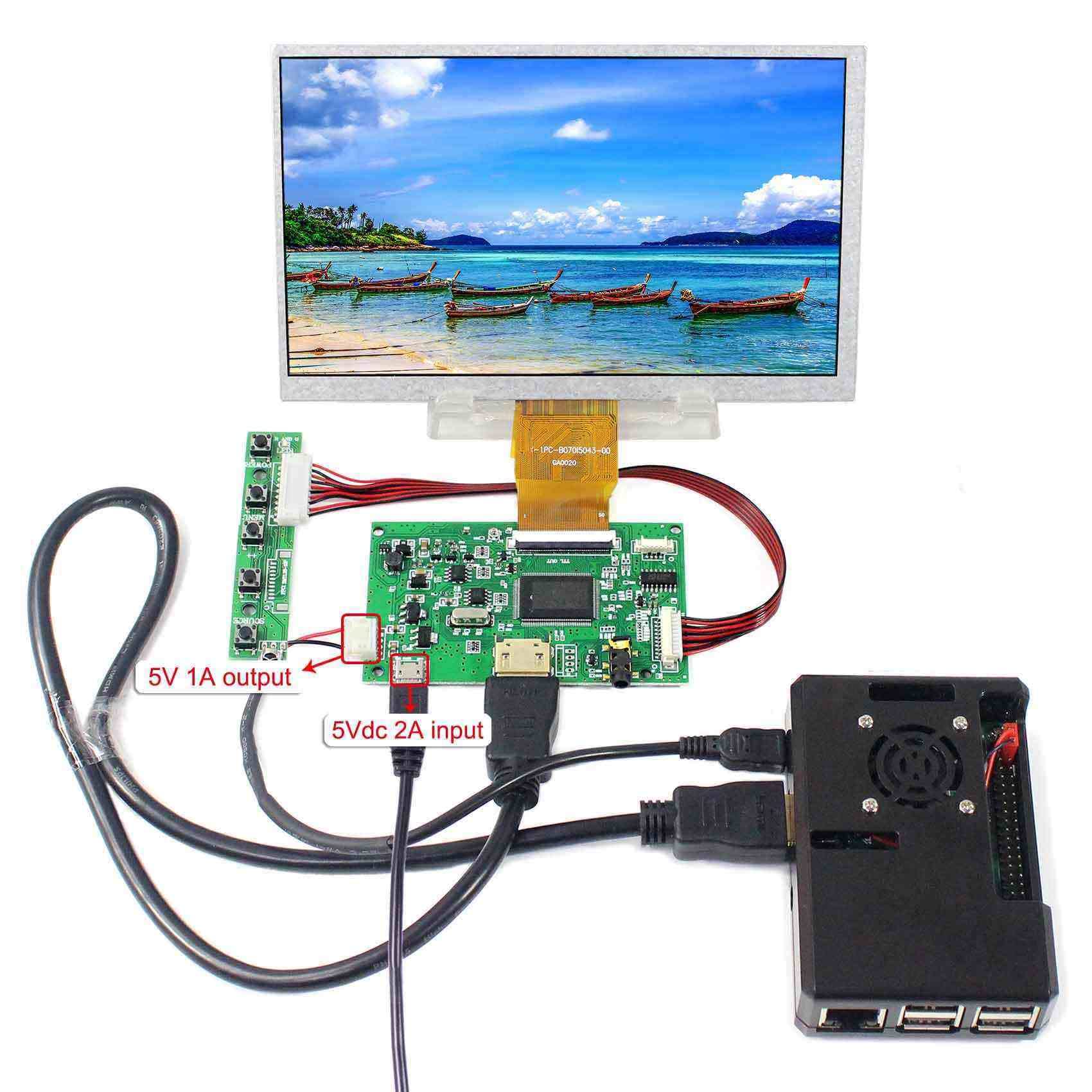

• 【Plug and play】Connecting cables and ports according to link picture details ,the screen can work well after powering.

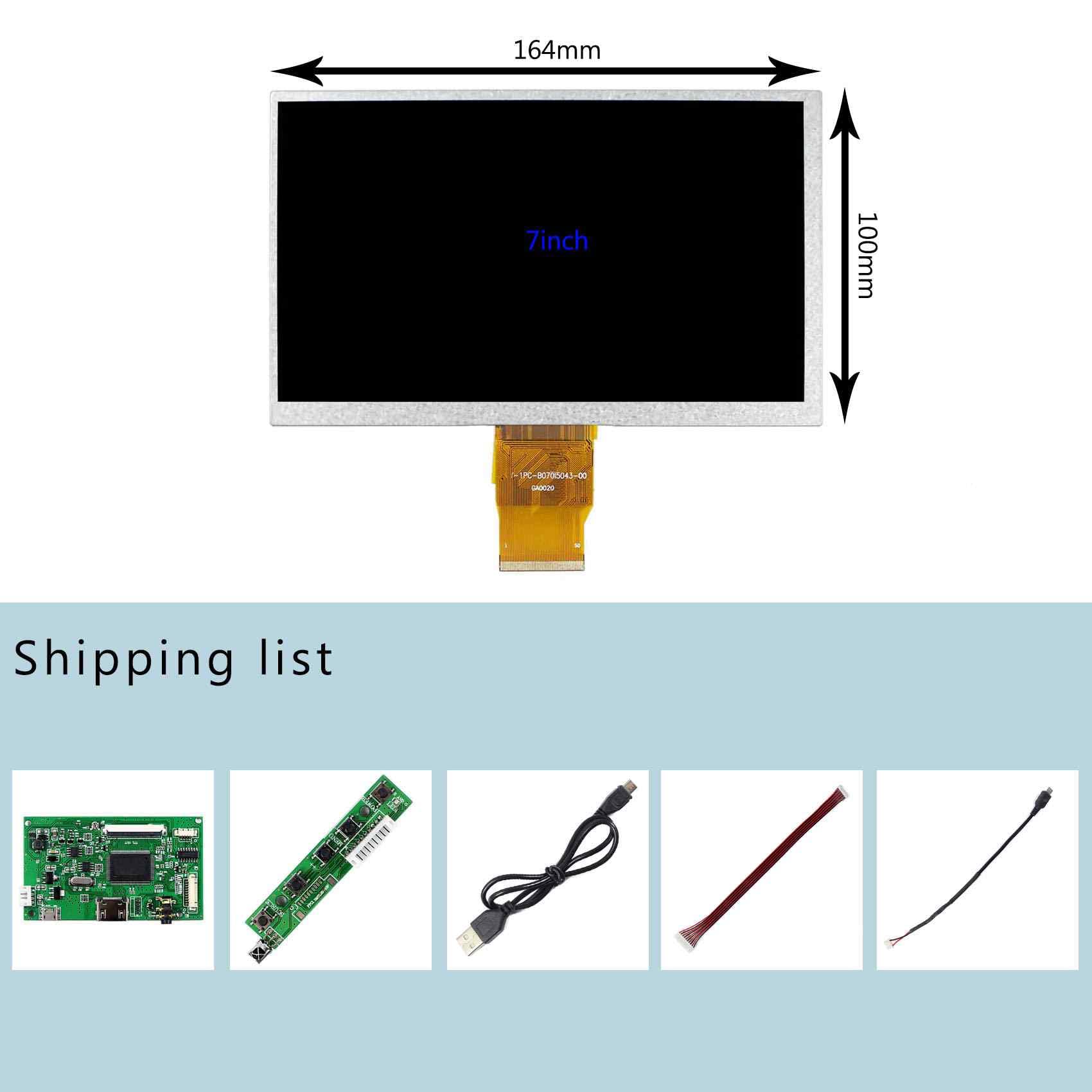

• 【Packing lists】1× LCD Controller Board VS-TY2660H-V812,1× 7inch TB070-I5024H45C-02 1024X600 IPS LCD Screen,1× USB Power Cable,1× Mirco-USB Power Cable ,1× Keyboard With Cable

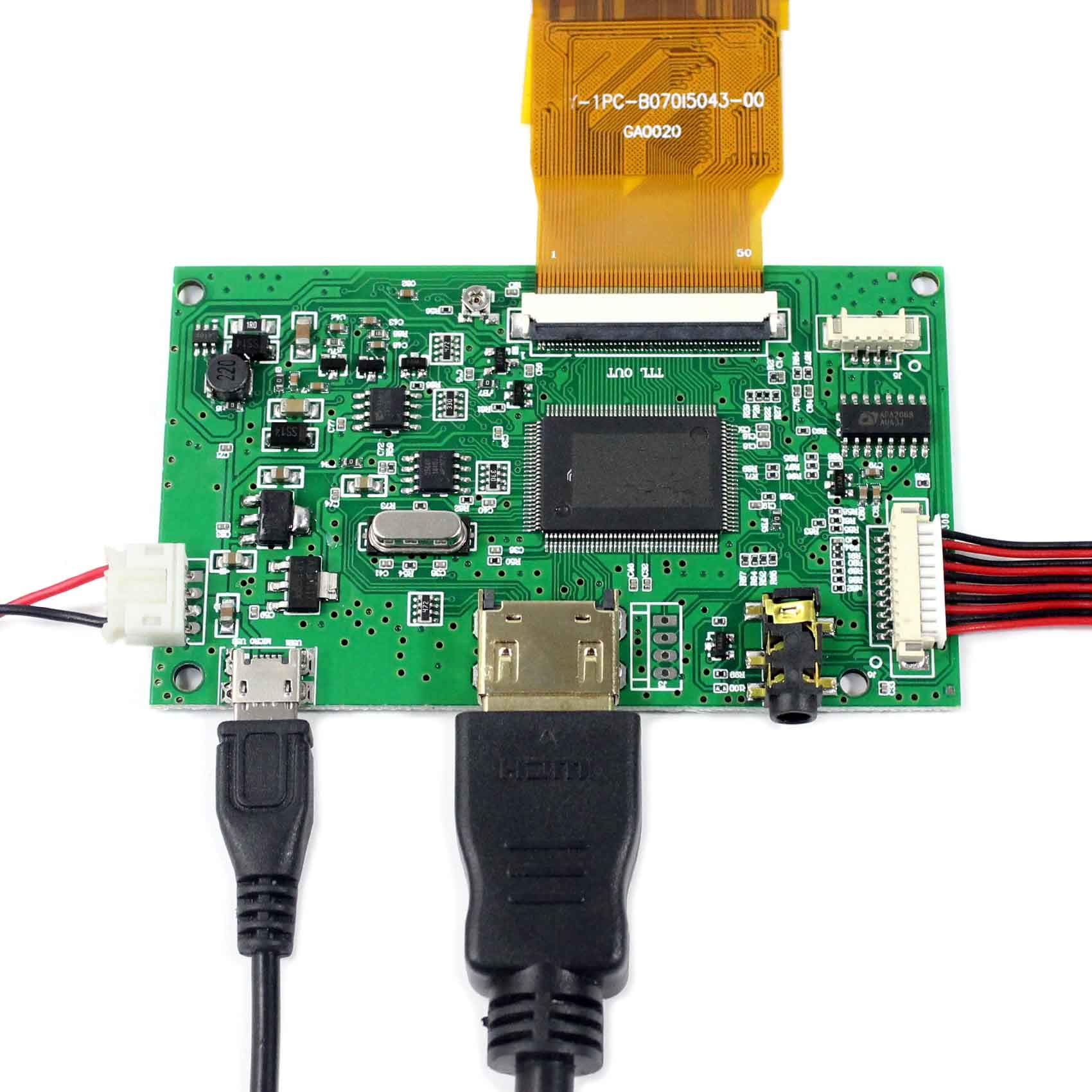

LCD Controller Board: LCD Board Work for 50P TTL Interface LCD Screen Power Connector: PH2.0 Micro USB Input Power Adapter: 5Vdc More than 2A Mirco-USB Connector Support 5V 1A Power For PH2.0 Connector Come In Standby Model When Not Input Standby Model <1W Video Input: Audio: Earphone OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 88mm x 53mm x 7mm 7" TB070-I5024H45C-02 1024X600 IPS LCD Screen: Display Mode IPS, Normally Black, Transmissive Resolution 1024RGB)×600 Outline Size 164.9× 100×3.5 (H×V×D) Display Area 154.21 × 85.92 (H×V) Brightness 400 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down] Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC Backlight WLED Input Voltage 3.3V (Typ.) Packing list : 1× LCD Controller Board 1× 7inch TB070-I5024H45C-02 1024X600 IPS LCD Screen 1× USB Power Cable 1× Mirco-USB Power Cable 1× Keyboard With Cable
