VSDISPLAY Audio LVDs Control Board for 21.5 inch 1920x1080 LM215WF3-SLA1 30pin WLED LCD Screen

• Video Input: audio ,Audio Output: Speaker (4Pin PH1.25 connector),Please use in insulated environment.
• Input power supply:12V DC more than 2A ,port size: 5.5x2.1mm. (power adapter not included in package ,should be prepared by yourself) .
• Compatible screen model no.:this board can only work with 21.5inch 1920x1080 LM215WF3-SLA1 LVDs LCD screen.
• Before purchasing, Pls confirm your Display model firstly, which mark at the back side of the panel label,need to open the rear case to check.

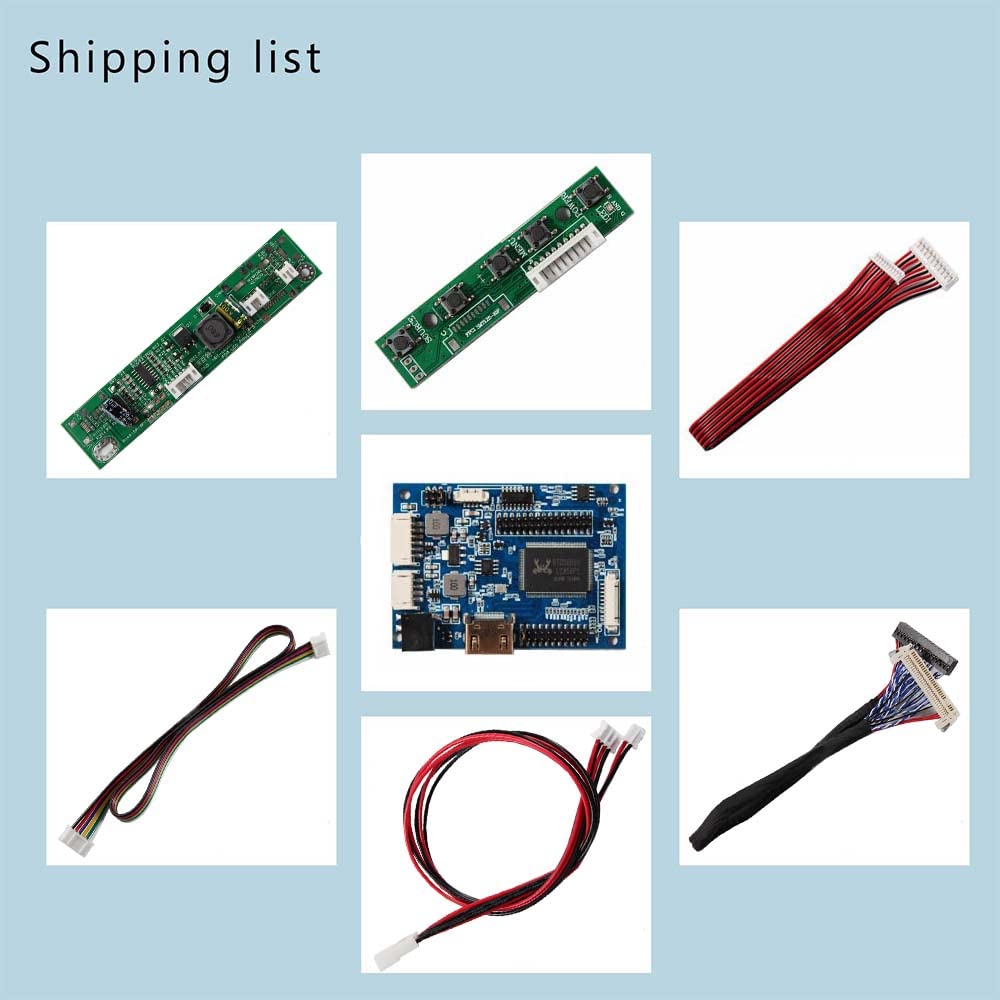

• Packing list:1× LCD Controller Board ;1× Backlight Cable;1× LVDS Cable;1× Keyboard With Cable

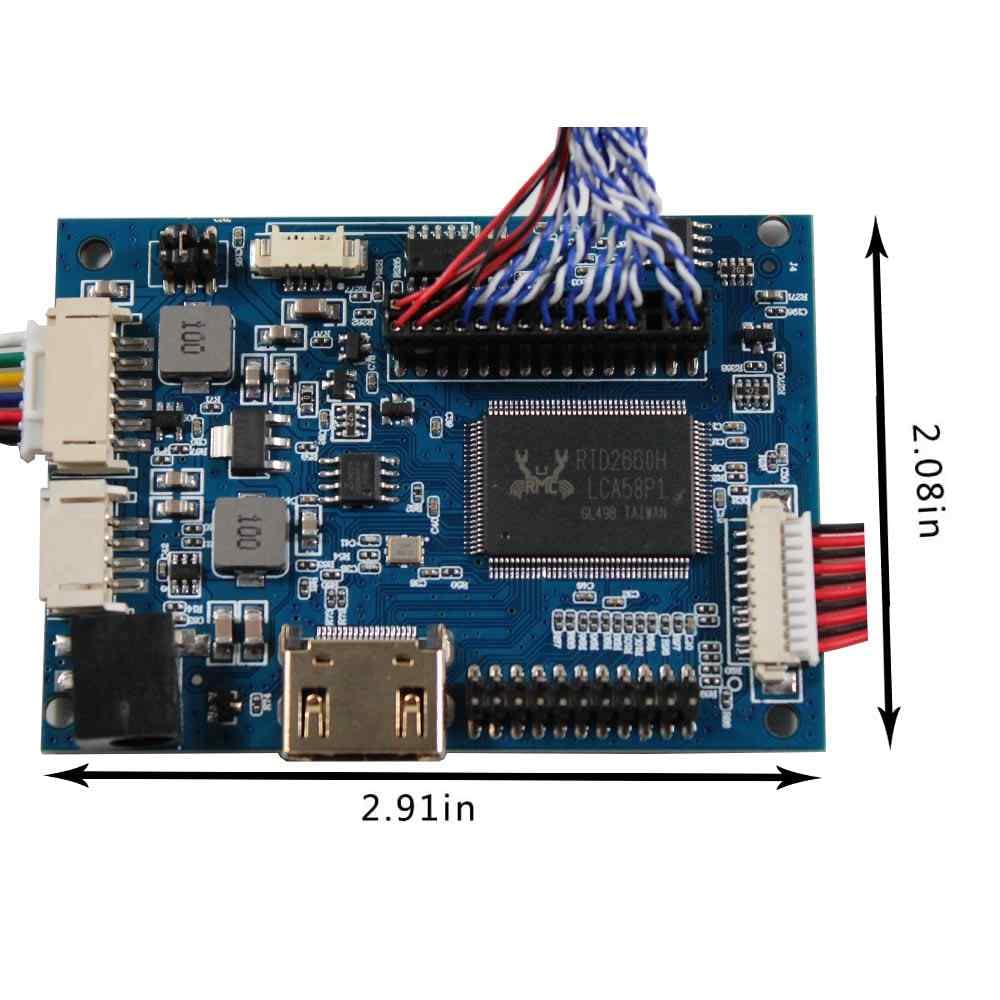

LCD Controller Board: LCD Board Work for LVDS Interface LCD Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W Video Input: Audio Input: Audio Output: Speaker (4Pin PH2.0 connector) OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 74mm x 53mm x 12mm Compatible Work With: 21.5inch 1920x1080 LM215WF3-SLA1 Packing list : 1× Audio LCD Controller Board VS-TY2660H-V661 1× LVDS Cable 1× Backlight Cable 1× Keyboard With Cable
