VSDISPLAY 9.7 inch 2048x1536 2K mini IPS LCD Screen and Controller Board,for Retro Video Games,Wall-mounted

• 9.7 inch eDP display with full viewing angle,Picture quality is great.You will be very pleased with how vivid the colors are. Display Area 196.608 × 147.456 (H×V),Interface 51 pins eDP (4 Lanes) , Backlight WLED
• Video Input: Version 1.4,Audio Output: Earphone Support Speaker 4ohm 2W or 8ohm 1.5W. Please use in insulated environment.

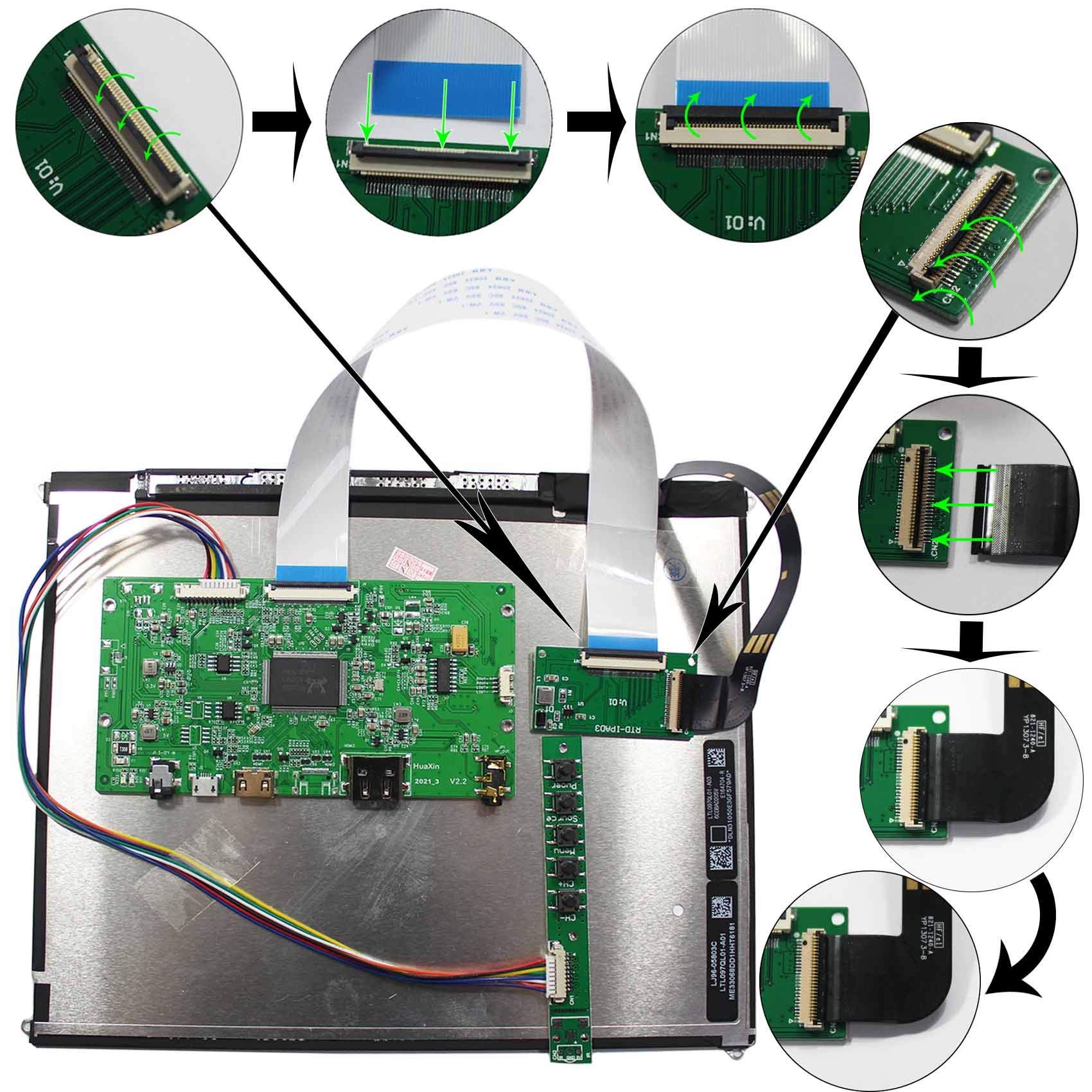

• Play and plug function : Connecting cables and ports according to link picture details ,the screen can work well after powering.
• Input power : DC Connector 3.5mmx1.35mm 5~12Vdc Mirco USB 5Vdc,pls prepare power supply by yourself.

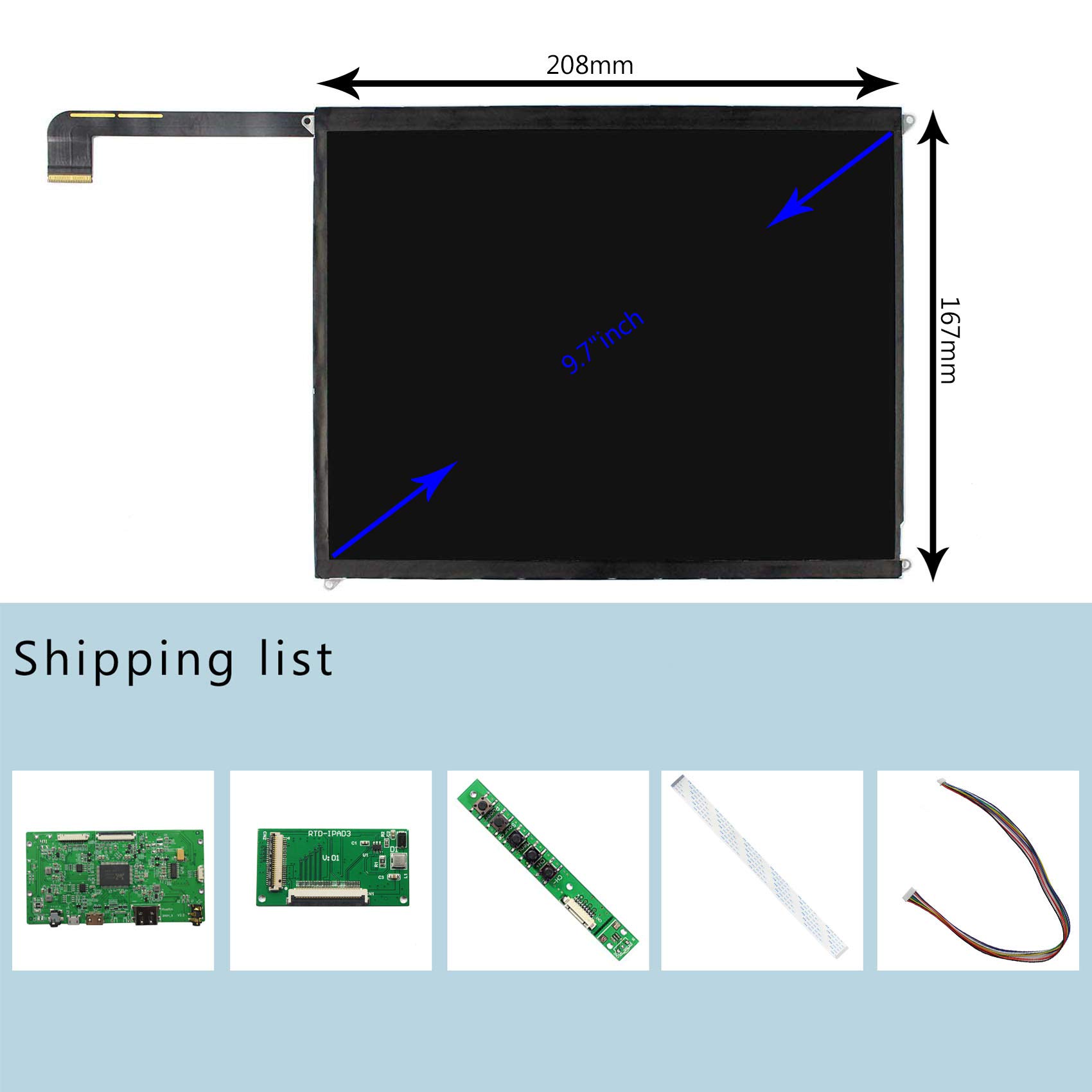

• Packing list :1× LCD Controller Board VS-RTD09703-V1，1× 9.7inch 2048x1536 IPS LCD Screen(One of LP097QX1 LTL097QL01 HQ097QX1)<br/>1× Converter Board，1× Cable，1× Keyboard With Cable

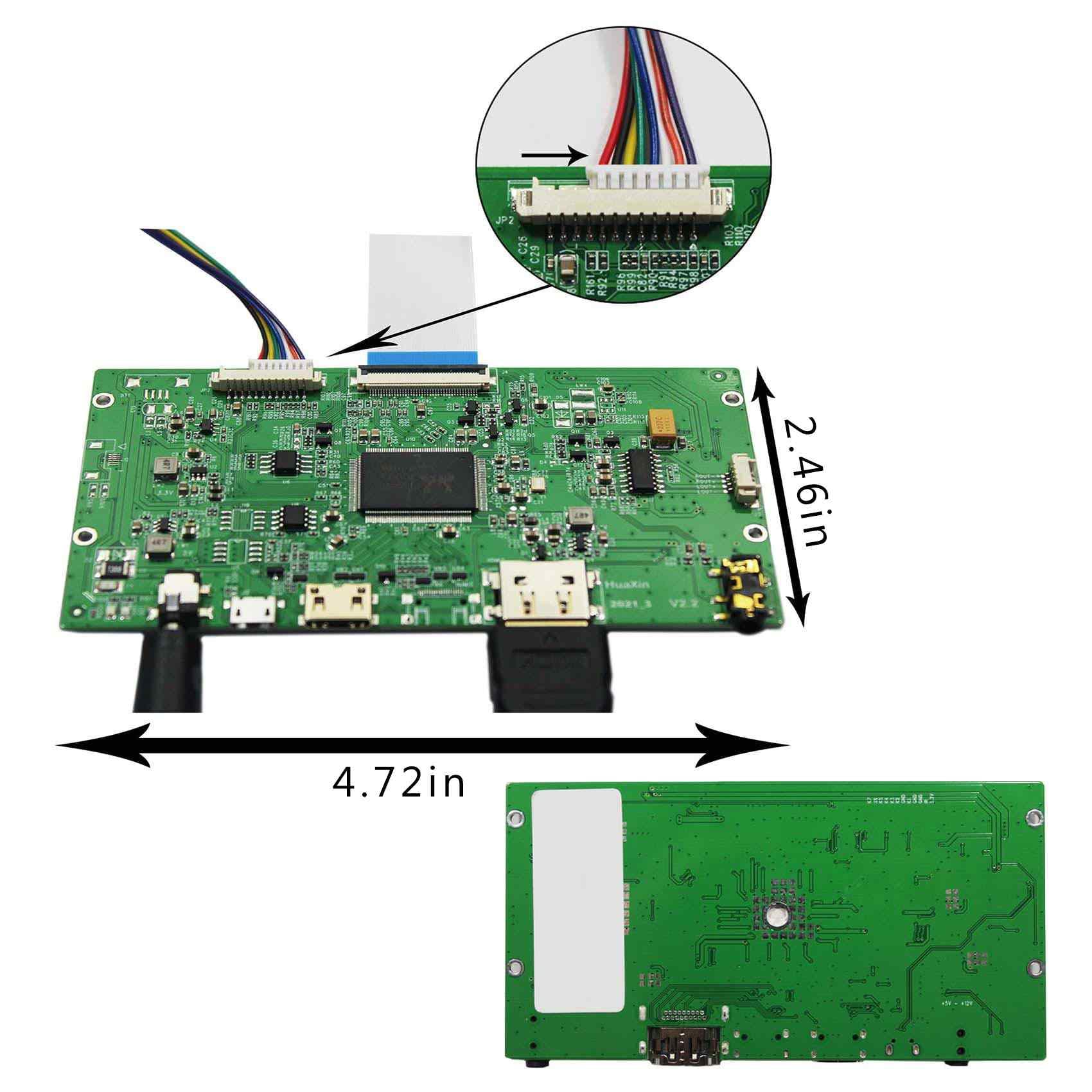

LCD Controller Board: LCD Board Work for 9.7inch eDP Interface LCD Screen Input Power Supply: DC Connector 3.5mmx1.35mm 5~12Vdc Mirco USB 5Vdc Come In Standby Model When Not Input Signal Standby Model <1W Video Input: Mini Version 1.4 Mini Audio Output: Earphone Support Speaker 4ohm 2W or 8ohm 1.5W OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 120mm x 62.5mm x 5mm 9.7" 2048X1536 LCD Screen: Display Mode IPS, Normally Black, Transmissive Resolution 2048RGB)×1536 Outline Size 208.88 × 167.12×5 (H×V×D) Display Area 196.608 × 147.456 (H×V) Brightness 440 cd/m² (Typ.) Contrast Ratio 600:1 (Typ.) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down] Interface 51 pins eDP (4 Lanes) , FPC Backlight WLED Input Voltage 3.3V (Typ.) Packing list : 1× LCD Controller Board VS-RTD09703-V1 1× 9.7inch 2048x1536 IPS LCD Screen(One of LP097QX1 LTL097QL01 HQ097QX1) 1× Converter Board 1× Cable 1× Keyboard With Cable
