VSDISPLAY 7 inch CLAA070MA0ACW 800x600 4:3 60 Pin TTL LCD Screen Monitor and Controller Board

• 【Screen Advantage】7" 800×600 4:3 LCD Screen CLAA070MA0ACW: Display Area 141mm× 106mm, Brightness 250 cd/m2 ,Contrast Ratio 500:1,Viewing Angle 70/70/50/70 ,Interface TTL , FPC , 60 pins ,Backlight WLED ,Input Voltage 3.3/9.6/18/-6V
• 【LCD Controller Board 】 Support transfer Audio , Please use in insulated environment.
• 12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare power adapter by yourself.

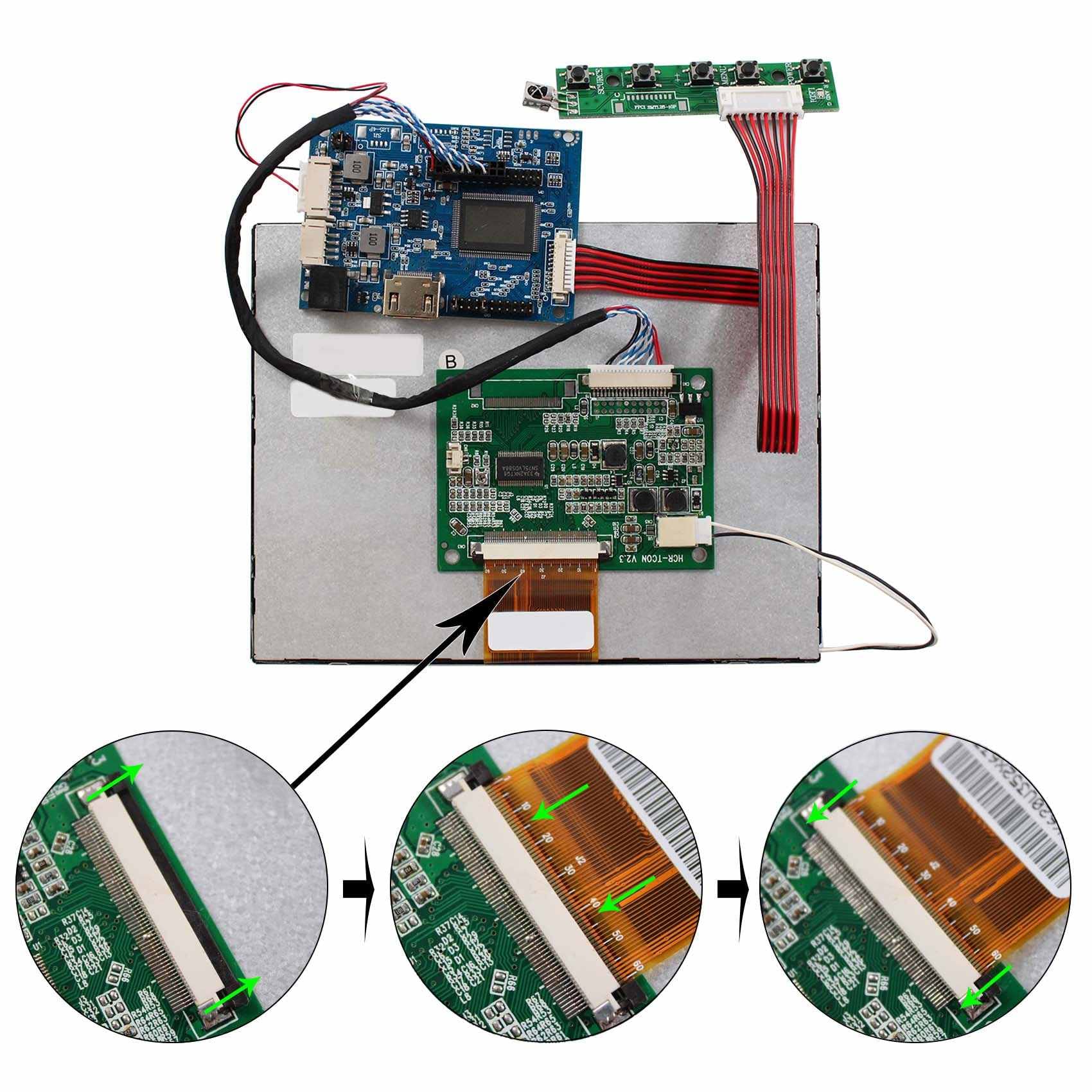

• 【Plug and play】Connecting the cables and port as link picture details ,the screen can work well .Any problem ,Pls provide some connecting pictures to showing the problem .We will give you best solution in 12 hours.
• Any problem ,Pls provide some connecting pictures to showing the problem .We will give you best solution in 12 hours.

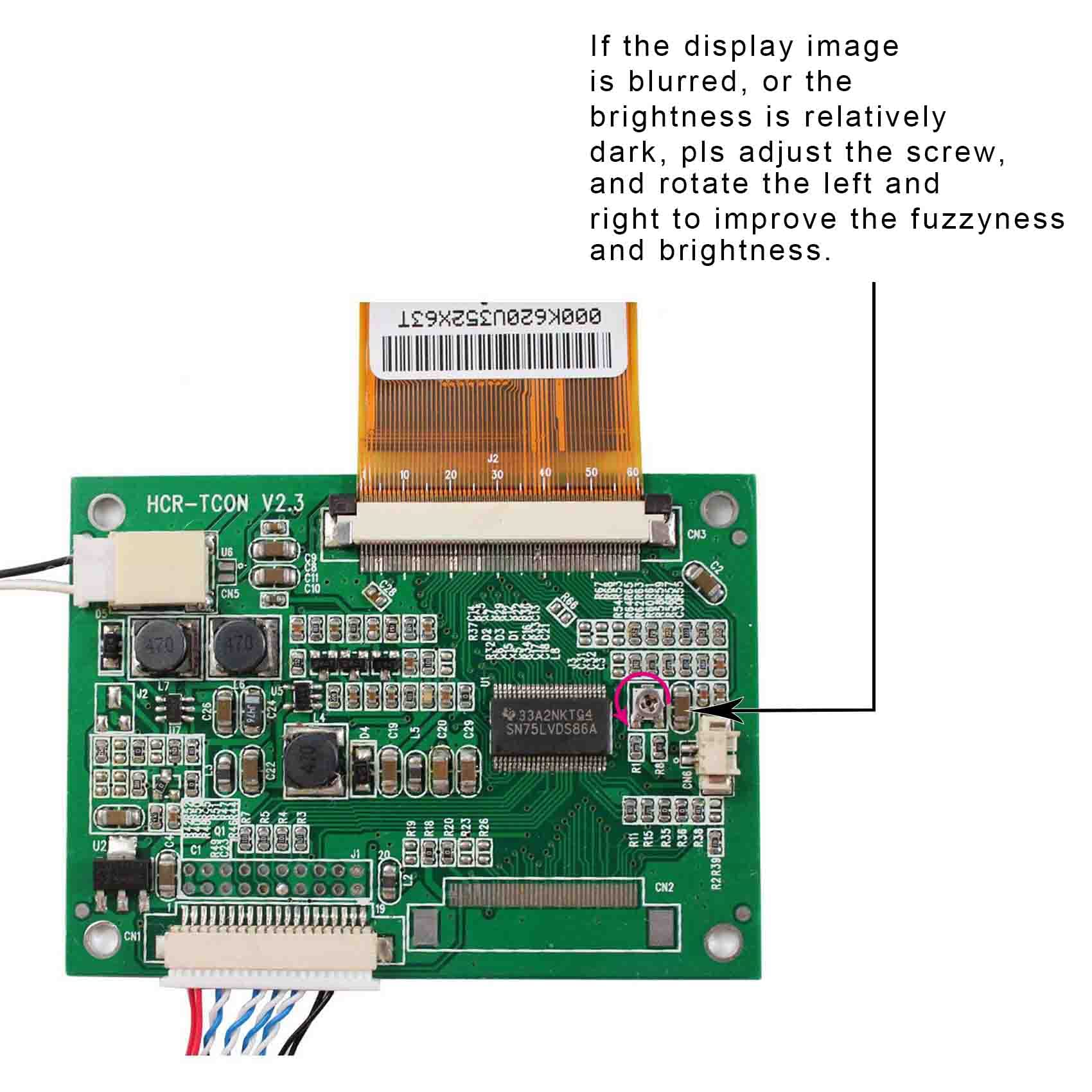

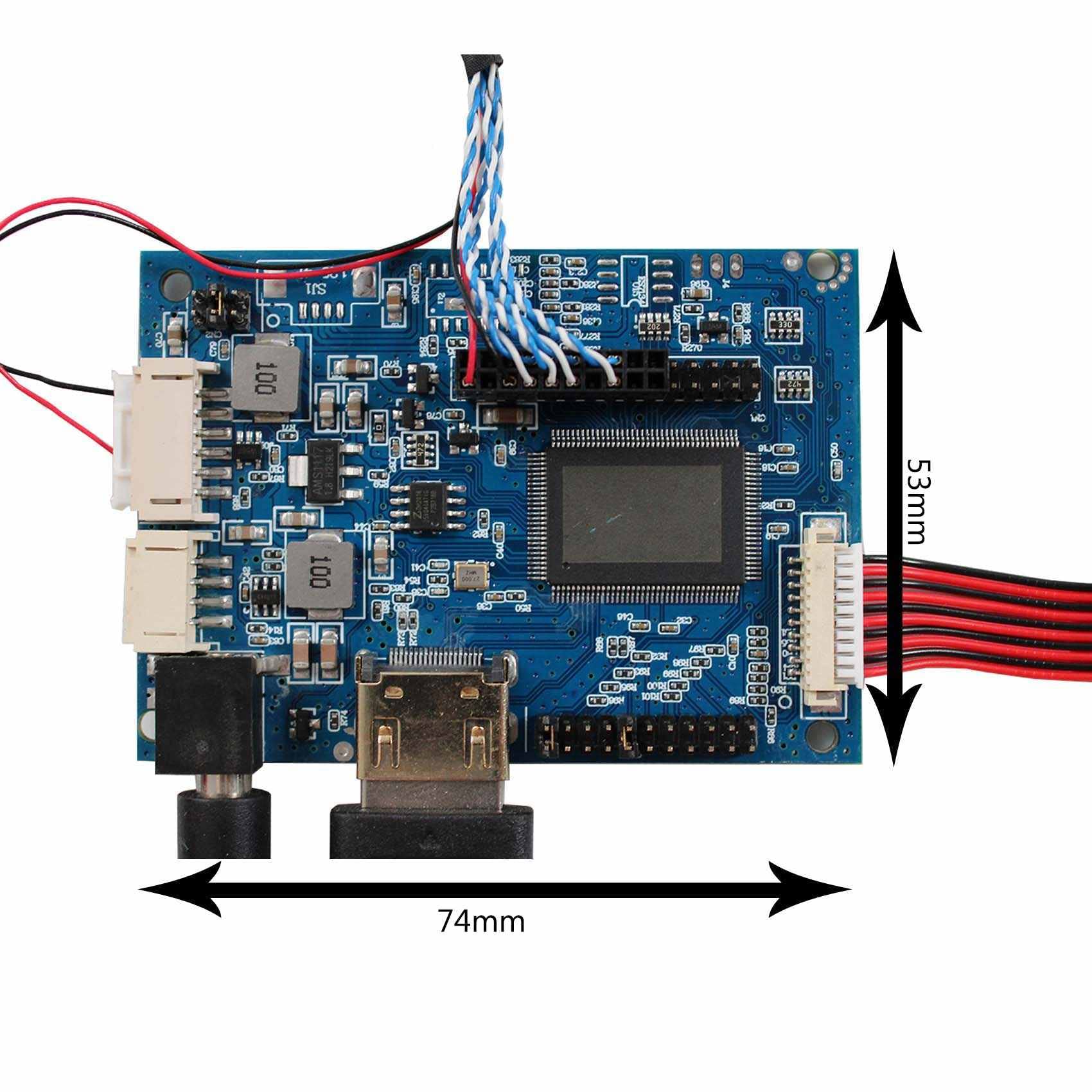

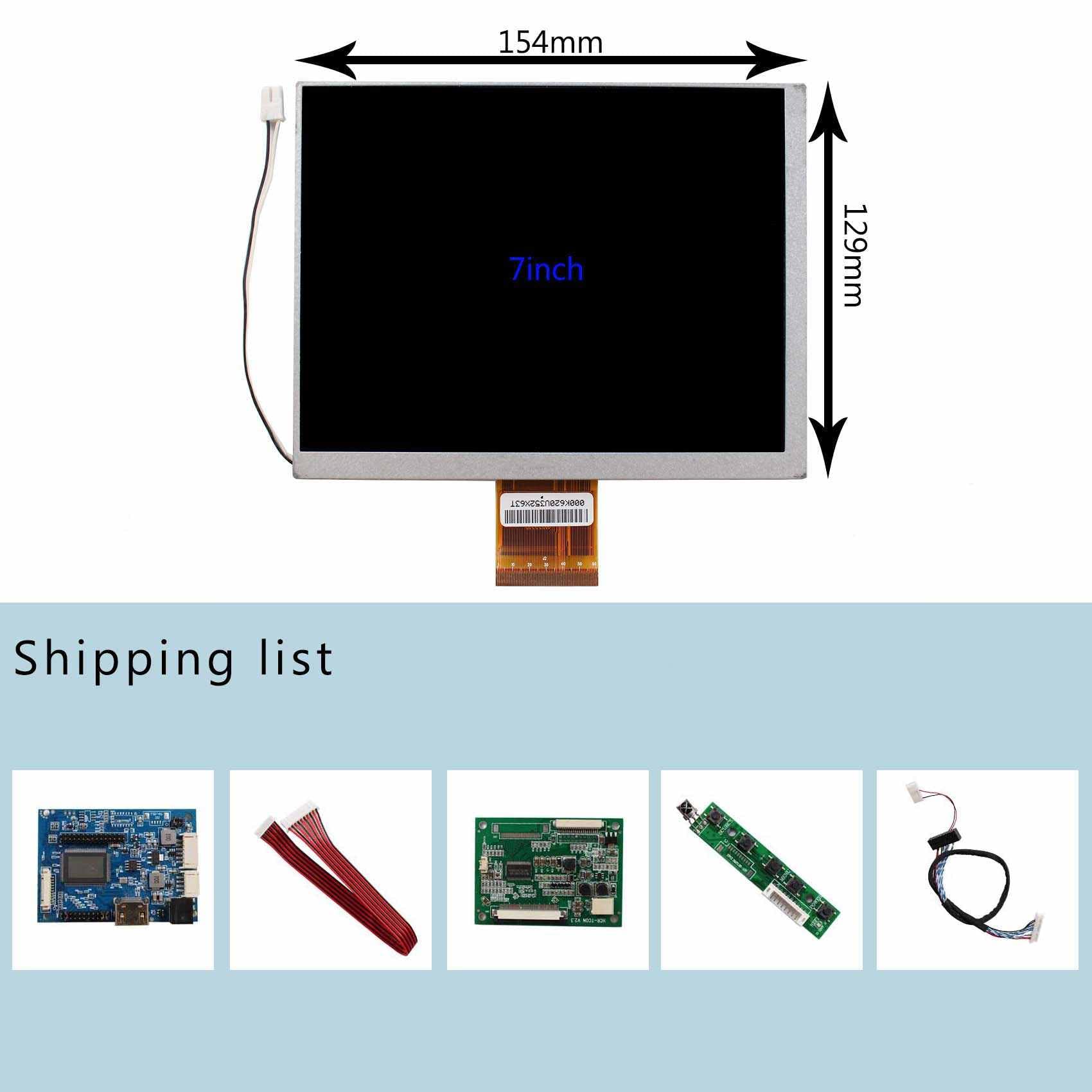

LCD Controller Board:; LCD Board Work for LVDS Interface LCD Screen; Input Power Adapter:12Vdc More than 2A.; Come In Standby Model When Not Input Signal; Standby Model<1W; Video Input:; OSD: Brightness Contrast Auto Language And So On; Language:;English French German Spanish Italian And So On; Board Size:74mm x 53mm x 12mm 7" LCD Screen CLAA070MA0ACW : Display Mode N, Normally White, Transmissive Resolution 800RGB)×600 Outline Size 154 × 119.2 × 5.4 (H×V×D) Display Area 141.6 × 106.2 (H×V) Brightness 250 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) ; Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down] Interface TTL (1 ch, 6/8-bit) , FPC , 60 pins; Backlight;WLED Input Voltage;3.3/9.6/18/-6V (Typ.)(VCC/AVDD/VGH/VGL) Packing list : 1× LCD Controller Board VS-TY2660H-V1 1×7inch;CLAA070MA0ACW 800X600;4:3;LCD Screen 1×;LVDS-TTL Tcon Board HCR-TCON-V2 1× Cable 1× Keyboard With Cable; 1×;Remote Controller
