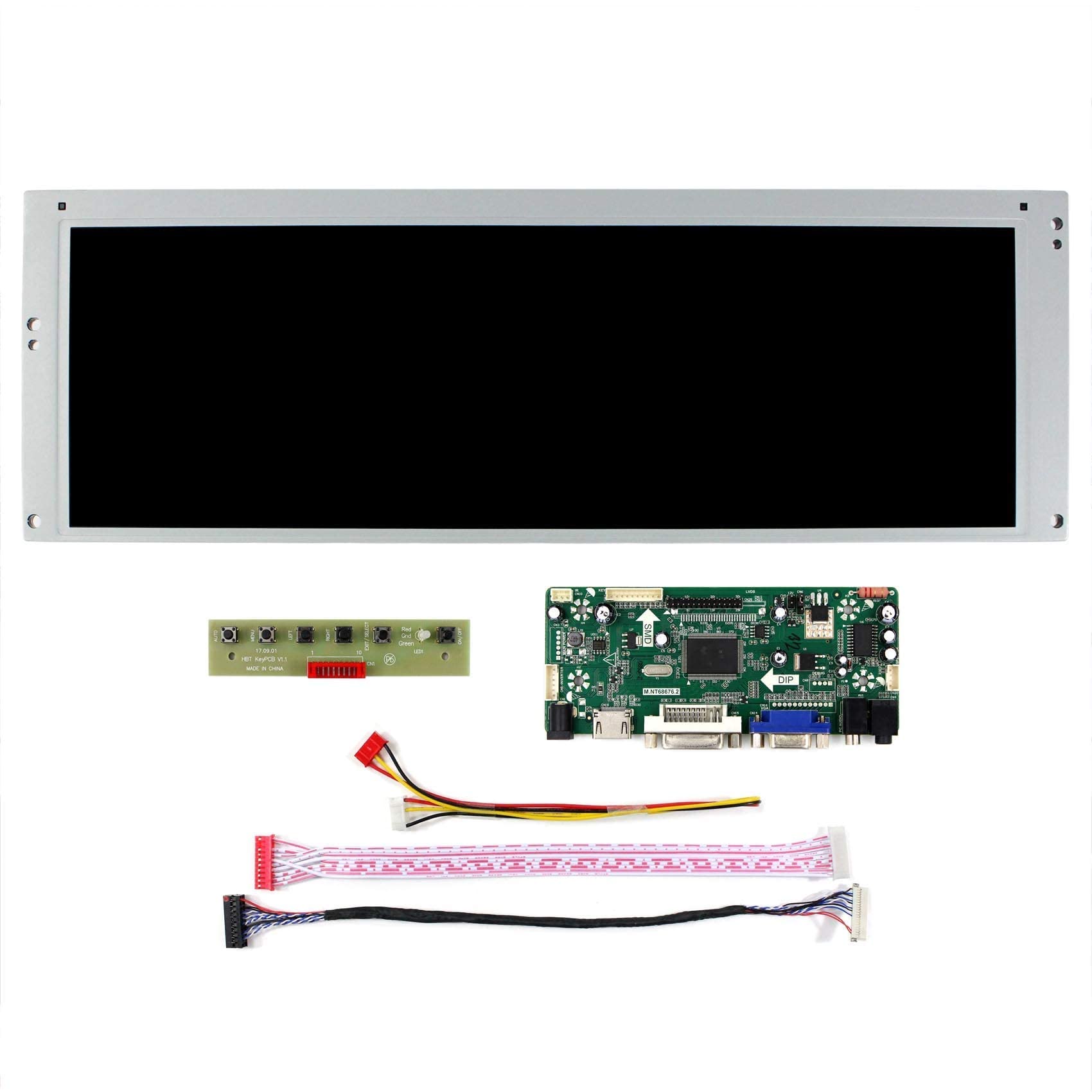

VSDISPLAY 14.9 inch LTA149B780F 1280x390 TFT LCD Screen and VGA DVI Auido LVDs Controller Board,for DIY Marquee Monitor
★★★★★
$137.85
Quantity
1
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item
- 14.9" industrial wide Screen LTA149B780F, Resolution 1280x390 60HZ,with Best View on 6 o'clock,Display Colors 262K, Display Area 360.94 × 109.98 (H×V)mm.Brightness 400 cd/m2 (Typ.),Contrast Ratio 500:1 (Typ.) ,Interface LVDS (1 ch, 6-bit) , 20 pins , Connector,Backlight WLED
- LCD Controller Board video input: VGA DVI,Audio Output: Speaker Connector (recommend use : 8ohm 2W 4Pin PH2.0 Speaker).If you want to protect the board ,recommend Case:Controller Board Case Acrylic Material White Case For 68676 Protect Case.
- 【Input Power : 12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare powe adapter by yourself.
- The native resolution for this screen is 1280x390 @ 60Hz,Pls set the video/picture resolution correctly,and Pls Make sure to select scaling at full-screen. when setting well, the monitor shows a clear and clean image.
- Pls ensure that the board is used in an insulated environment to avoid short circuits.Any question ,Pls keep us informed firstly ,we will give you best solution in 12 hours.
Product description

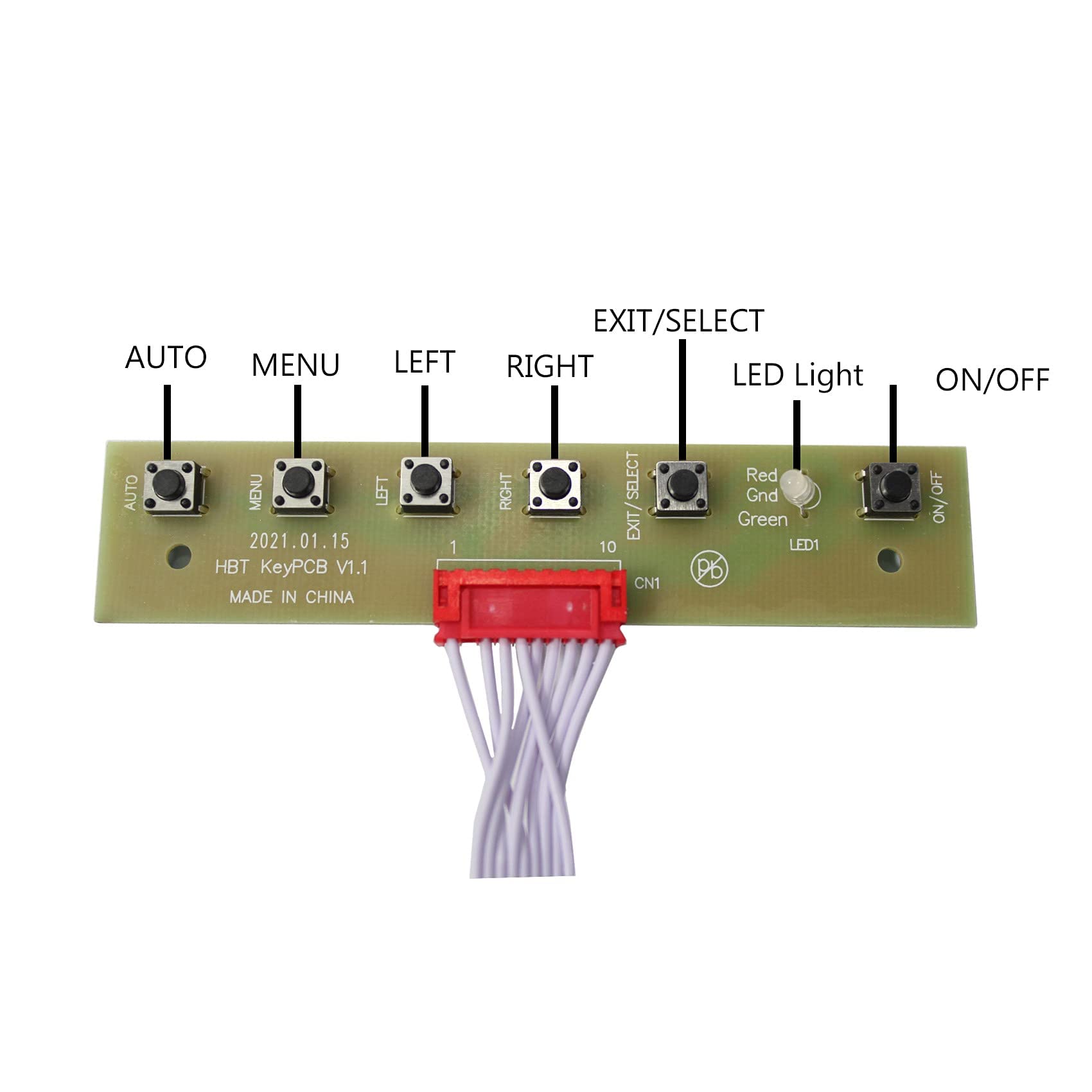

LCD Controller Board: DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model<1W Video Input: DVI VGA Audio Input: Audio Output: Speaker Connector OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 139mm x 53mm x 17mm 14.9" LTA149B780F 1280X390 LCD Screen: Display Mode TN, Normally White, Transmissive Resolution 1280RGB)×390 Outline Size 407.5× 136×20.5(H×V×D) Display Area 360.94 × 109.98 (H×V) Brightness 400 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) Viewing Angle 80/80/45/70 (Typ.)(CR≥10) [Left / Right / Up / Down] Interface LVDS (1 ch, 6-bit) , 20 pins , Connector Backlight WLED Input Voltage 3.3V (Typ.) Packing list: 1× Audio LCD Controller Board 1× 10.4inch VS140T-003A 1024x768 IPS LCD Screen 1× LVDS Cable 1× Inveter Board 1× Keyboard With Cable
