VSDISPLAY 13.3" 13.3inch LQ133M1JW03 1920x1080 IPS LCD screen and Controller Board VS-RTD2556H-V1,for DIY Monitor Display

• Good choice for DIY, Full View Angle ,Transmissive,Resolution 1920×1080, Response 25 (Typ.)(Tr+Td) ms, Display Area 293.76(W)×165.24(H) mm,Type eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins.
• Audio Output: Earphone,Please use in insulated environment.
• Input Power Supply： 12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare power adapter by yourself.
• Directly connecting cables and ports according to link picture details ,power on ,the keyboard LED light will be green,then enter in ,with correct resolution 1920x1080,the screen can work well.
• Any problem,Pls provide some connecting pictures, we will solve in 12 hours.

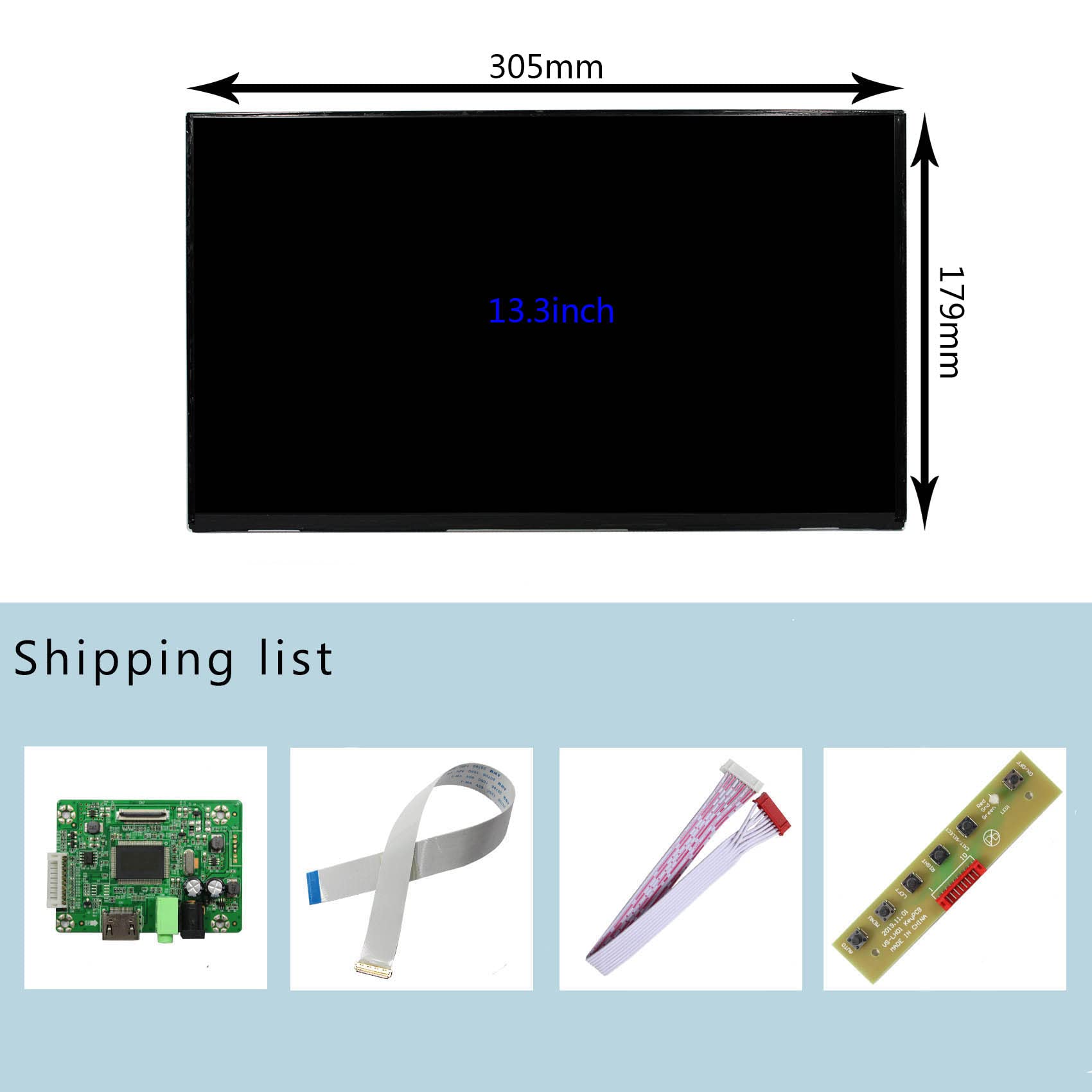

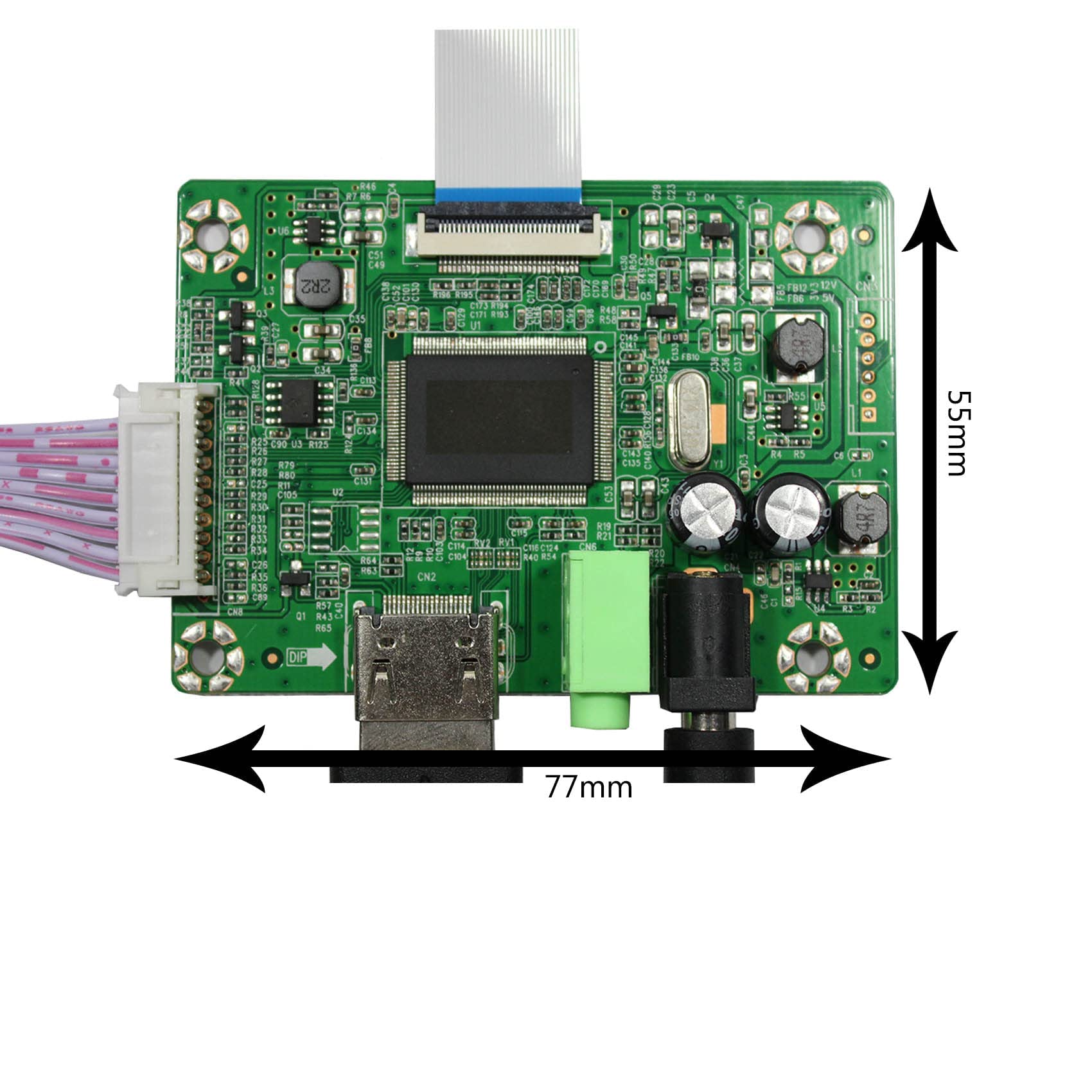

LCD Controller Board: Board Work for 30Pin EDP LCD Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <0.3W Audio Input: Audio Output: Earphone OSD: Brightness Contrast VOL+ VOL- Language And So On Language: English Board Size: 77mm x 55mm x 16mm 13.3" VS133GF-B001 1920X1080 LCD Screen: Display Mode AAS, Normally Black, Transmissive Resolution 1920(RGB)×1080 Outline Size 305.35×179.36×5mm(H×V×D) Display Area 293.7×165.2(H×V) Brightness 400 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) Viewing Angle 88/88/88/88 (Typ.)(CR≥10) [Left / Right / Up / Down] Interface eDP (2 Lanes), Connector, 30pins Backlight WLED Input Voltage 3.3V (Typ.) Packing list: 1× LCD Controller Board VS-RTD2556H-V1 1× 13.3inch VS133GF-B001 1920X1080 LCD Screen 1× Cable 1× Keyboard With Cable
